Whiteline Universal Sway Bar Link - S Style Single or Double Eye link Service Kit

SKU: W0004

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.


Kit Specifications

Bush Type 15 - Tapered Cotton Real Bushing
Bush Quantity 2 mm
OD (A) AI=29.3 AII=26 mm
ID (B) 14 mm
Length (C) 23.2 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 16x10.2x23 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 15 - Tapered Cotton Real Bushing

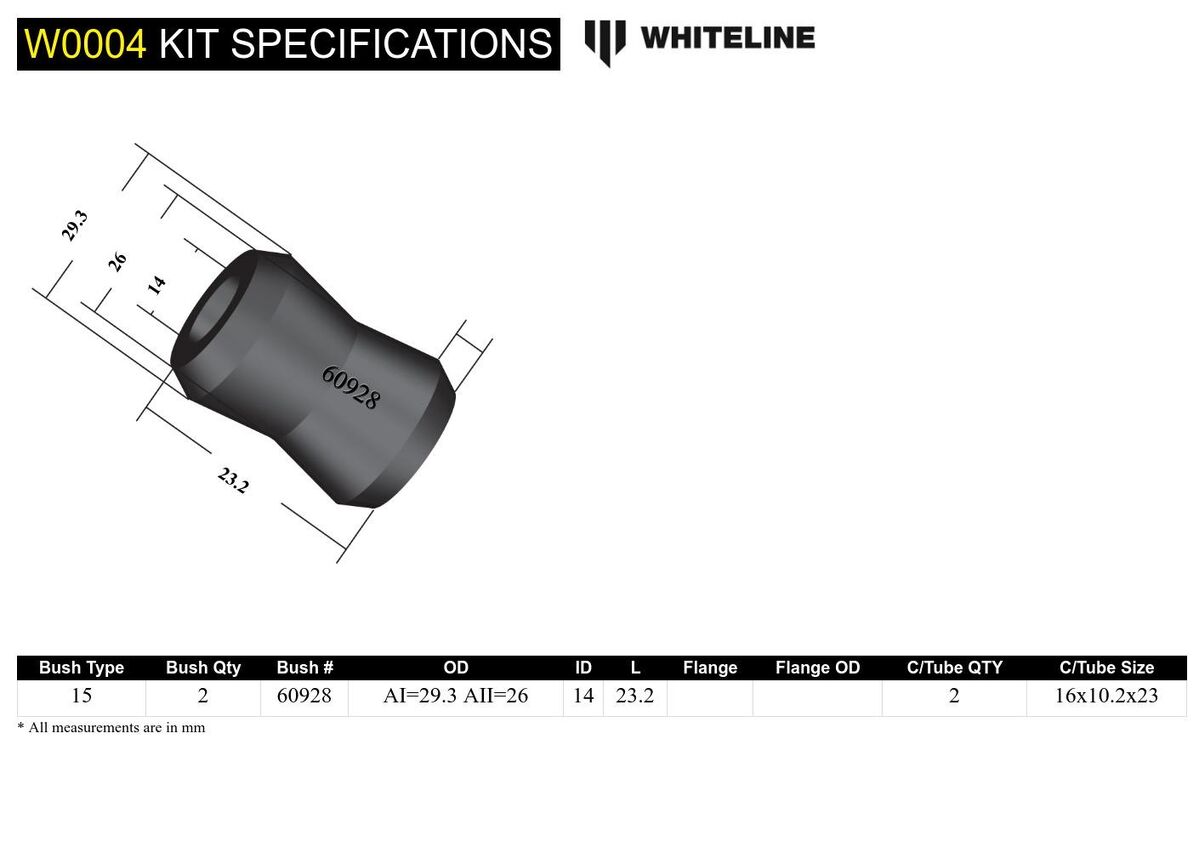

Bushing Design Dimensions (mm)

Bush Type 15
QTY 2
OD (A) AI=29.3 AII=26
ID (B) 14
Length (C) 23.2
FL (D)
FLOD (E)
C/Tube Qty 2
C/Tube Size 16x10.2x23
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 15

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.1kg0.22lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0004
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteDesigned to perform under extreme conditions, delivering long-lasting, reliable performance the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924343560
  • Lifetime Warranty
Brand Whiteline
SKU W0004
Unit Of Measure Kit
