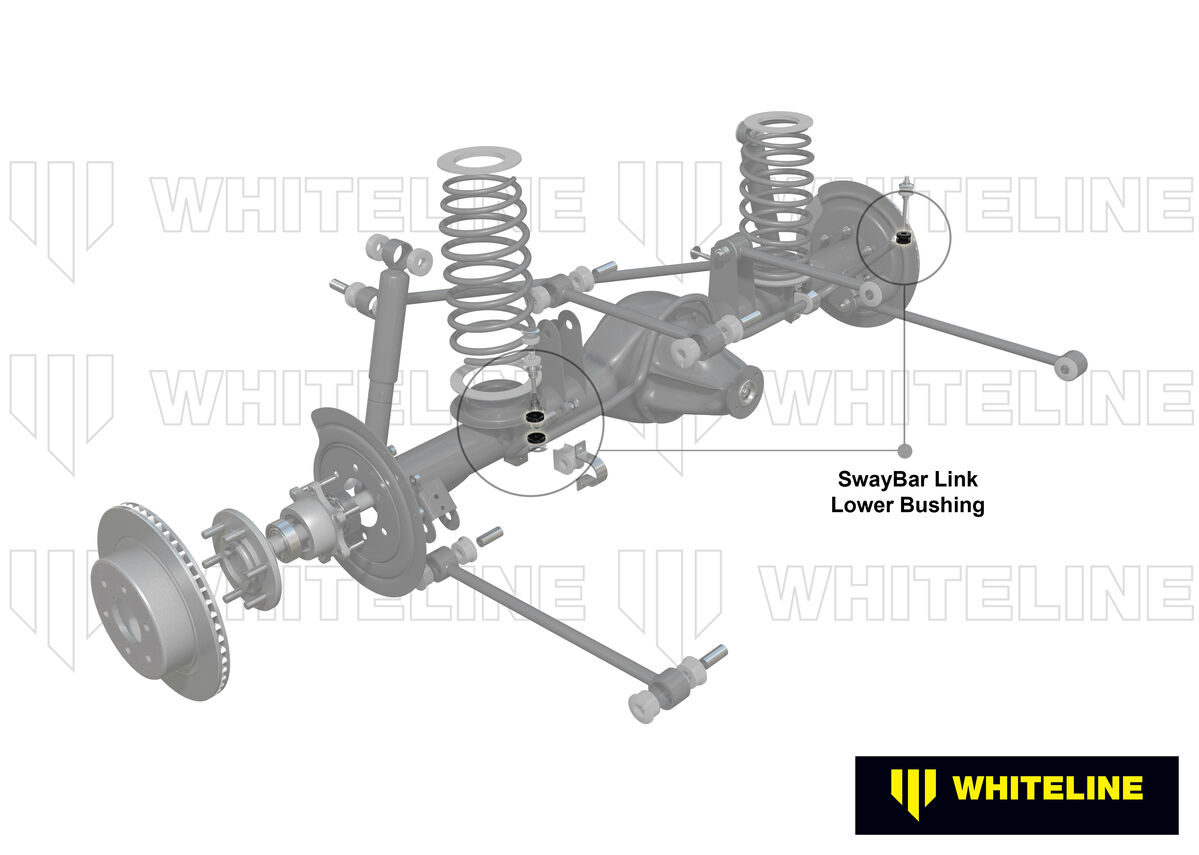

Whiteline Sway Bar Link - Lower Bushing Kit to Suit Toyota Land Cruiser 76, 78, 79, 80, 105, 200 Series

SKU: W23526

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 27.2 mm
ID (B) 16 mm
Length (C) 12.2 mm
Flange Thickness (D) 4.4 mm
Flange OD (E) 34 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 27.2
ID (B) 16
Length (C) 12.2
FL (D) 4.4
FLOD (E) 34
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.085kg0.19lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23526

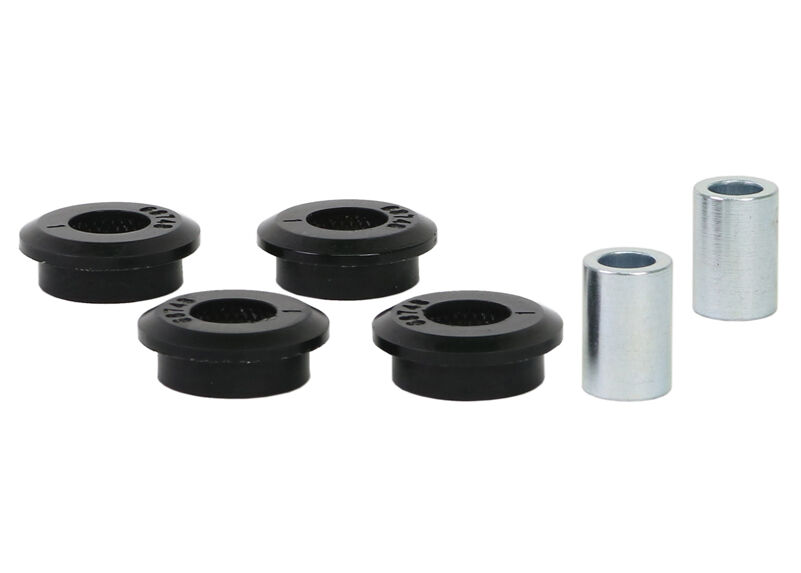

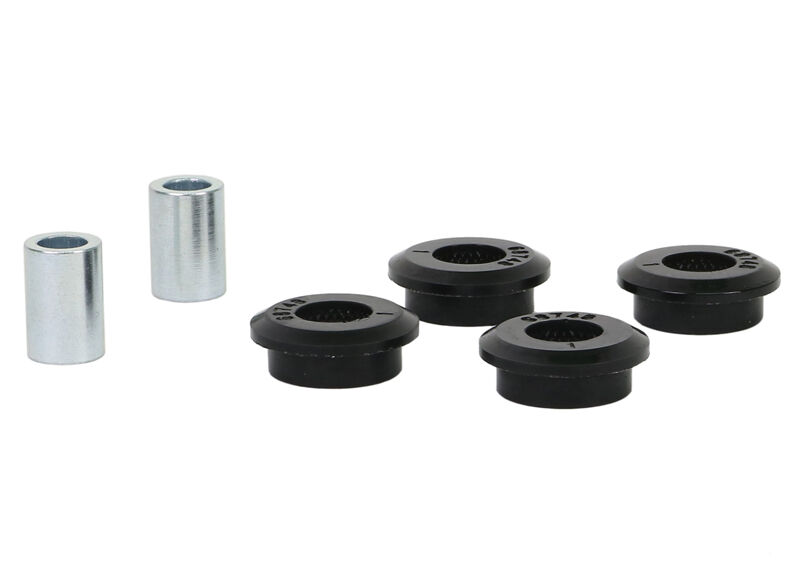

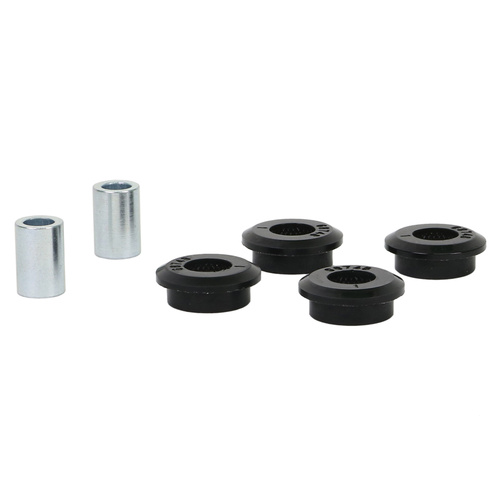

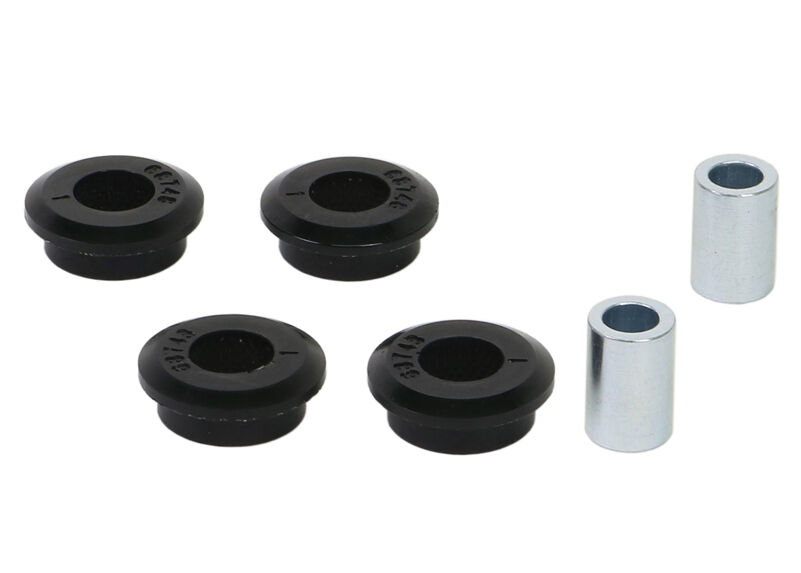

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924455362
  • Lifetime Warranty
Brand Whiteline
SKU W23526
Unit Of Measure Kit
