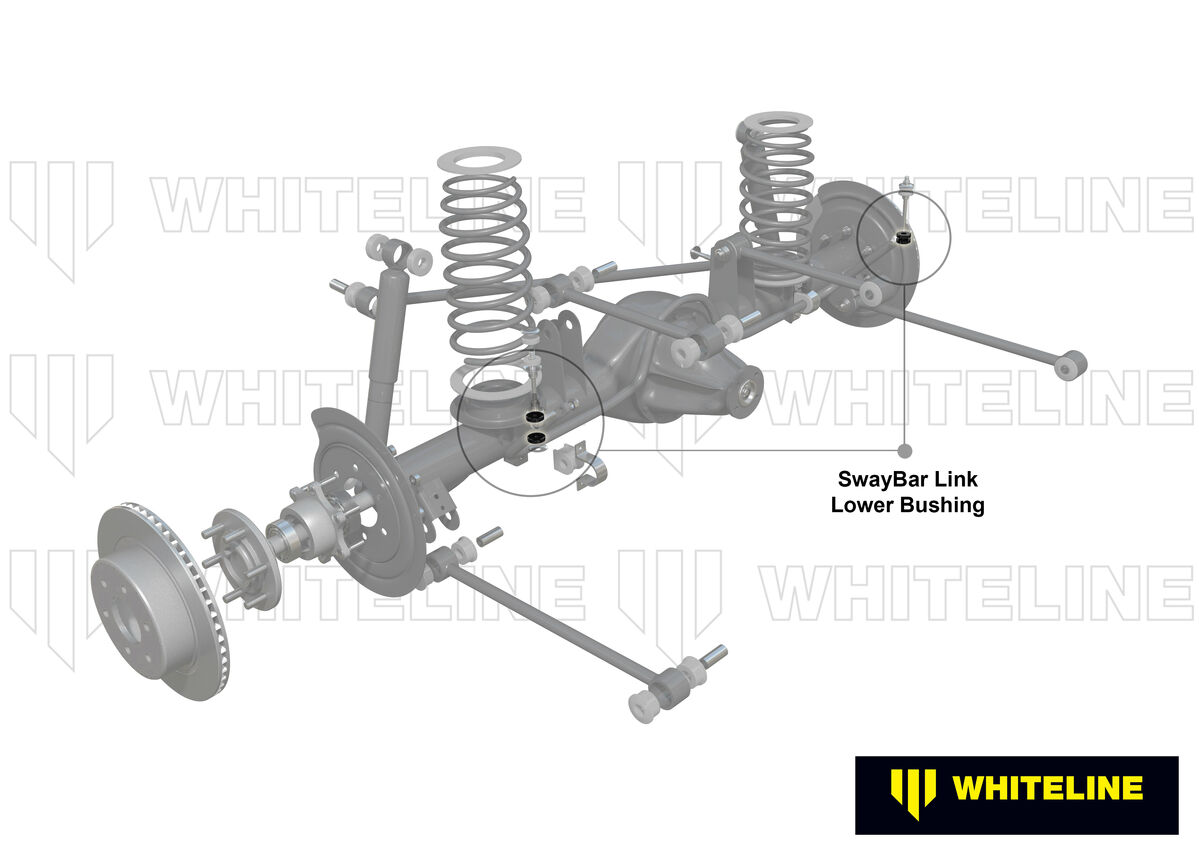

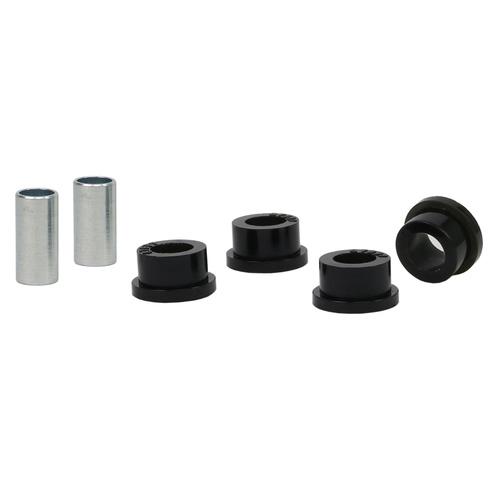

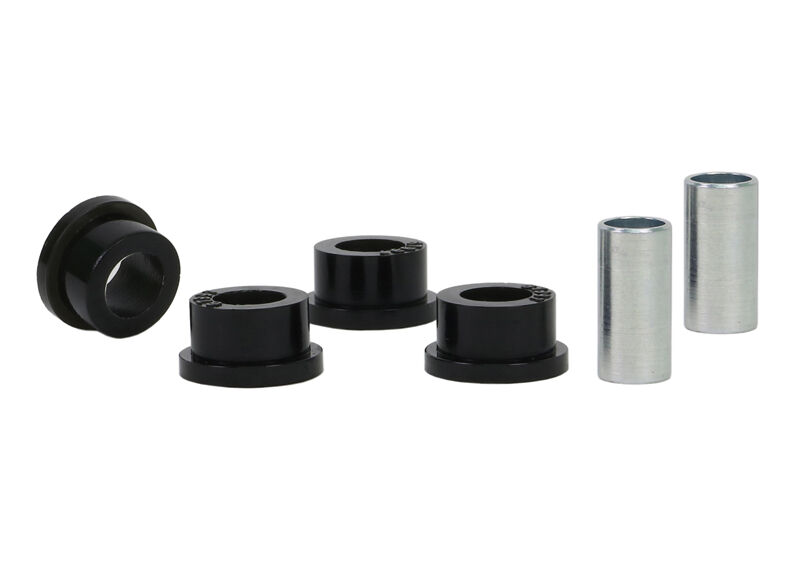

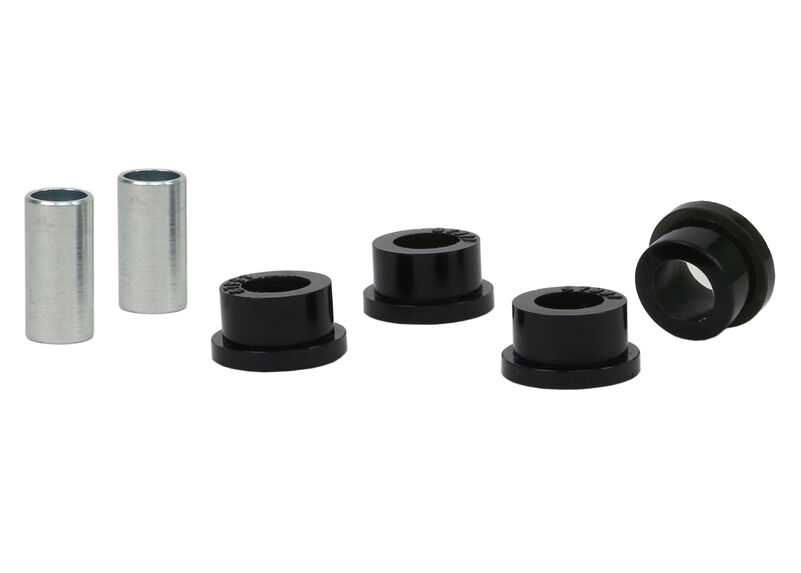

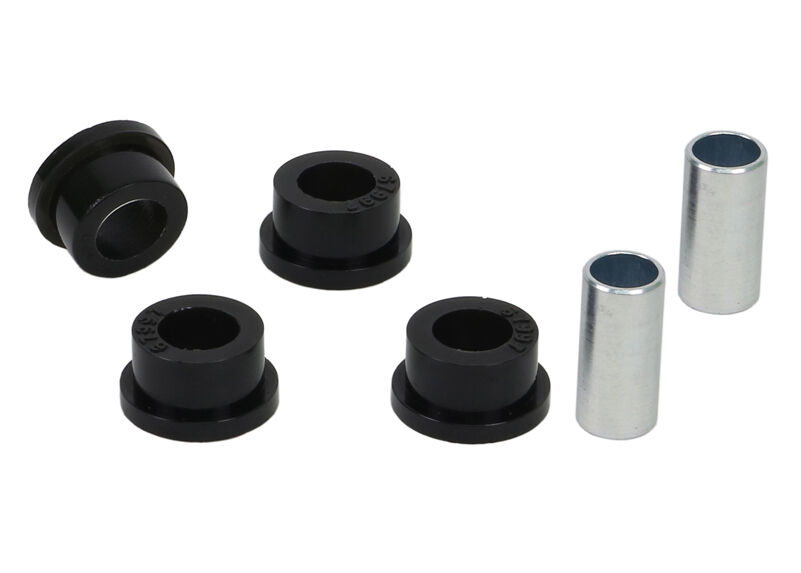

Whiteline Sway Bar Link - Lower Bushing Kit to Suit Jeep Cherokee XJ

SKU: W23453

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 25.7 mm
ID (B) 16 mm
Length (C) 16.3 mm
Flange Thickness (D) 4.3 mm
Flange OD (E) 31 mm
C/Tube Quantity 4
C/Tube ODxIDxL 16x13.2x34 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 25.7
ID (B) 16
Length (C) 16.3
FL (D) 4.3
FLOD (E) 31
C/Tube Qty 4
C/Tube Size 16x13.2x34
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.078kg0.17lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23453
Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9319924392360
  • Lifetime Warranty
Brand Whiteline
SKU W23453
Unit Of Measure Kit
