Whiteline Sway Bar Link - Bushing Kit to Suit Toyota HiAce LY230 and Land Cruiser 76, 78, 79 and 100 Series

SKU: W23421

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.

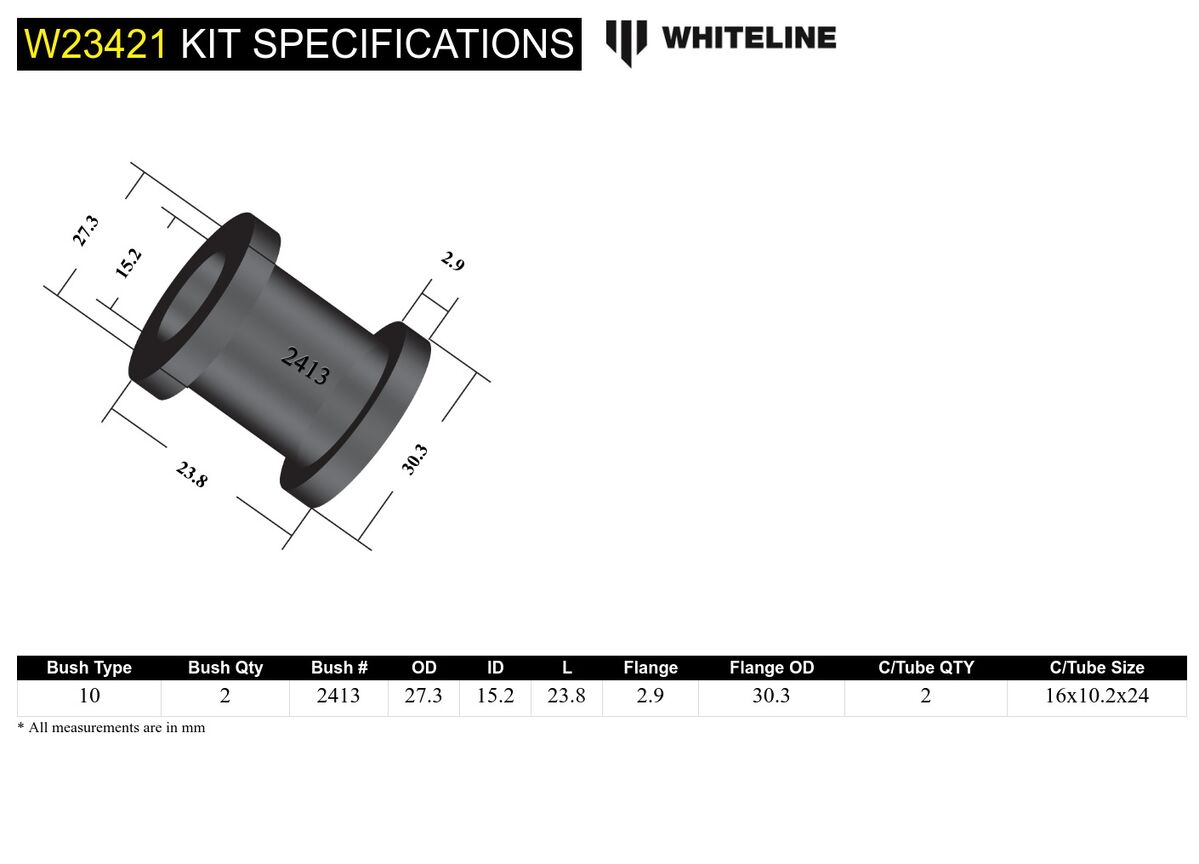

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 27.3 mm
ID (B) 15.2 mm
Length (C) 23.8 mm
Flange Thickness (D) 2.9 mm
Flange OD (E) 30.3 mm
C/Tube Quantity 2
C/Tube ODxIDxL 16x10.2x24 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 27.3
ID (B) 15.2
Length (C) 23.8
FL (D) 2.9
FLOD (E) 30.3
C/Tube Qty 2
C/Tube Size 16x10.2x24
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.195kg0.43lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23421

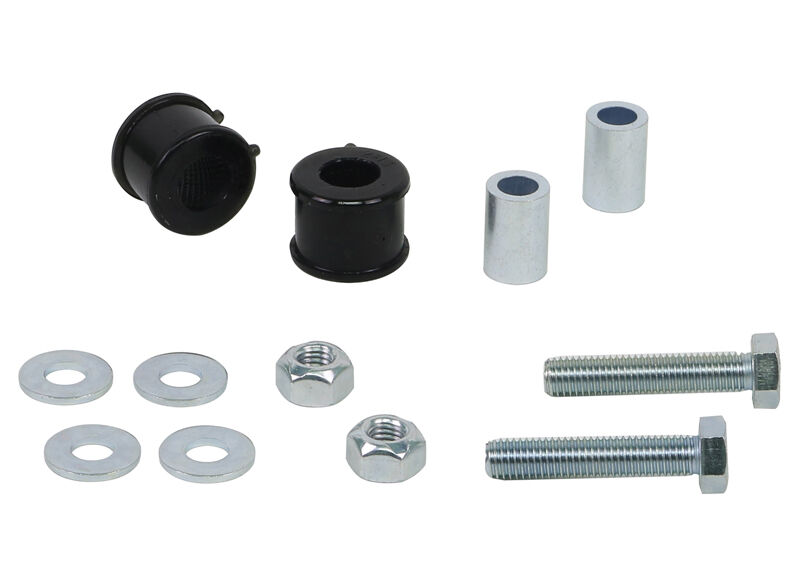

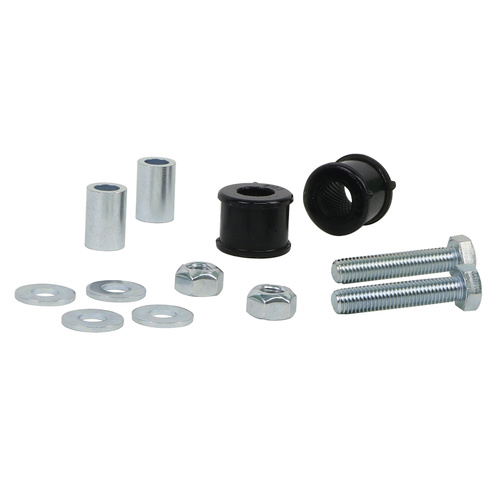

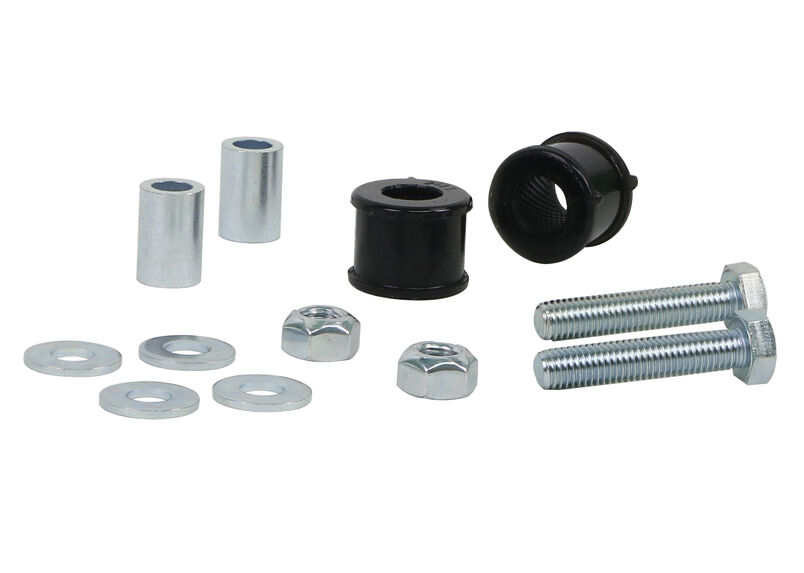

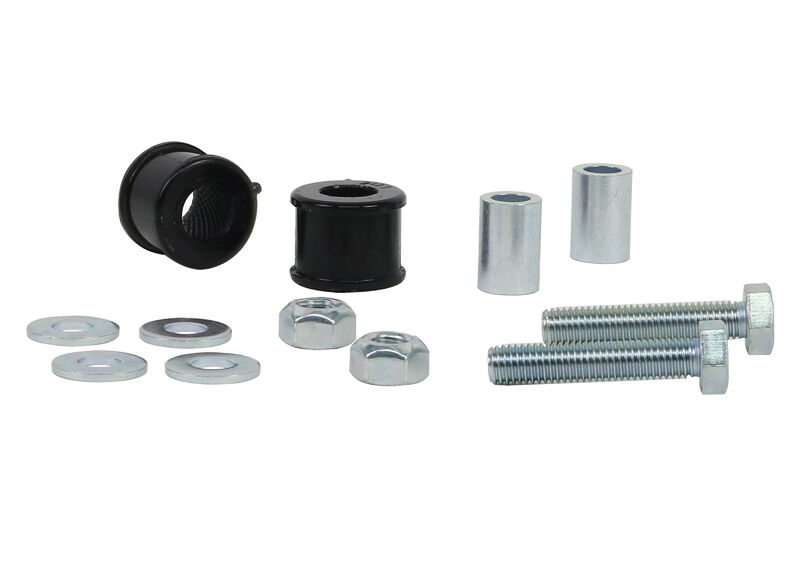

Components Per2 Bushings, 2 Tubes, 2 Bolts, 4 Washers, 2 Nuts
Kits Required1
Sub brandReplacement
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes, 2 Bolts, 4 Washers, 2 Nuts
EAN9319924389131
  • Lifetime Warranty
Brand Whiteline
SKU W23421
Unit Of Measure Kit
