Whiteline Steering Bush Kit to Suit Toyota Hilux 2015-on

SKU: KSR214

Benefit Note: Manual steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 33.6 mm
ID (B) 22.2 mm
Length (C) 31.7 mm
Flange Thickness (D) 8 mm
Flange OD (E) 45.1 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x14.3x65 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 33.6
ID (B) 22.2
Length (C) 31.7
FL (D) 8
FLOD (E) 45.1
C/Tube Qty 2
C/Tube Size 22.2x14.3x65
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.435kg0.96lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKSR214

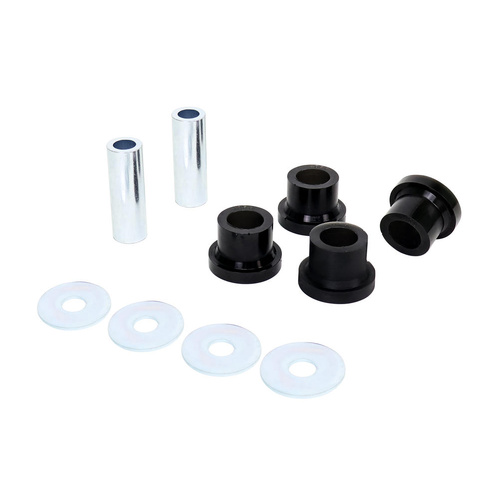

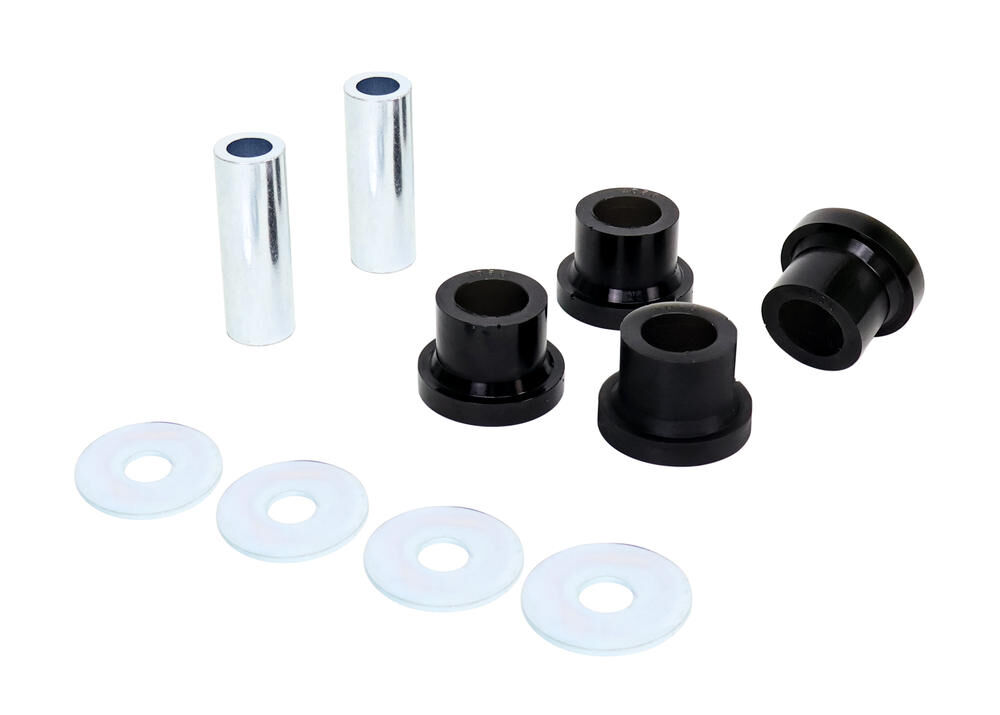

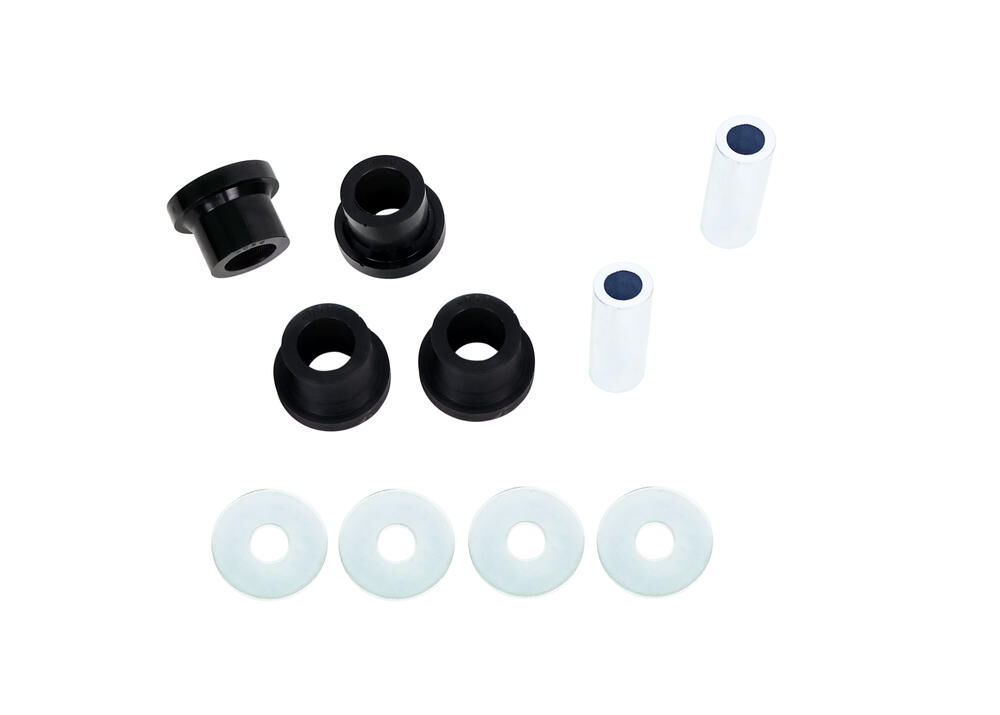

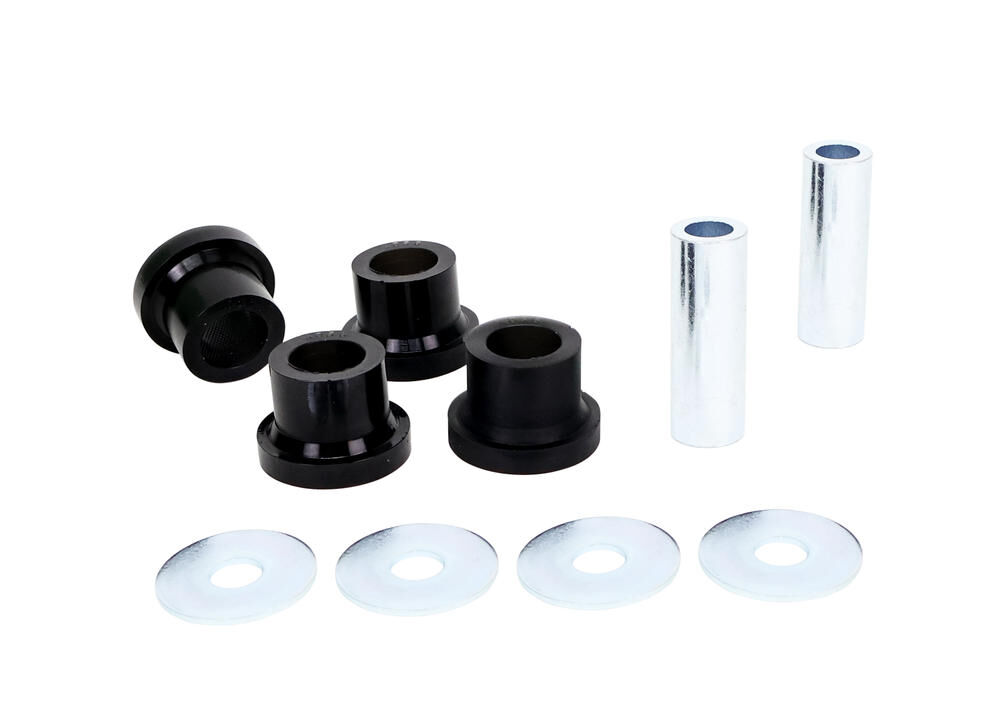

Components Per4 Bushings, 2 Tubes, 4 Washers
Kits Required1
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 4 Washers
EAN9319924479146
  • Lifetime Warranty
Brand Whiteline
SKU KSR214
Unit Of Measure Kit
