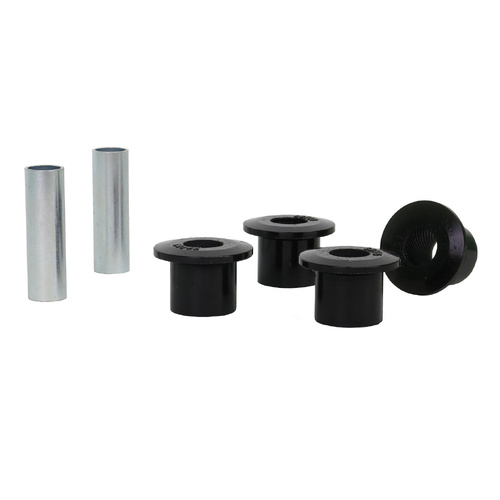

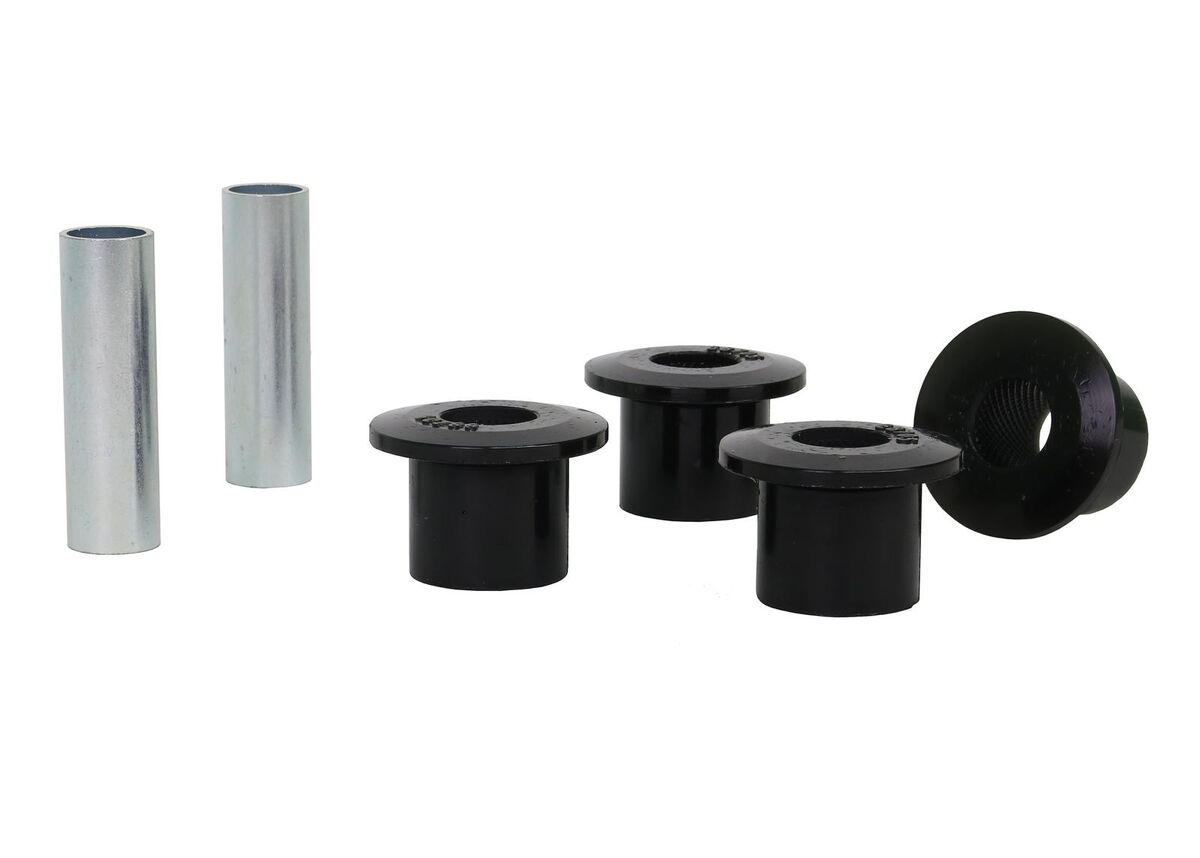

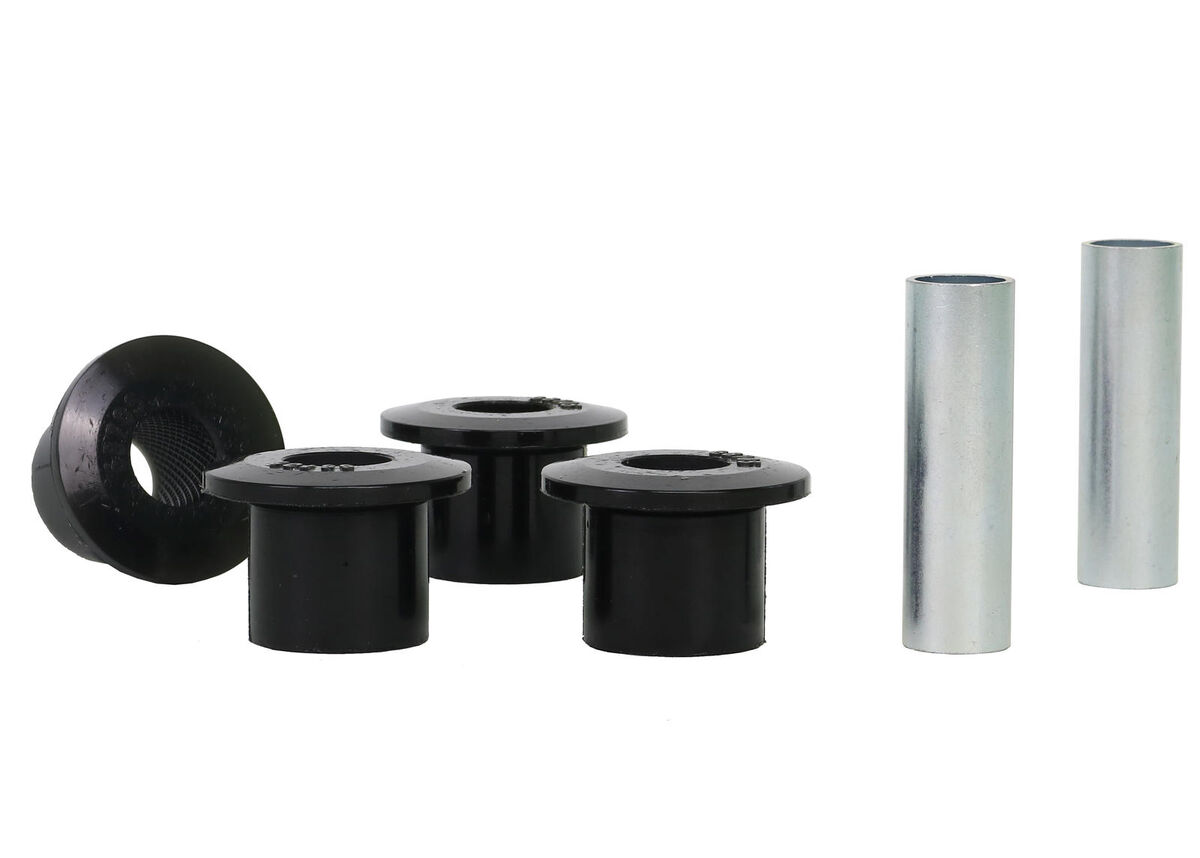

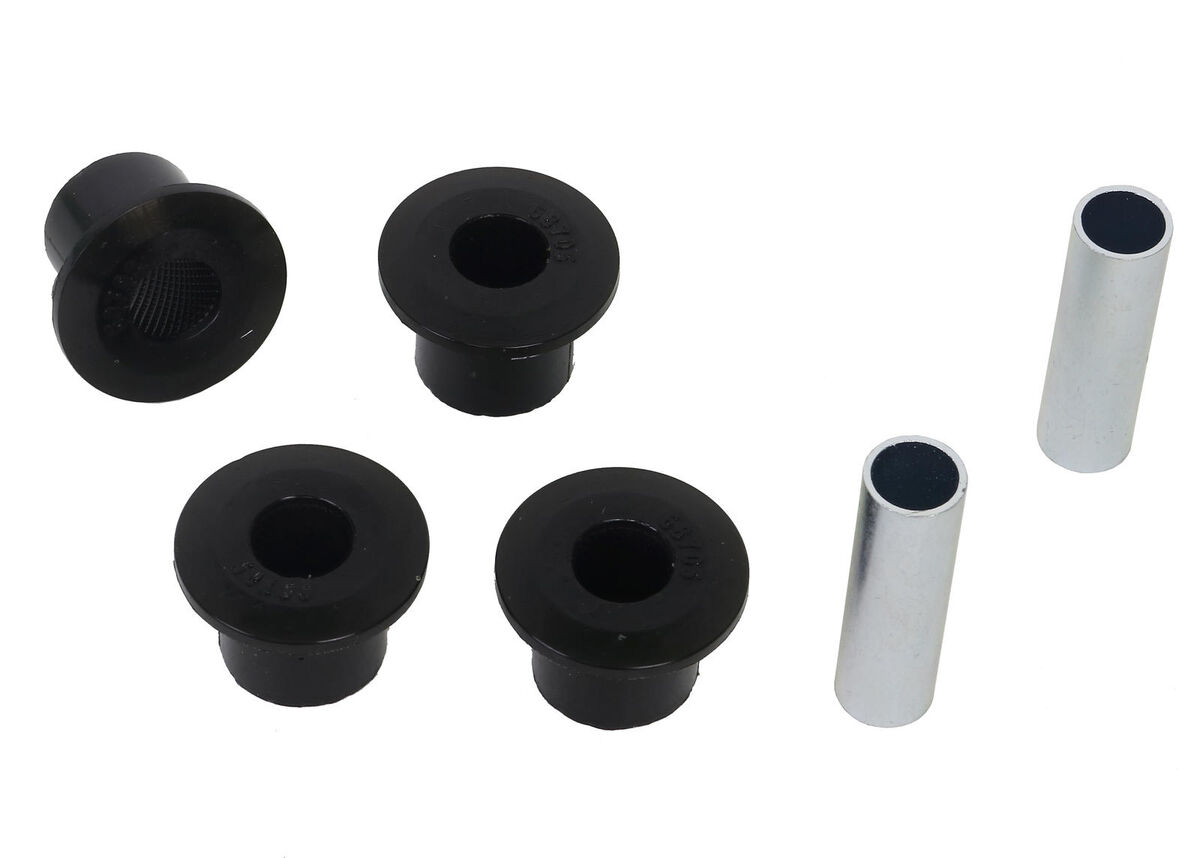

Whiteline Shock Absorber - To Control Arm Bushing Kit to Suit Ford Falcon/Fairlane EA-BF, Territory SX-SZ and FPV

SKU: W31296

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 32 mm
ID (B) 19 mm
Length (C) 31.6 mm
Flange Thickness (D) 4.8 mm
Flange OD (E) 39.7 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x16.2x65 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 32
ID (B) 19
Length (C) 31.6
FL (D) 4.8
FLOD (E) 39.7
C/Tube Qty 2
C/Tube Size 19x16.2x65
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.2kg0.44lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW31296
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924351145
  • Lifetime Warranty
Brand Whiteline
SKU W31296
Unit Of Measure Kit
