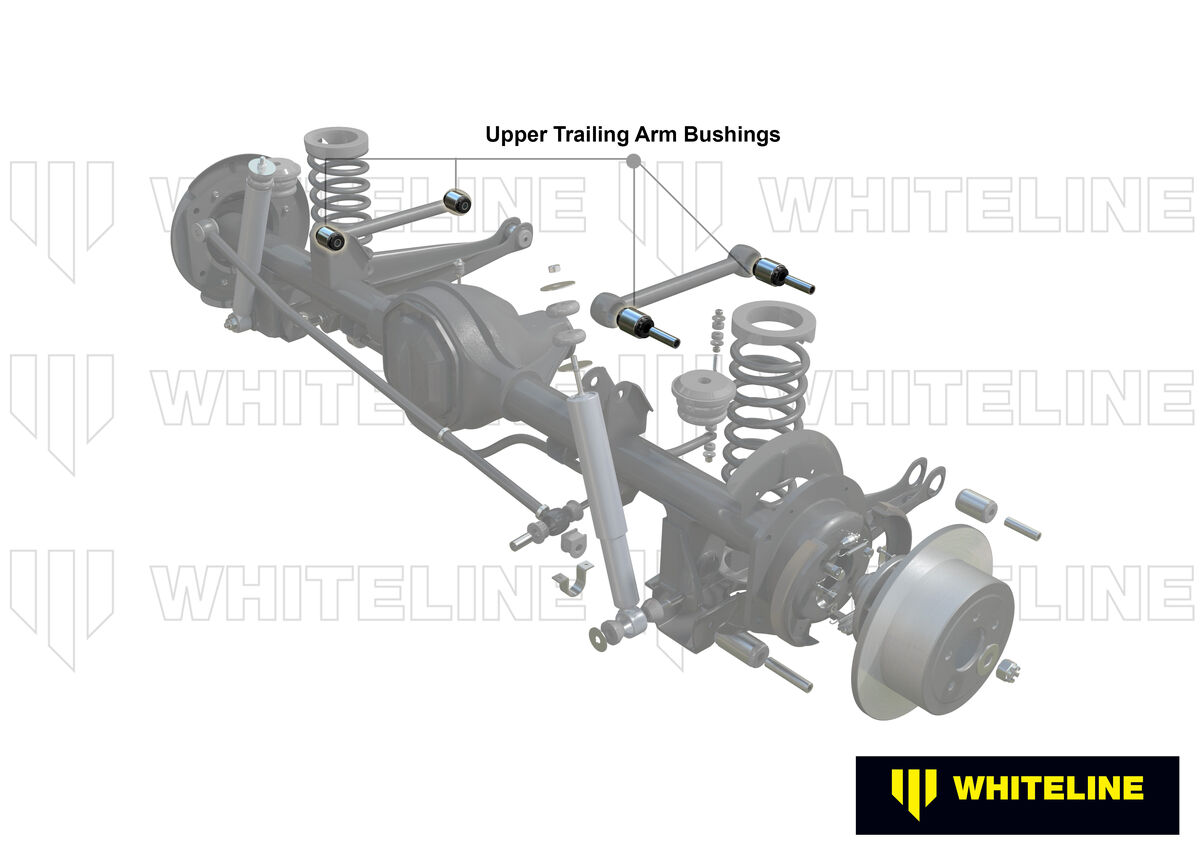

Whiteline Rear Trailing Arm Upper - Arm Bushing Service Kit for KTA103 Suits Holden Commodore VB-VS and HSV

SKU: W0608

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

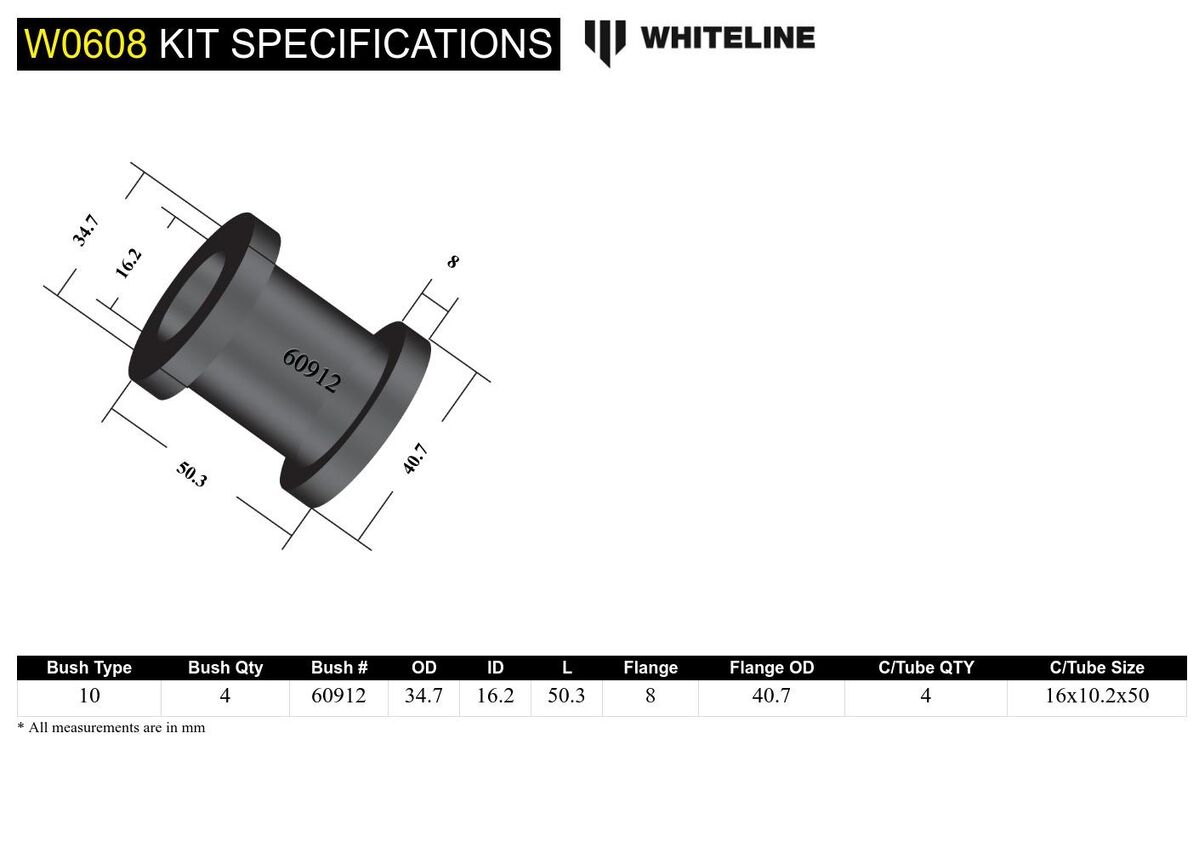

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 4 mm
OD (A) 34.7 mm
ID (B) 16.2 mm
Length (C) 50.3 mm
Flange Thickness (D) 8 mm
Flange OD (E) 40.7 mm
C/Tube Quantity 4
C/Tube ODxIDxL 16x10.2x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 4
OD (A) 34.7
ID (B) 16.2
Length (C) 50.3
FL (D) 8
FLOD (E) 40.7
C/Tube Qty 4
C/Tube Size 16x10.2x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.388kg0.86lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0608
Components Per4 Bushings, 4 Tubes
Kits Required1
Sub brandPerformance
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 4 Tubes
EAN9319924397600
  • Lifetime Warranty
Brand Whiteline
SKU W0608
Unit Of Measure Kit
