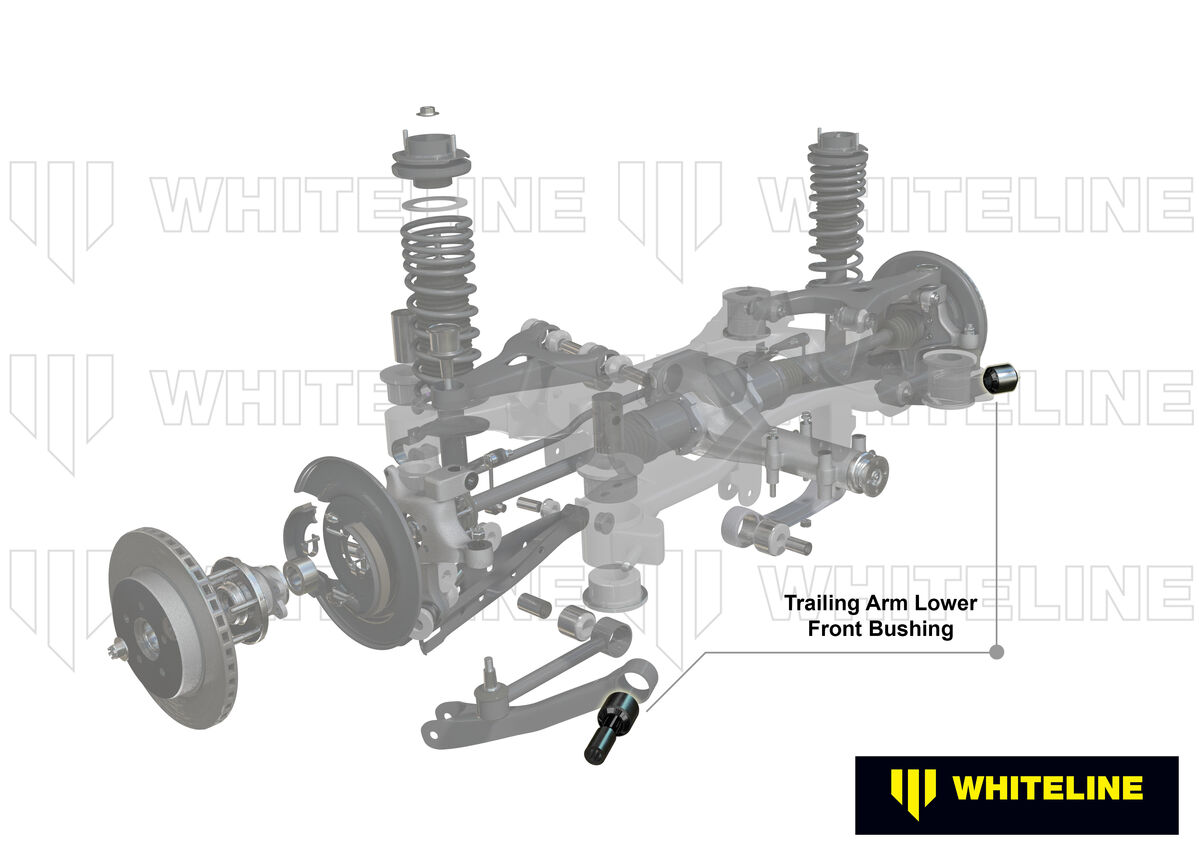

Whiteline Rear Trailing Arm Lower - Front Bushing Kit to Suit Mitsubishi Pajero NM-NX

SKU: W63419

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 73 mm
ID (B) 25 mm
Length (C) 76.7 mm
Flange Thickness (D) 10 mm
Flange OD (E) 45.5 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x16.4x74.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 73
ID (B) 25
Length (C) 76.7
FL (D) 10
FLOD (E) 45.5
C/Tube Qty 2
C/Tube Size 25.4x16.4x74.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.127kg2.48lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63419

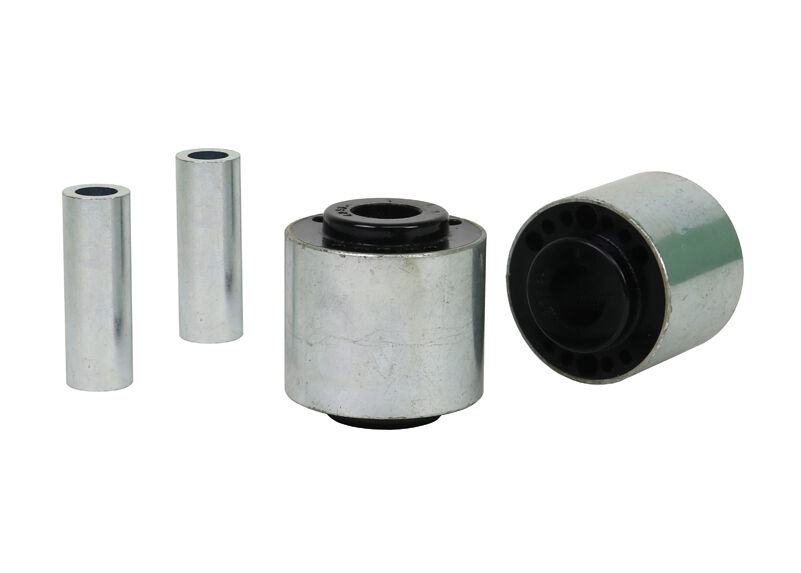

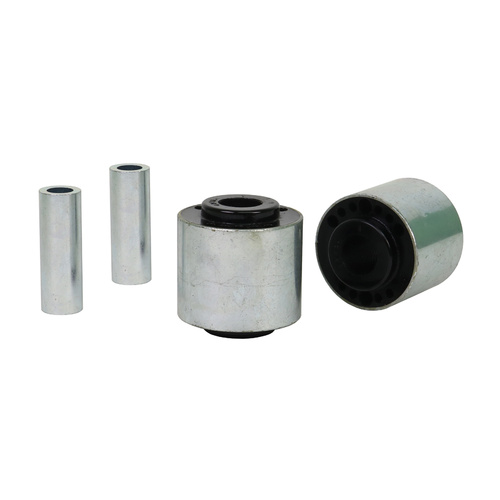

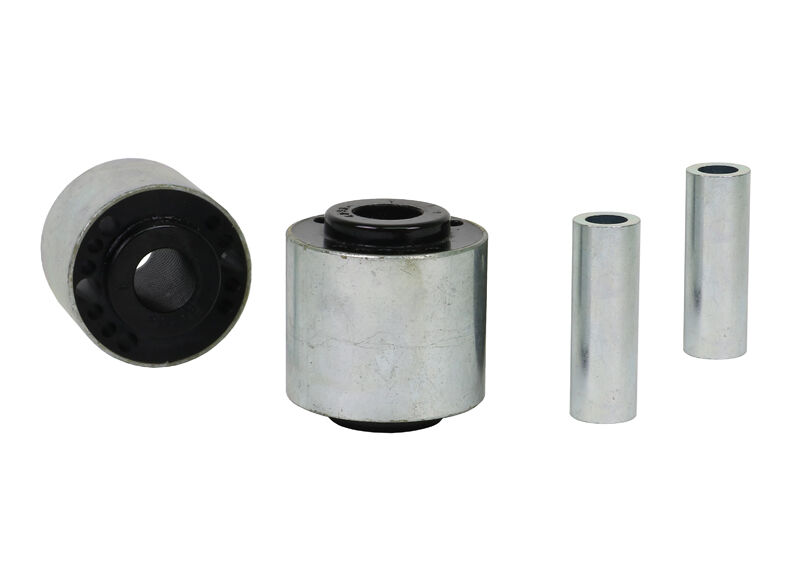

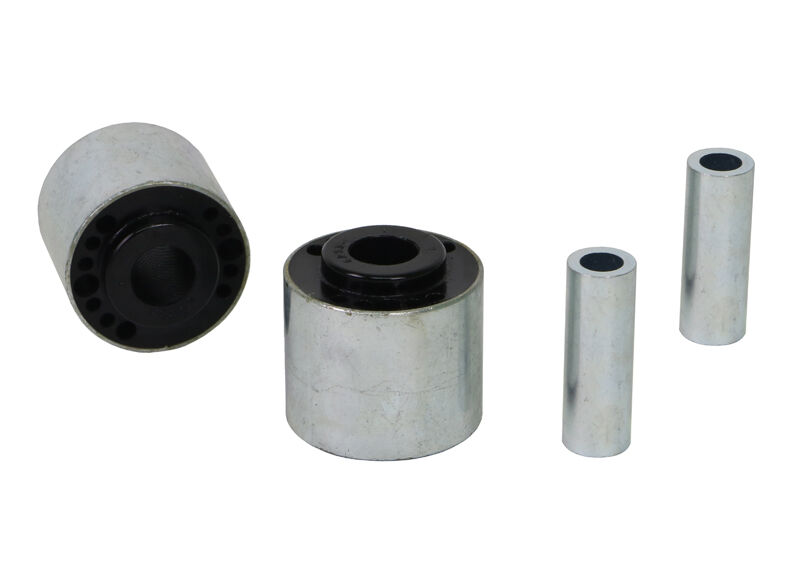

Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924389575
  • Lifetime Warranty
Brand Whiteline
SKU W63419
Unit Of Measure Kit
