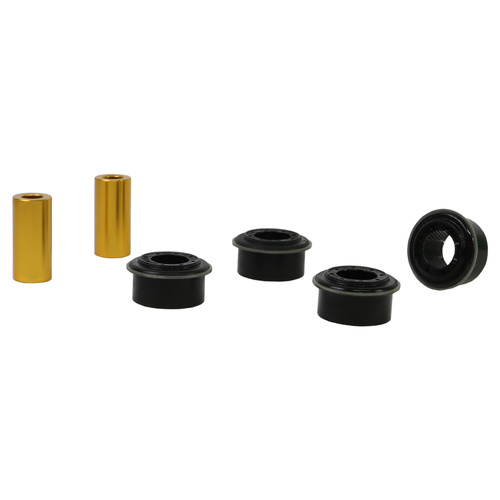

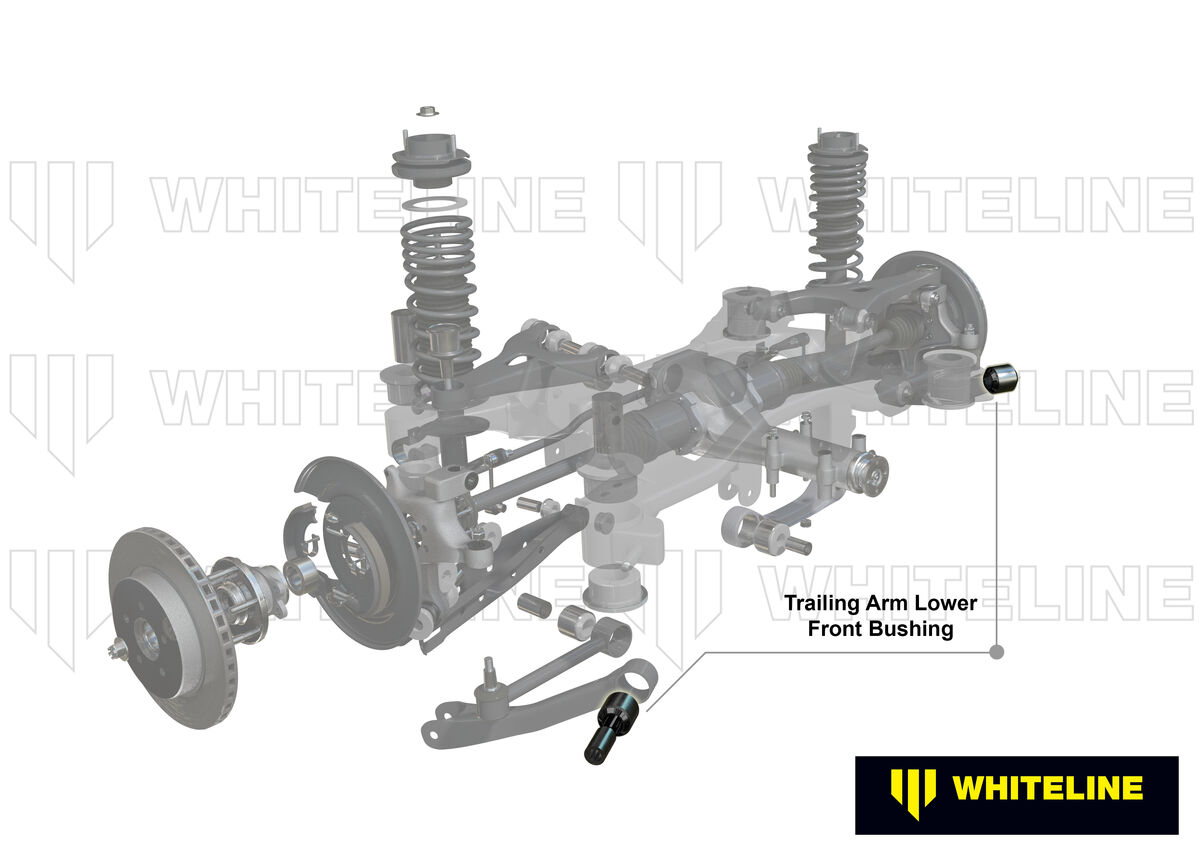

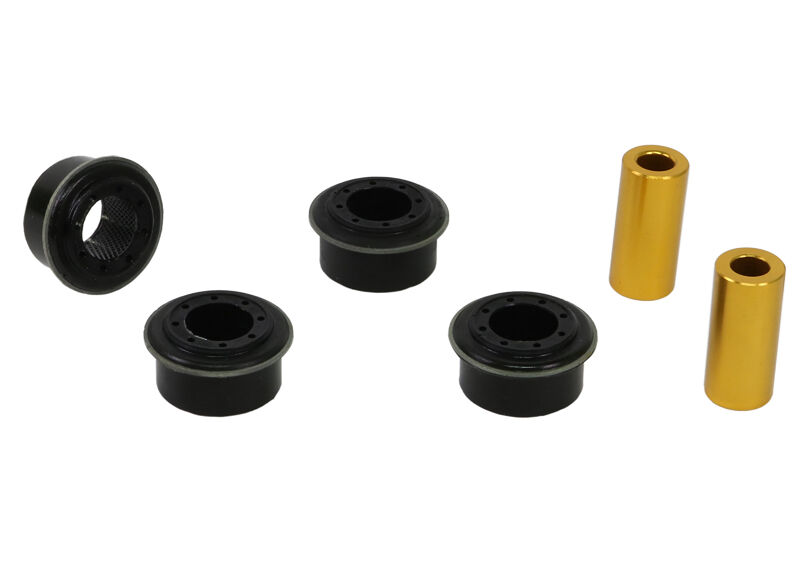

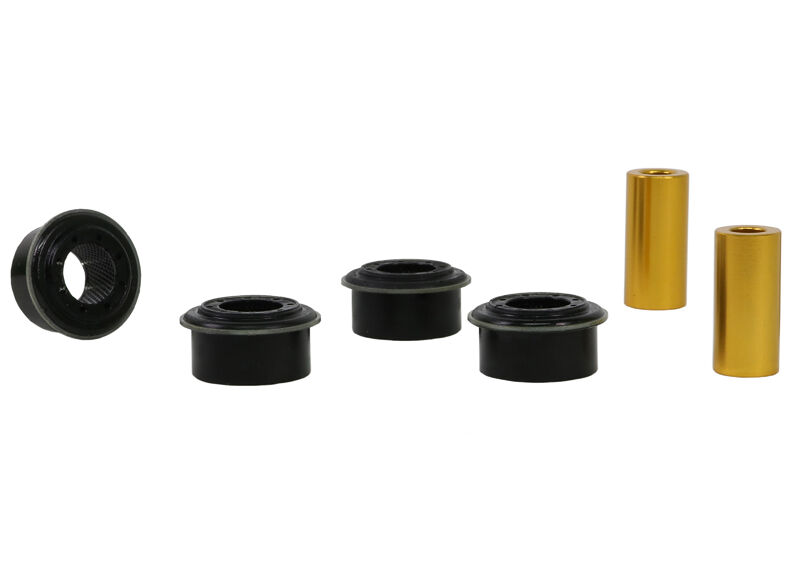

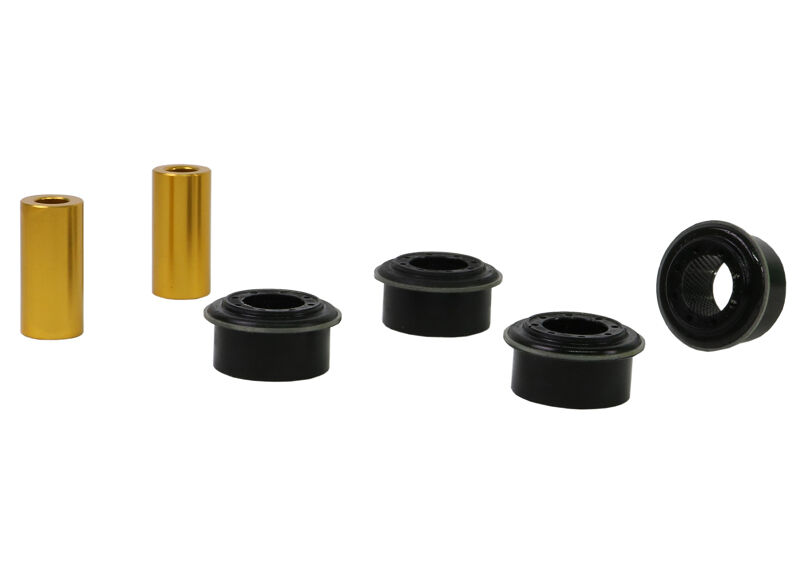

Whiteline Rear Trailing Arm Lower - Front Bushing Kit to Suit Subaru BRZ, Impreza, Levorg, Liberty and Toyota 86

SKU: W63414

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 39.8 mm
ID (B) 22.2 mm
Length (C) 22.5 mm
Flange Thickness (D) 5.9 mm
Flange OD (E) 47.1 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x12.2x48 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 39.8
ID (B) 22.2
Length (C) 22.5
FL (D) 5.9
FLOD (E) 47.1
C/Tube Qty 2
C/Tube Size 22.2x12.2x48
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.283kg0.62lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63414
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924389520
  • Lifetime Warranty
Brand Whiteline
SKU W63414
Unit Of Measure Kit
