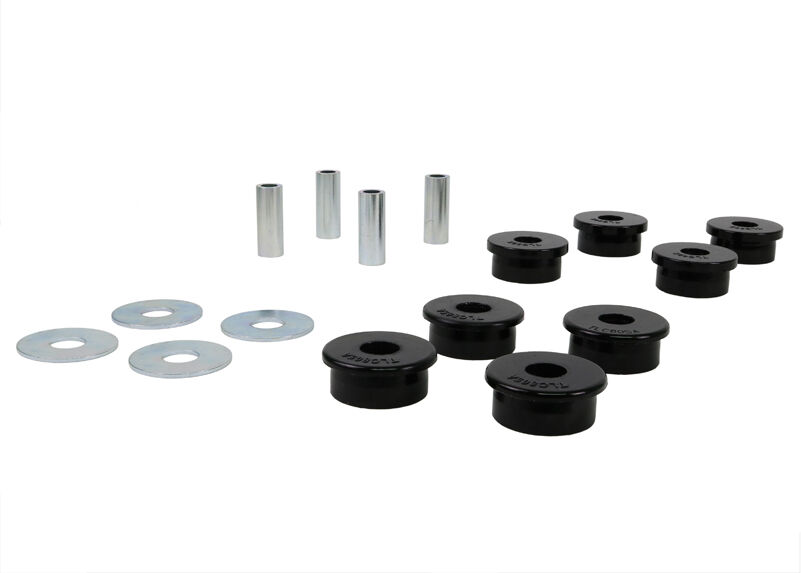

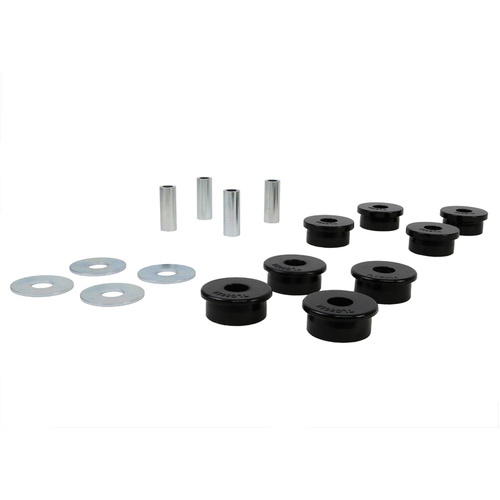

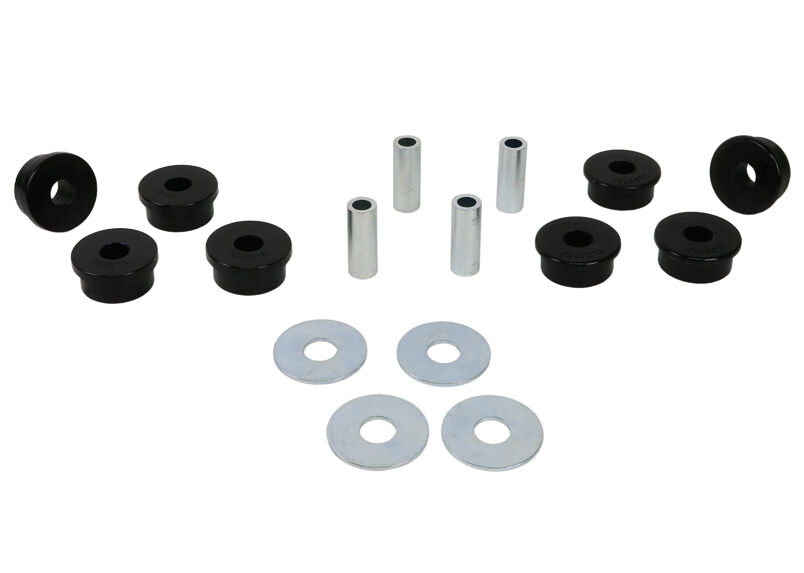

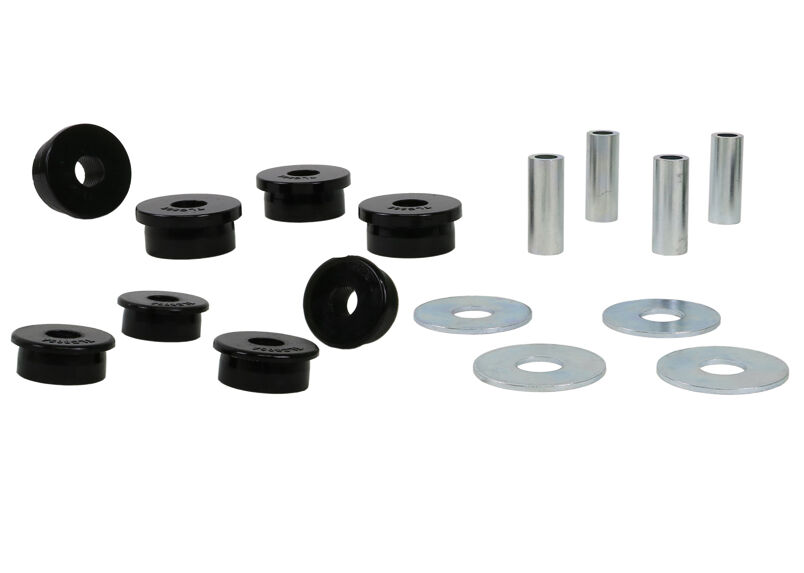

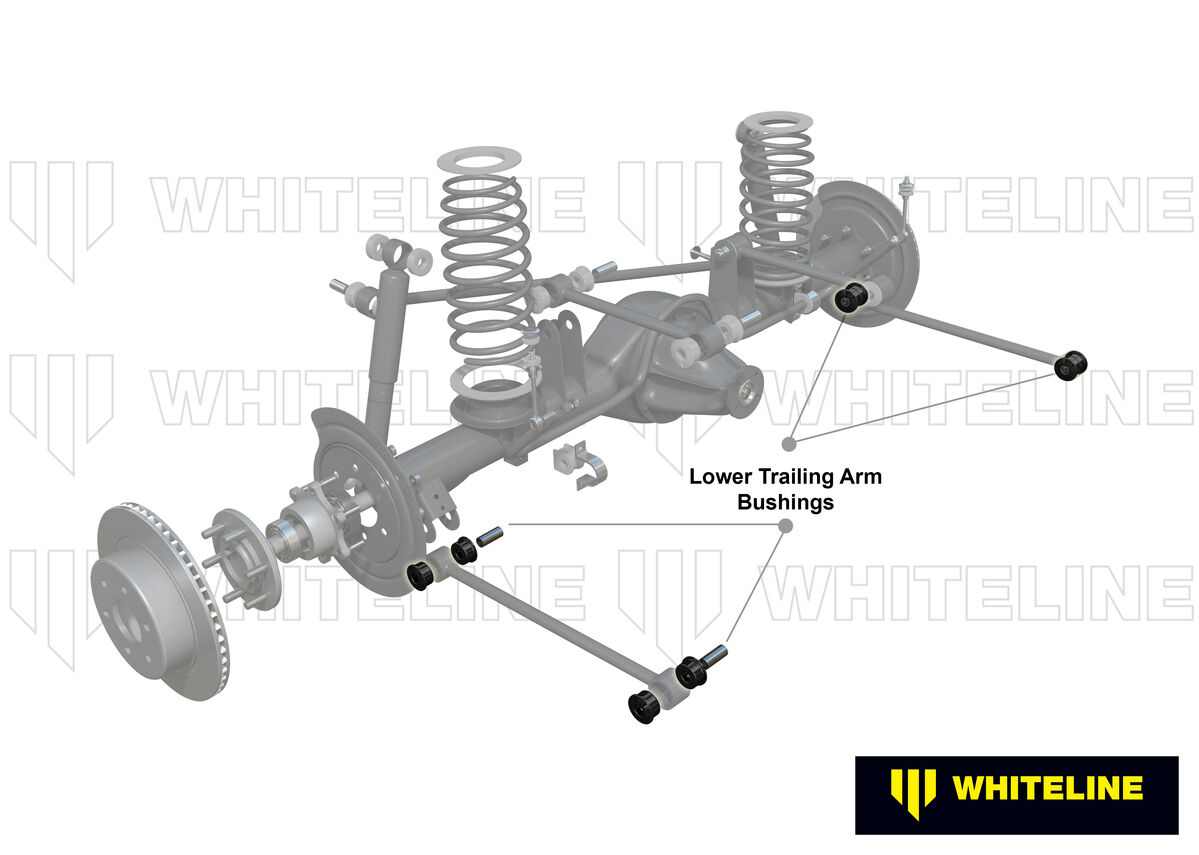

Whiteline Rear Trailing Arm Lower - Bushing Kit to Suit Toyota Land Cruiser 100 Series IFS

SKU: W63352

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm
OD (A) 55.5 mm 55.5 mm
ID (B) 22 mm 22 mm
Length (C) 25.4 mm 28.8 mm
Flange Thickness (D) 5.2 mm 8.1 mm
Flange OD (E) 64.9 mm 64.9 mm
C/Tube Quantity 4 4
C/Tube ODxIDxL 22.2x14.3x60 mm 22.2x14.3x60 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 4 4
OD (A) 55.5 55.5
ID (B) 22 22
Length (C) 25.4 28.8
FL (D) 5.2 8.1
FLOD (E) 64.9 64.9
C/Tube Qty 4 4
C/Tube Size 22.2x14.3x60 22.2x14.3x60
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.256kg2.77lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW63352
Components Per8 Bushings, 4 Tubes, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes, 4 Washers
EAN9319924379507
  • Lifetime Warranty
Brand Whiteline
SKU W63352
Unit Of Measure Kit
