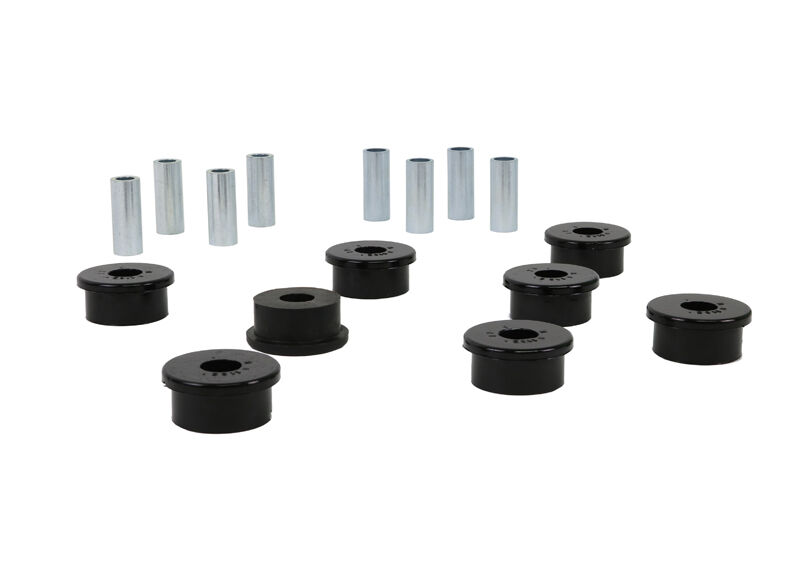

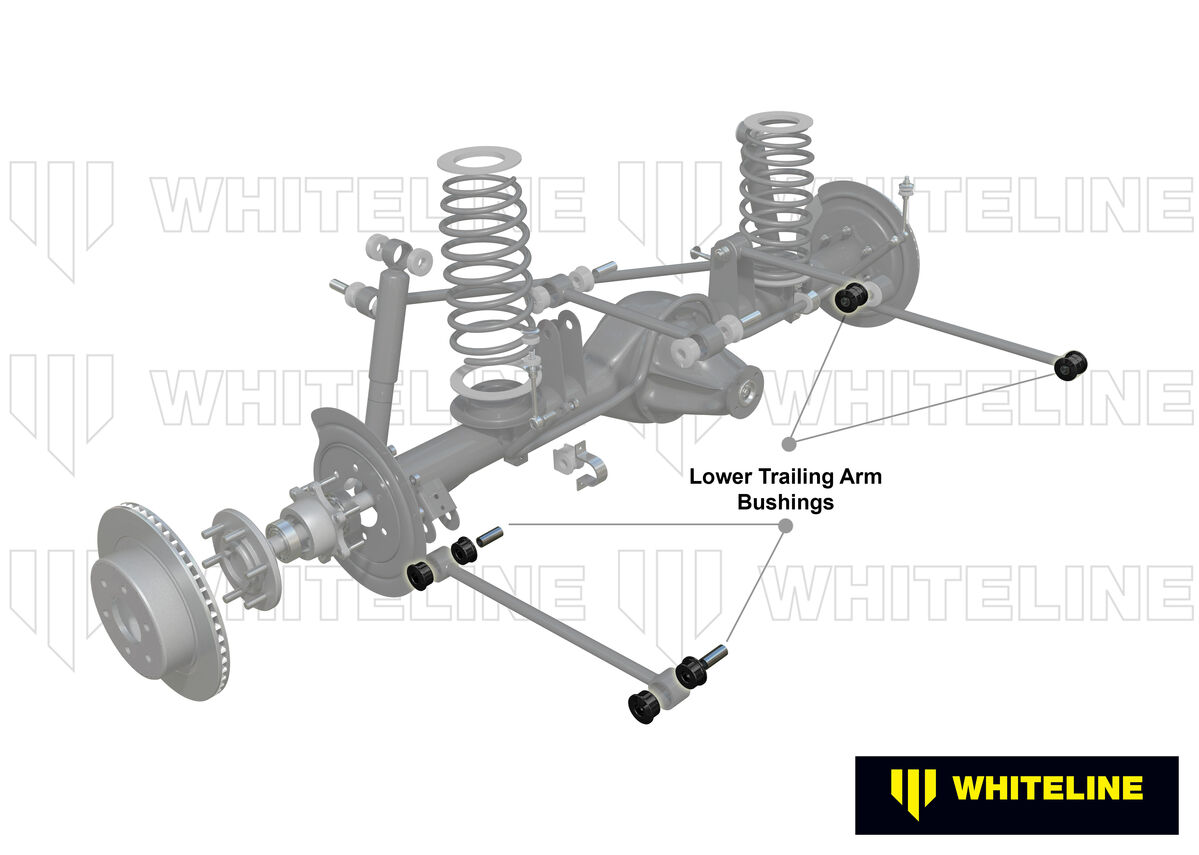

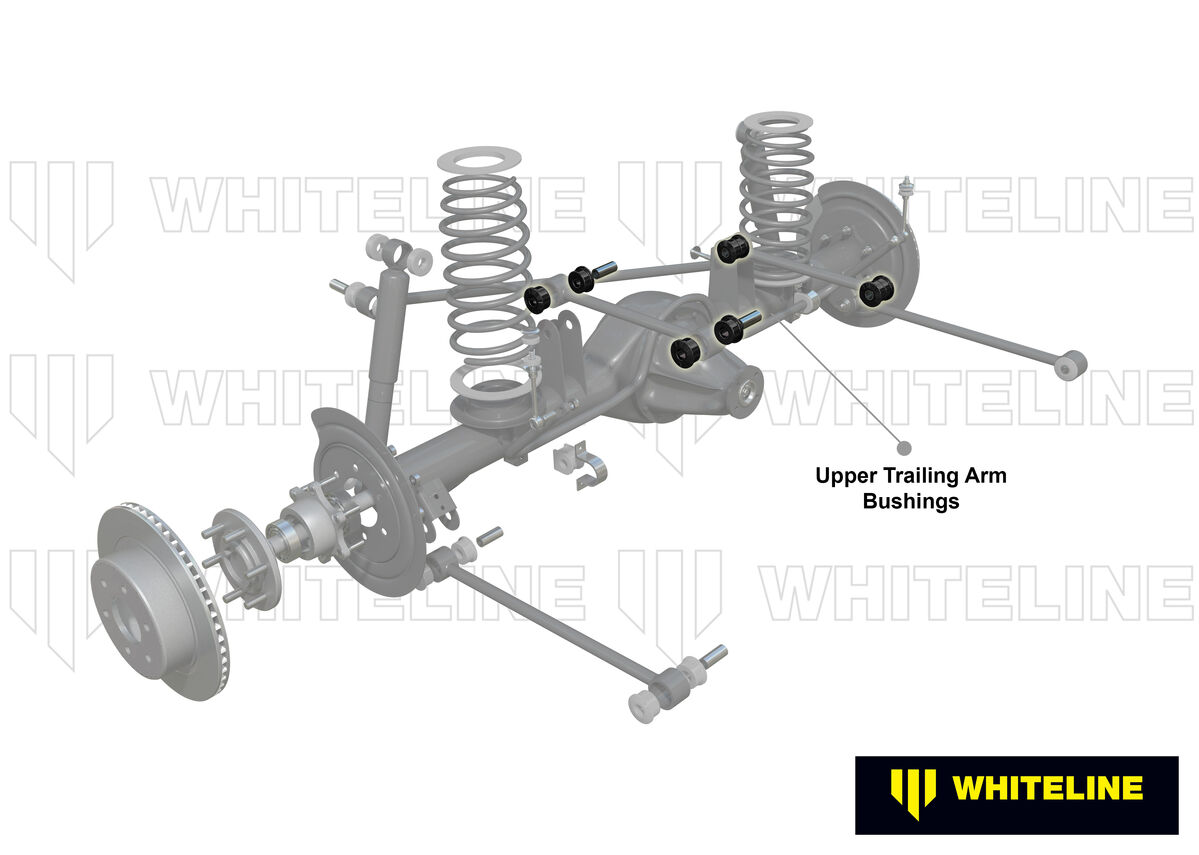

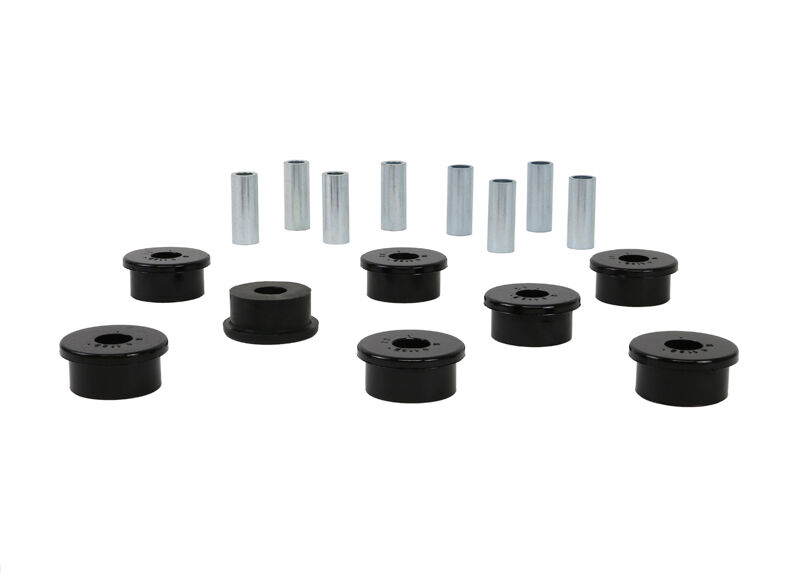

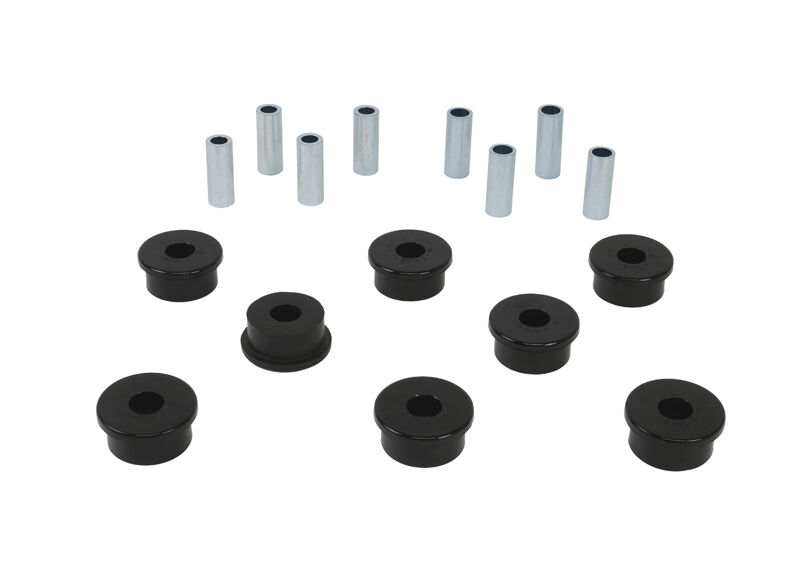

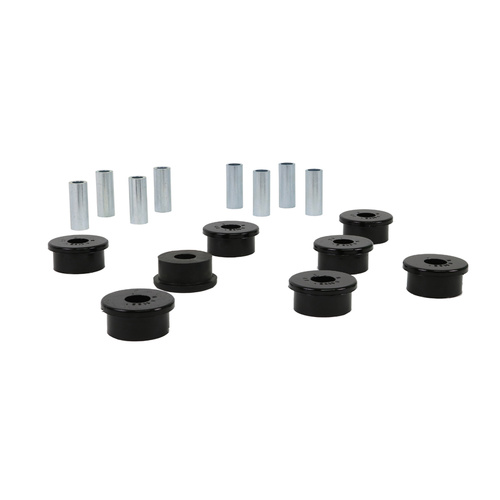

Whiteline Rear Trailing Arm - Bushing Kit to Suit Toyota Celica, Corona, Cressida and Tarago

SKU: W61182

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.

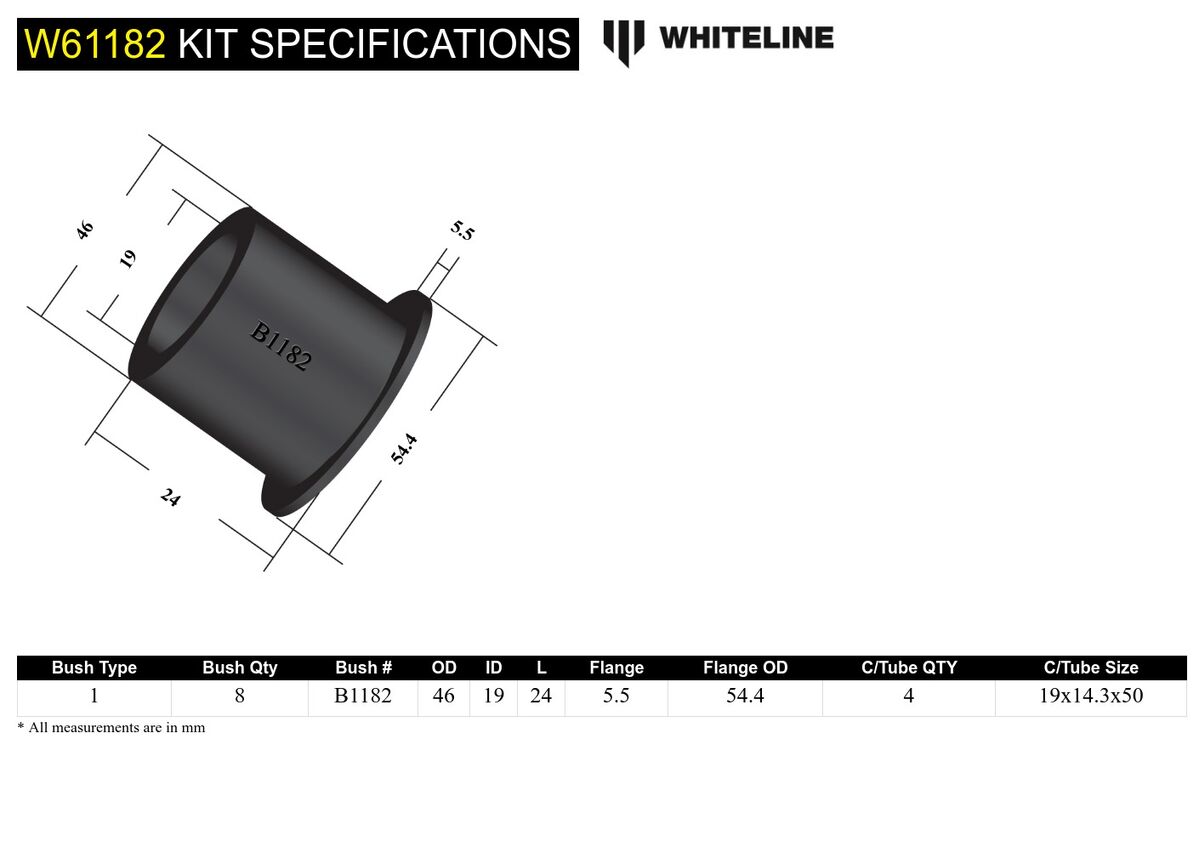

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 8 mm
OD (A) 46 mm
ID (B) 19 mm
Length (C) 24 mm
Flange Thickness (D) 5.5 mm
Flange OD (E) 54.4 mm
C/Tube Quantity 4
C/Tube ODxIDxL 19x14.3x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 8
OD (A) 46
ID (B) 19
Length (C) 24.0
FL (D) 5.5
FLOD (E) 54.4
C/Tube Qty 4
C/Tube Size 19x14.3x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.552kg1.22lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW61182
Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924353675
  • Lifetime Warranty
Brand Whiteline
SKU W61182
Unit Of Measure Kit
