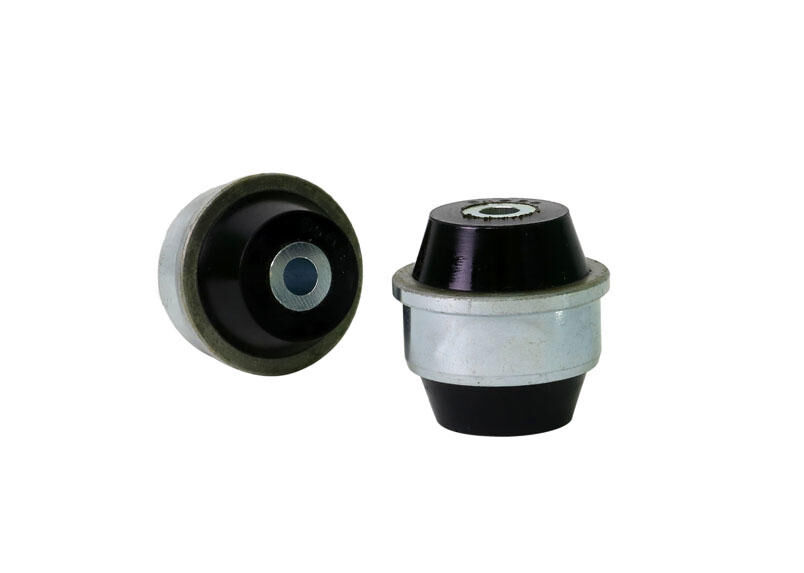

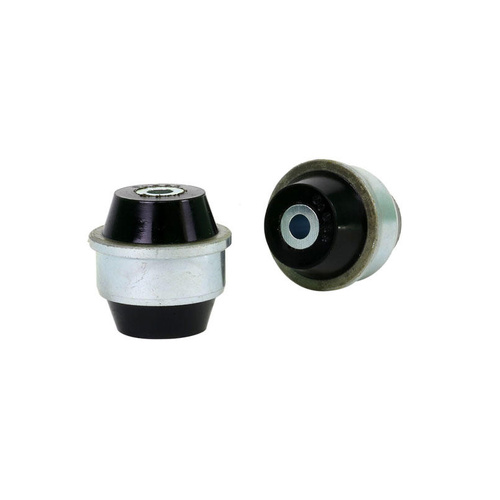

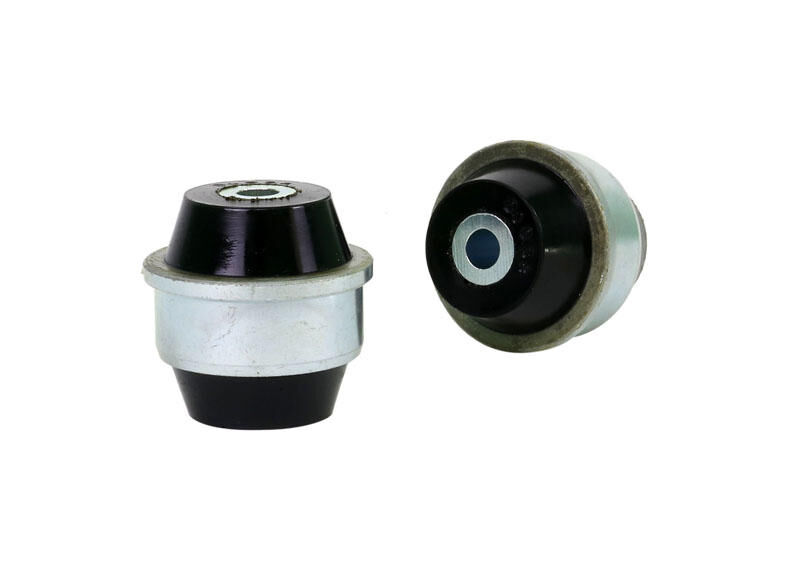

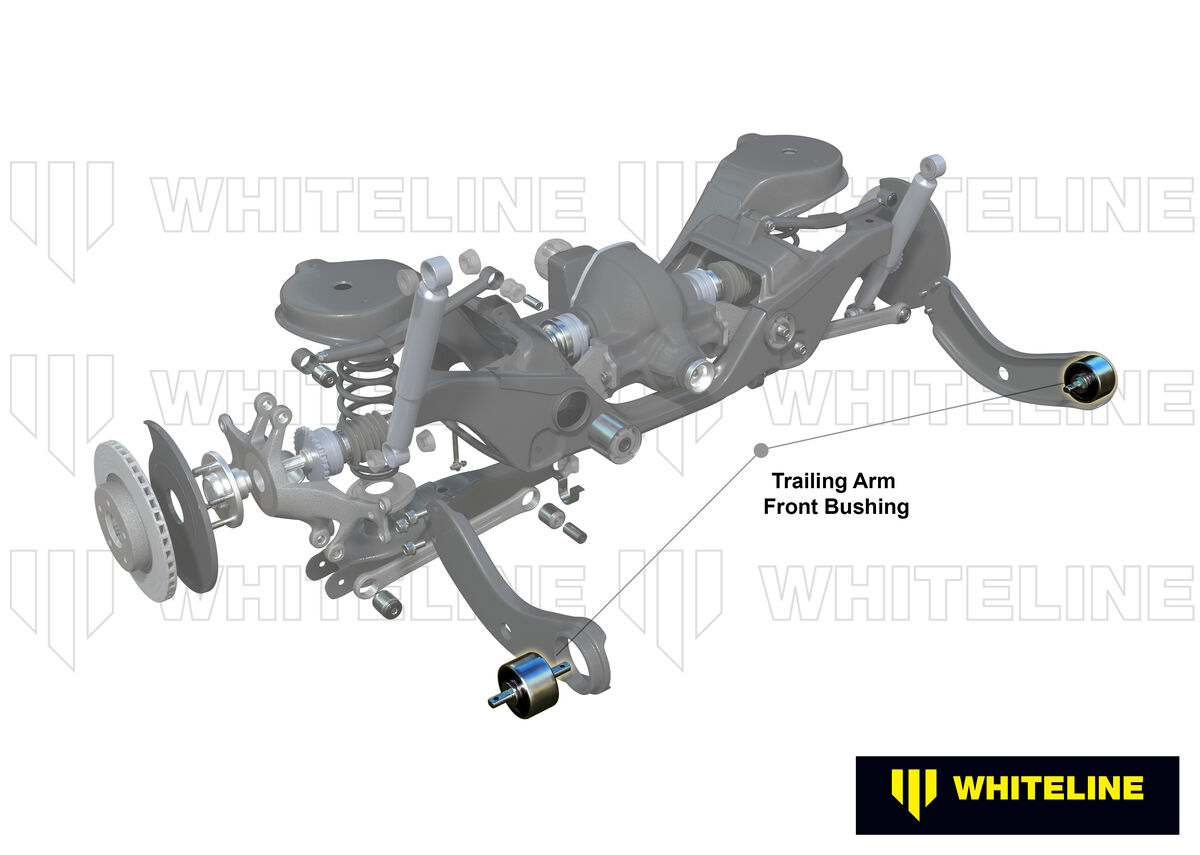

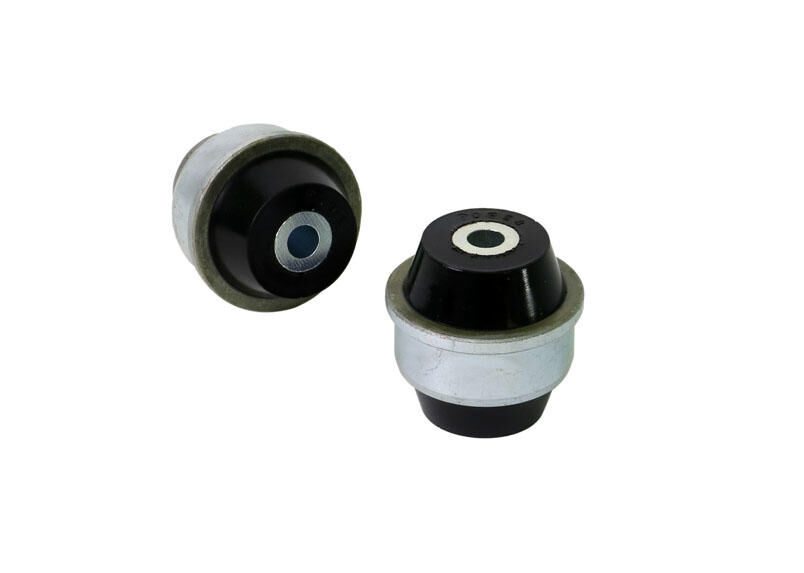

Whiteline Rear Trailing Arm - Bushing Kit to Suit Audi, Seat, Skoda and Volkswagen MQB Fwd/Awd

SKU: W63580

Benefit Note: Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) 60 mm
ID (B) 22 mm
Length (C) 64.5 mm
Flange Thickness (D) 18 mm
Flange OD (E) 41 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x12.2x64.2 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) 60
ID (B) 22
Length (C) 64.5
FL (D) 18
FLOD (E) 41
C/Tube Qty 2
C/Tube Size 22.2x12.2x64.2
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.7kg1.54lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW63580
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924447725
  • Lifetime Warranty
Brand Whiteline
SKU W63580
Unit Of Measure Kit
