Benefit Note: Whiteline fixed Toe kits provide additional toe alignment resulting in increased grip during cornering and traction under power. The kit includes low compliance synthetic elastomer bushings which maintain preferred alignment settings as well as enhanced steering response.

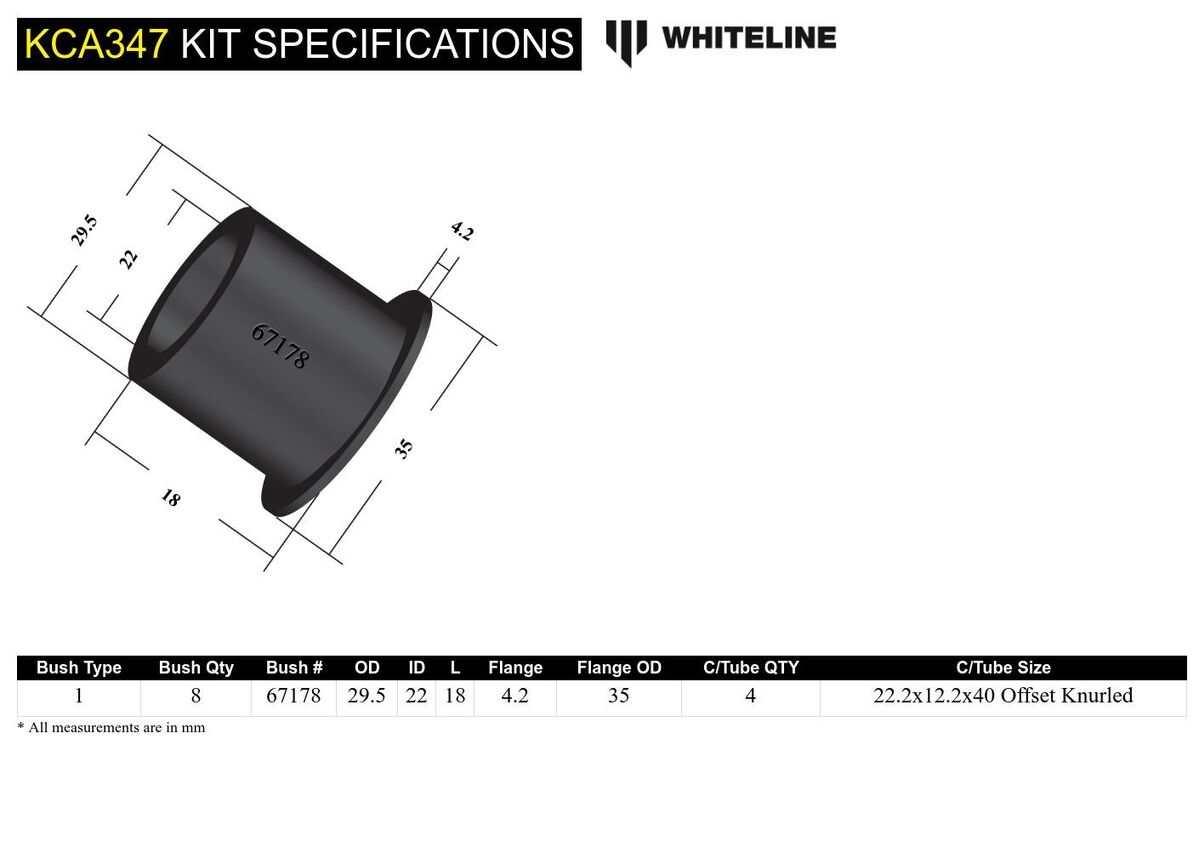

Kit Specifications

Bush Type	1 - Shackle Bushing
Bush Quantity	8 mm
OD (A)	29.5 mm
ID (B)	22 mm
Length (C)	18 mm
Flange Thickness (D)	4.2 mm
Flange OD (E)	35 mm
C/Tube Quantity	4
C/Tube ODxIDxL	22.2x12.2x40 Offset Knurled mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Bumpsteer	Eccentric	Yes

Bushing Design Dimensions (mm)

Bush Type	1
QTY	8
OD (A)	29.5
ID (B)	22
Length (C)	18.0
FL (D)	4.2
FLOD (E)	35
C/Tube Qty	4
C/Tube Size	22.2x12.2x40 Offset Knurled
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.42kg	0.93lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	KCA347
Components Per	8 Bushings, 4 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Built tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes
EAN	9319924342525
