Whiteline Rear Sway Bar To Hub - Bushing Kit to Suit Holden Astra LD and Nissan Pulsar N13

SKU: W22117

Benefit Note: One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.

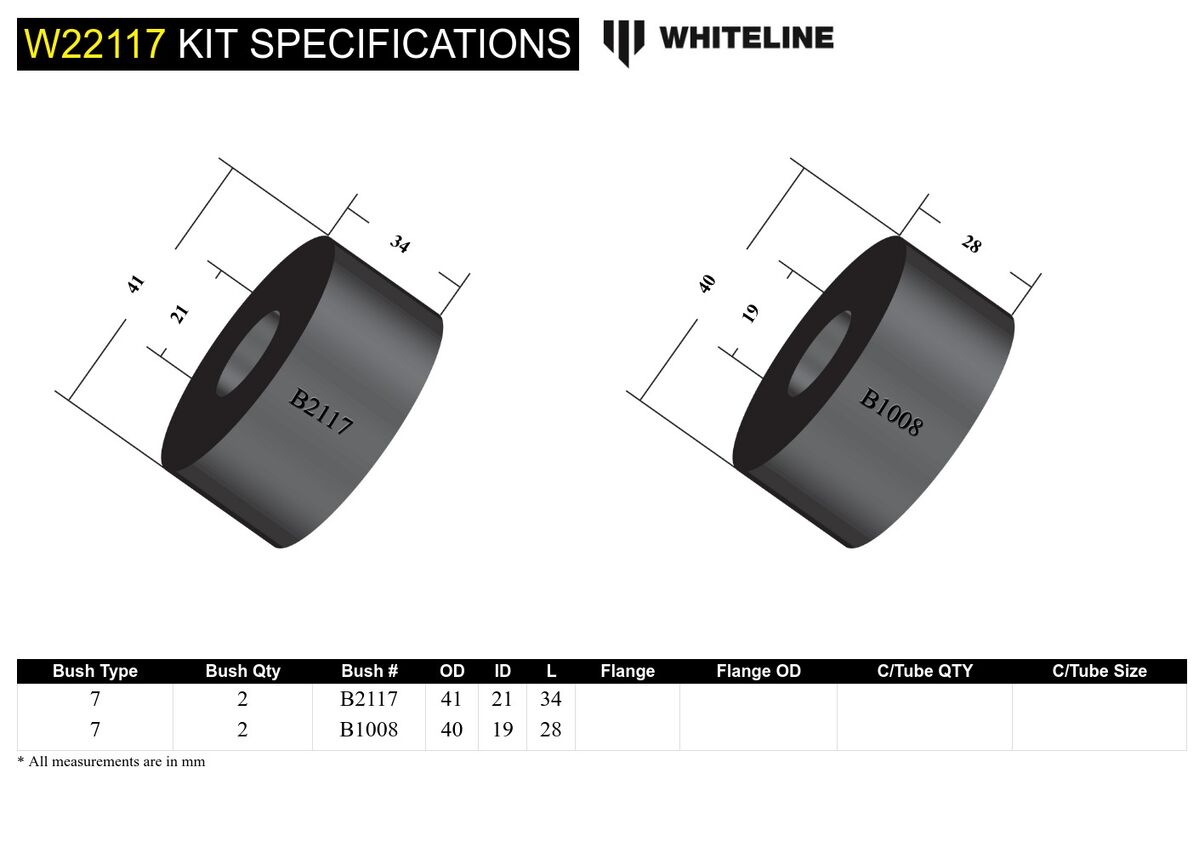

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm
OD (A) 40 mm 41 mm
ID (B) 19 mm 21 mm
Length (C) 28 mm 34 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7 7
QTY 2 2
OD (A) 40 41
ID (B) 19 21
Length (C) 28.0 34.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.136kg0.3lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW22117
Components Per4 Bushings
Kits Required1
Sub brandReplacement
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924350520
  • Lifetime Warranty
Brand Whiteline
SKU W22117
Unit Of Measure Kit
