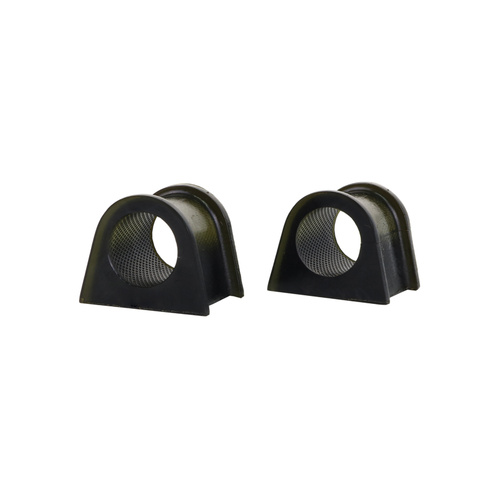

Whiteline Rear Sway Bar Mount - Bushing Kit 26mm to Suit Mitsubishi Challenger and Pajero

SKU: W23461

Benefit Note: Designed to fit a 26mm sway bar. Whiteline's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Backed up by a Limited Lifetime Warranty. Whiteline bushings are made from the latest highest quality synthetic elastomer and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.

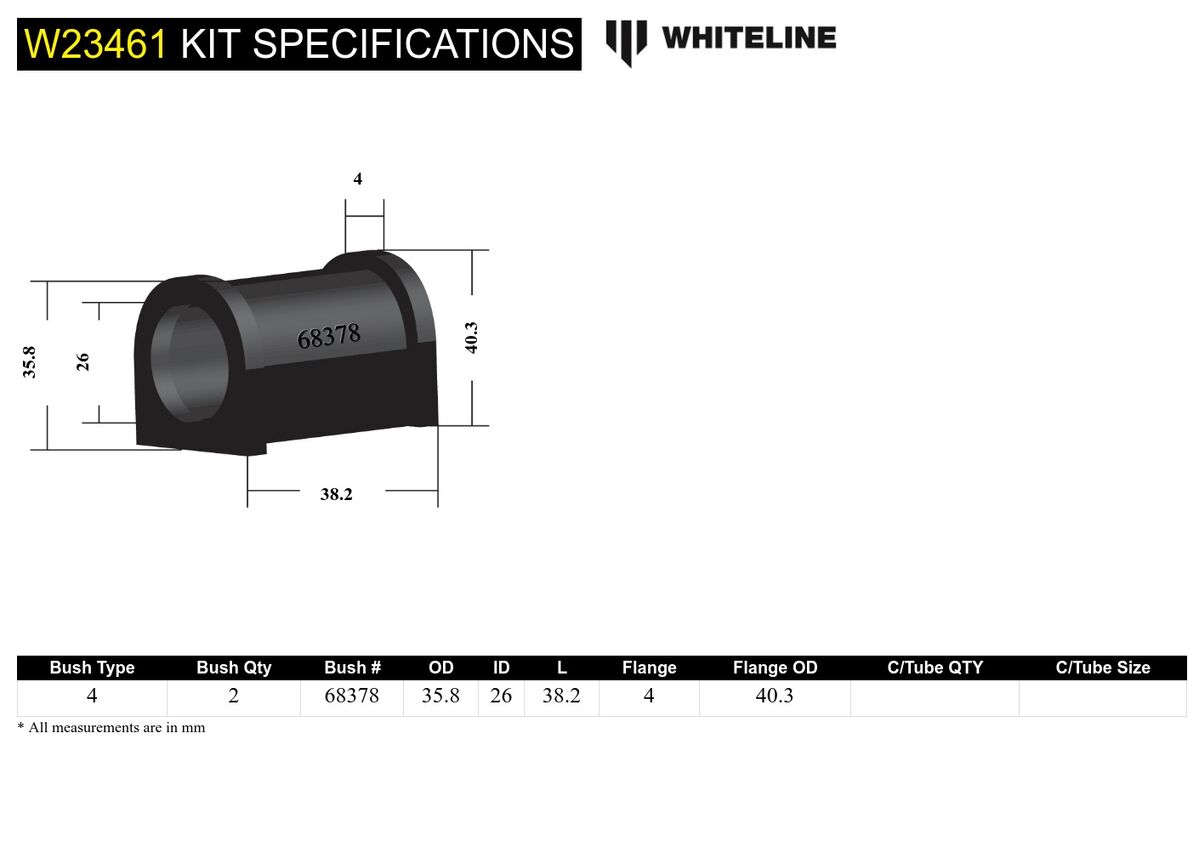

Kit Specifications

Bush Type 4 - D-bushing With Flange
Bush Quantity 2 mm
OD (A) 35.8 mm
ID (B) 26 mm
Length (C) 38.2 mm
Flange Thickness (D) 4 mm
Flange OD (E) 40.3 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange

Bushing Design Dimensions (mm)

Bush Type 4
QTY 2
OD (A) 35.8
ID (B) 26
Length (C) 38.2
FL (D) 4
FLOD (E) 40.3
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.09kg0.2lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23461
Components Per2 Bushings
Kits Required1
Sub brandReplacement
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924391431
  • Lifetime Warranty
Brand Whiteline
SKU W23461
Unit Of Measure Kit
