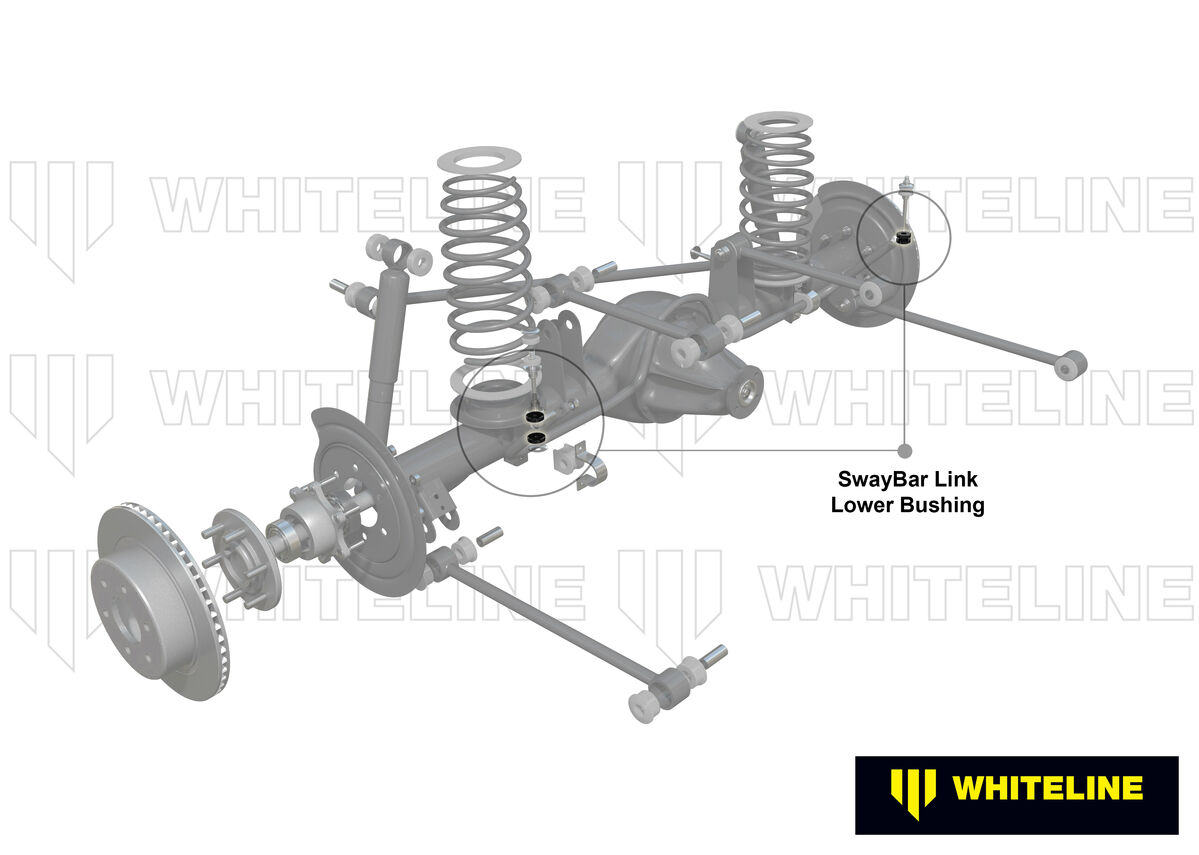

Whiteline Rear Sway Bar Link - Service Kit to Suit Whiteline Sway Bars

SKU: KSK125

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.

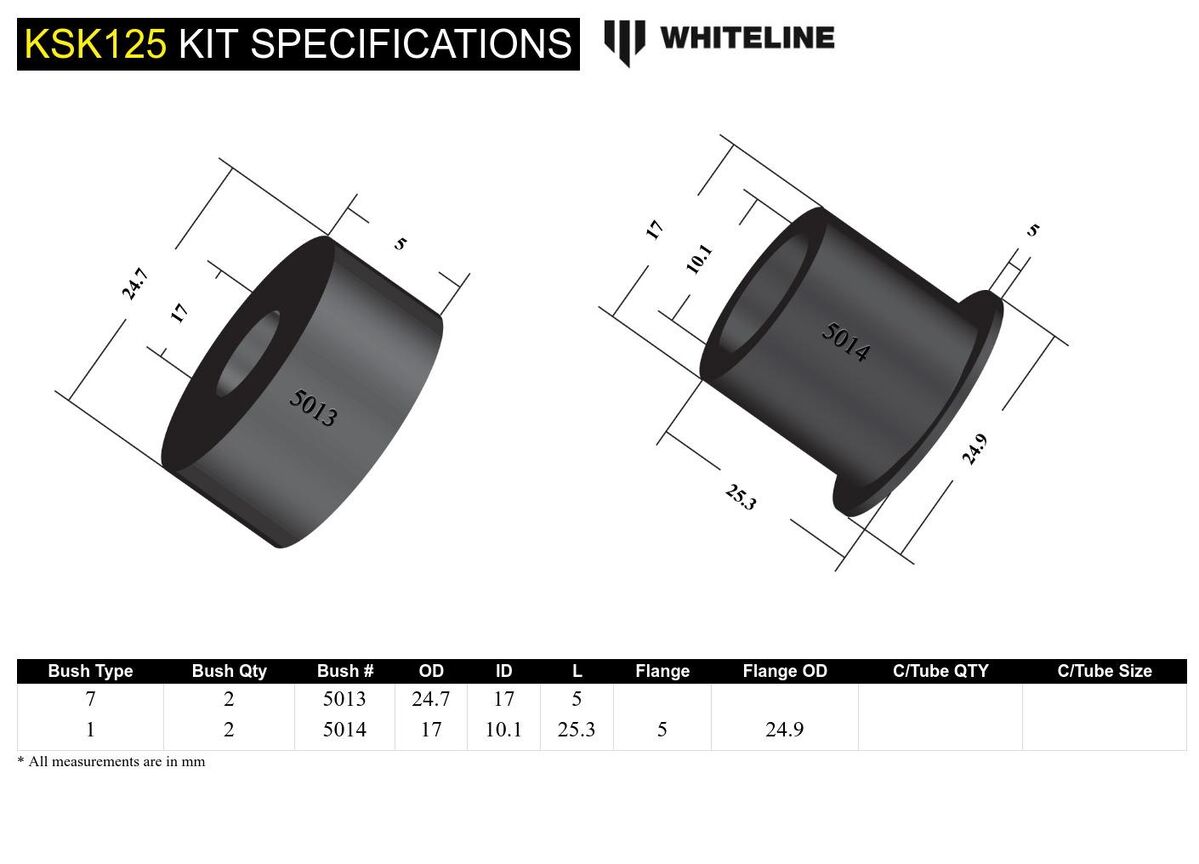

Kit Specifications

Bush Type 1 - Shackle Bushing 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm
OD (A) 17 mm 24.7 mm
ID (B) 10.1 mm 17 mm
Length (C) 25.3 mm 5 mm
Flange Thickness (D) 5 mm
Flange OD (E) 24.9 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 1 7
QTY 2 2
OD (A) 17 24.7
ID (B) 10.1 17
Length (C) 25.3 5.0
FL (D) 5
FLOD (E) 24.9
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.03kg0.07lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKSK125
Components Per4 Bushings
Kits Required1
Sub brandPerformance
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924453917
  • Lifetime Warranty
Brand Whiteline
SKU KSK125
Unit Of Measure Kit
