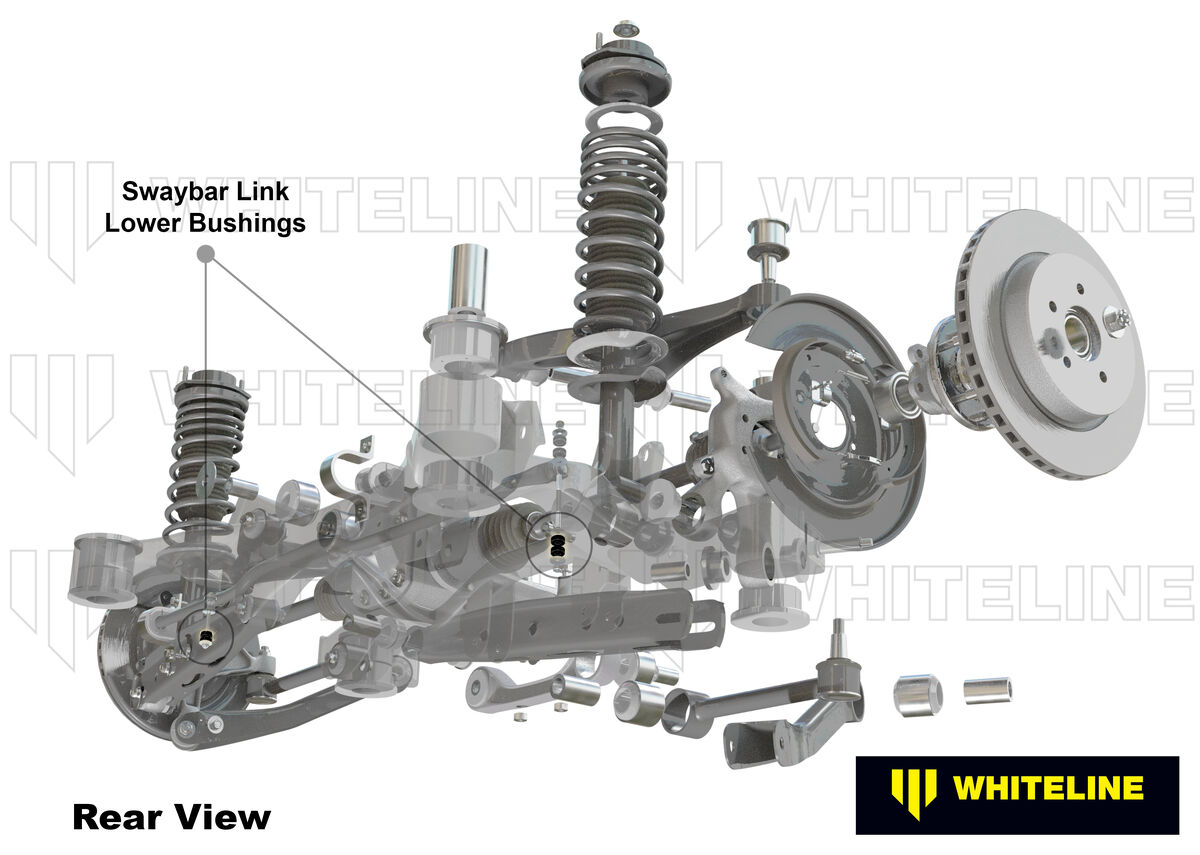

Whiteline Rear Sway Bar Link - Lower Bushing Kit to Suit Toyota Rav 4 ACA31

SKU: W23494

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.

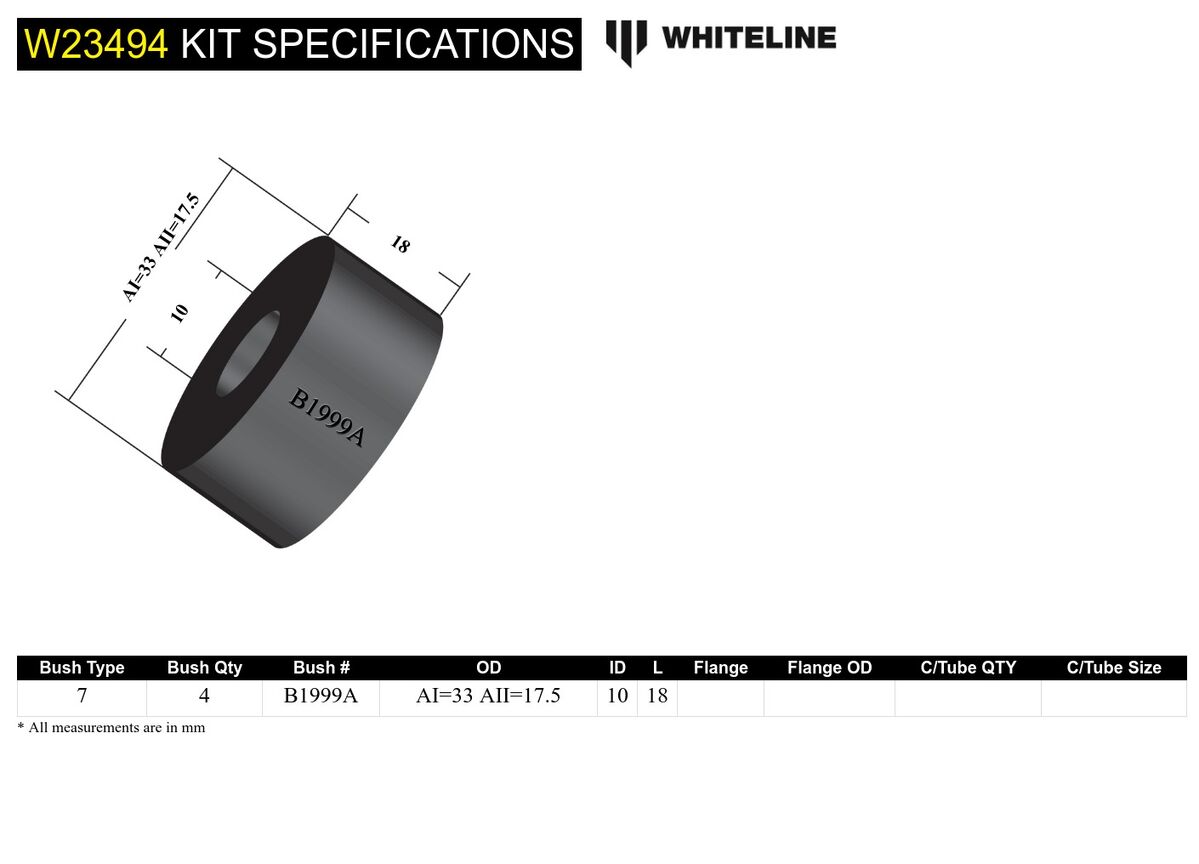

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot
Bush Quantity 4 mm
OD (A) AI=33 AII=17.5 mm
ID (B) 10 mm
Length (C) 18 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7
QTY 4
OD (A) AI=33 AII=17.5
ID (B) 10
Length (C) 18.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.08kg0.18lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23494

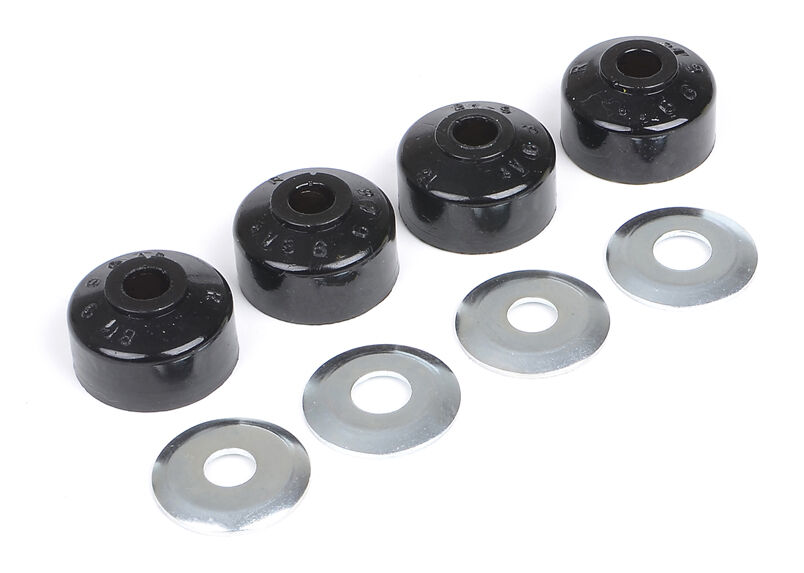

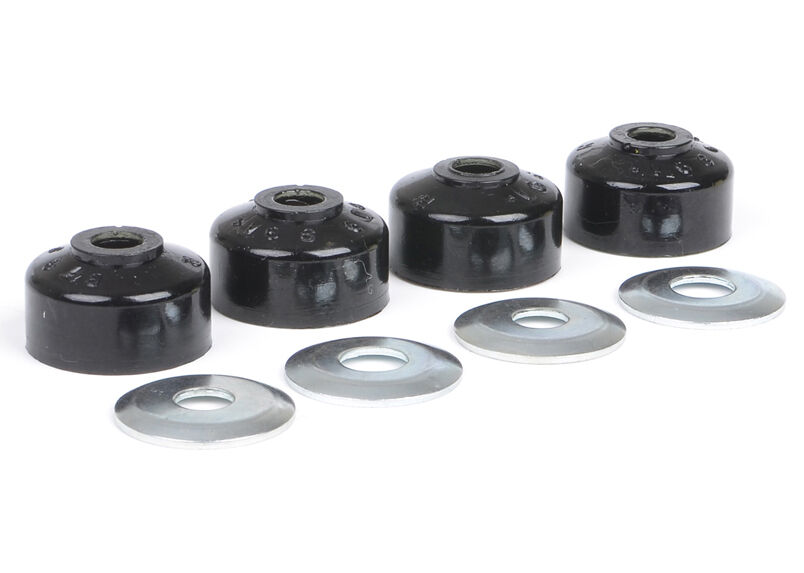

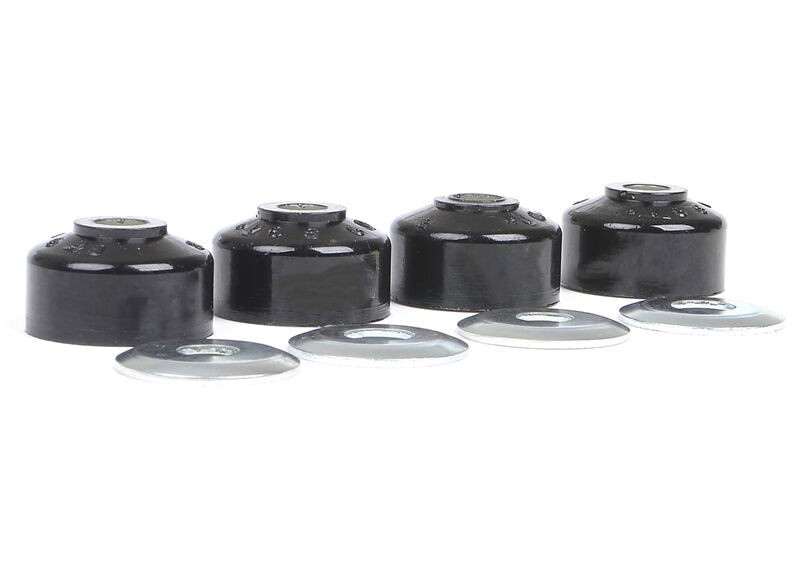

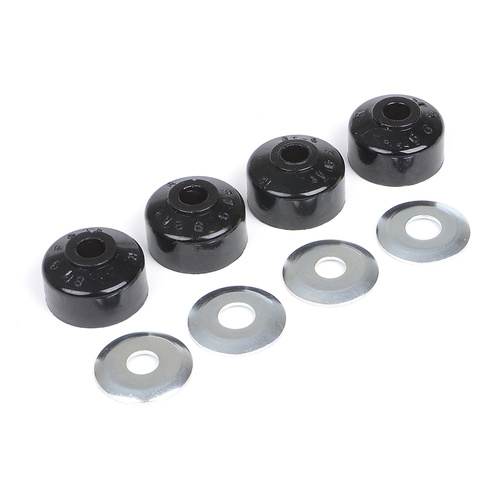

Components Per4 Bushings, 4 Washers
Kits Required1
Sub brandReplacement
Product NoteImproves stability and control, transforming vehicle performance the perfect, complete upgrade. Includes: 4 Bushings, 4 Washers
EAN9319924401888
  • Lifetime Warranty
Brand Whiteline
SKU W23494
Unit Of Measure Kit
