Whiteline Rear Sway Bar Link - Bushing Kit to Suit Subaru Forester, Impreza, Liberty and Outback

SKU: W22260

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.

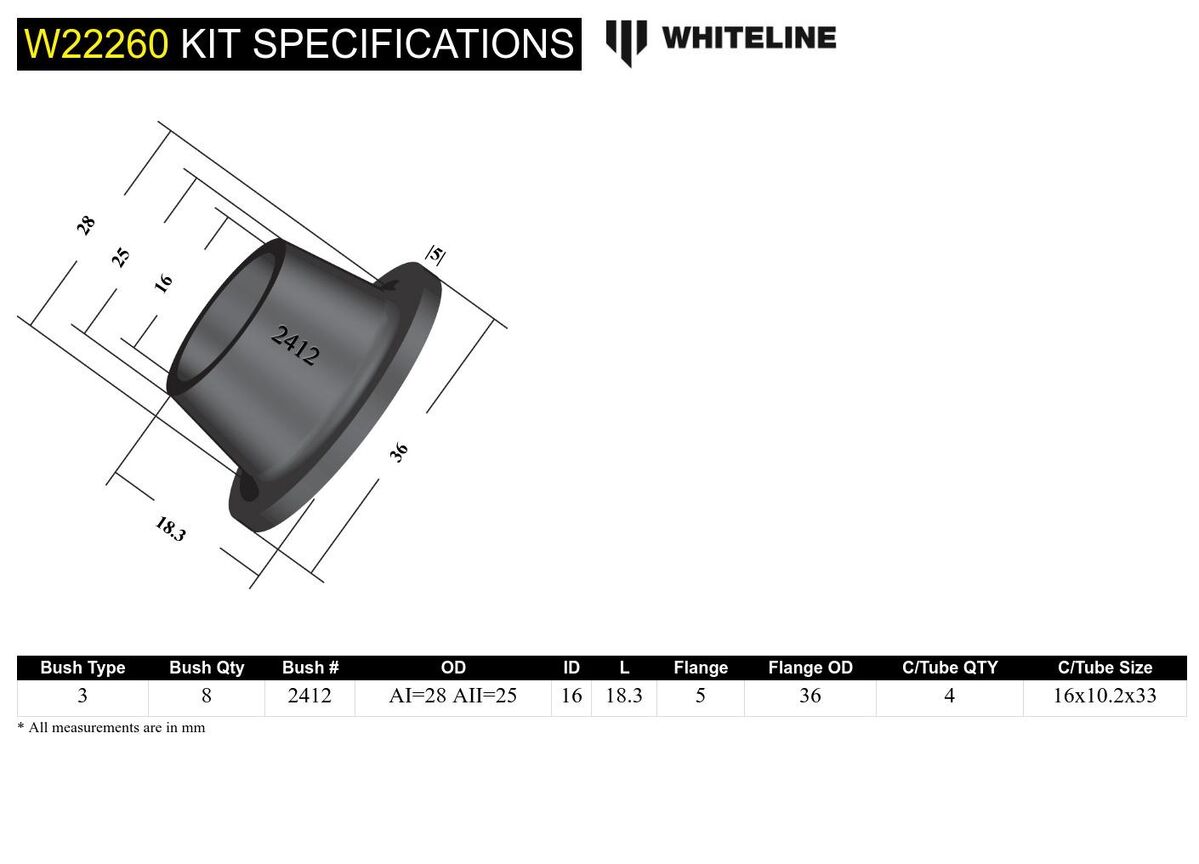

Kit Specifications

Bush Type 3 - Half Tapered Cotton Reel Bush
Bush Quantity 8 mm
OD (A) AI=28 AII=25 mm
ID (B) 16 mm
Length (C) 18.3 mm
Flange Thickness (D) 5 mm
Flange OD (E) 36 mm
C/Tube Quantity 4
C/Tube ODxIDxL 16x10.2x33 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 3 - Half Tapered Cotton Reel Bush

Bushing Design Dimensions (mm)

Bush Type 3
QTY 8
OD (A) AI=28 AII=25
ID (B) 16
Length (C) 18.3
FL (D) 5
FLOD (E) 36
C/Tube Qty 4
C/Tube Size 16x10.2x33
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 3

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.27kg0.6lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW22260
Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement

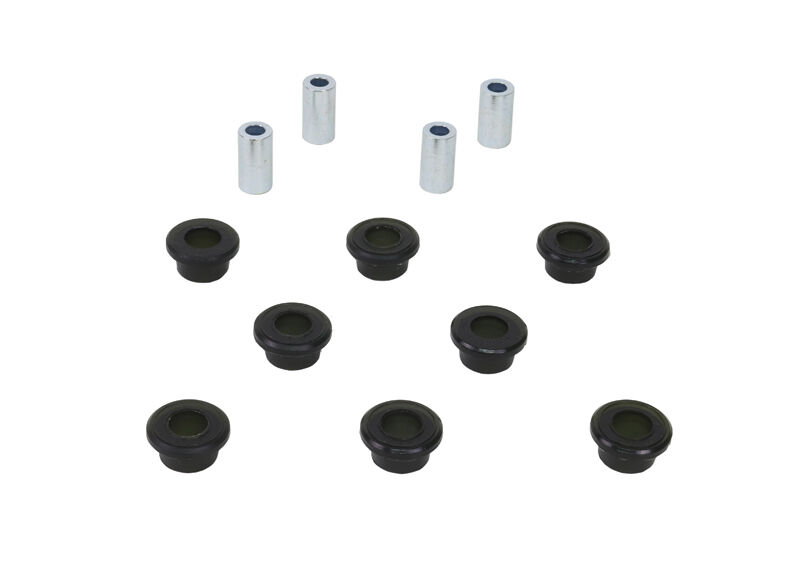

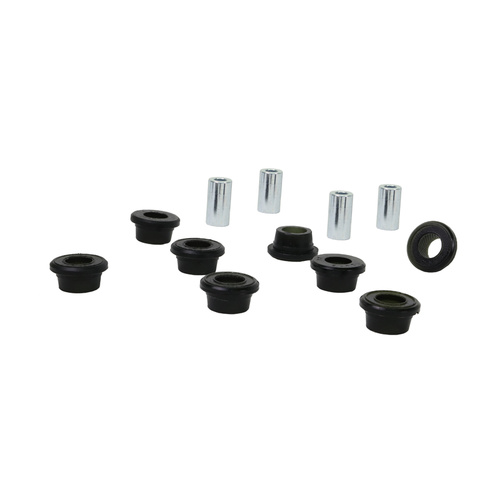

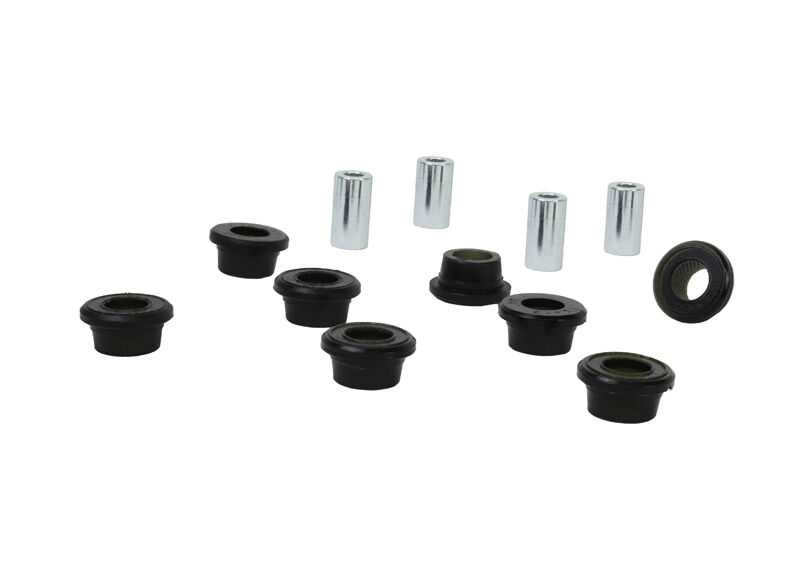

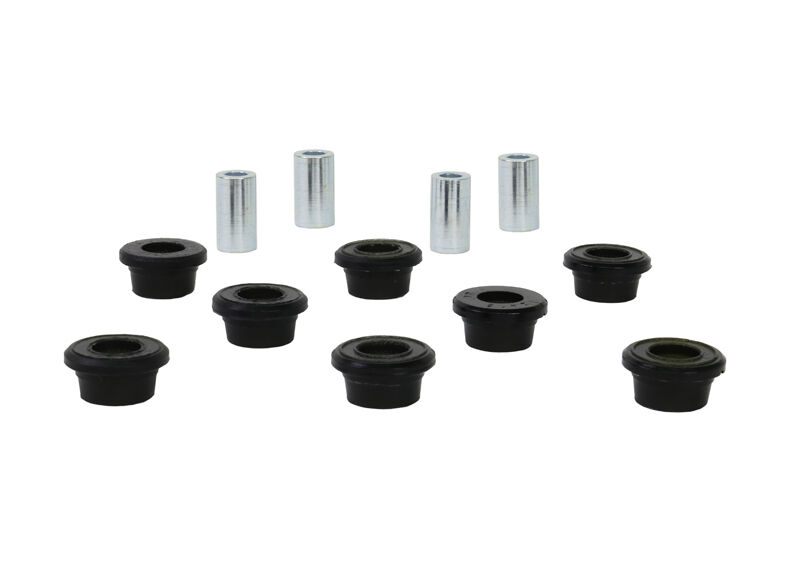

Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes
EAN9319924350650
  • Lifetime Warranty
Brand Whiteline
SKU W22260
Unit Of Measure Kit
