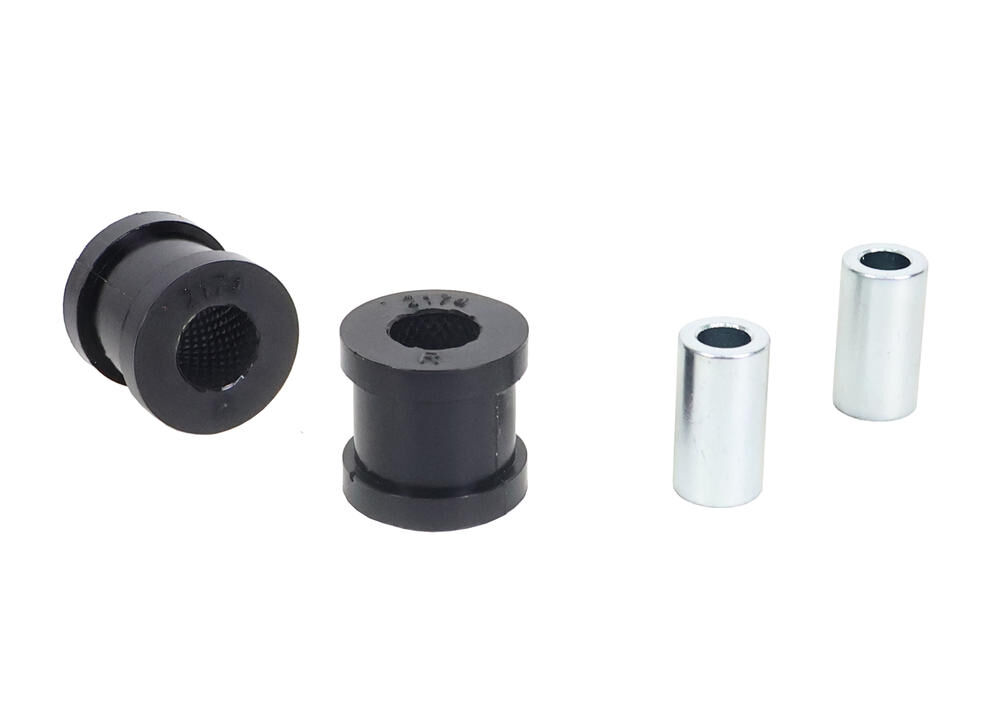

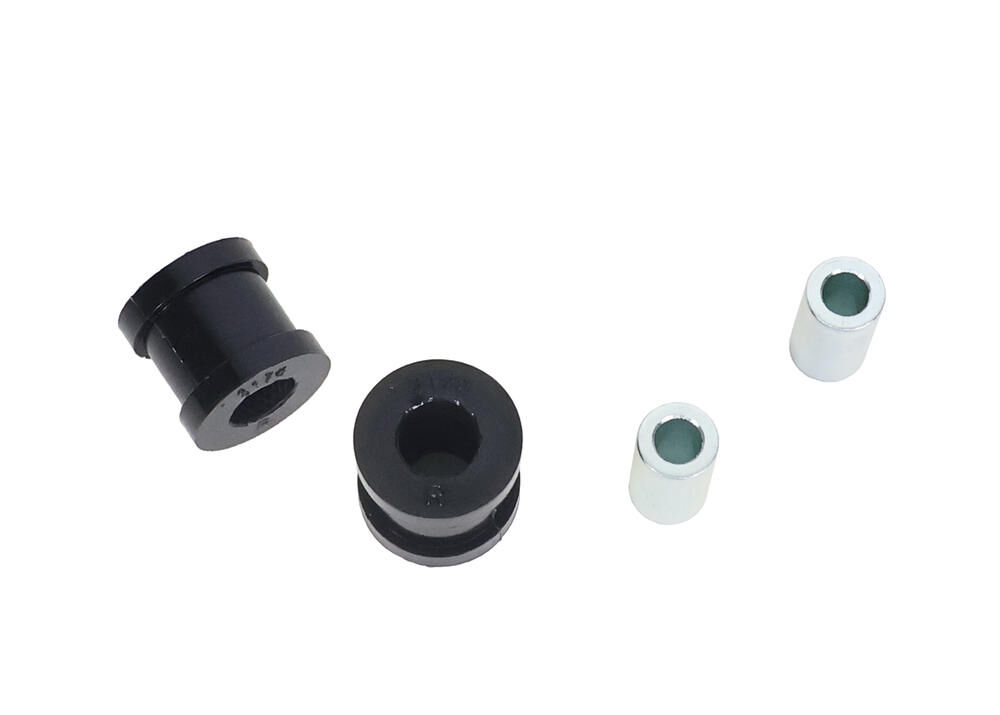

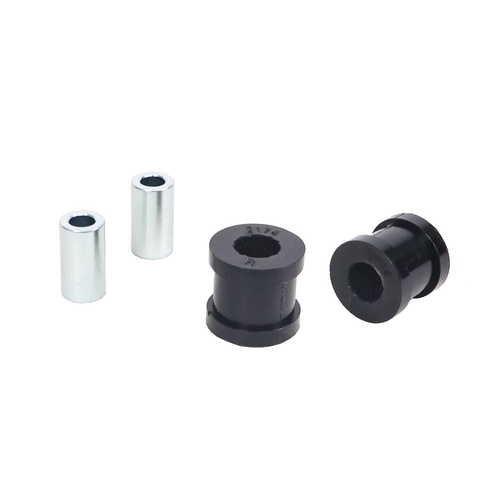

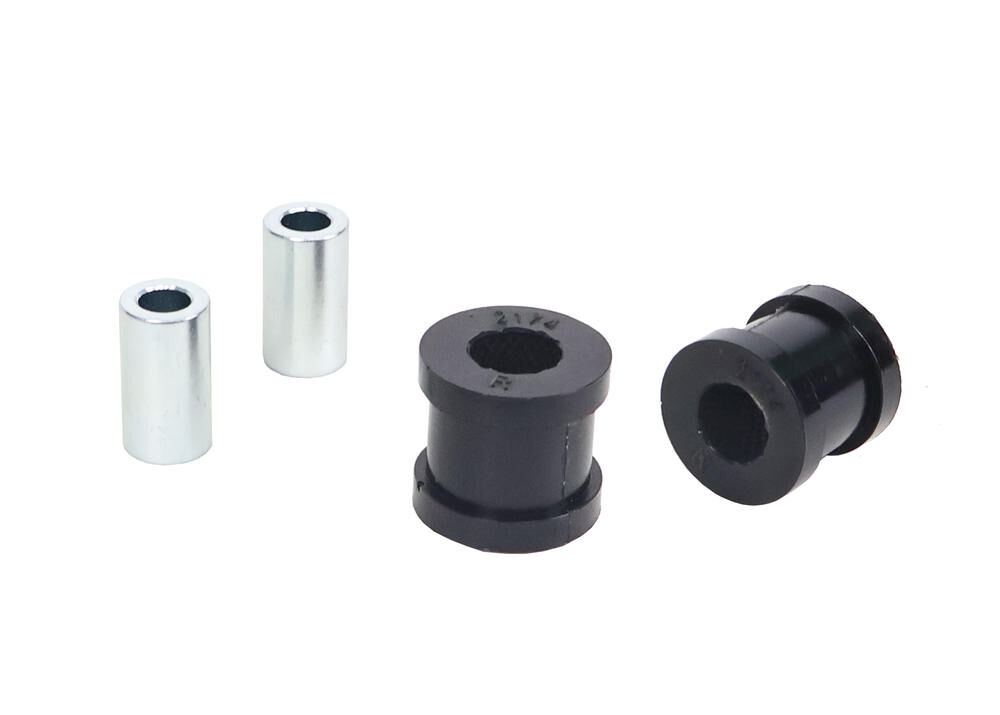

Whiteline Rear Sway Bar Link - Bushing Kit to Suit Holden Commodore VN-VX and HSV

SKU: W23034

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.


Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 24.8 mm
ID (B) 14 mm
Length (C) 26.7 mm
Flange Thickness (D) 5.5 mm
Flange OD (E) 28.5 mm
C/Tube Quantity 2
C/Tube ODxIDxL 14x8.2x26 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 24.8
ID (B) 14
Length (C) 26.7
FL (D) 5.5
FLOD (E) 28.5
C/Tube Qty 2
C/Tube Size 14x8.2x26
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.085kg0.19lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23034
Components Per2 Bushings, 2 Tubes
Kits Required2
Sub brandReplacement
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924351008
  • Lifetime Warranty
Brand Whiteline
SKU W23034
Unit Of Measure Kit
