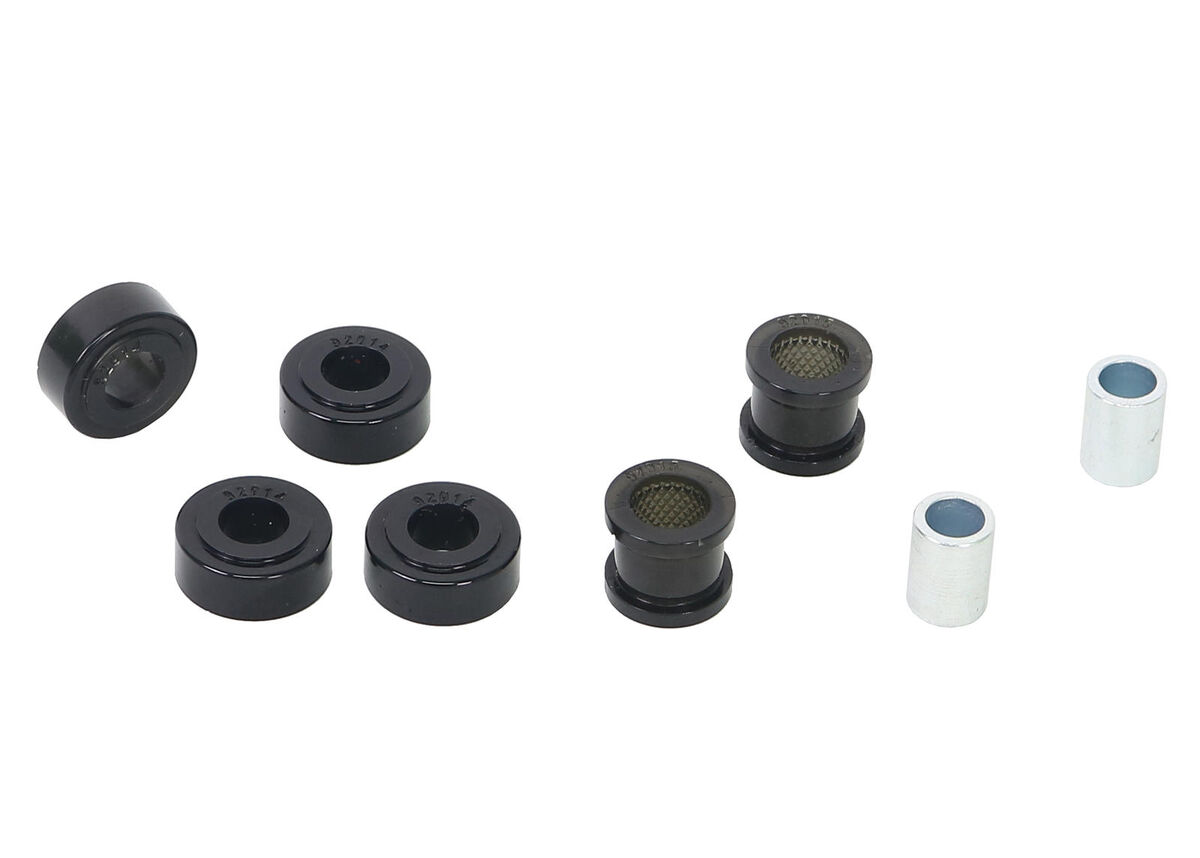

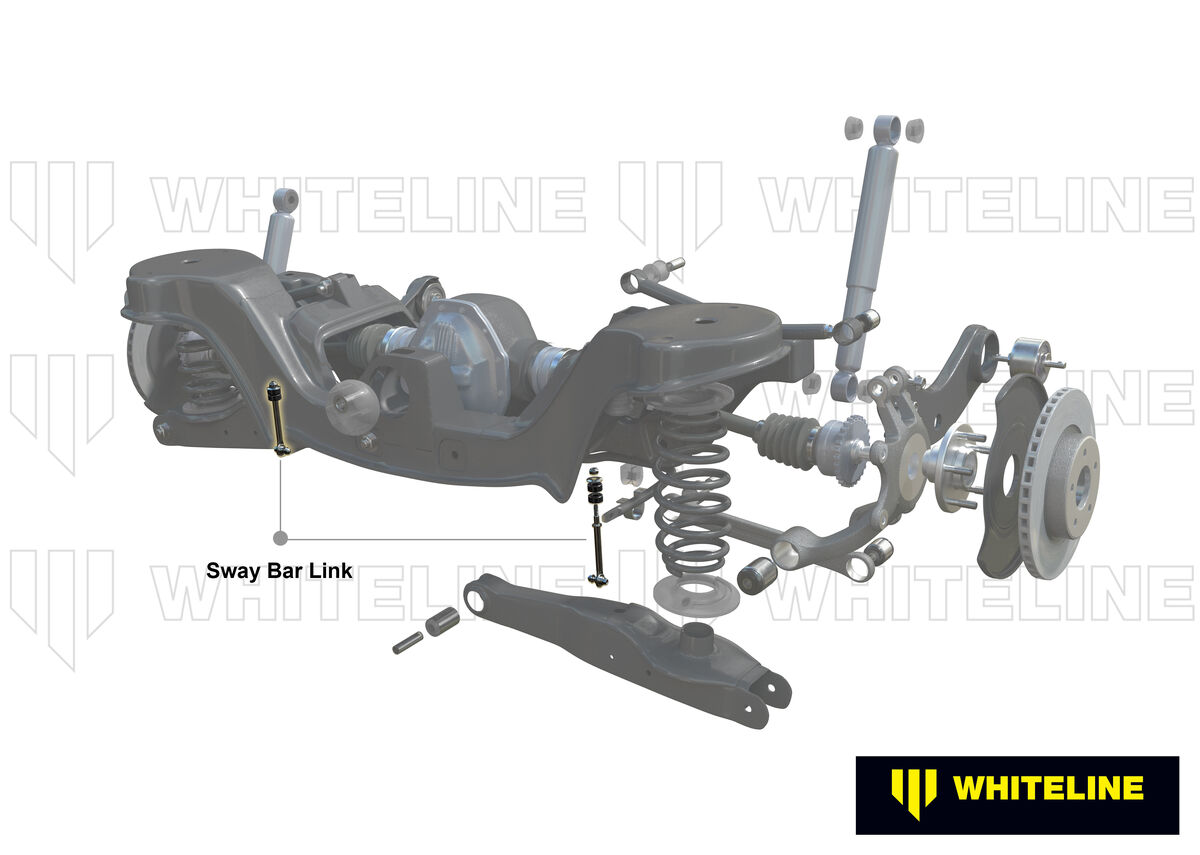

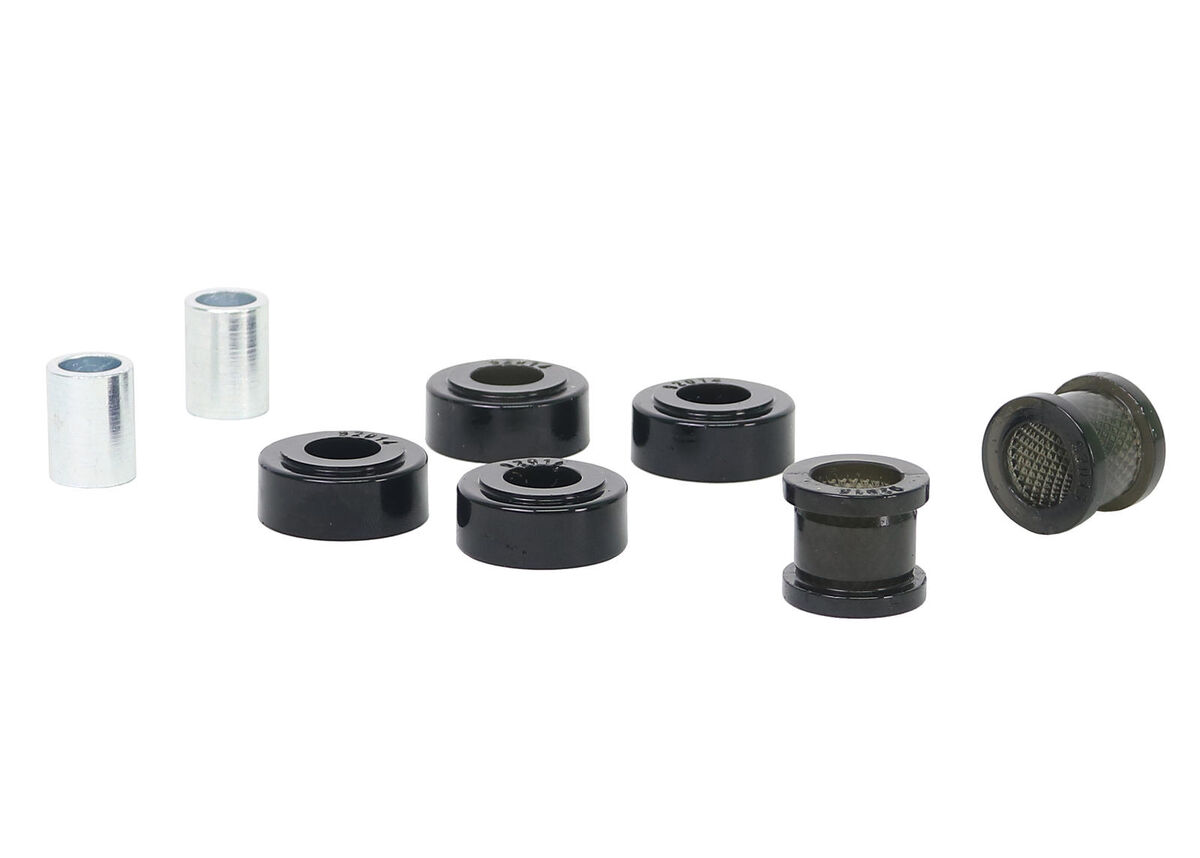

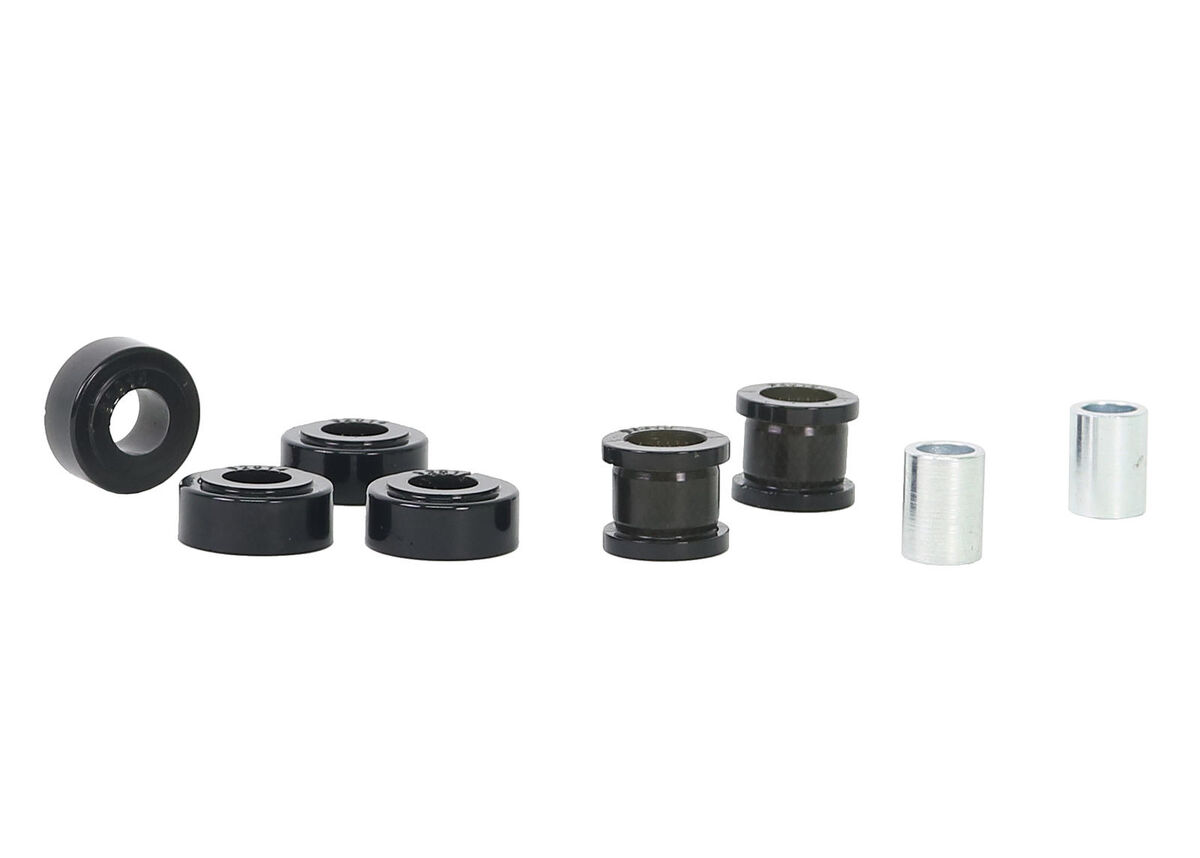

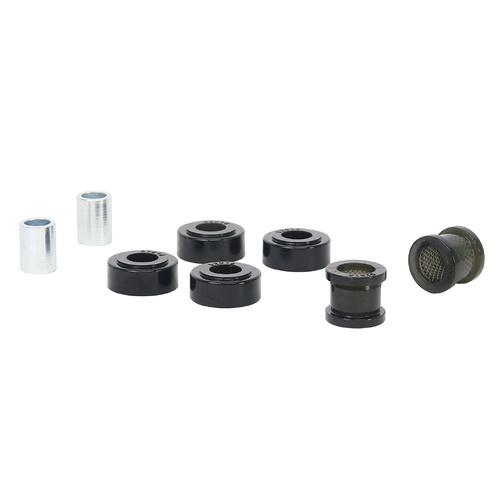

Whiteline Rear Sway Bar Link - Bushing Kit to Suit Ford Falcon/Fairlane BA-FGX, Territory SX-SZ and FPV

SKU: W23751

Benefit Note: Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Whiteline bushings are engineered to last and deliver improved driving performance.

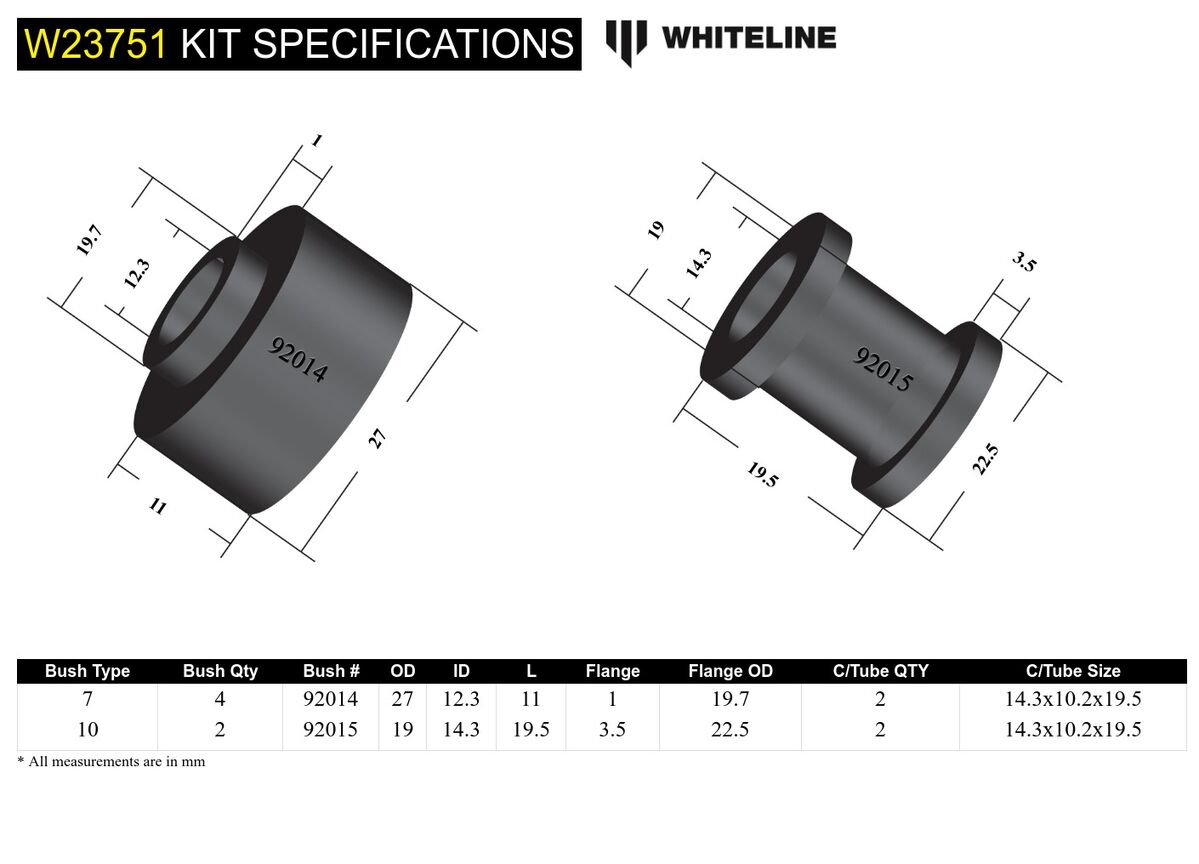

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 4 mm 2 mm
OD (A) 27 mm 19 mm
ID (B) 12.3 mm 14.3 mm
Length (C) 11 mm 19.5 mm
Flange Thickness (D) 1 mm 3.5 mm
Flange OD (E) 19.7 mm 22.5 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 14.3x10.2x19.5 mm 14.3x10.2x19.5 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 7 10
QTY 4 2
OD (A) 27 19
ID (B) 12.3 14.3
Length (C) 11.0 19.5
FL (D) 1 3.5
FLOD (E) 19.7 22.5
C/Tube Qty 2 2
C/Tube Size 14.3x10.2x19.5 14.3x10.2x19.5
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7
Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.1kg0.22lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW23751
Components Per6 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 6 Bushings, 2 Tubes
EAN9319924467747
  • Lifetime Warranty
Brand Whiteline
SKU W23751
Unit Of Measure Kit
