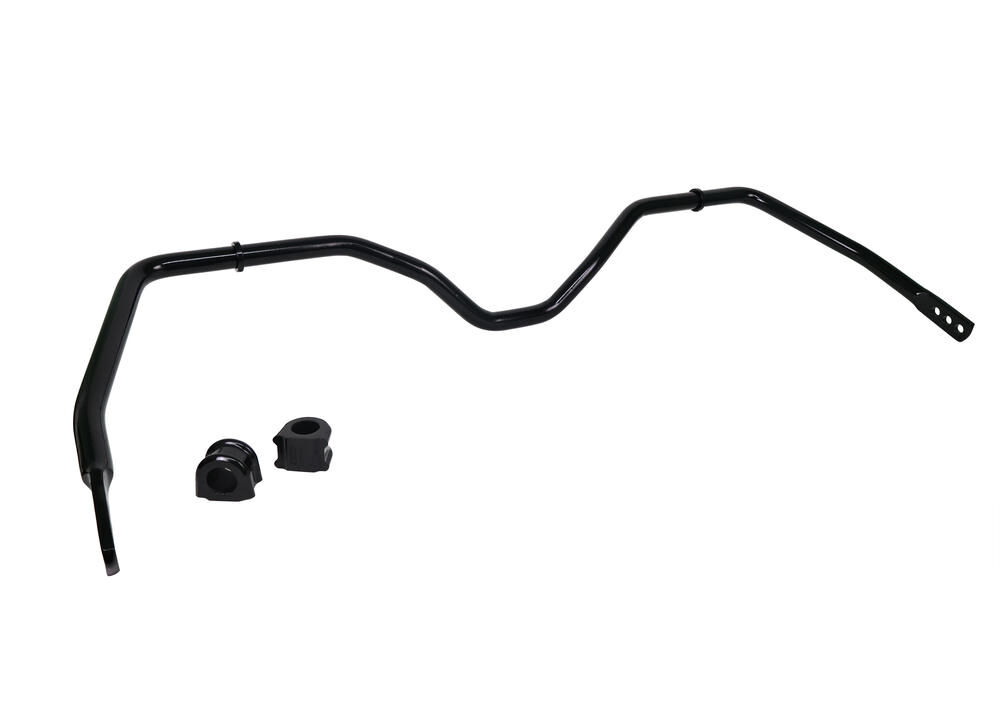

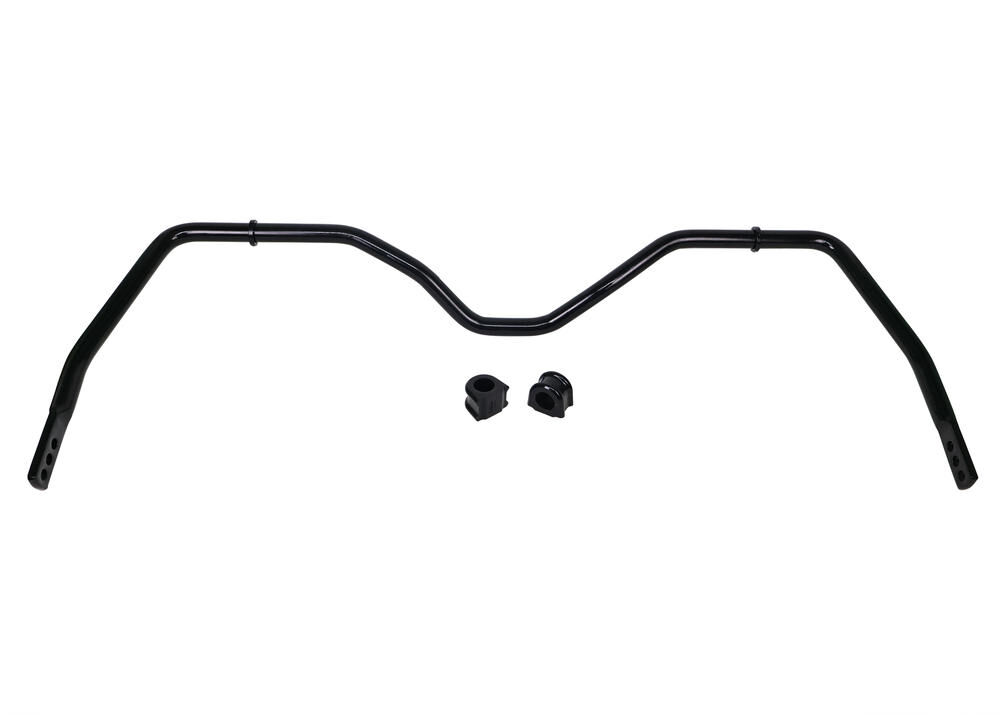

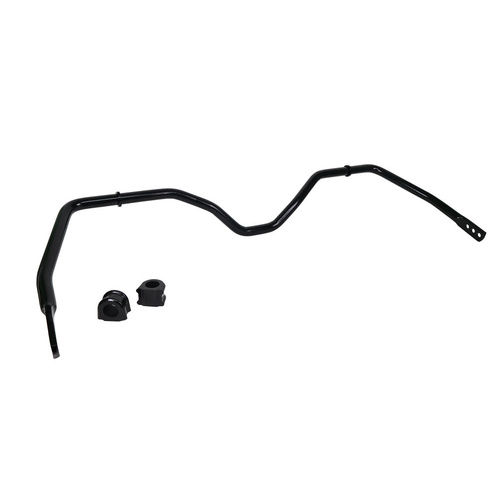

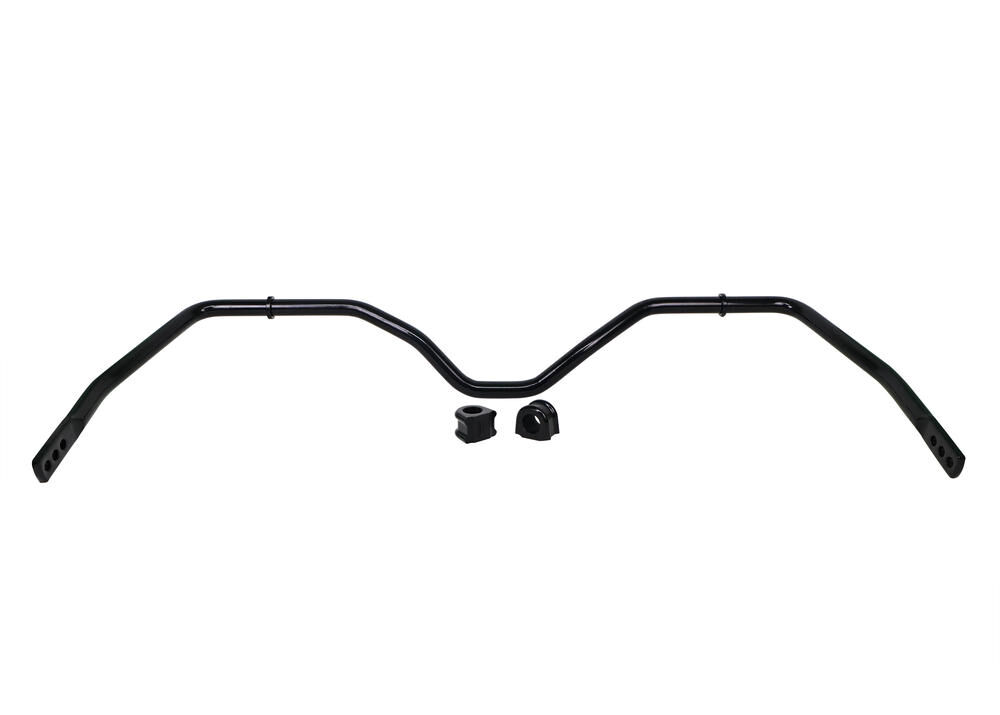

Whiteline Rear Sway Bar - 30mm 3 Point Adjustable to Suit Toyota Tundra XK70

SKU: BTR115Z

Benefit Note: Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 30mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.


Kit Specifications

Diameter (mm) 30
Diameter (in) Fraction 1 3/16"
Diameter (in) Decimal 1.181
Material Solid Spring Steel

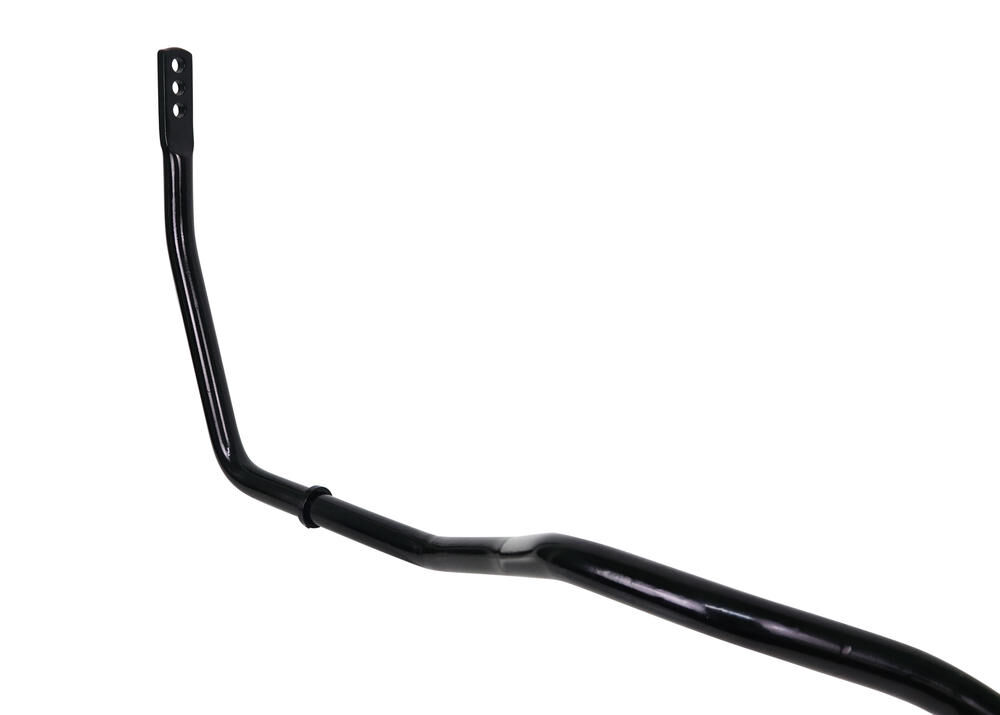

Sway Bar Adjustment Type 3 Point Adjustable

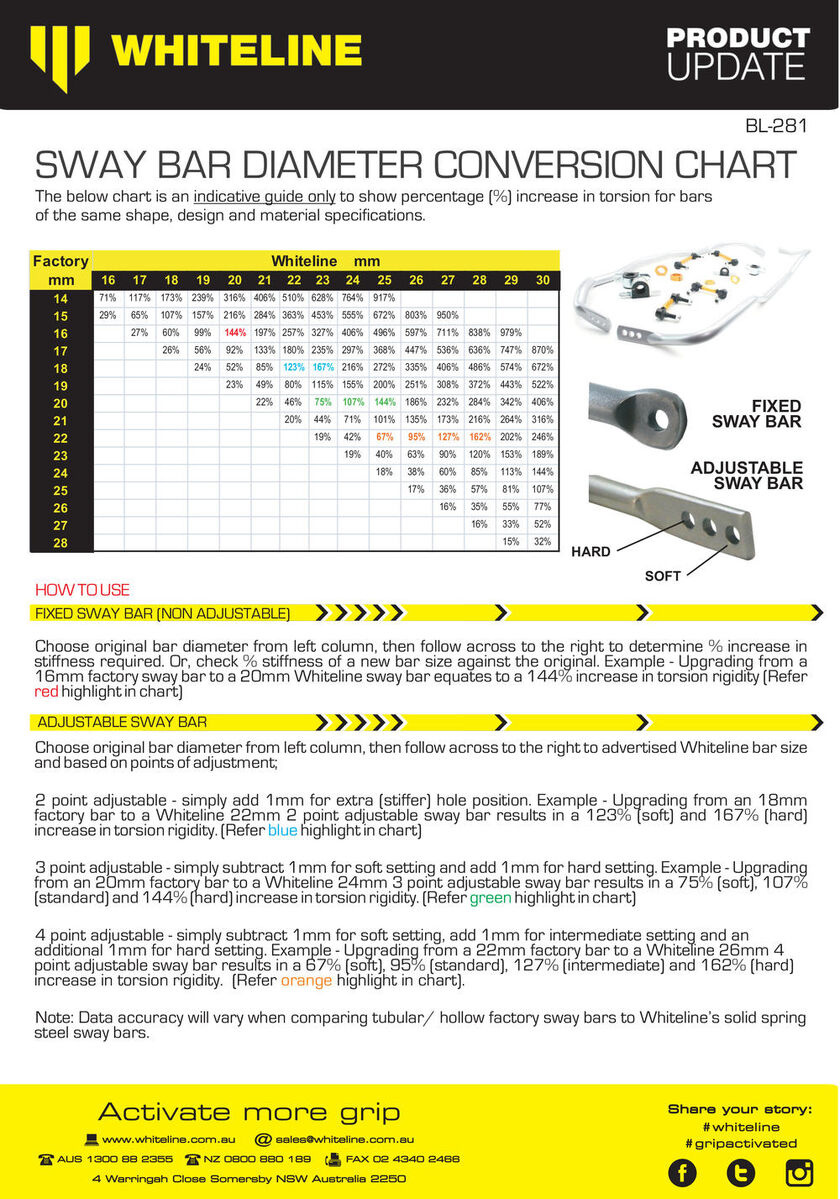

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 29 mm - +113.2%
Medium - Balanced 30 mm +14.5% +144.1%
Hard - Maximum roll control 31 mm +14.0% +178.4%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight11kg24.25lbs
Length220cm86.61"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUBTR115Z
Components Per1 Sway Bar, 2 Bushings
Kits Required1
Sub brandPerformance
Product NoteEngineered for precision and balance and maintains optimal suspension geometry under load; the perfect, complete upgrade. Includes: 1 Sway Bar, 2 Bushings
EAN9319924478354
  • Lifetime Warranty
Brand Whiteline
SKU BTR115Z
