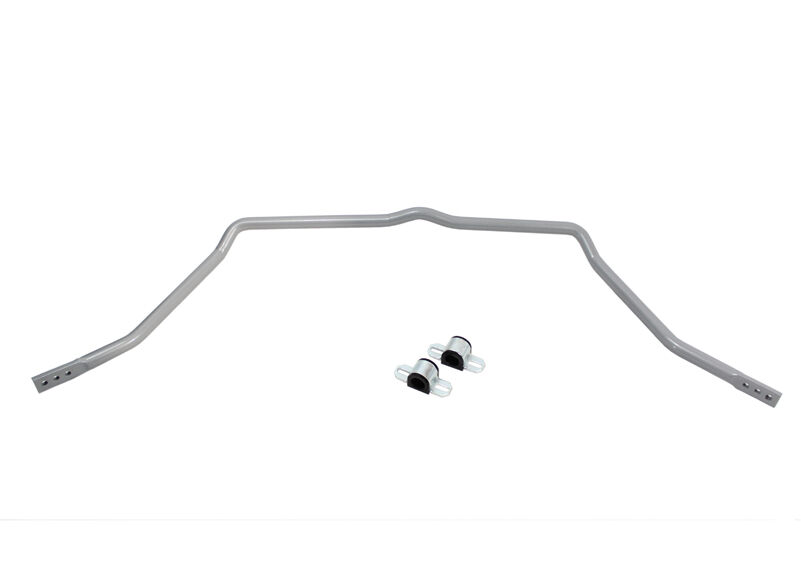

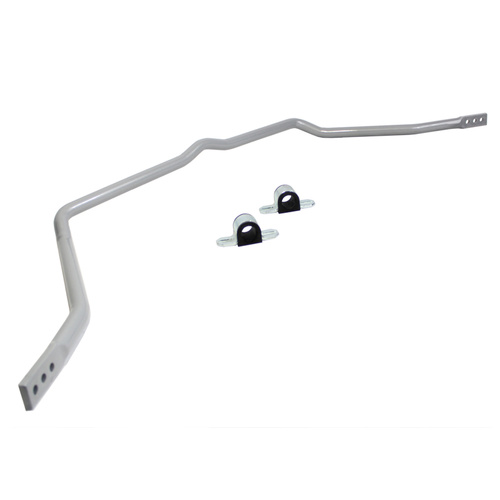

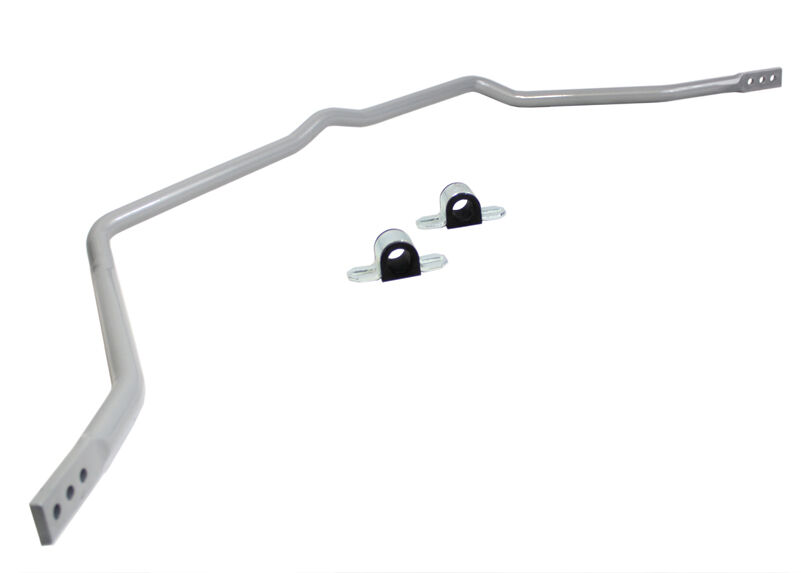

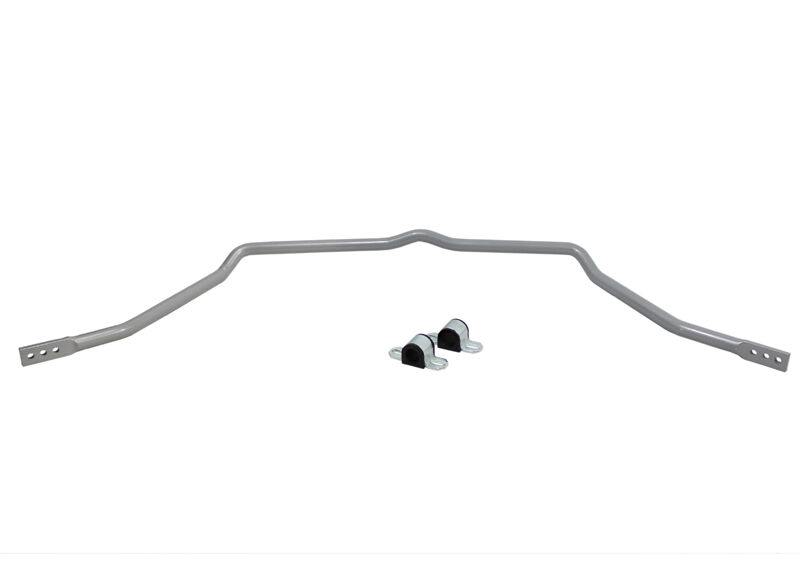

Whiteline Rear Sway Bar - 26mm 3 Point Adjustable to Suit Mitsubishi Galant HG, HH VR4 Awd

SKU: BMR60XXZ

Benefit Note: Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 26mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.


Kit Specifications

Diameter (mm) 26
Diameter (in) Fraction 1 1/32"
Diameter (in) Decimal 1.023
Material Solid Spring Steel

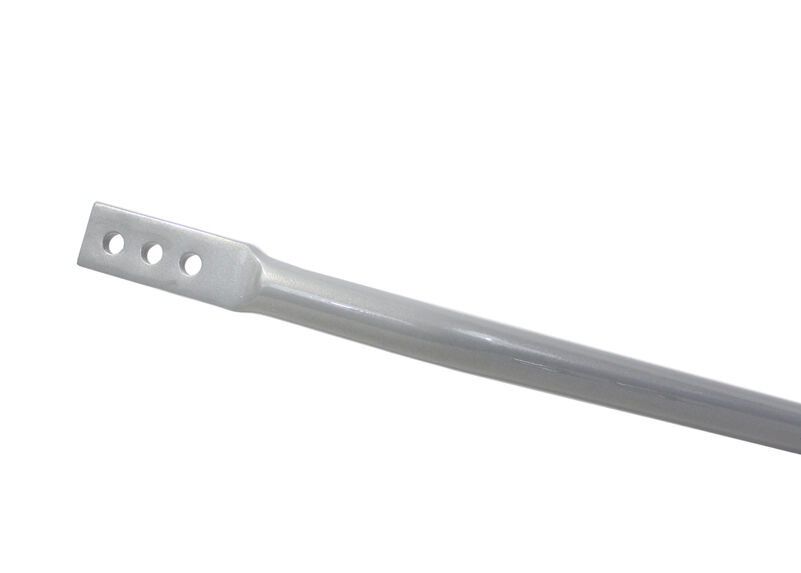

Sway Bar Adjustment Type 3 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 25 mm - +367.7%
Medium - Balanced 26 mm +17.0% +447.1%
Hard - Maximum roll control 27 mm +16.3% +536.3%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight7.3kg16.09lbs
Length120cm47.24"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUBMR60XXZ
Components Per1 Sway Bar, 2 Bushings, 2 Saddles
Kits Required1
Sub brandPerformance
Product NoteReduces body roll, keeping your vehicle flatter through corners; the perfect, complete upgrade. Includes: 1 Sway Bar, 2 Bushings, 2 Saddles
EAN9319924341962
  • Lifetime Warranty
Brand Whiteline
SKU BMR60XXZ
