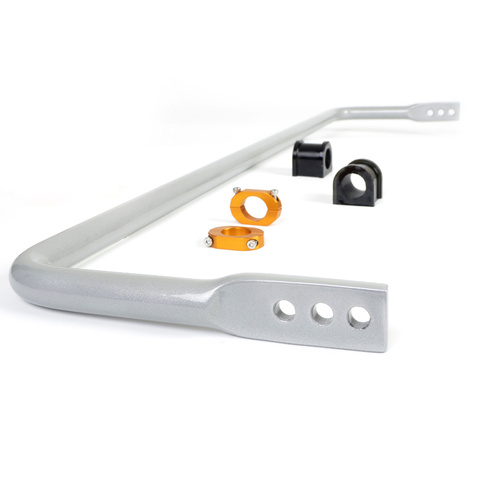

Whiteline Rear Sway Bar - 24mm 3 Point Adjustable to Suit Mitsubishi Lancer, ASX and Outlander

SKU: BMR86XZ

Benefit Note: Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 24mm 3 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.


Kit Specifications

Diameter (mm) 24
Diameter (in) Fraction 61/64"
Diameter (in) Decimal 0.944
Material Solid Spring Steel

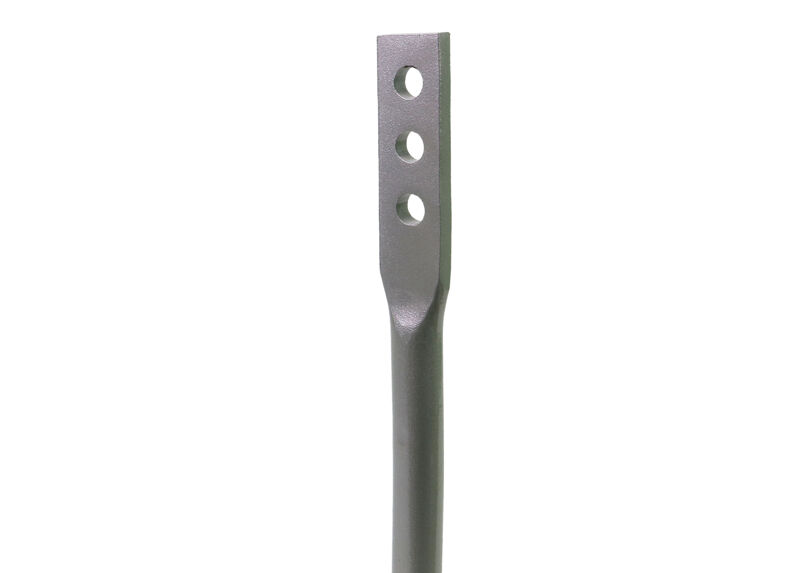

Sway Bar Adjustment Type 3 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 23 mm - +0.0%
Medium - Balanced 24 mm +18.6% +18.6%
Hard - Maximum roll control 25 mm +17.7% +39.6%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight4.6kg10.14lbs
Length120cm47.24"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUBMR86XZ

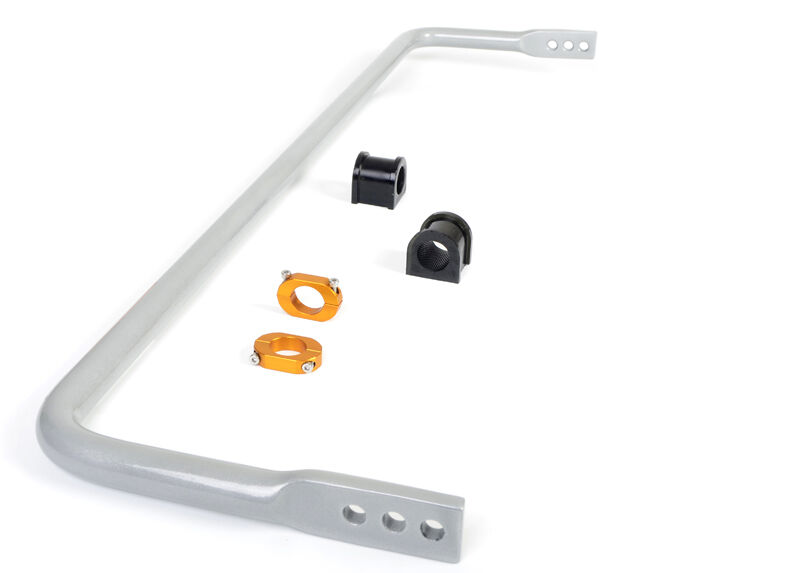

Components Per1 Sway Bar, 2 Bushings, 2 Lateral Locks
Kits Required1
Sub brandPerformance
Product NoteImproves stability and control, transforming vehicle performance the perfect, complete upgrade. Includes: 1 Sway Bar, 2 Bushings, 2 Lateral Locks
EAN9319924377046
  • Lifetime Warranty
Brand Whiteline
SKU BMR86XZ
