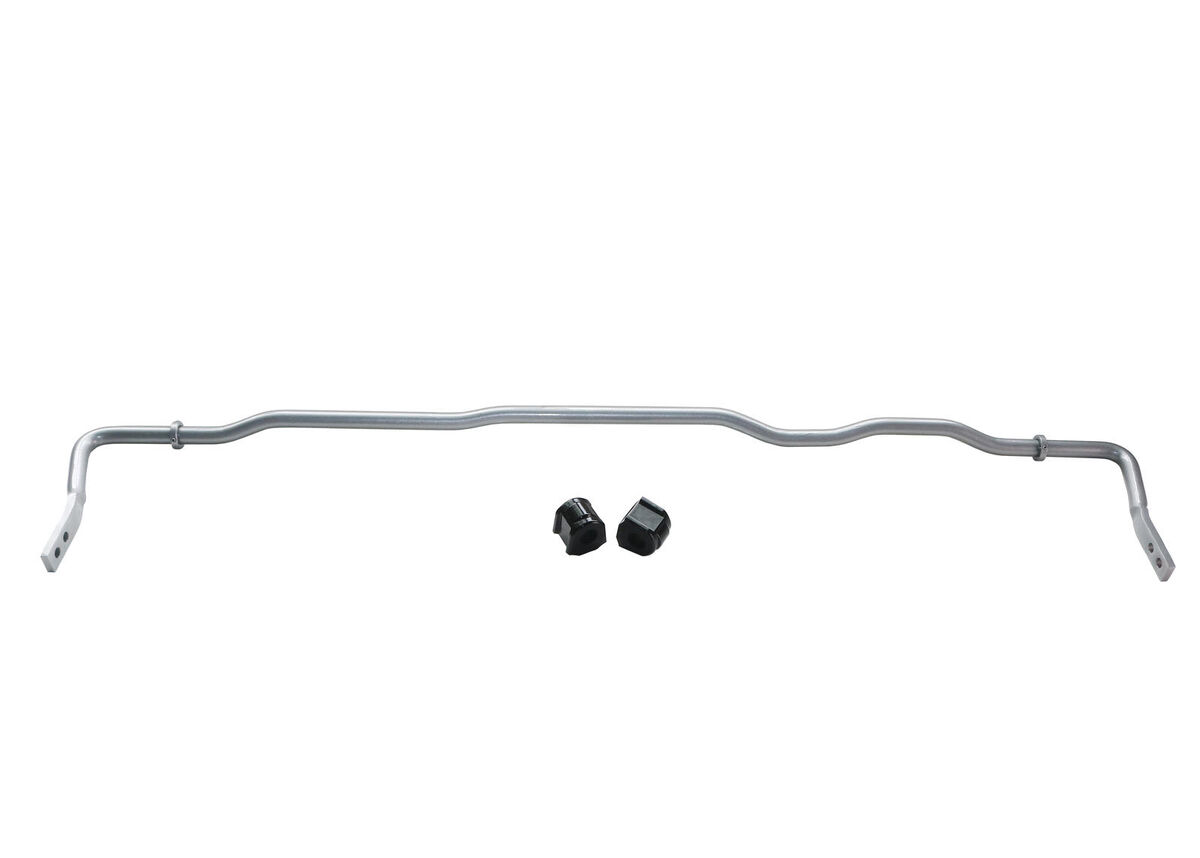

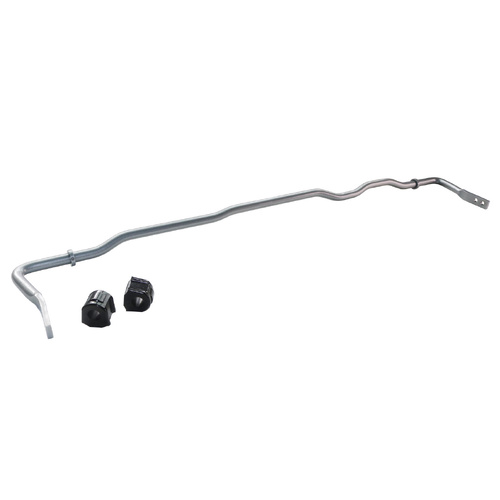

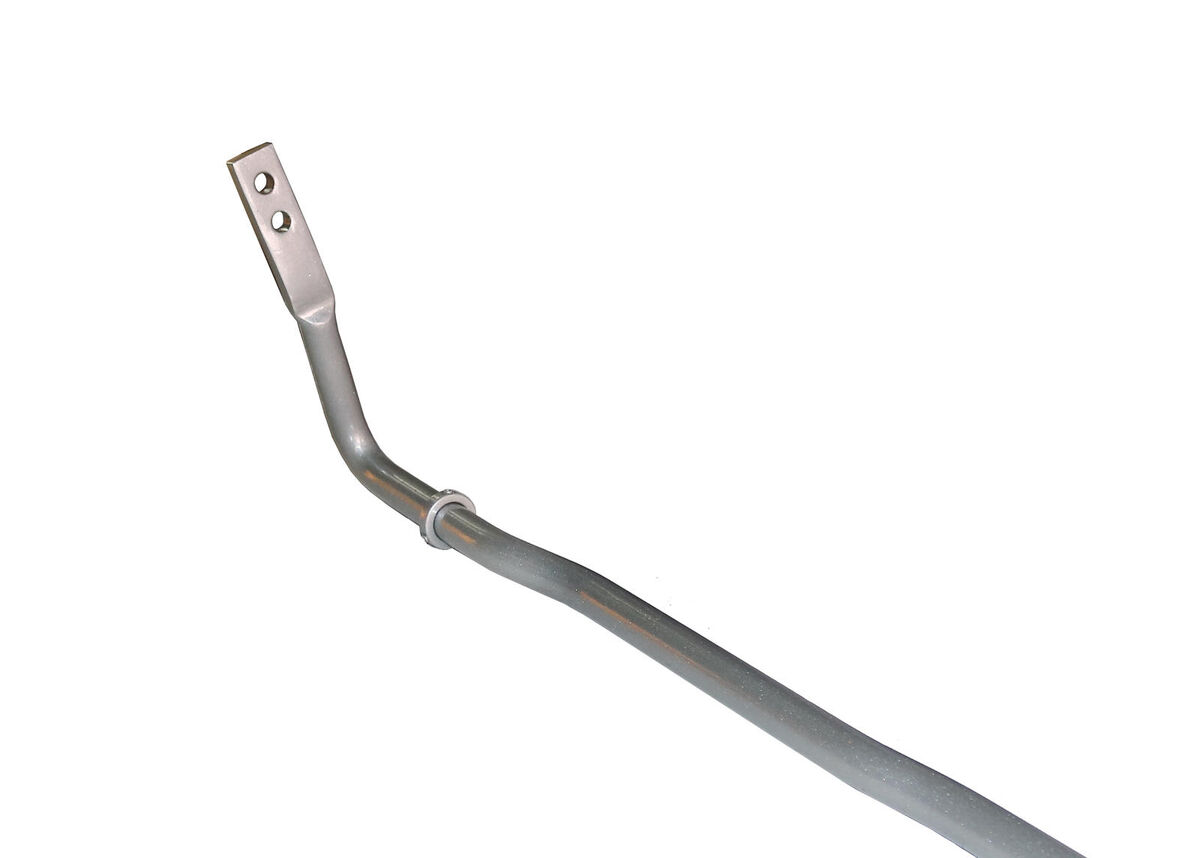

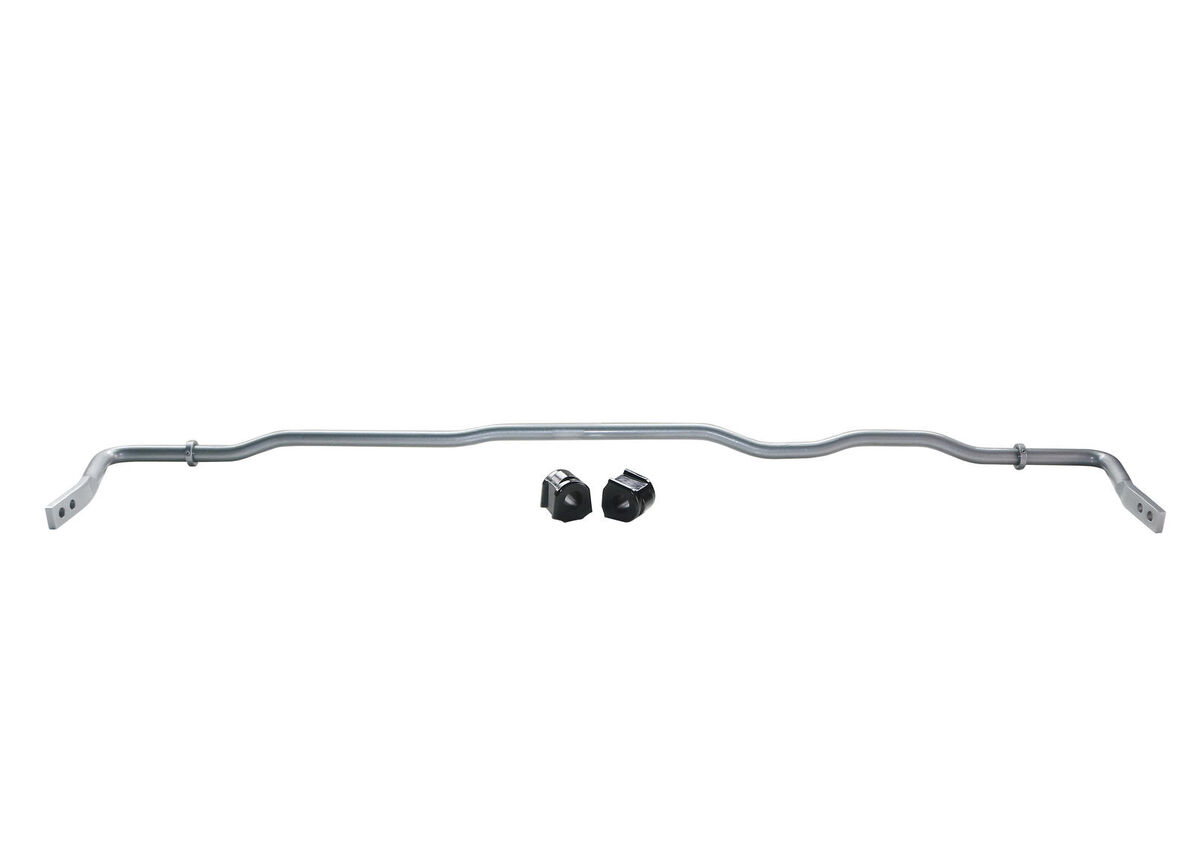

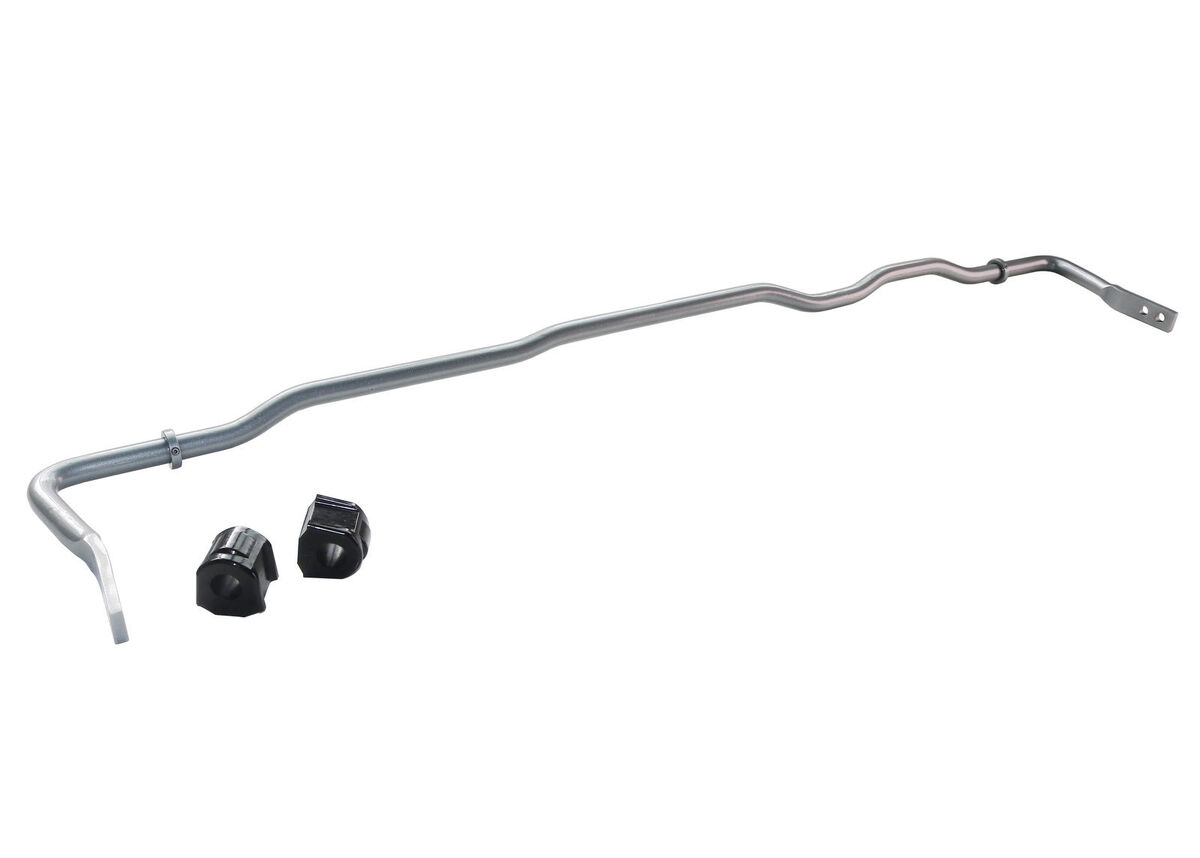

Whiteline Rear Sway Bar - 20mm 2 Point Adjustable to Suit Subaru Xv GT

SKU: BSR56Z

Benefit Note: Engineered to 'Activate More Grip', sway bars are principally designed to reduce body roll or sway. By reducing body roll, lateral loads are spread more evenly across the tyres thereby increasing cornering grip and improving outright performance. This Whiteline 20mm 2 point adjustable sway bar = more grip = better handling = outright performance - it's the best dollar for dollar handling improvement you can make to your vehicle. In fact, benefits extend to improvements in handling, safety and tyre wear without affecting ride quality or comfort.


Kit Specifications

Diameter (mm) 20
Diameter (in) Fraction 51/64"
Diameter (in) Decimal 0.787
Material Solid Spring Steel
Sway Bar Adjustment Type 2 Point Adjustable

Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.


Sway Bar Adjustment Settings

Setting Effective Bar Size (mm) % Change vs Previous Setting % Stiffer Than OE
Soft - Comfort / low grip 19.5 mm - +37.7%
Hard - Maximum roll control 20.5 mm +22.1% +68.2%

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight4kg8.82lbs
Length120cm47.24"
Width25cm9.84"
Height20cm7.87"

Misc. Product Information

More Information
SKUBSR56Z
Components Per1 Sway Bar, 2 Bushings
Kits Required1
Sub brandPerformance
Product NoteImproves stability and control, transforming vehicle performance the perfect, complete upgrade. Includes: 1 Sway Bar, 2 Bushings
EAN9319924469888
  • Lifetime Warranty
Brand Whiteline
SKU BSR56Z
