Whiteline Rear Subframe - Bushing Kit to Suit Subaru Forester, Impreza WRX/STi, Levorg, Liberty and Outback

SKU: KDT938

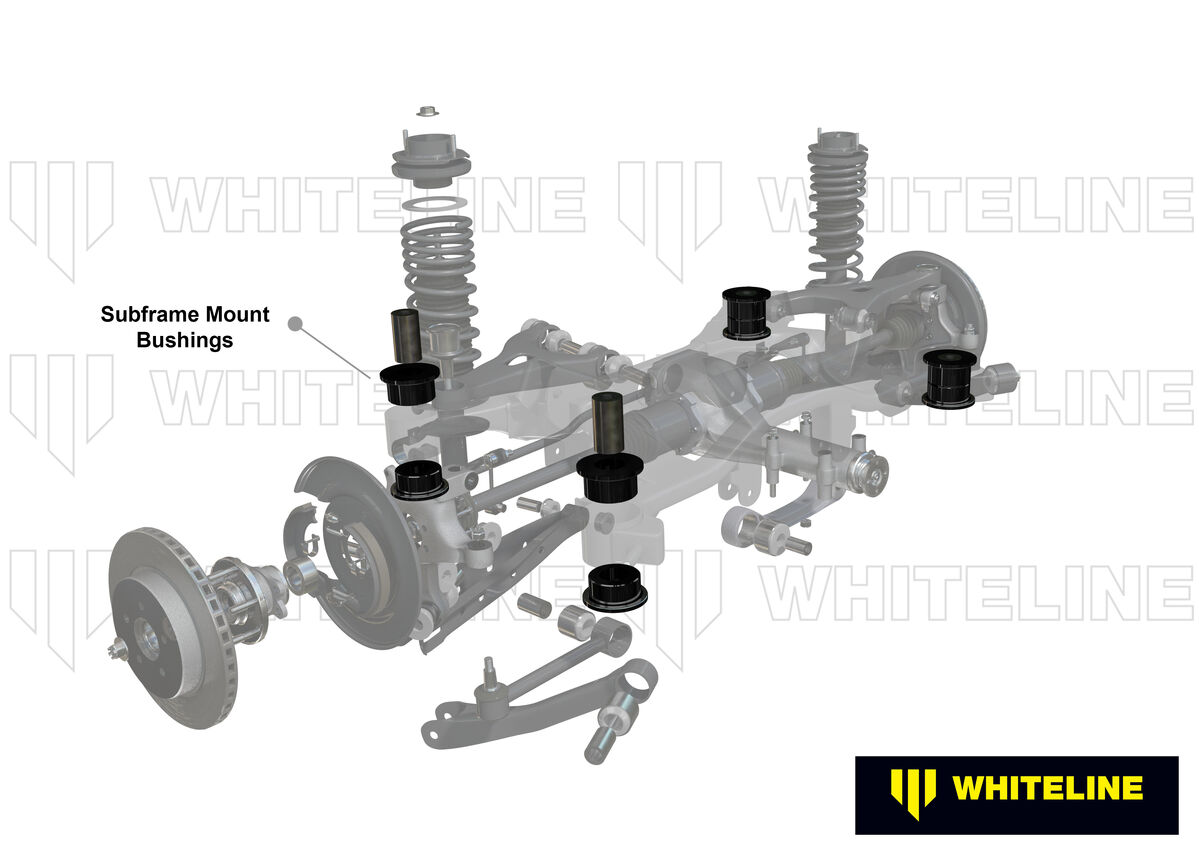

Benefit Note: Not your typical remove and replace bushing kit but simple installation means great for the DIYer's. Designed to work with the original bushing and eliminate over compliance or better known in motorsport as 'lost motion' of the rear crossmember. This Whiteline kit dramatically reduces rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.


Kit Specifications

Bush Type 20 - Misc 20 - Misc 20 - Misc 20 - Misc
Bush Quantity 2 mm 2 mm 2 mm 2 mm
OD (A) 54.1 mm 67 mm 52.9 mm 67 mm
ID (B) 29.8 mm 30.7 mm 29.8 mm 30.7 mm
Length (C) 50.2 mm 10 mm 50.2 mm 10 mm
Flange Thickness (D) 6.6 mm 6.6 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 20 - Misc
Bushing Type 20 - Misc
Bushing Type 20 - Misc
Bushing Type 20 - Misc

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.23kg0.51lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKDT938
Components Per8 Insert Bushings
Kits Required1
Sub brandPerformance
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 8 Insert Bushings
EAN9319924402502
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KDT938
Unit Of Measure Kit
