Whiteline Rear Subframe - Bushing Kit to Suit Subaru Impreza GJ, GV incl WRX/STi

SKU: KDT910

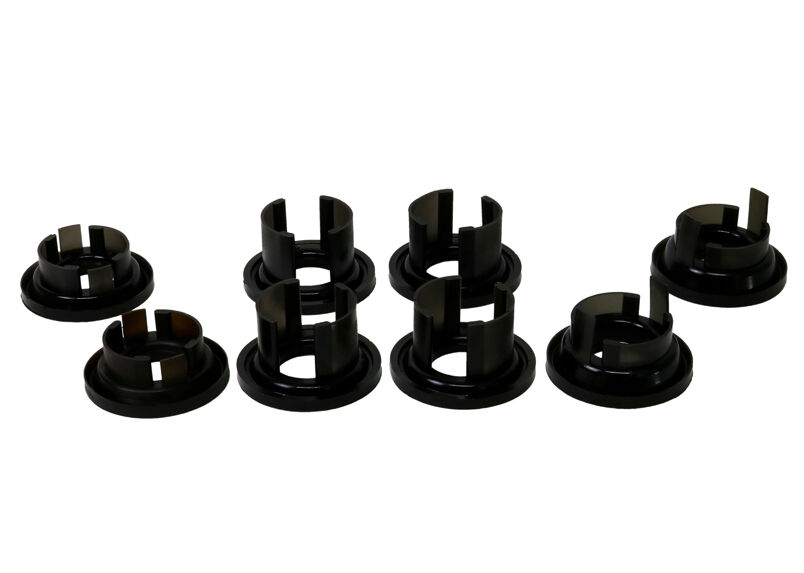

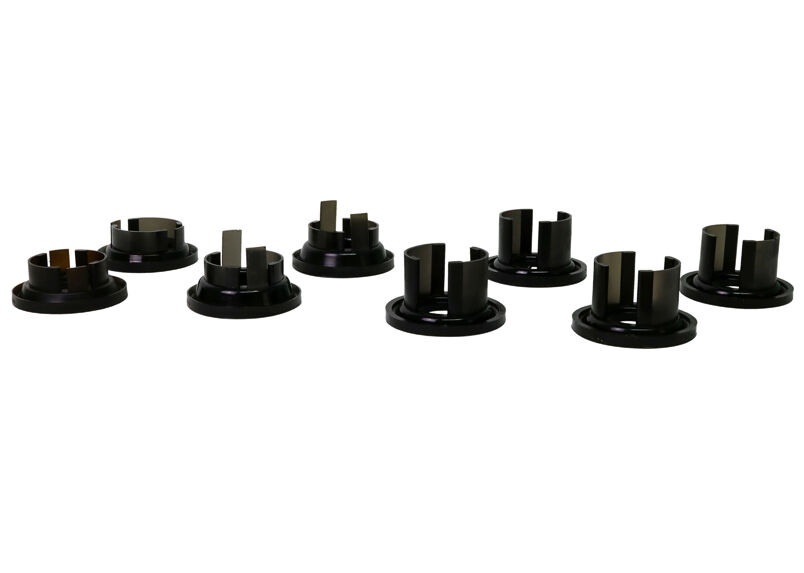

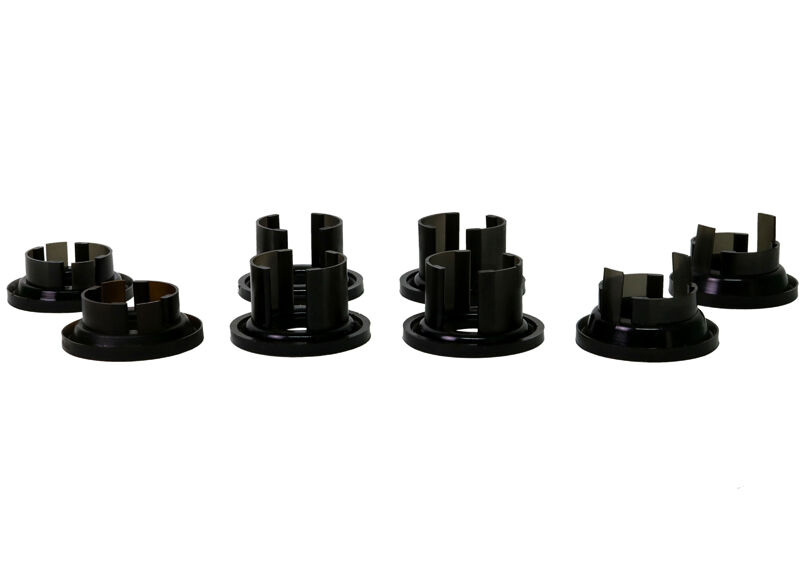

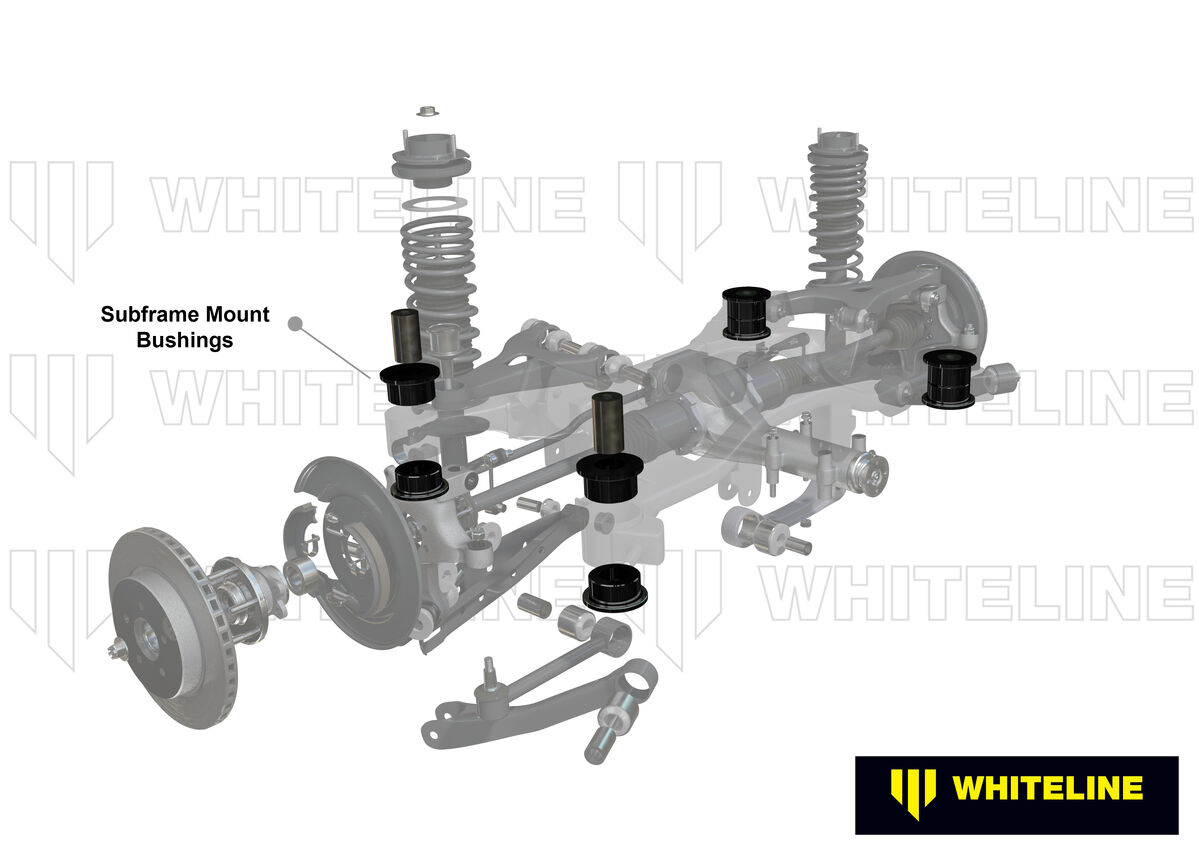

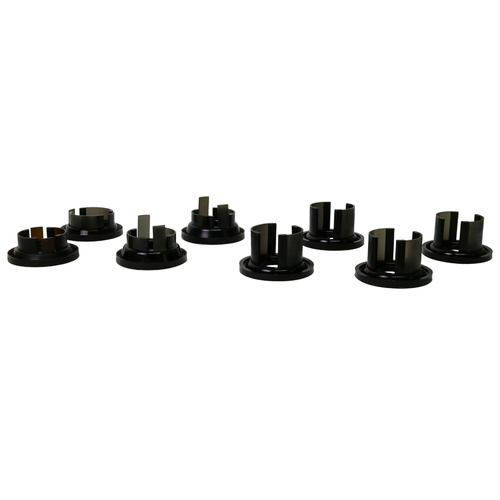

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.


Kit Specifications

Bush Type 20 - Misc 20 - Misc 20 - Misc
Bush Quantity 2 mm 4 mm 2 mm
OD (A) 60.7 mm 60.7 mm 67.1 mm
ID (B) 40.7 mm 40.9 mm 41.1 mm
Length (C) 50.3 mm 32.2 mm 51.6 mm
Flange Thickness (D) 8 mm 8.8 mm 9.4 mm
Flange OD (E) 88.7 mm 88.3 mm 88.7 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 20 - Misc
Bushing Type 20 - Misc
Bushing Type 20 - Misc

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.558kg1.23lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUKDT910
Components Per8 Insert Bushings
Kits Required1
Sub brandPerformance
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 8 Insert Bushings
EAN9319924387281
  • Lifetime Warranty
Brand Whiteline
SKU KDT910
Unit Of Measure Kit
