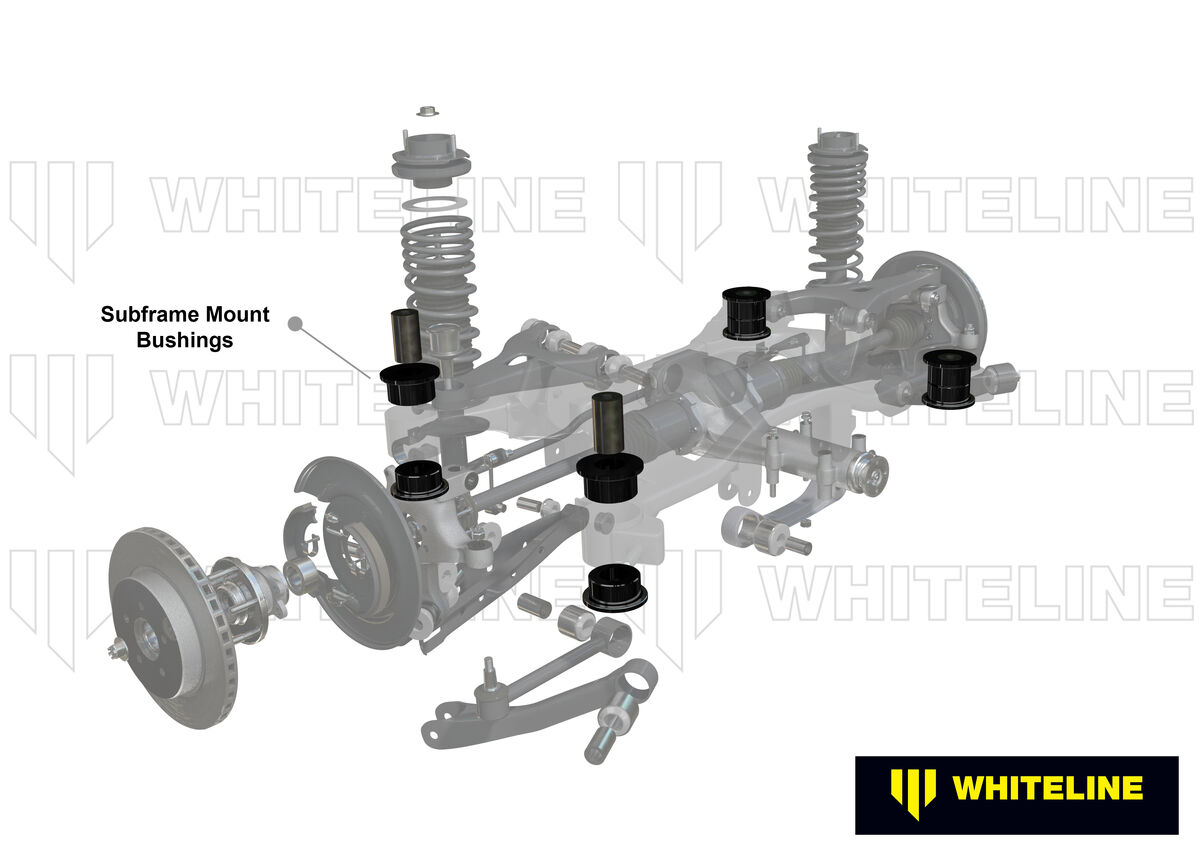

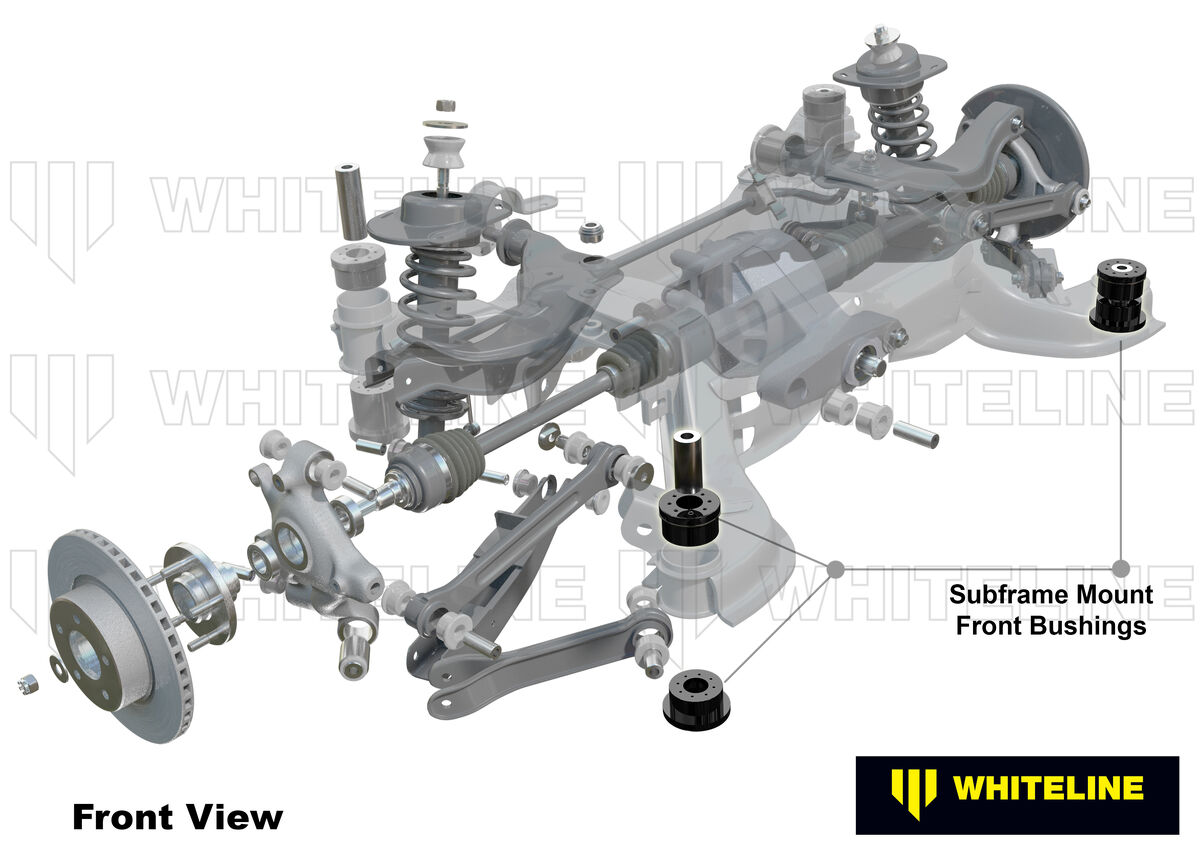

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm	2 mm	2 mm
OD (A)	65 mm	65 mm	76 mm	76 mm
ID (B)	32 mm	32 mm	32 mm	32 mm
Length (C)	45 mm	47 mm	36 mm	47 mm
Flange Thickness (D)	11 mm	13 mm	6 mm	17 mm
Flange OD (E)	78 mm	78 mm	85 mm	90 mm
C/Tube Quantity	4	4	4	4
C/Tube ODxIDxL	32x21.6x80 mm	32x21.6x80 mm	32x21.6x80 mm	32x21.6x80 mm
Similar Bushing Size	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

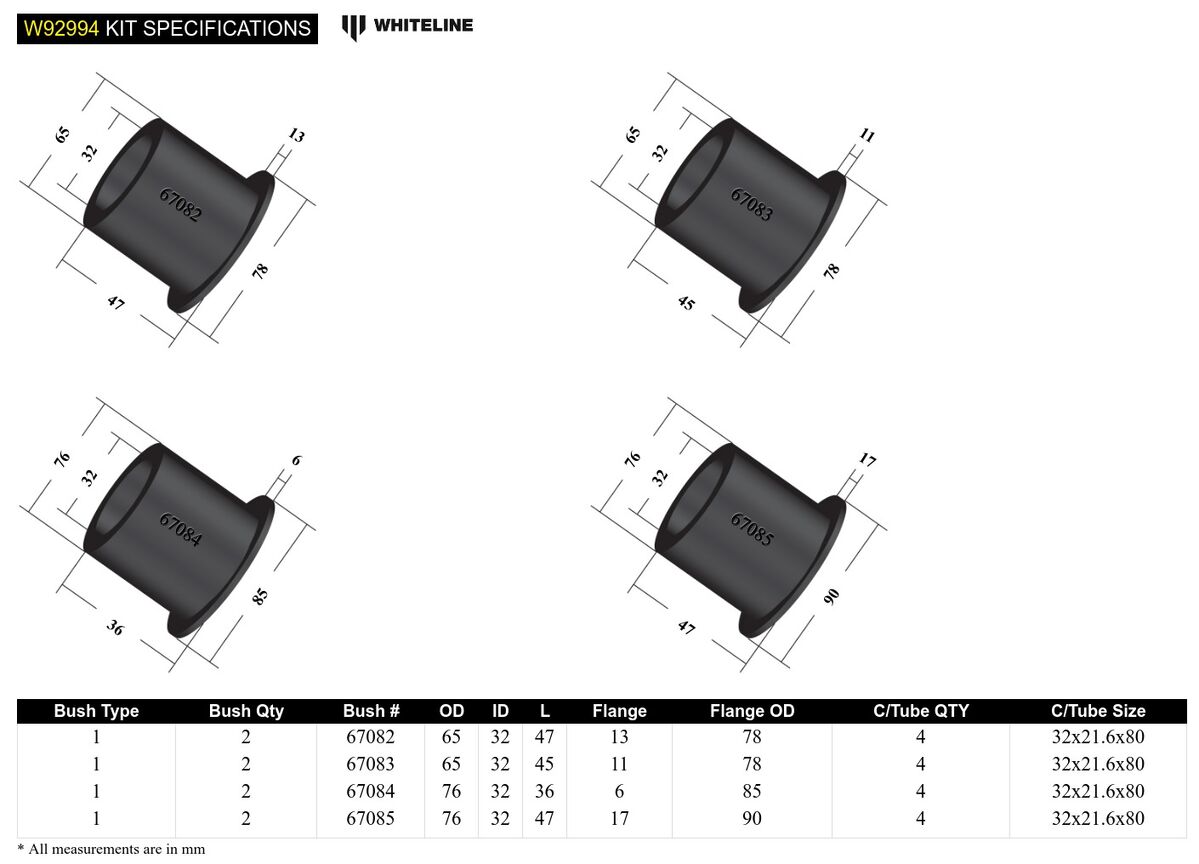

Bushing Design Dimensions (mm)

Bush Type	1	1	1	1
QTY	2	2	2	2
OD (A)	65	65	76	76
ID (B)	32	32	32	32
Length (C)	45.0	47.0	36.0	47.0
FL (D)	11	13	6	17
FLOD (E)	78	78	85	90
C/Tube Qty	4	4	4	4
C/Tube Size	32x21.6x80	32x21.6x80	32x21.6x80	32x21.6x80
Similar Bushings	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	2.47kg	5.45lbs
Length	25cm	9.84"
Width	18cm	7.09"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	W92994
Components Per	8 Bushings, 4 Tubes, 8 Washers
Kits Required	1
Sub brand	Replacement
Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 8 Washers
EAN	9319924358250
