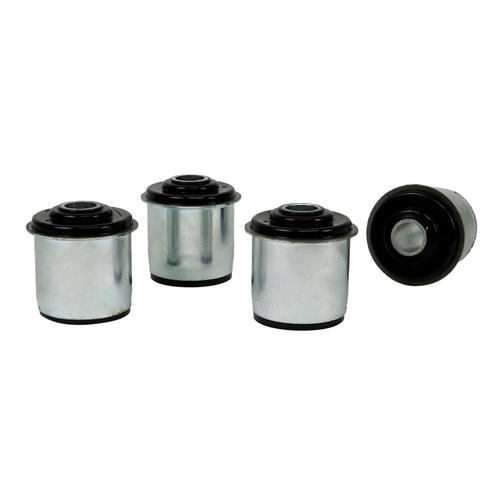

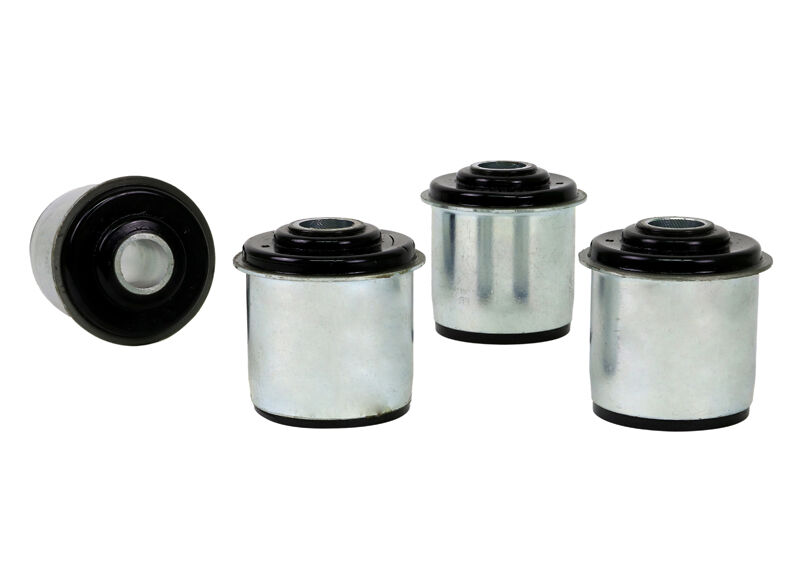

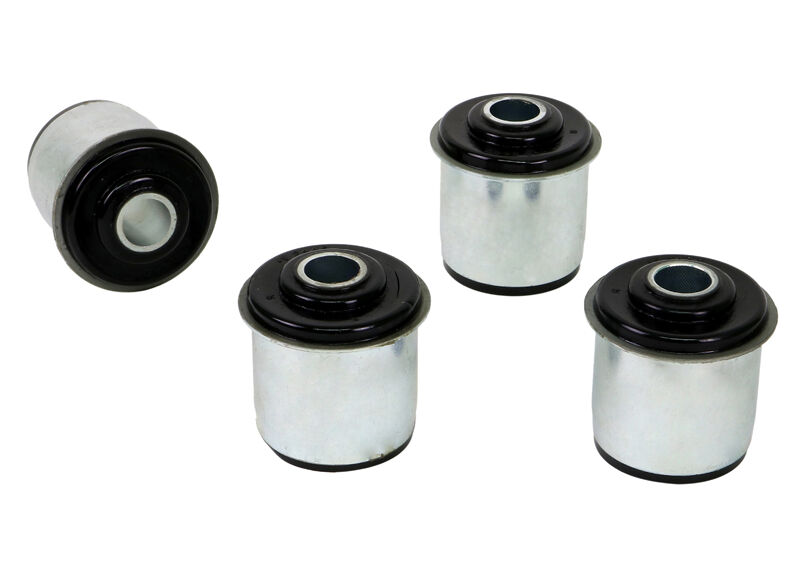

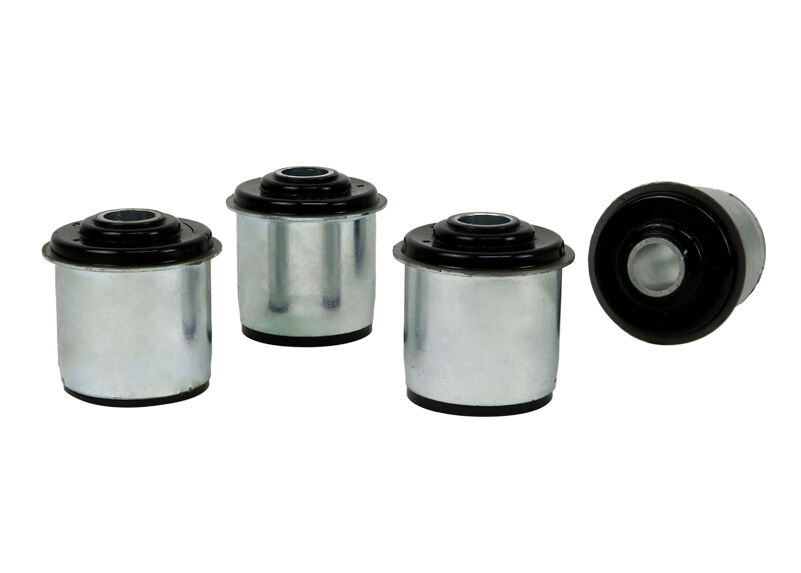

Whiteline Rear Subframe - Bushing Kit to Suit Nissan 180SX, 200SX, Pulsar and Skyline

SKU: W92446

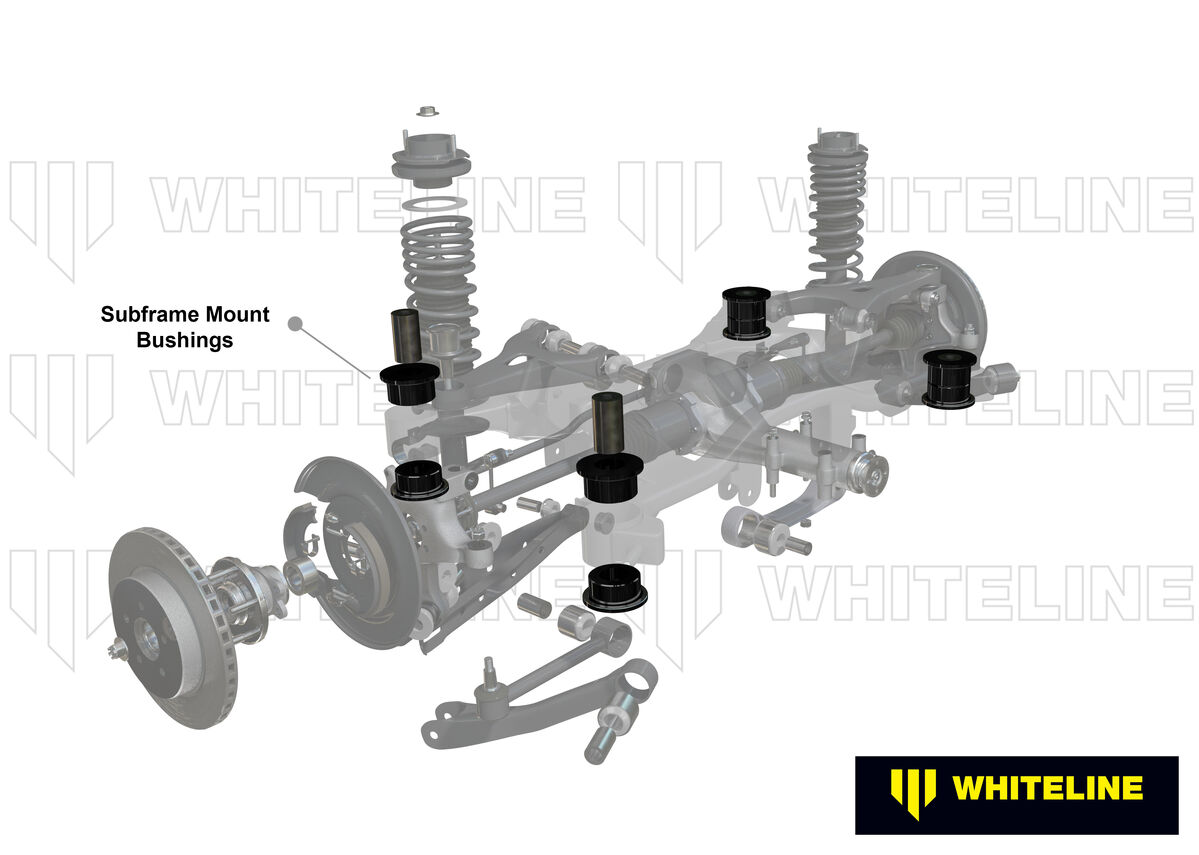

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 4 mm
OD (A) 66.3 mm
ID (B) 22.3 mm
Length (C) 76.6 mm
Flange Thickness (D) 14 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 4
OD (A) 66.3
ID (B) 22.3
Length (C) 76.6
FL (D) 14
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2kg4.41lbs
Length30cm11.81"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW92446
Components Per4 Shell Bushings
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Shell Bushings
EAN9319924357932
  • Lifetime Warranty
Brand Whiteline
SKU W92446
Unit Of Measure Kit
