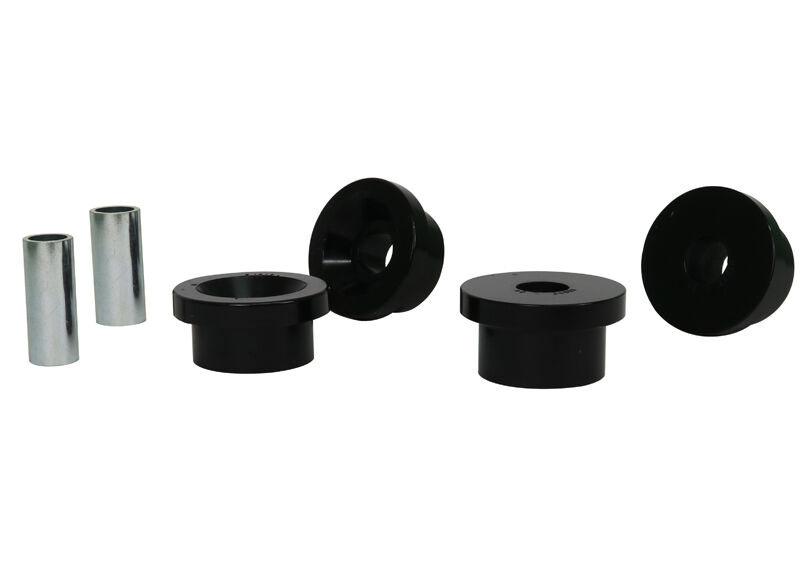

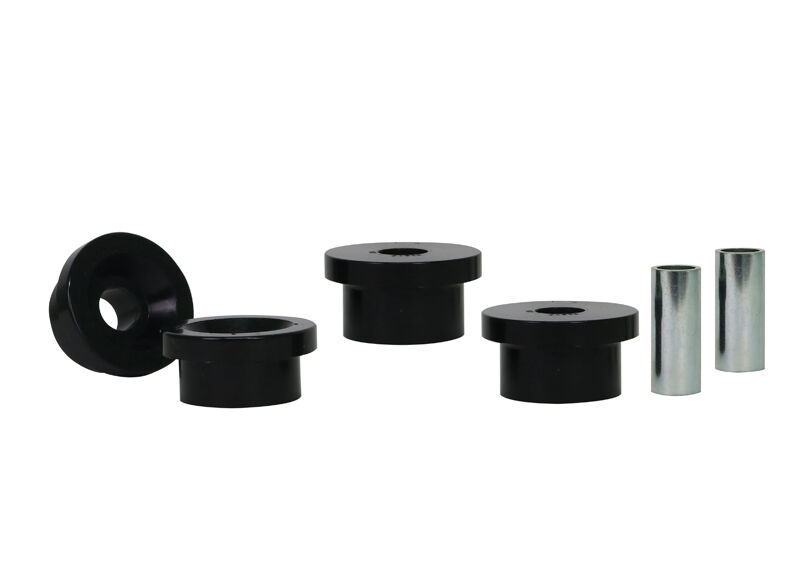

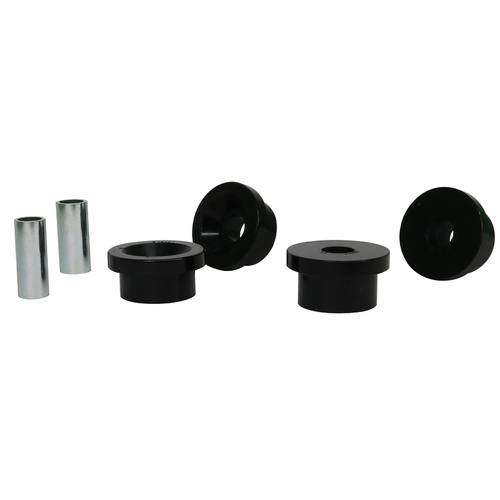

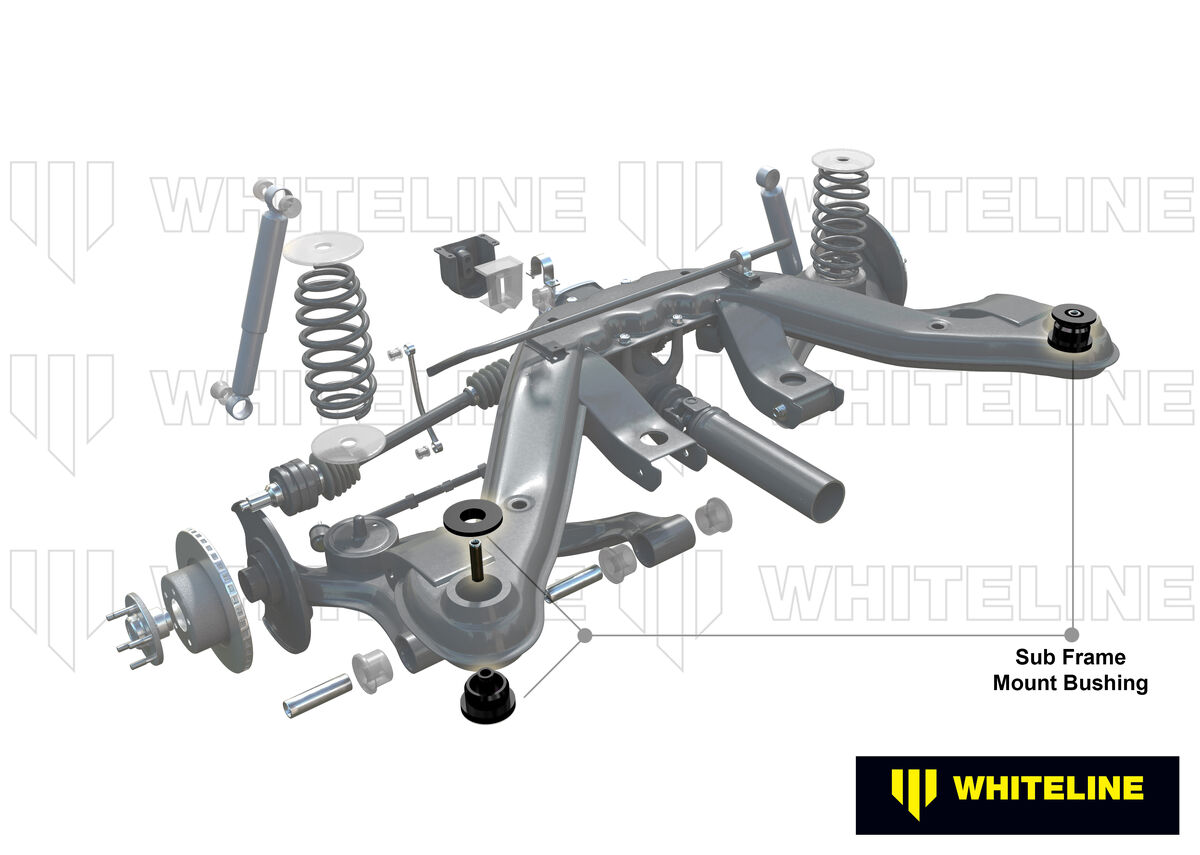

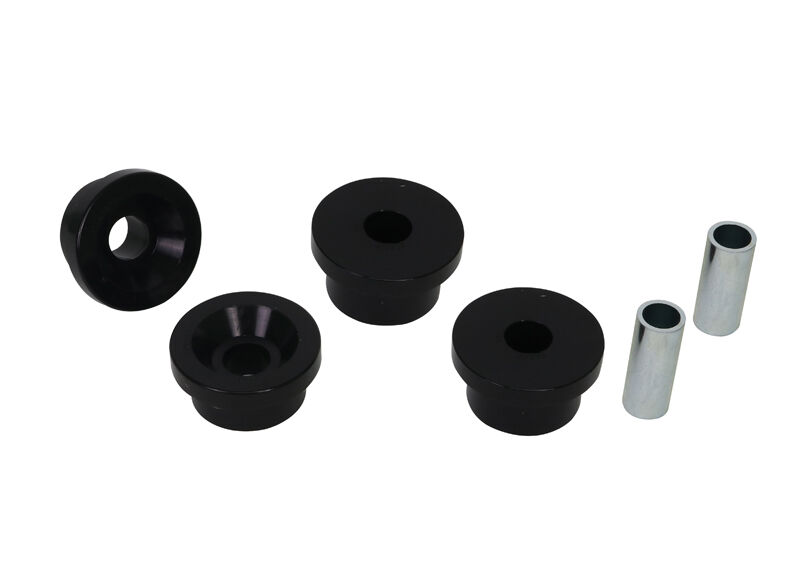

Whiteline Rear Subframe - Bushing Kit to Suit Nissan 1600, 180B, 240K and Bluebird

SKU: W91616

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 69.6 mm 69.6 mm
ID (B) 28.8 mm 28.8 mm
Length (C) 49 mm 41.8 mm
Flange Thickness (D) 14.2 mm 14 mm
Flange OD (E) 90 mm 90 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 28.6x22.2x72 mm 28.6x22.2x72 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 69.6 69.6
ID (B) 28.8 28.8
Length (C) 49.0 41.8
FL (D) 14.2 14
FLOD (E) 90 90
C/Tube Qty 2 2
C/Tube Size 28.6x22.2x72 28.6x22.2x72
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.316kg2.9lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW91616
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924357734
  • Lifetime Warranty
Brand Whiteline
SKU W91616
Unit Of Measure Kit
