Whiteline Rear Subframe - Bushing Kit to Suit Nissan S-Chassis 180SX, 200SX and Skyline

SKU: KCA518

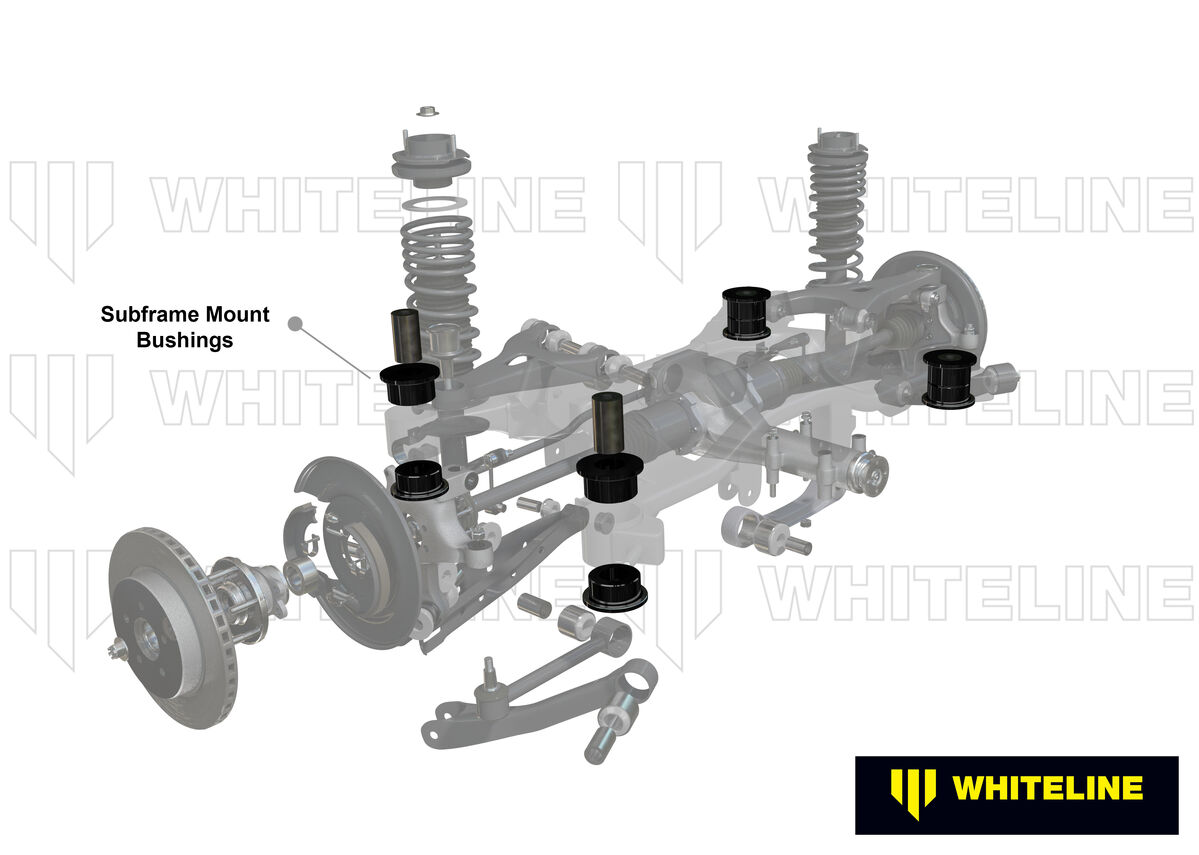

Benefit Note: This easy to install kit is designed to change the inclination of the rear sub-frame whilst reducing bushing compliance. By arranging in different planes it is possible to induce rear squat (maximum traction) or anti-squat (drift) properties. This product may induce increased NVH levels.

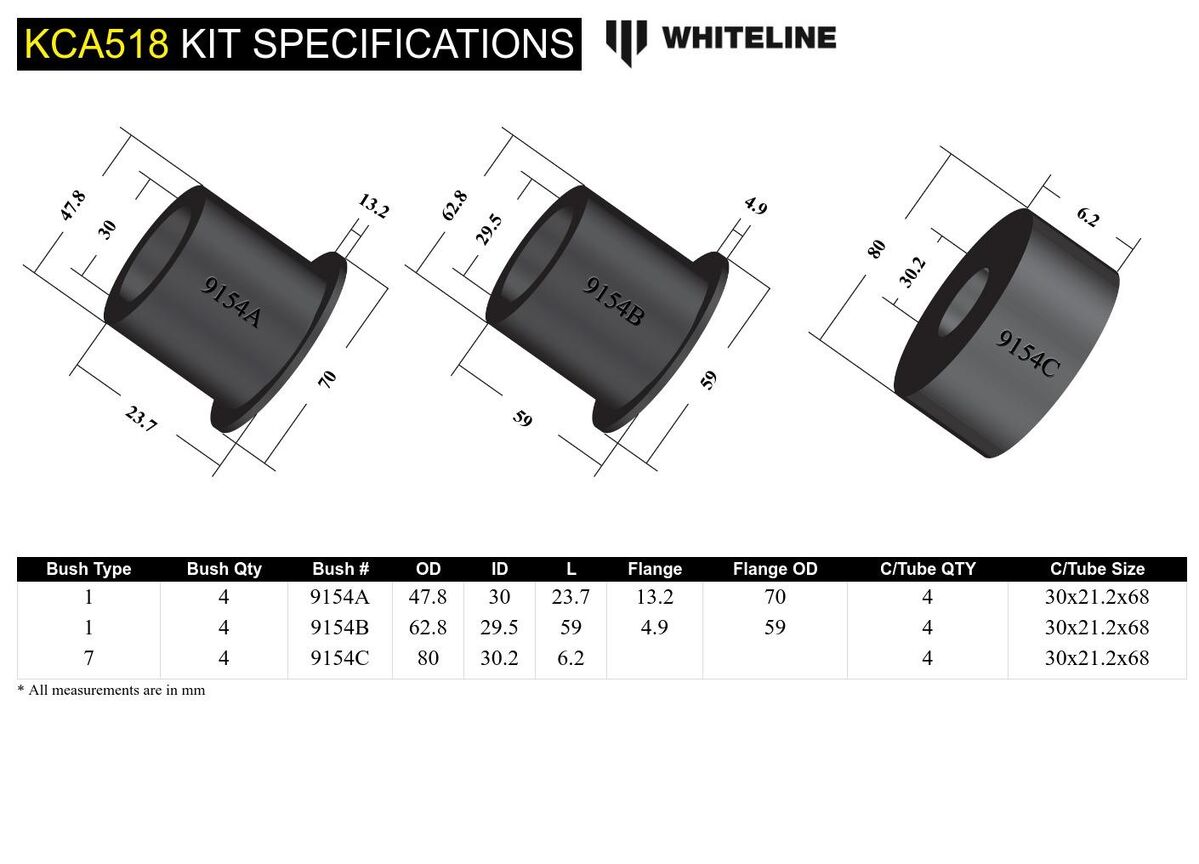

Kit Specifications

Bush Type 1 - Shackle Bushing 7 - Pin Bush With & Without Spigot 1 - Shackle Bushing
Bush Quantity 4 mm 4 mm 4 mm
OD (A) 47.8 mm 80 mm 62.8 mm
ID (B) 30 mm 30.2 mm 29.5 mm
Length (C) 23.7 mm 6.2 mm 59 mm
Flange Thickness (D) 13.2 mm 4.9 mm
Flange OD (E) 70 mm 59 mm
C/Tube Quantity 4 4 4
C/Tube ODxIDxL 30x21.2x68 mm 30x21.2x68 mm 30x21.2x68 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 7 1
QTY 4 4 4
OD (A) 47.8 80 62.8
ID (B) 30 30.2 29.5
Length (C) 23.7 6.2 59.0
FL (D) 13.2 4.9
FLOD (E) 70 59
C/Tube Qty 4 4 4
C/Tube Size 30x21.2x68 30x21.2x68 30x21.2x68
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.8kg3.97lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUKCA518
Components Per12 Bushings, 4 Tubes
Kits Required1
Sub brandPerformance
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 12 Bushings & 4 Tubes
EAN9319924468997
  • Lifetime Warranty
Brand Whiteline
SKU KCA518
Unit Of Measure Kit
