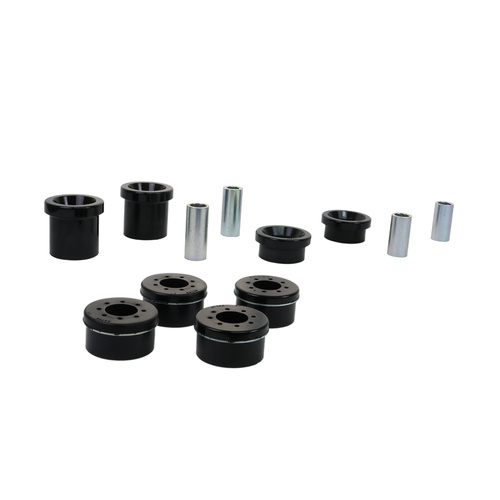

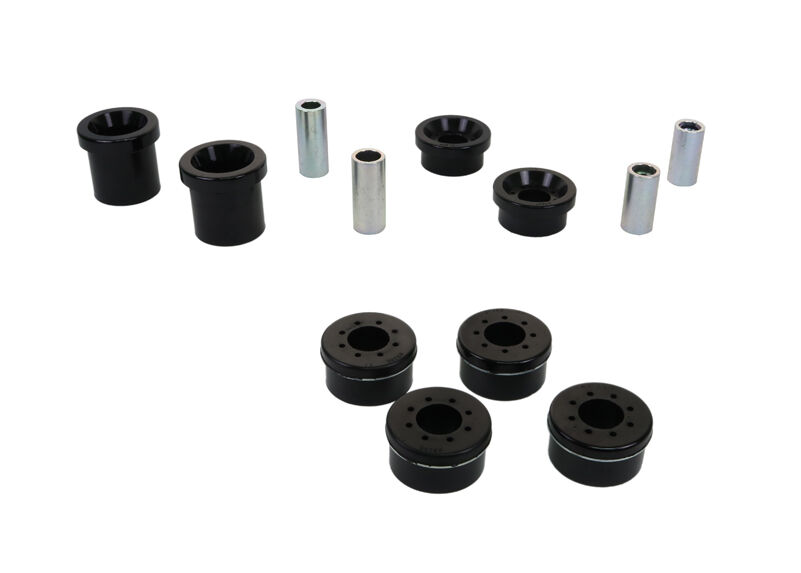

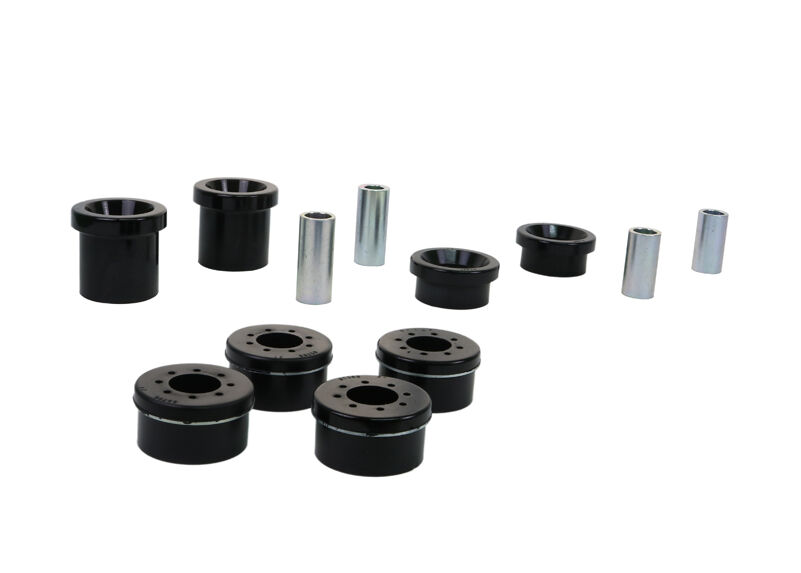

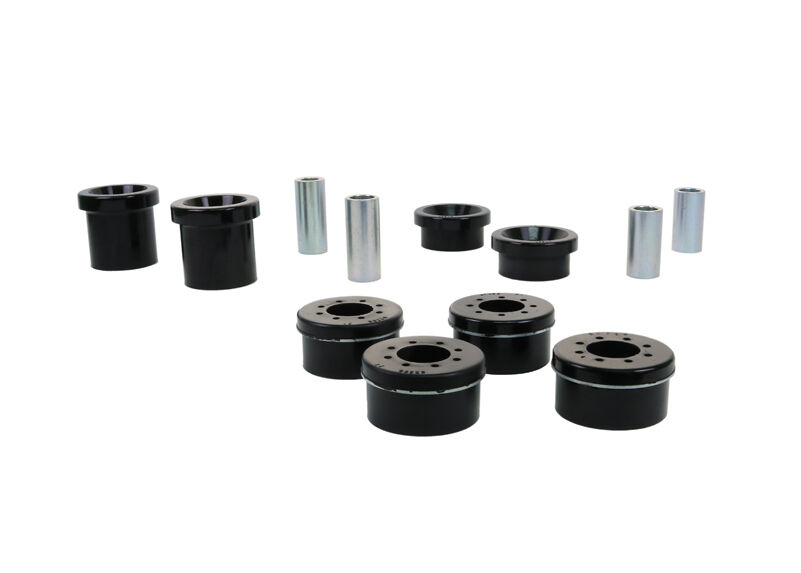

Whiteline Rear Subframe - Bushing Kit to Suit Holden Commodore VE, VF and HSV

SKU: W93165

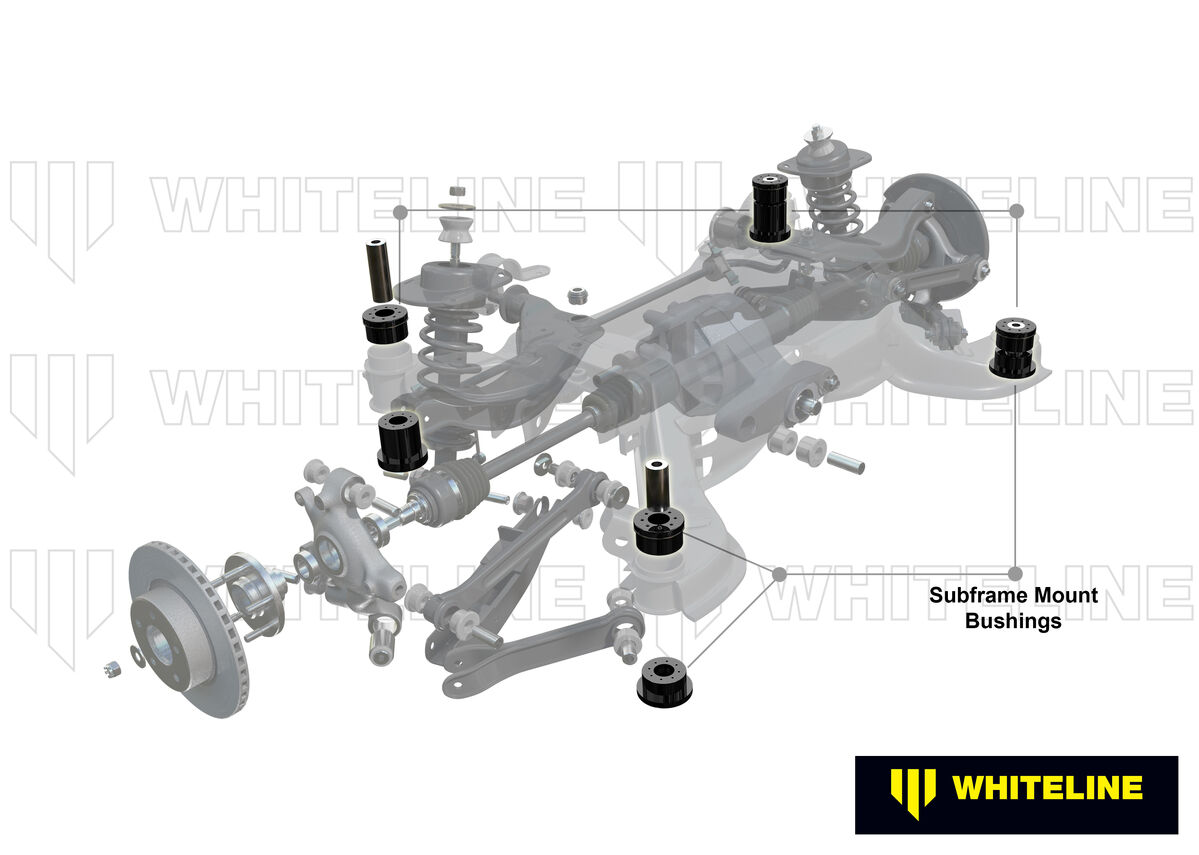

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 4 mm 2 mm
OD (A) 75 mm 75 mm 75 mm
ID (B) 35.2 mm 35.2 mm 35.2 mm
Length (C) 41 mm 42.2 mm 83 mm
Flange Thickness (D) 14.5 mm 12.2 mm 17 mm
Flange OD (E) 90 mm 80.8 mm 90 mm
C/Tube Quantity 2 / 2 2 / 2 2 / 2
C/Tube ODxIDxL 35x22/26x85 / 35x21/25x70 mm 35x22/26x85 / 35x21/25x70 mm 35x22/26x85 / 35x21/25x70 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

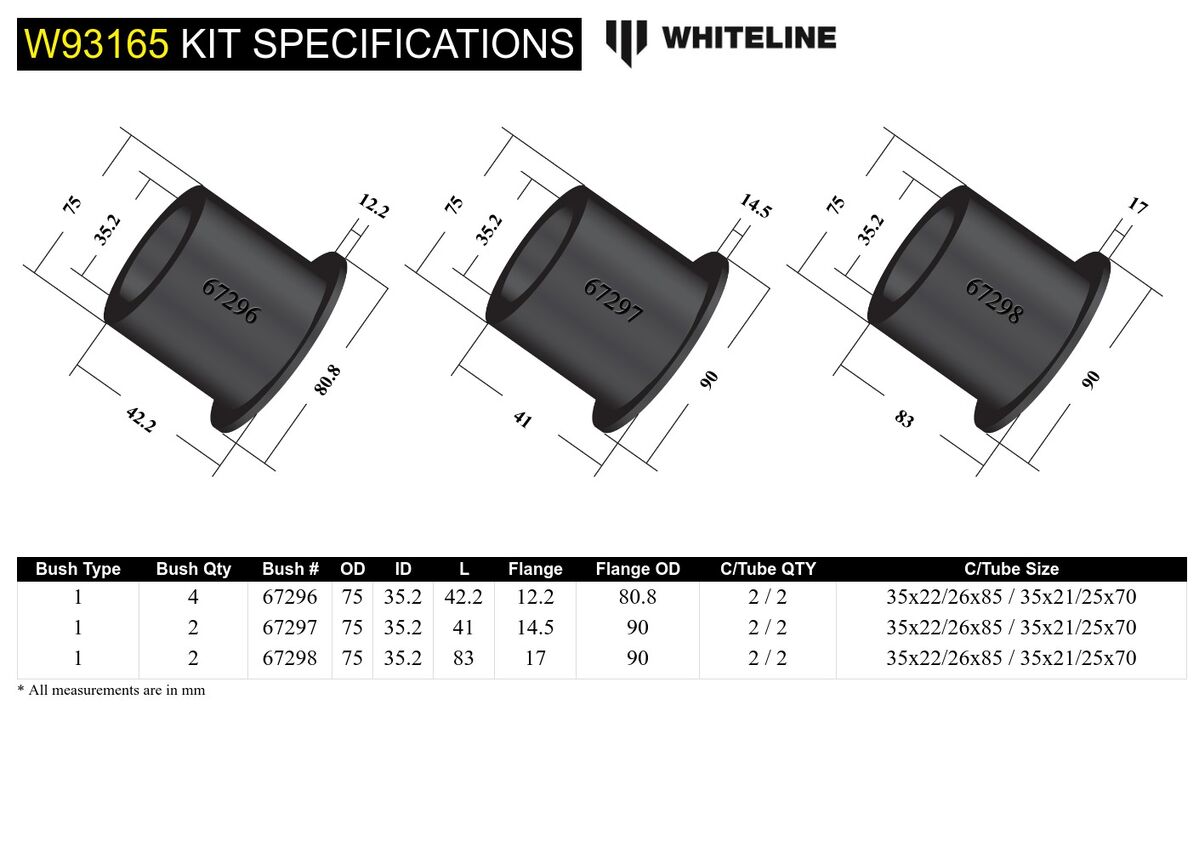

Bushing Design Dimensions (mm)

Bush Type 1 1 1
QTY 2 4 2
OD (A) 75 75 75
ID (B) 35.2 35.2 35.2
Length (C) 41.0 42.2 83.0
FL (D) 14.5 12.2 17
FLOD (E) 90 80.8 90
C/Tube Qty 2 / 2 2 / 2 2 / 2
C/Tube Size 35x22/26x85 / 35x21/25x70 35x22/26x85 / 35x21/25x70 35x22/26x85 / 35x21/25x70
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight2.976kg6.56lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW93165
Components Per8 Bushings, 4 Tubes
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes
EAN9319924358298
  • Lifetime Warranty
Brand Whiteline
SKU W93165
Unit Of Measure Kit
