Whiteline Rear Subframe - Bushing Kit to Suit Holden Commodore VN-VZ and HSV

SKU: W92350

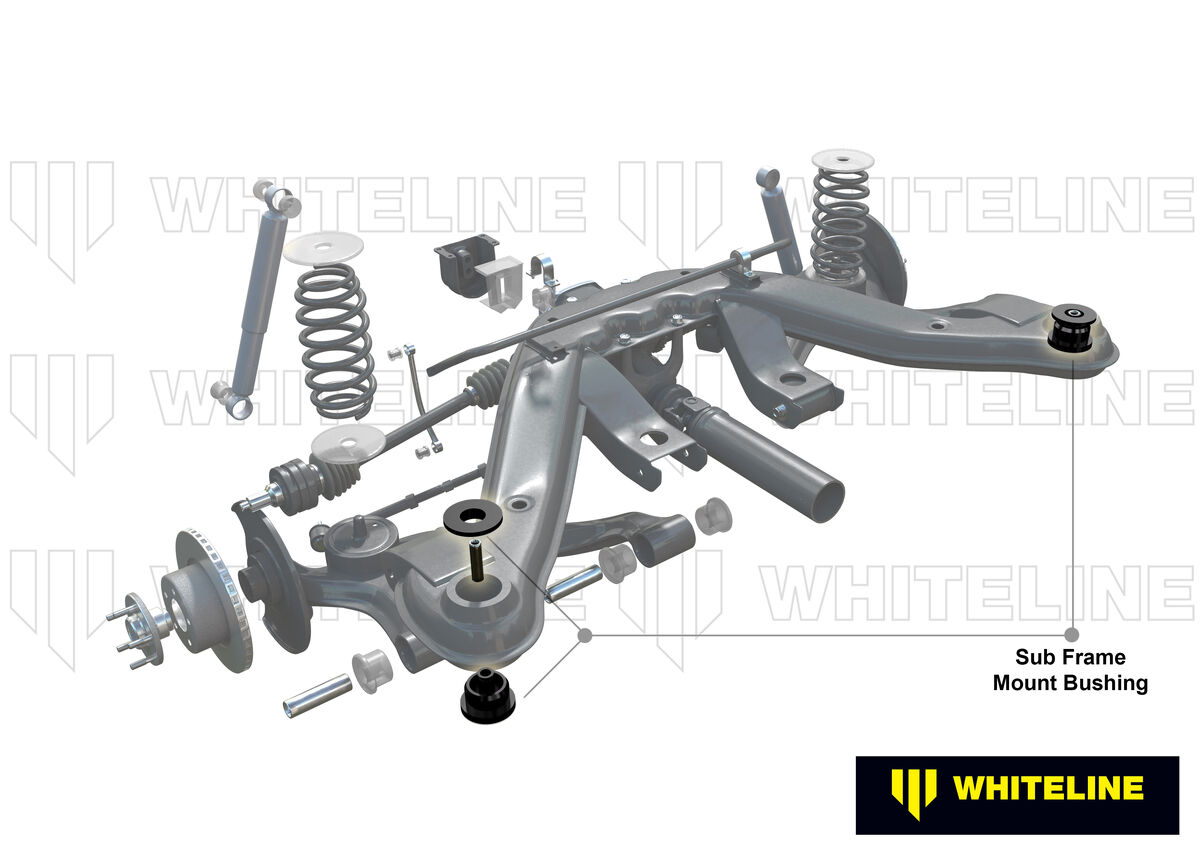

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.


Kit Specifications

Bush Type 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing
Bush Quantity 2 mm 2 mm 2 mm
OD (A) 60 mm 30 mm 60 mm
ID (B) 30.3 mm 16.2 mm 30.5 mm
Length (C) 45 mm 80 mm 43 mm
Flange Thickness (D) 8.5 mm 12.7 mm 17.5 mm
Flange OD (E) 98.5 mm 124 mm 100 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing

Bushing Design Dimensions (mm)

Bush Type 6 6 6
QTY 2 2 2
OD (A) 60 30 60
ID (B) 30.3 16.2 30.5
Length (C) 45.0 80.0 43.0
FL (D) 8.5 12.7 17.5
FLOD (E) 98.5 124 100
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 6

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.72kg3.79lbs
Length20cm7.87"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW92350
Components Per6 Bushings
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 6 Bushings
EAN9319924357925
  • Lifetime Warranty
Brand Whiteline
SKU W92350
Unit Of Measure Kit
