Benefit Note: Not your typical remove and replace bushing kit but simple installation means great for the DIYer's. Designed to work with the original bushing and eliminate over compliance or better known in motorsport as 'lost motion' of the rear crossmember. This Whiteline kit dramatically reduces rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm	2 mm	2 mm
OD (A)	60 mm	60 mm	60 mm	60 mm
ID (B)	25.2 mm	25.2 mm	25.2 mm	25.2 mm
Length (C)	29.7 mm	38 mm	35.2 mm	32.8 mm
Flange Thickness (D)	7.2 mm	13.3 mm	12 mm	8 mm
Flange OD (E)	64 mm	64 mm	64 mm	64 mm
C/Tube Quantity	4	4	4	4
C/Tube ODxIDxL	25.4x14.3x69 mm	25.4x14.3x69 mm	25.4x14.3x69 mm	25.4x14.3x69 mm
Similar Bushing Size	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	1	1	1	1
QTY	2	2	2	2
OD (A)	60	60	60	60
ID (B)	25.2	25.2	25.2	25.2
Length (C)	29.7	38.0	35.2	32.8
FL (D)	7.2	13.3	12	8
FLOD (E)	64	64	64	64
C/Tube Qty	4	4	4	4
C/Tube Size	25.4x14.3x69	25.4x14.3x69	25.4x14.3x69	25.4x14.3x69
Similar Bushings	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1.804kg	3.98lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	KDT953

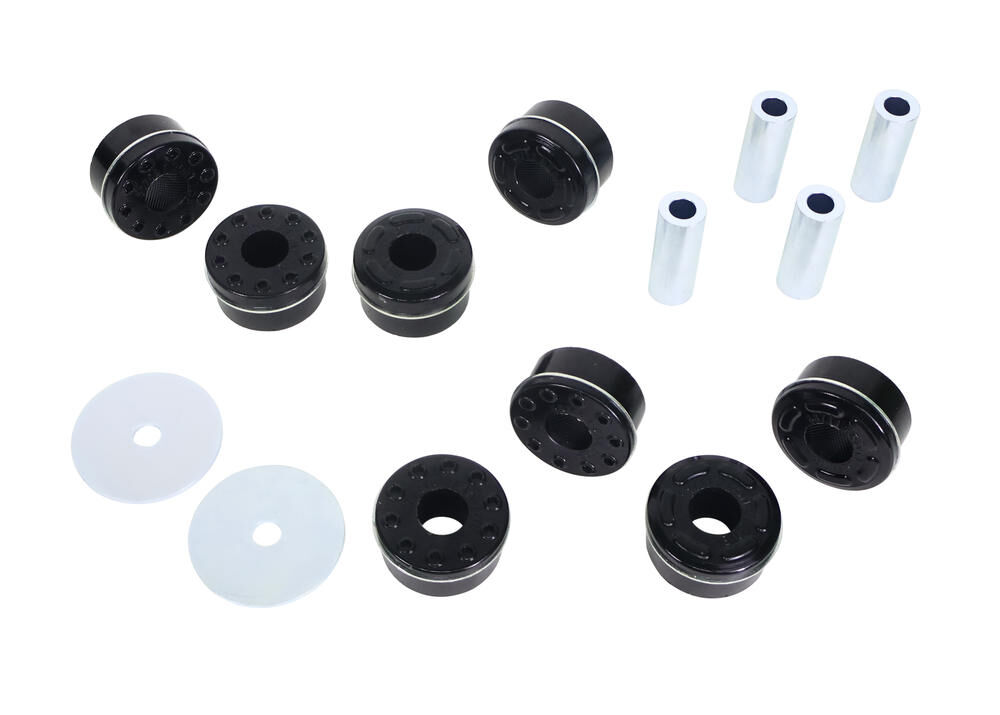

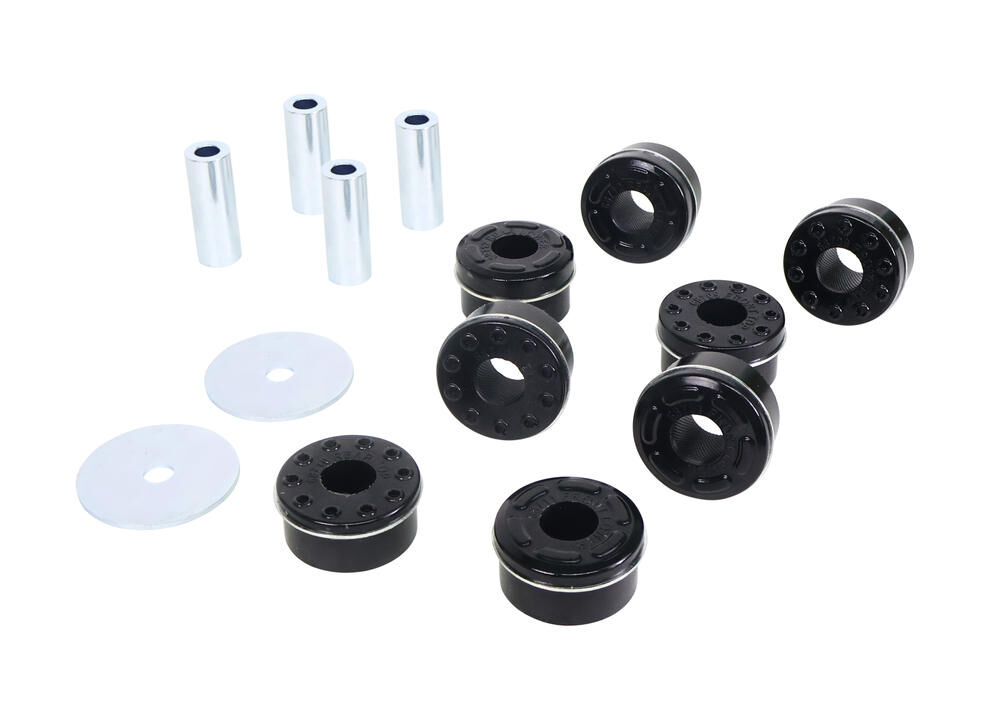

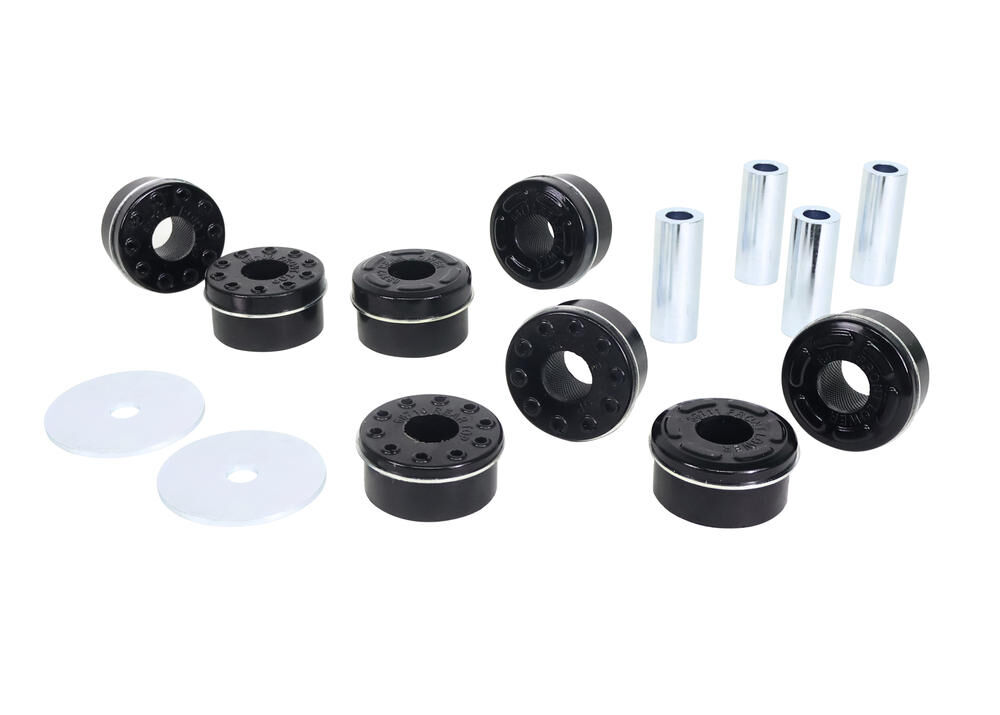

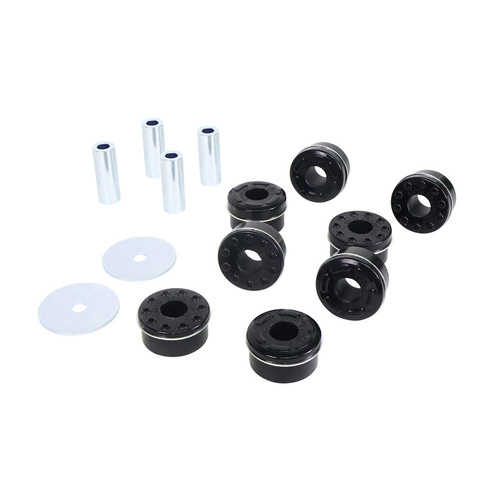

Components Per	8 Bushings, 4 Tubes, 2 Washers
Kits Required	1
Sub brand	Performance
Product Note	Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 2 Washers
EAN	9319924410668
