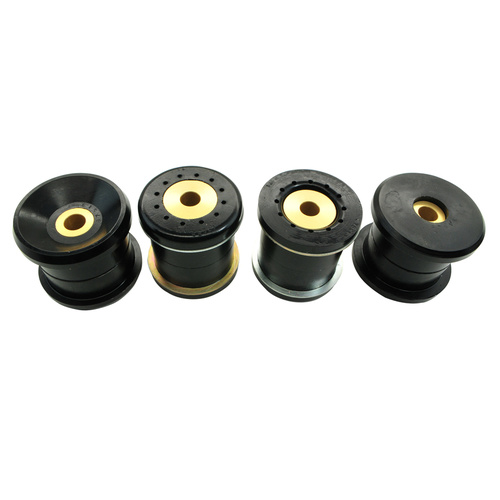

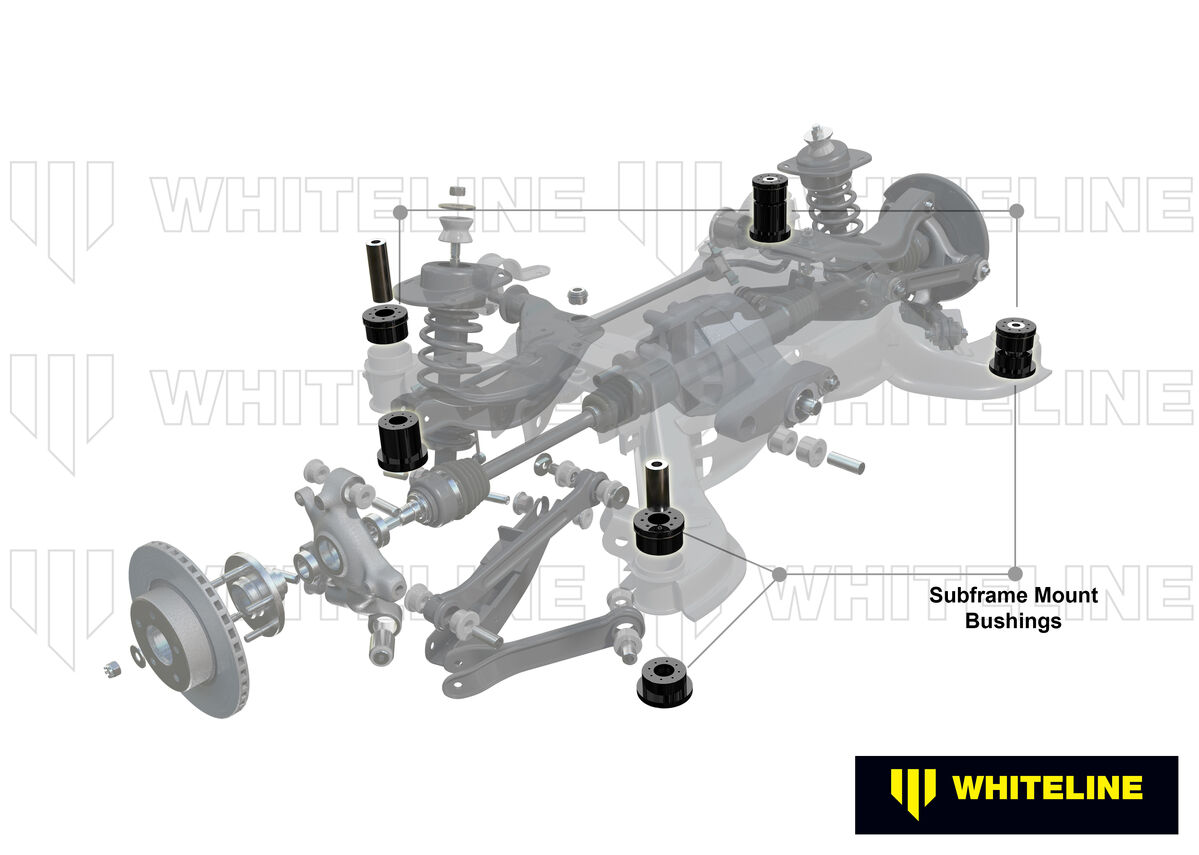

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm	2 mm	2 mm
OD (A)	80 mm	74.8 mm	80 mm	74.8 mm
ID (B)	31.2 mm	43.9 mm	31.2 mm	43.9 mm
Length (C)	40 mm	45.6 mm	39.7 mm	42 mm
Flange Thickness (D)	13.7 mm	15.3 mm	11.2 mm	11.2 mm
Flange OD (E)	93.5 mm	86 mm	99.5 mm	86 mm
C/Tube Quantity	2 / 2	2 / 2	2 / 2	2 / 2
C/Tube ODxIDxL	31.5x17.5x71.3 / 44.3x16.2x70.5 mm	31.5x17.5x71.3 / 44.3x16.2x70.5 mm	31.5x17.5x71.3 / 44.3x16.2x70.5 mm	31.5x17.5x71.3 / 44.3x16.2x70.5 mm
Similar Bushing Size	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

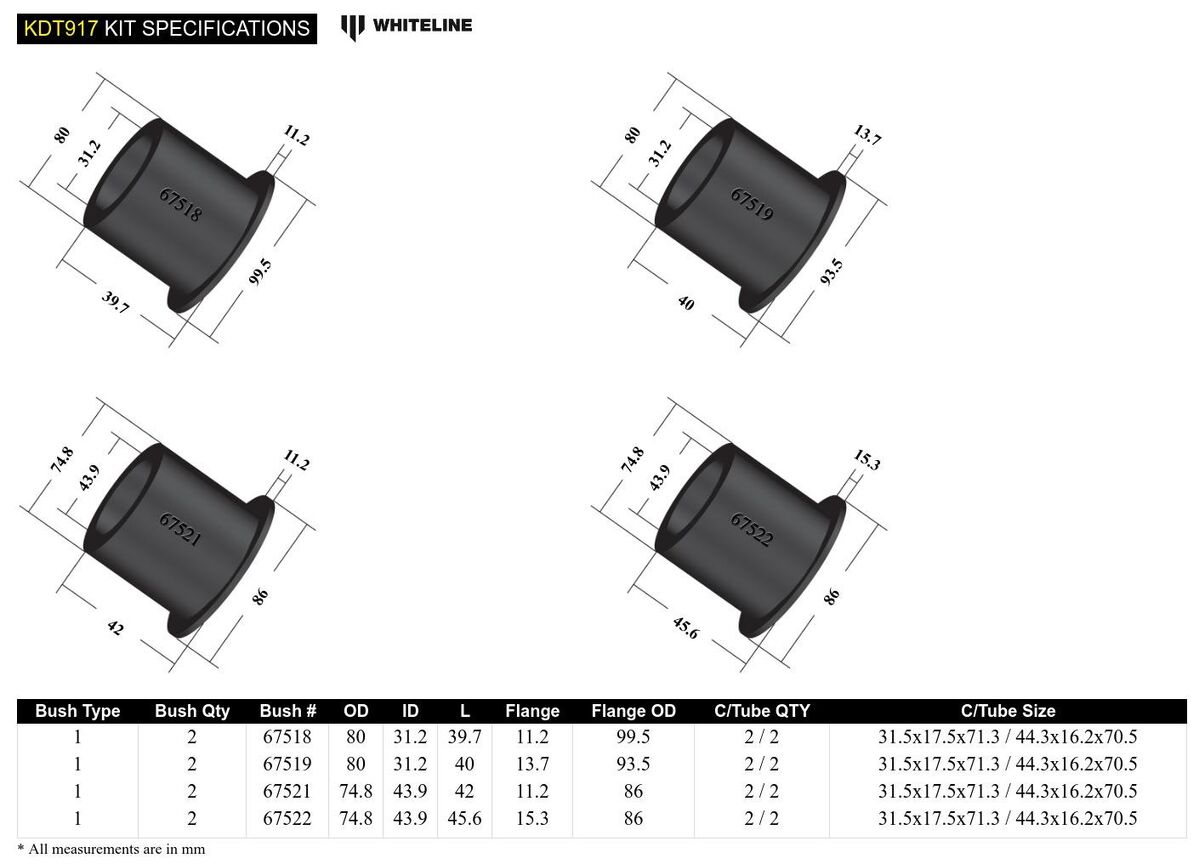

Bushing Design Dimensions (mm)

Bush Type	1	1	1	1
QTY	2	2	2	2
OD (A)	80	74.8	80	74.8
ID (B)	31.2	43.9	31.2	43.9
Length (C)	40.0	45.6	39.7	42.0
FL (D)	13.7	15.3	11.2	11.2
FLOD (E)	93.5	86	99.5	86
C/Tube Qty	2 / 2	2 / 2	2 / 2	2 / 2
C/Tube Size	31.5x17.5x71.3 / 44.3x16.2x70.5	31.5x17.5x71.3 / 44.3x16.2x70.5	31.5x17.5x71.3 / 44.3x16.2x70.5	31.5x17.5x71.3 / 44.3x16.2x70.5
Similar Bushings	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	2.224kg	4.9lbs
Length	40cm	15.75"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	KDT917

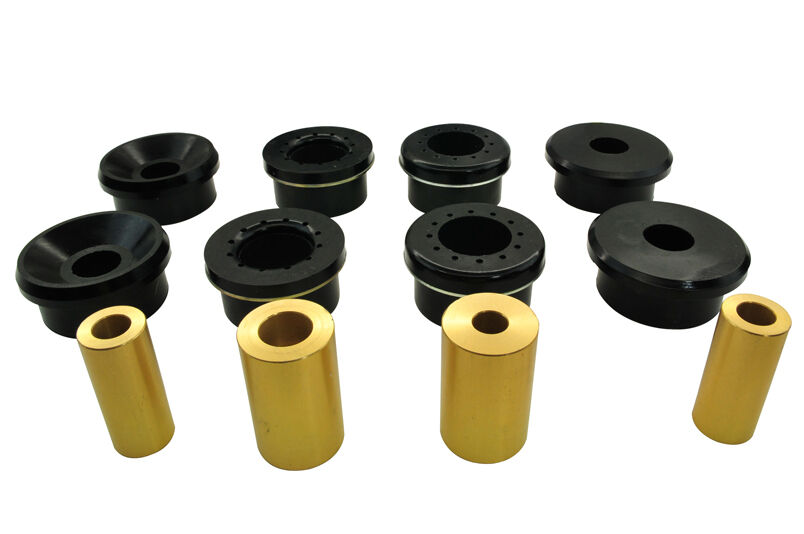

Components Per	8 Bushings, 4 Tubes
Kits Required	1
Sub brand	Performance

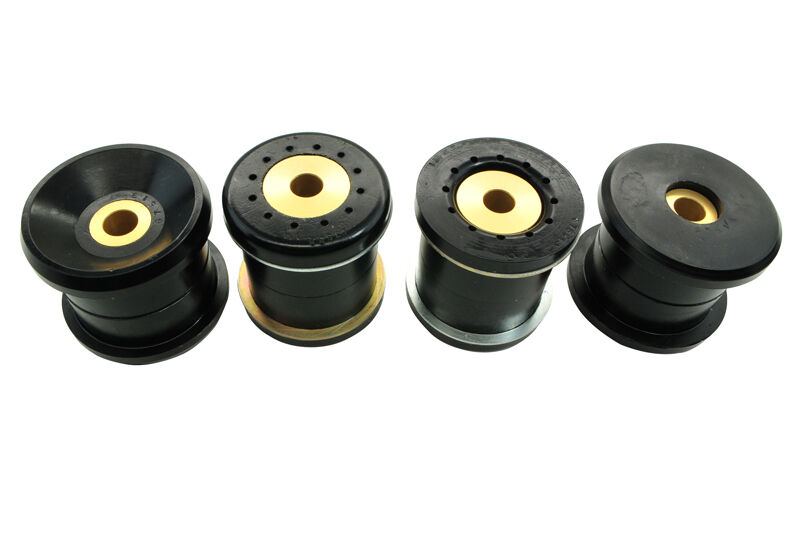

Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes
EAN	9319924387502
