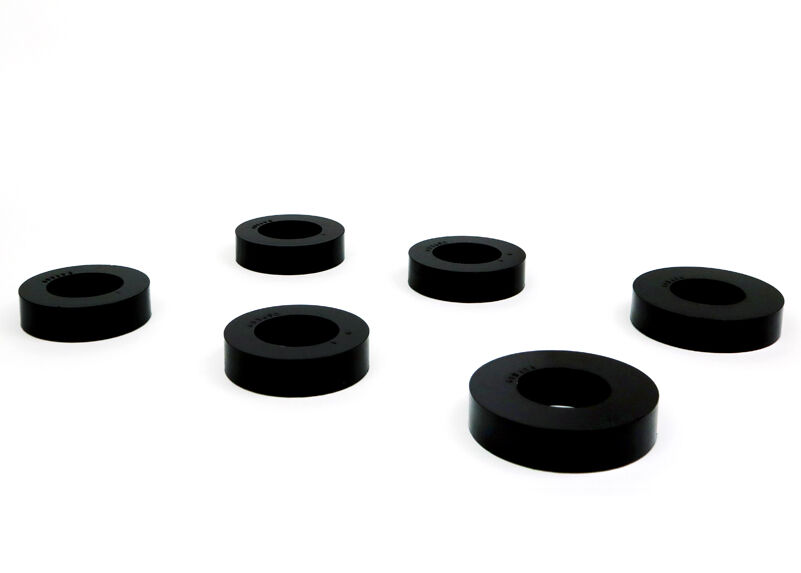

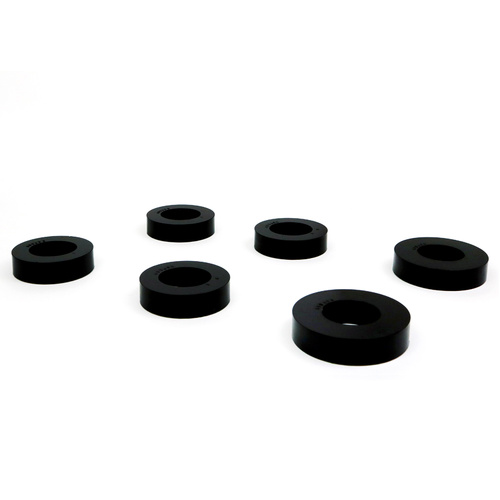

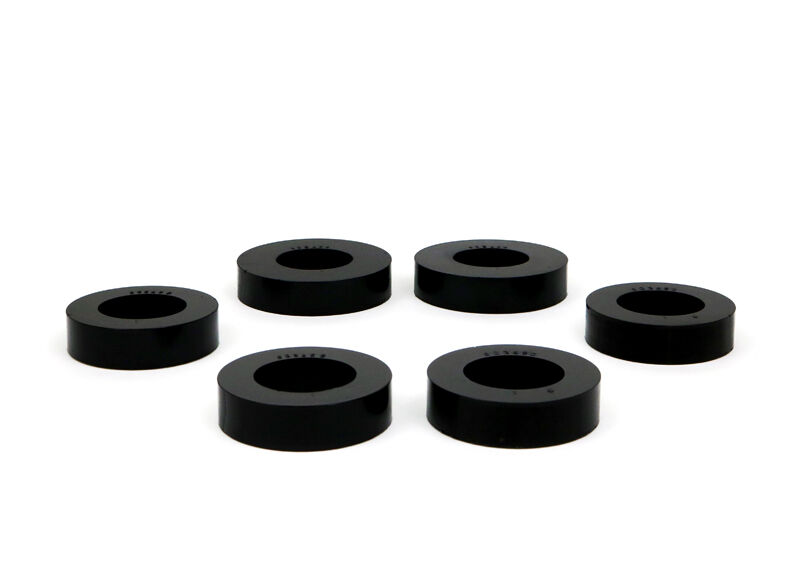

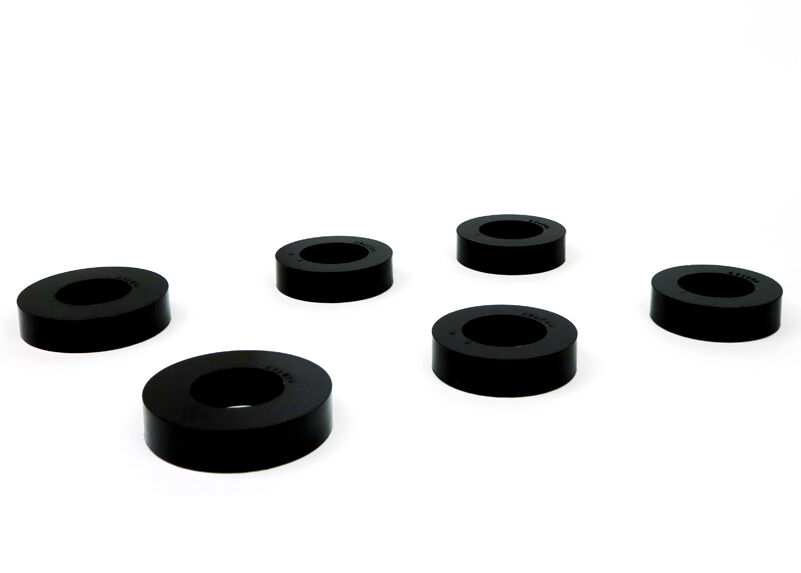

Whiteline Rear Subframe - Align and Lock Bushing Kit to Suit Nissan 180SX, 200SX. 300ZX and Skyline

SKU: KCA349

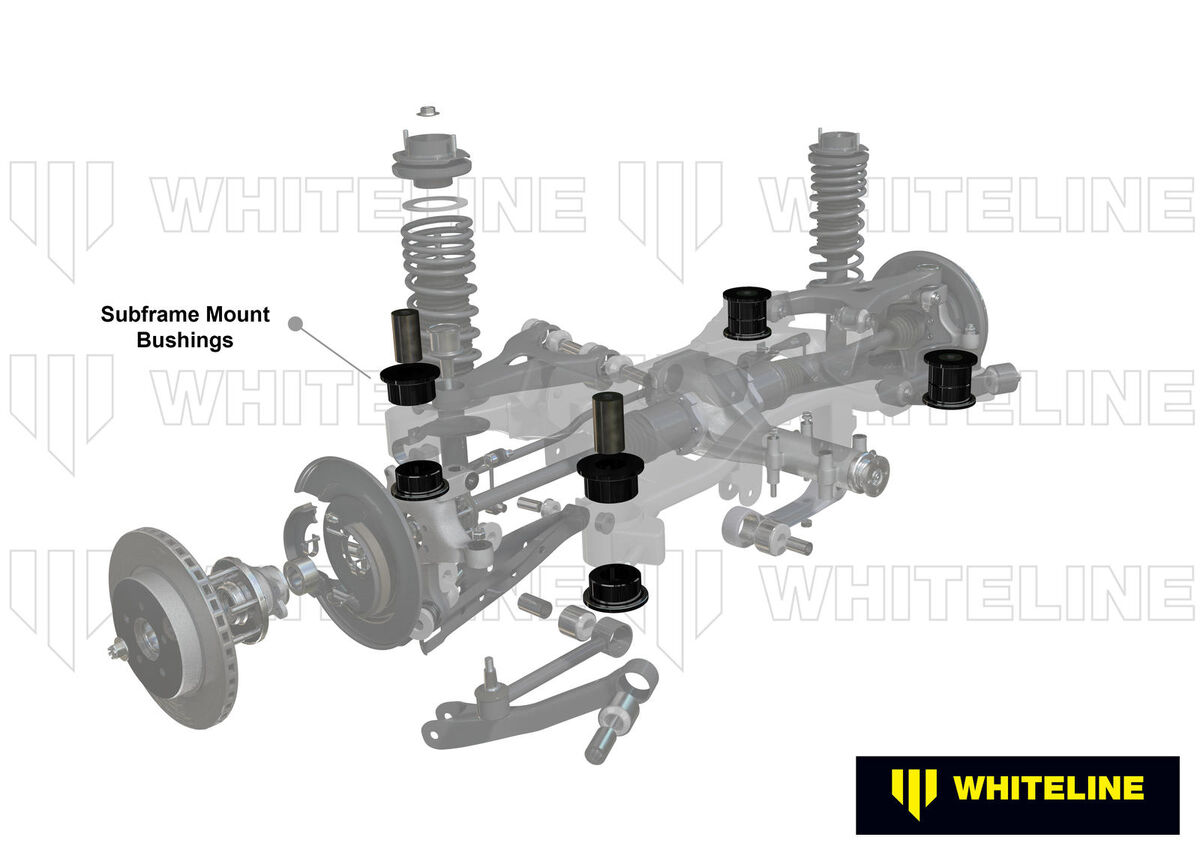

Benefit Note: This easy to install kit is designed to change the inclination of the rear sub-frame whilst reducing bushing compliance. By locating the rings in different planes it possible to induce rear squat (maximum traction) or anti-squat (drift) properties. This product may induce increased NVH levels.

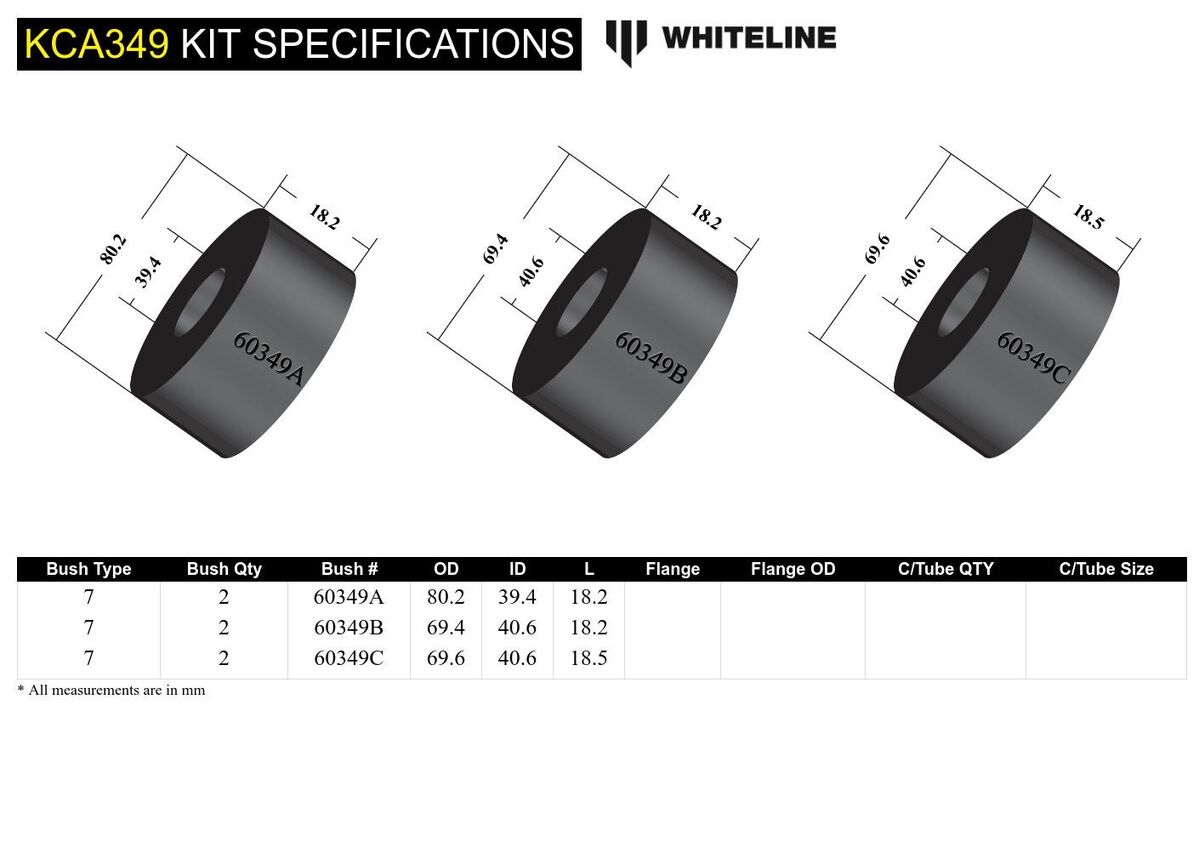

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm 2 mm
OD (A) 80.2 mm 69.4 mm 69.6 mm
ID (B) 39.4 mm 40.6 mm 40.6 mm
Length (C) 18.2 mm 18.2 mm 18.5 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Anti Squat Spacer No
Anti Squat Spacer No
Anti Squat Spacer No

Bushing Design Dimensions (mm)

Bush Type 7 7 7
QTY 2 2 2
OD (A) 80.2 69.4 69.6
ID (B) 39.4 40.6 40.6
Length (C) 18.2 18.2 18.5
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.38kg0.84lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA349
Components Per6 Bushings
Kits Required1
Sub brandPerformance
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 6 Bushings
EAN9319924342549
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA349
Unit Of Measure Kit
