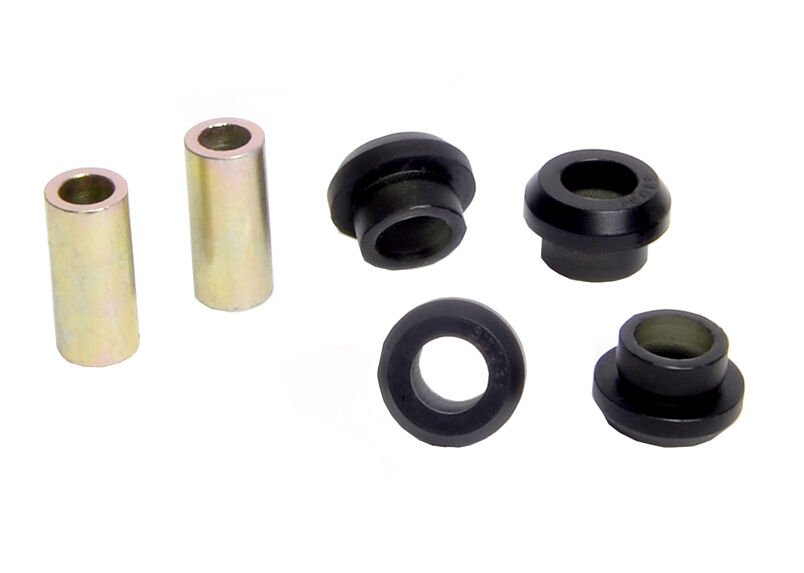

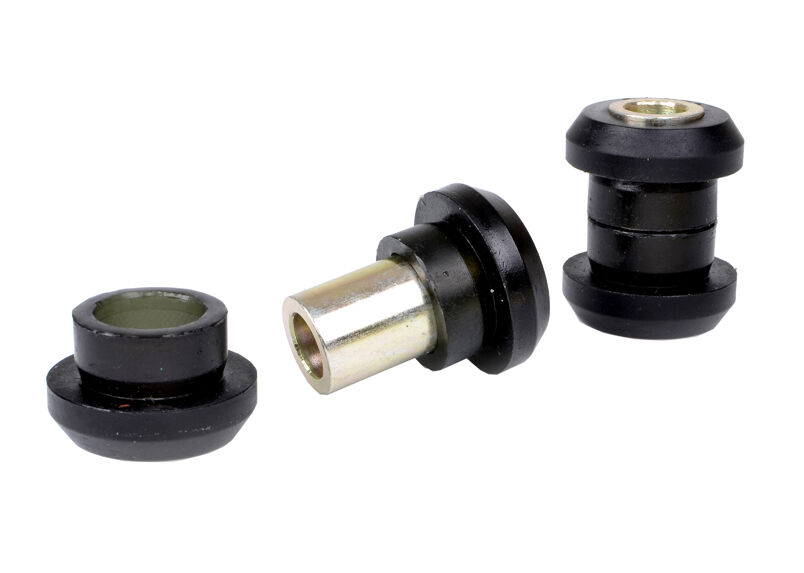

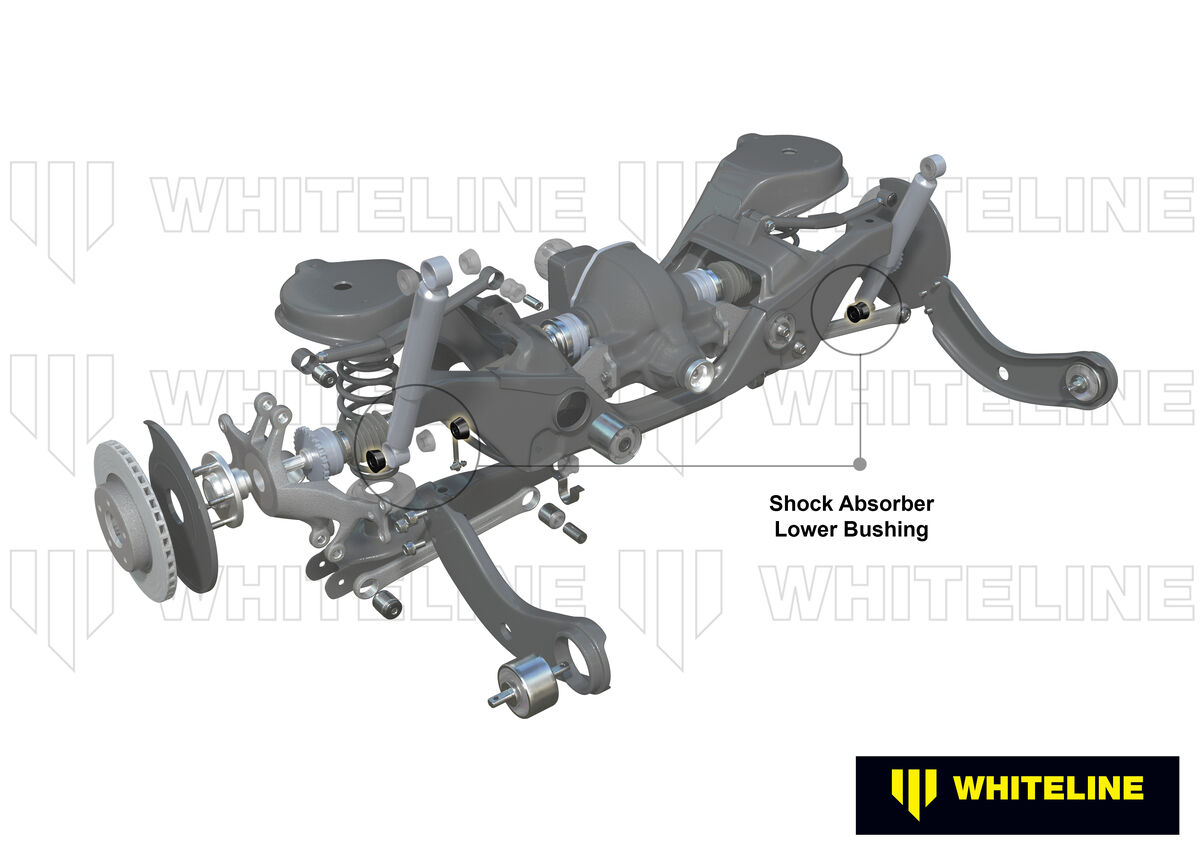

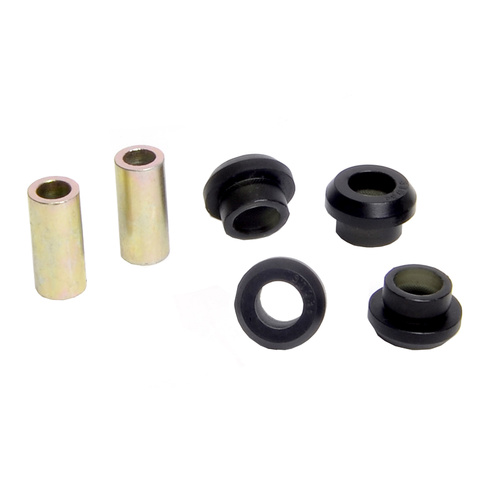

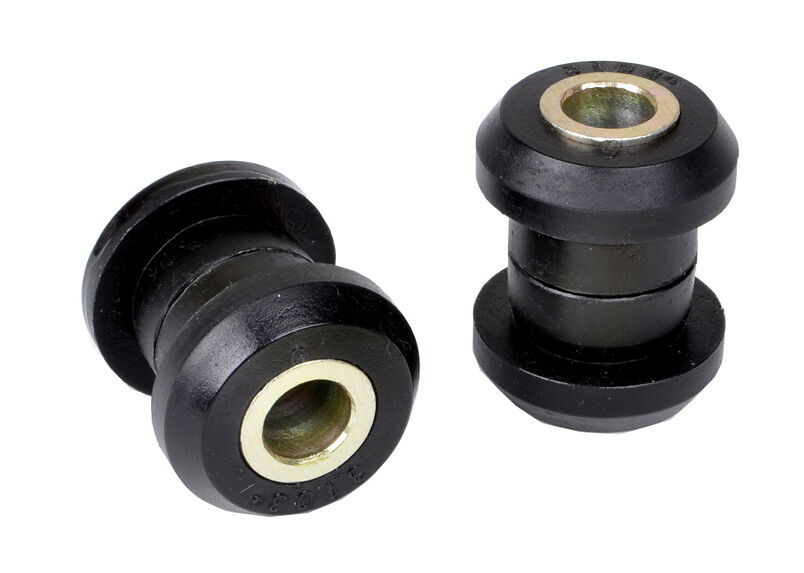

Whiteline Rear Shock Absorber - Lower Bushing Kit to Suit Ford Falcon/Fairlane BA, BF and FPV

SKU: W33347

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

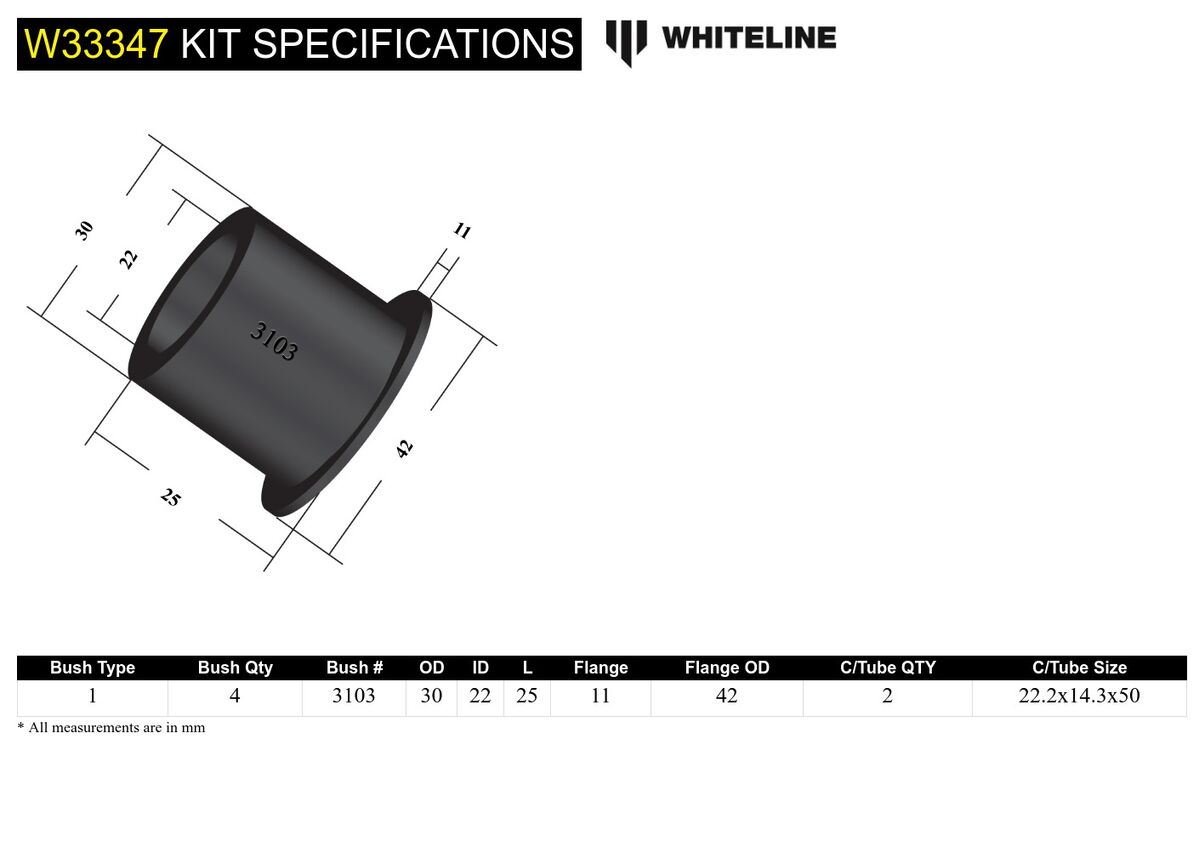

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 30 mm
ID (B) 22 mm
Length (C) 25 mm
Flange Thickness (D) 11 mm
Flange OD (E) 42 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x14.3x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 30
ID (B) 22
Length (C) 25.0
FL (D) 11
FLOD (E) 42
C/Tube Qty 2
C/Tube Size 22.2x14.3x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.262kg0.58lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW33347
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924396122
  • Lifetime Warranty
Brand Whiteline
SKU W33347
Unit Of Measure Kit
