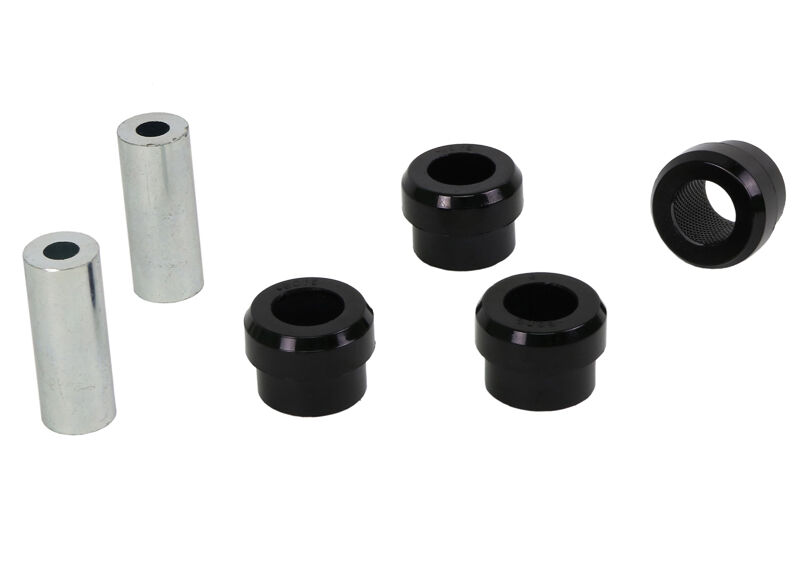

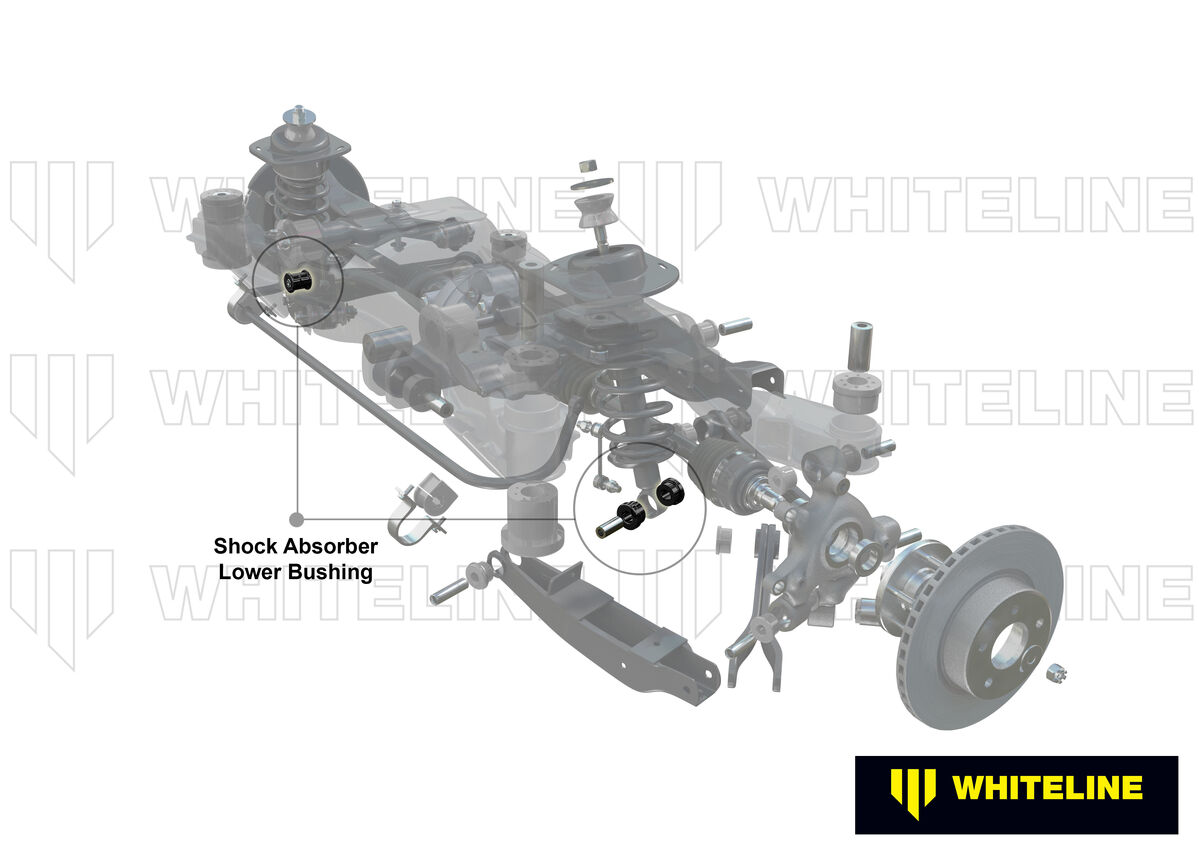

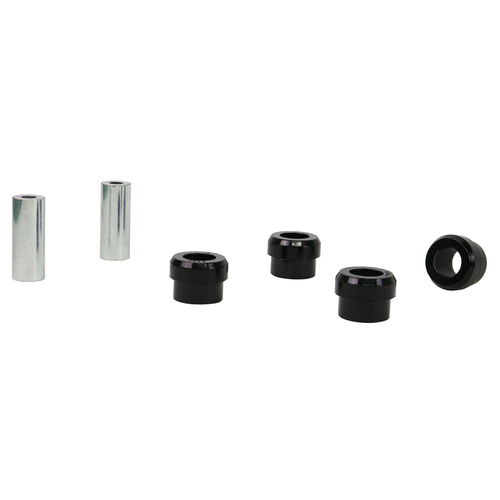

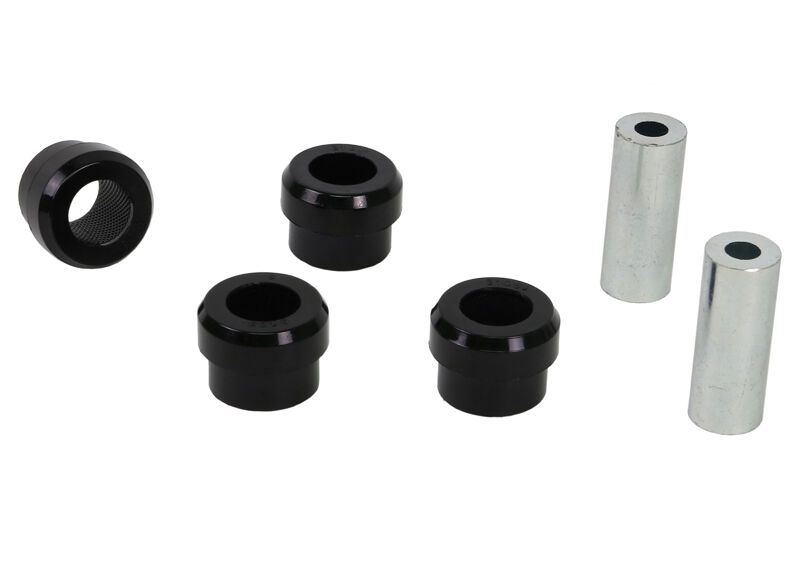

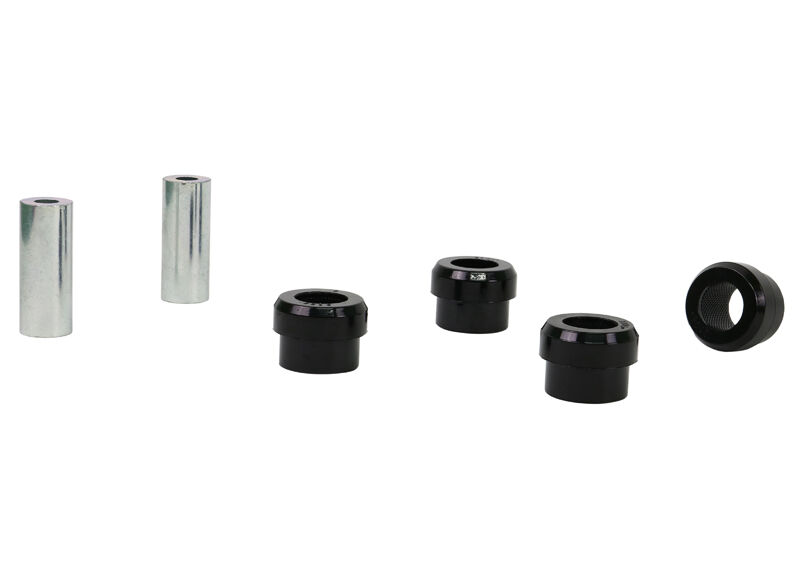

Whiteline Rear Shock Absorber - Lower Bushing Kit to Suit Holden Commodore VE, VF and HSV

SKU: W33168

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

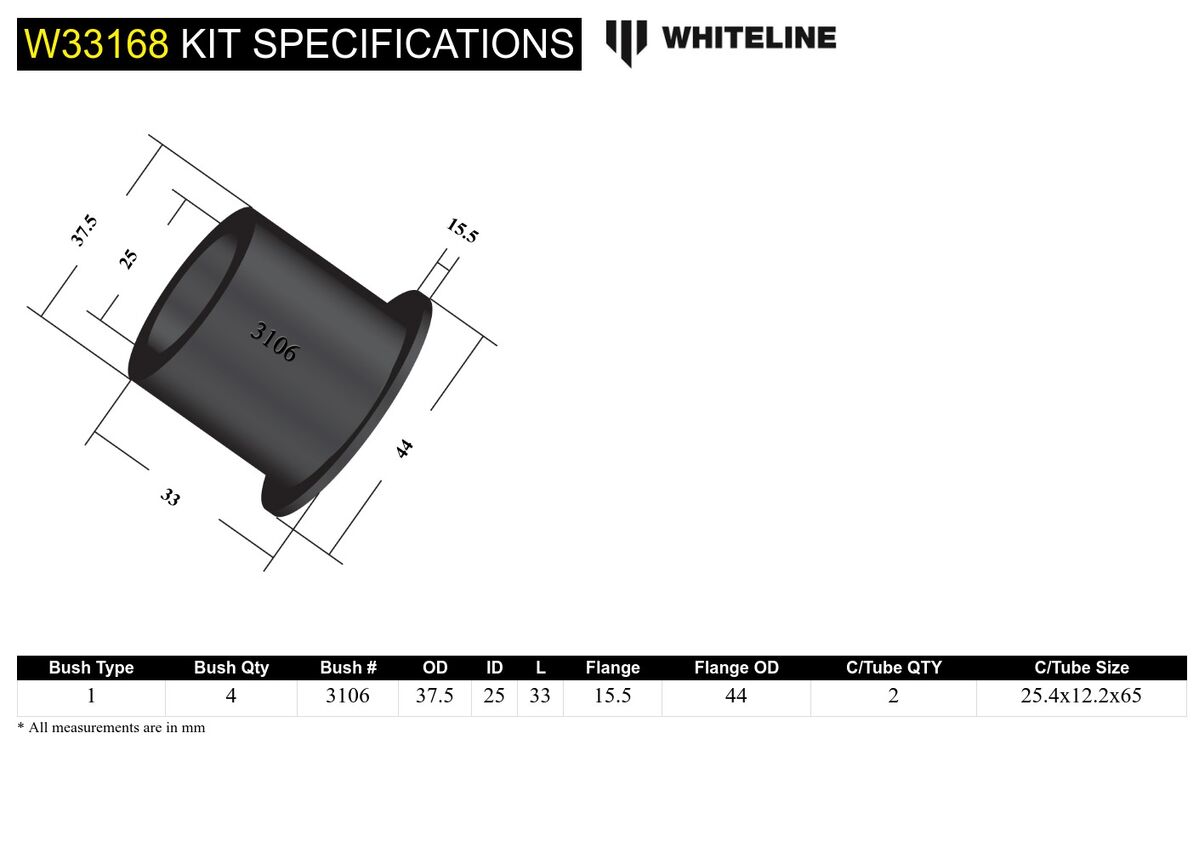

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 37.5 mm
ID (B) 25 mm
Length (C) 33 mm
Flange Thickness (D) 15.5 mm
Flange OD (E) 44 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x12.2x65 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 37.5
ID (B) 25
Length (C) 33.0
FL (D) 15.5
FLOD (E) 44
C/Tube Qty 2
C/Tube Size 25.4x12.2x65
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.535kg1.18lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW33168
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924351350
  • Lifetime Warranty
Brand Whiteline
SKU W33168
Unit Of Measure Kit
