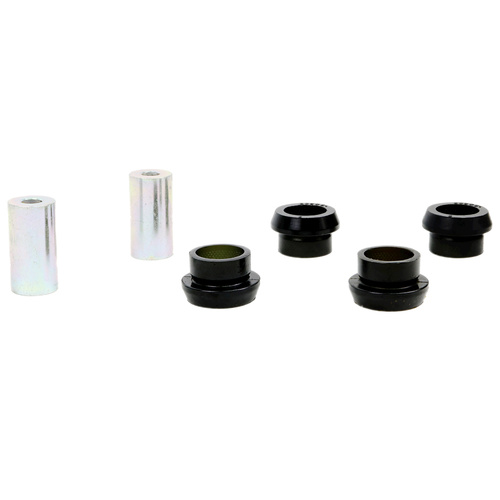

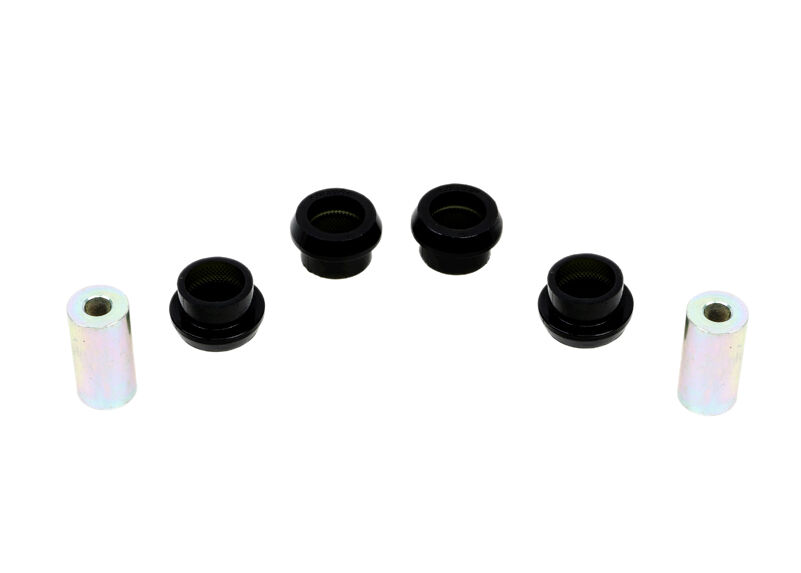

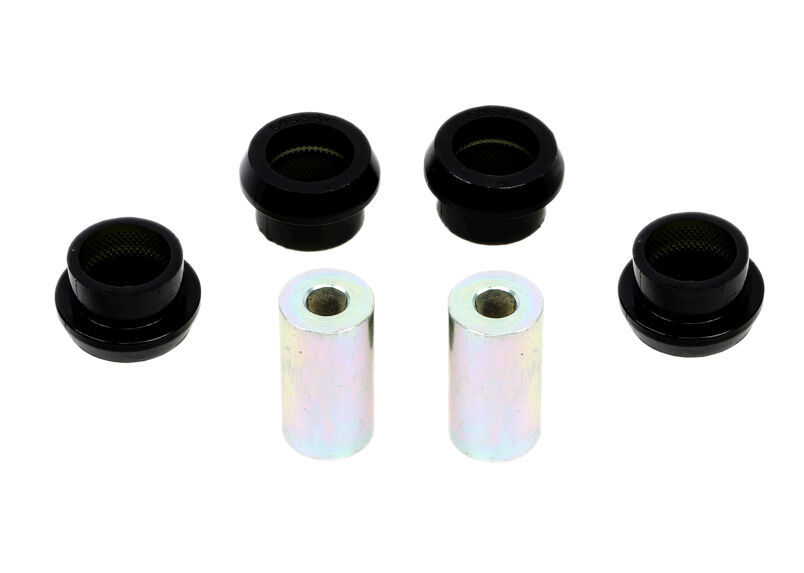

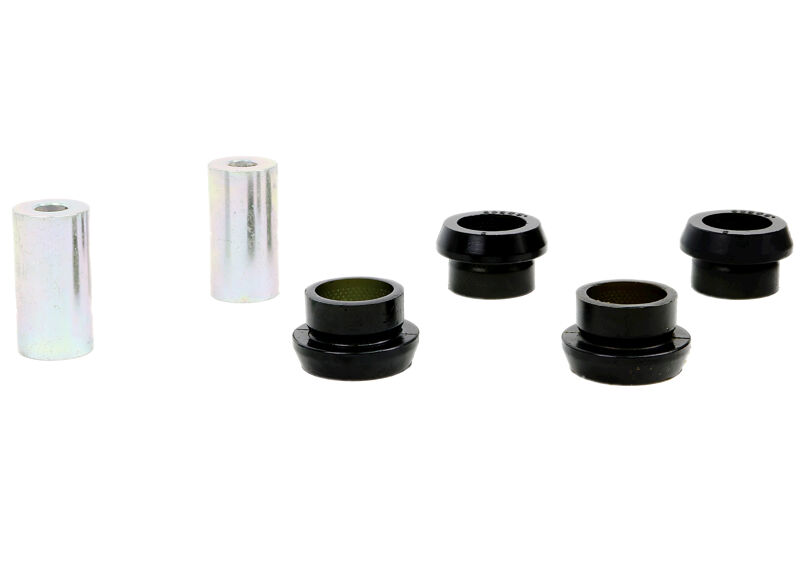

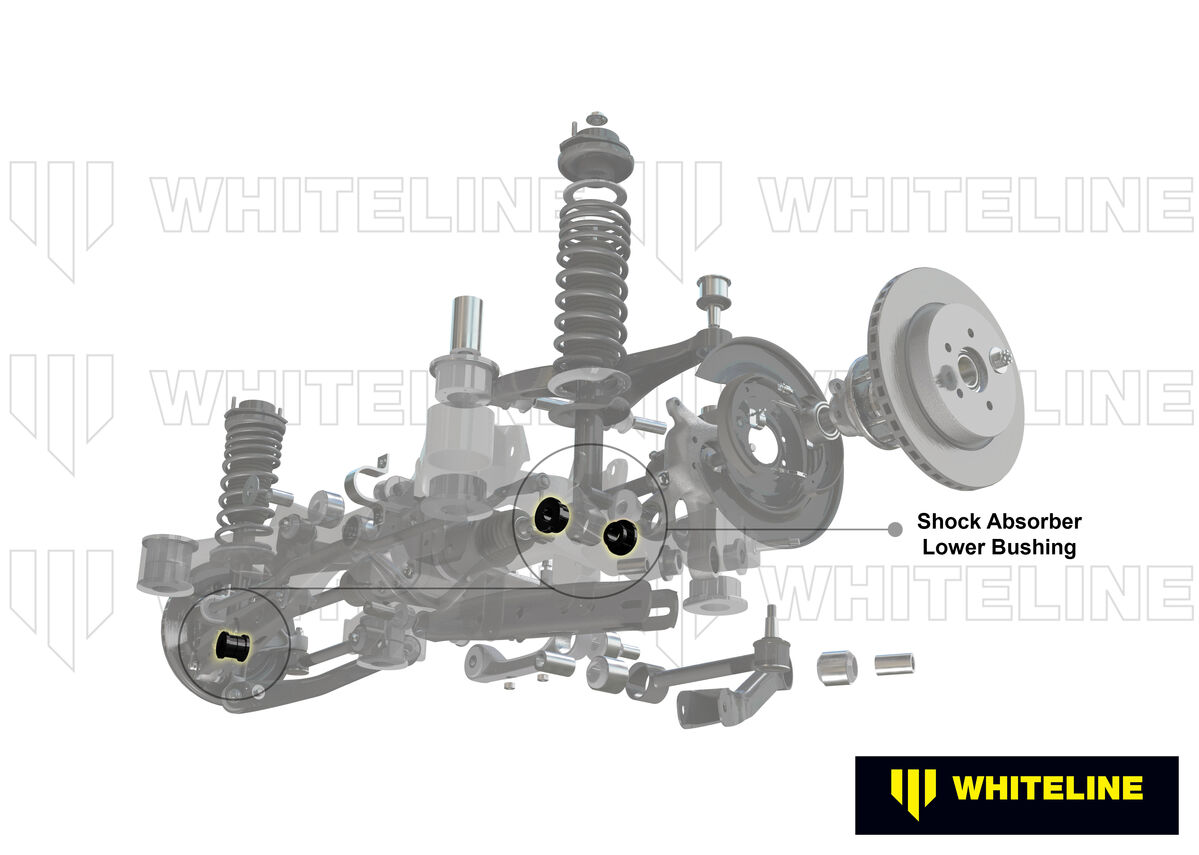

Whiteline Rear Shock Absorber - Lower Bushing Kit to Suit Subaru Impreza GE, GJ incl WRX, Liberty, XV

SKU: W0505

Benefit Note: Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Whiteline's superior formulation shock bushings enhance the performance of new and used shock absorbers.

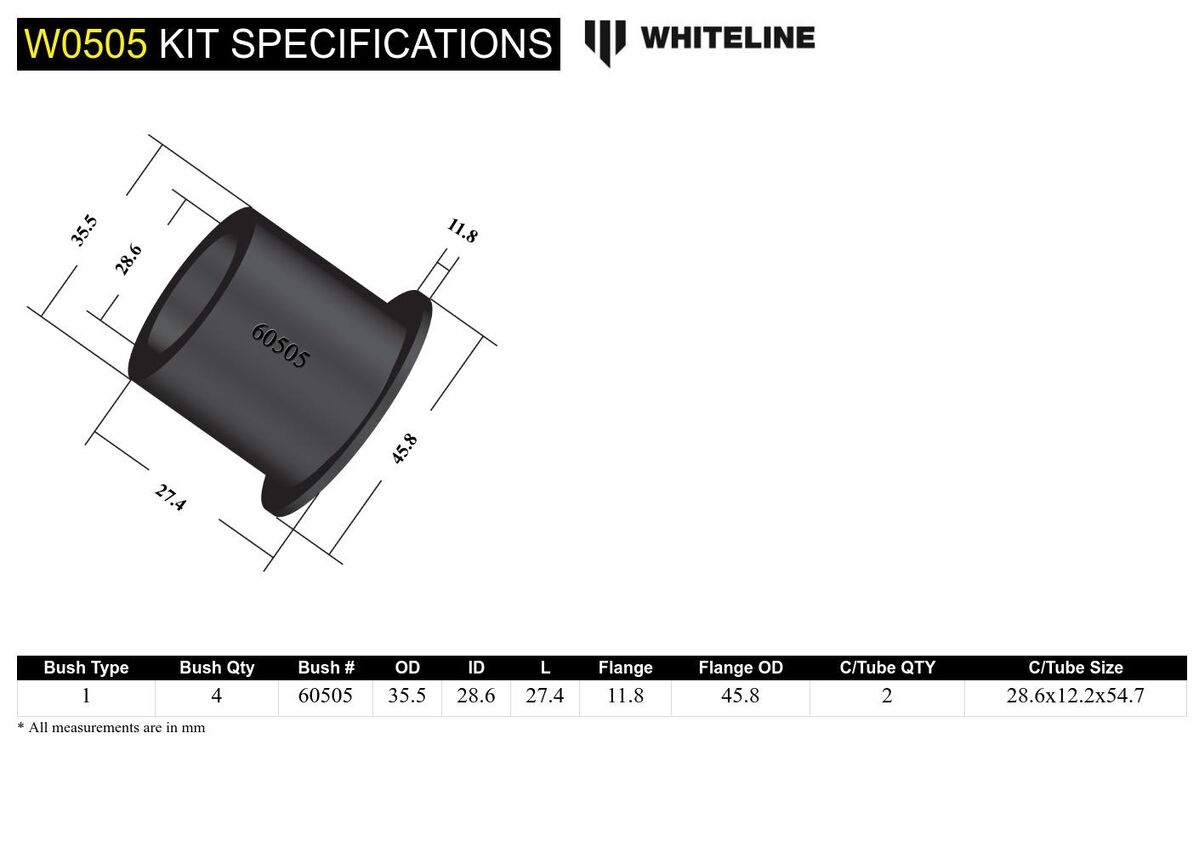

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 35.5 mm
ID (B) 28.6 mm
Length (C) 27.4 mm
Flange Thickness (D) 11.8 mm
Flange OD (E) 45.8 mm
C/Tube Quantity 2
C/Tube ODxIDxL 28.6x12.2x54.7 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 35.5
ID (B) 28.6
Length (C) 27.4
FL (D) 11.8
FLOD (E) 45.8
C/Tube Qty 2
C/Tube Size 28.6x12.2x54.7
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.54kg1.19lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0505
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924358793
  • Lifetime Warranty
Brand Whiteline
SKU W0505
Unit Of Measure Kit
