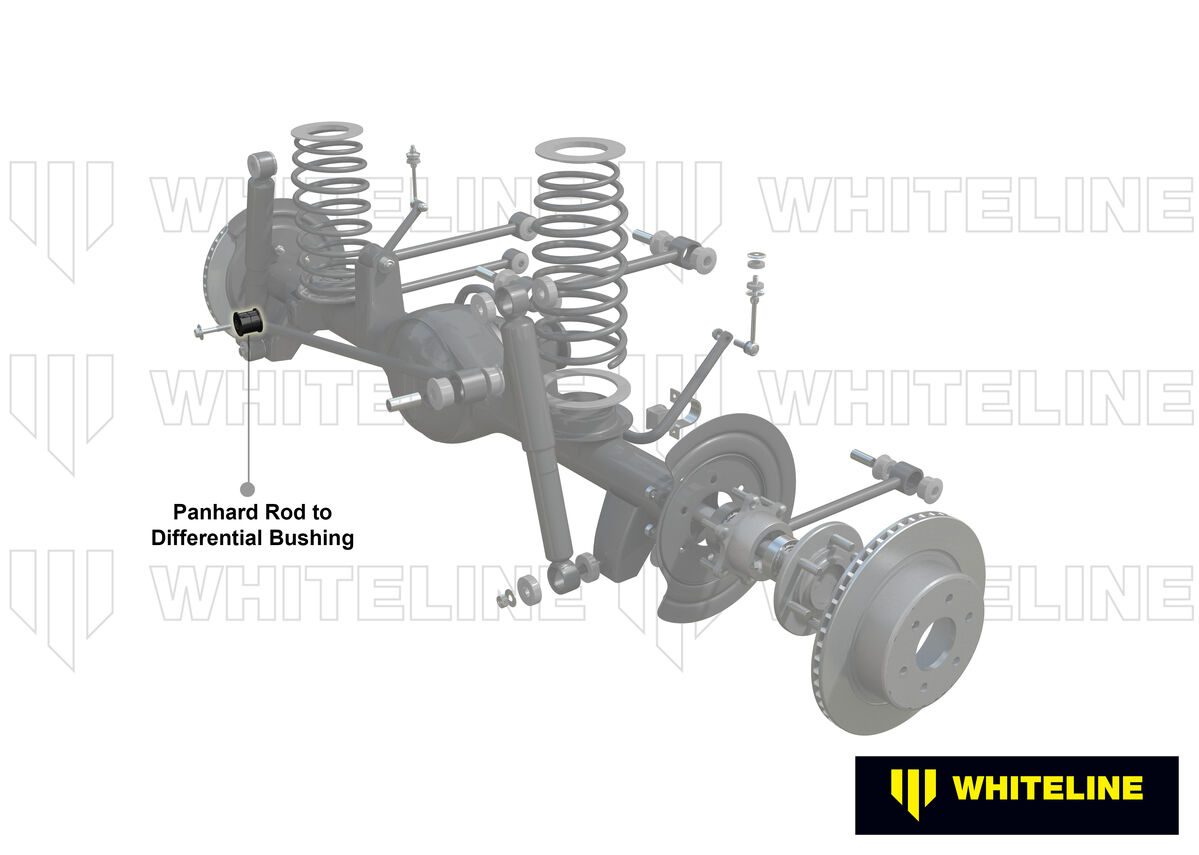

Whiteline Rear Panhard Rod - To Differential Bushing Kit to Suit Toyota Tarago and Estima TRC10

SKU: W83403

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

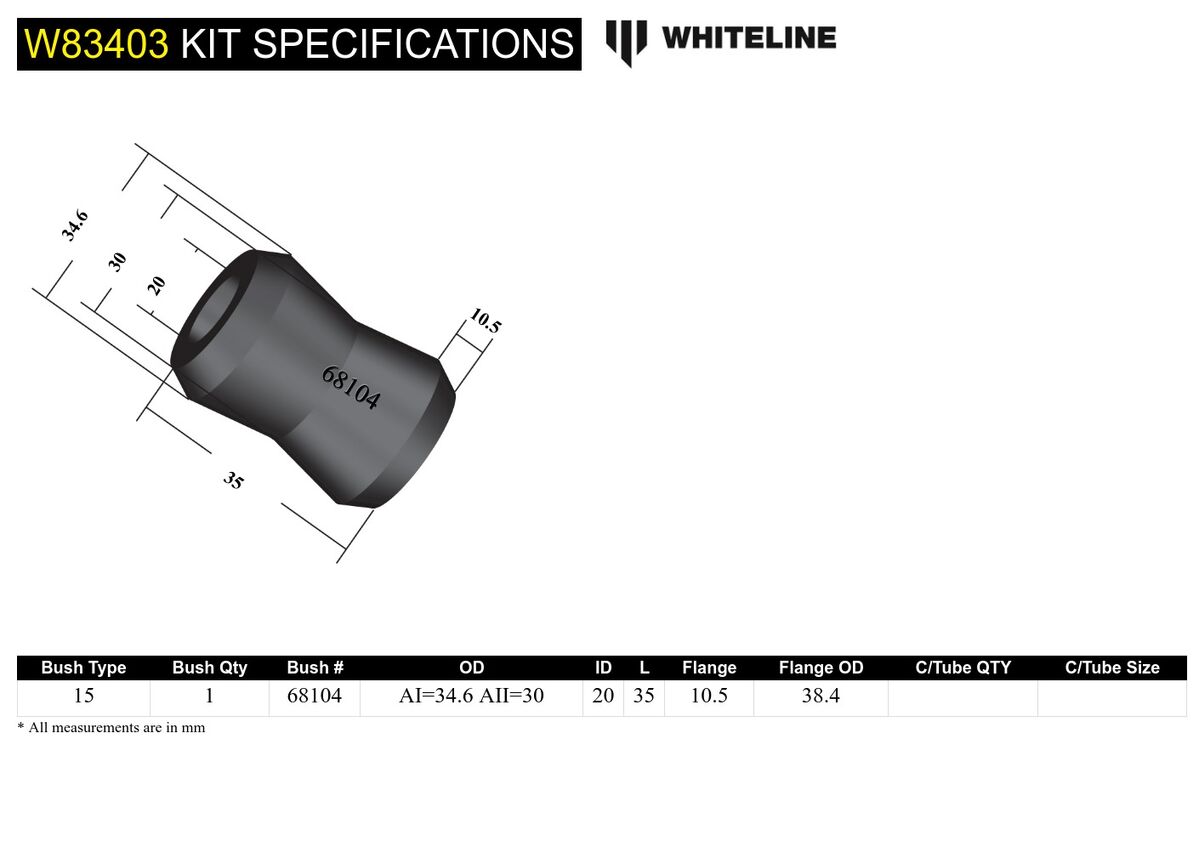

Kit Specifications

Bush Type 15 - Tapered Cotton Real Bushing
Bush Quantity 1 mm
OD (A) AI=34.6 AII=30 mm
ID (B) 20 mm
Length (C) 35 mm
Flange Thickness (D) 10.5 mm
Flange OD (E) 38.4 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 15 - Tapered Cotton Real Bushing

Bushing Design Dimensions (mm)

Bush Type 15
QTY 1
OD (A) AI=34.6 AII=30
ID (B) 20
Length (C) 35.0
FL (D) 10.5
FLOD (E) 38.4
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 15

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.06kg0.13lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW83403

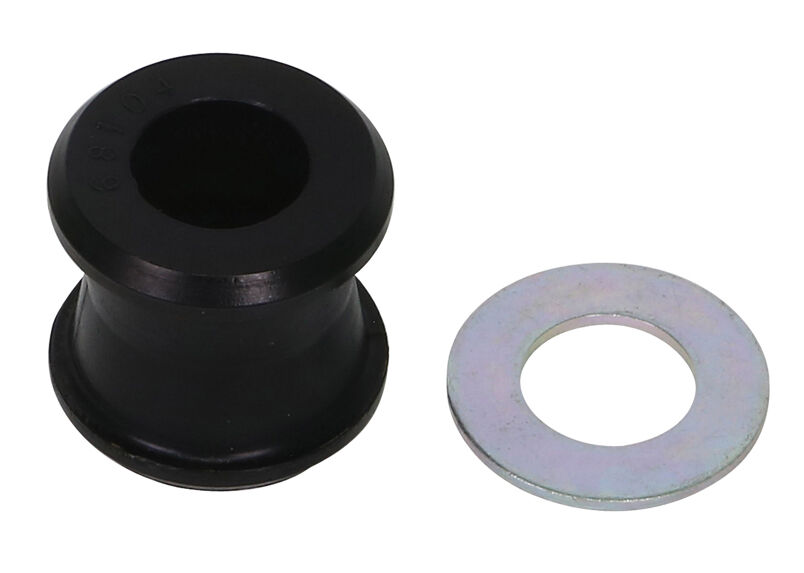

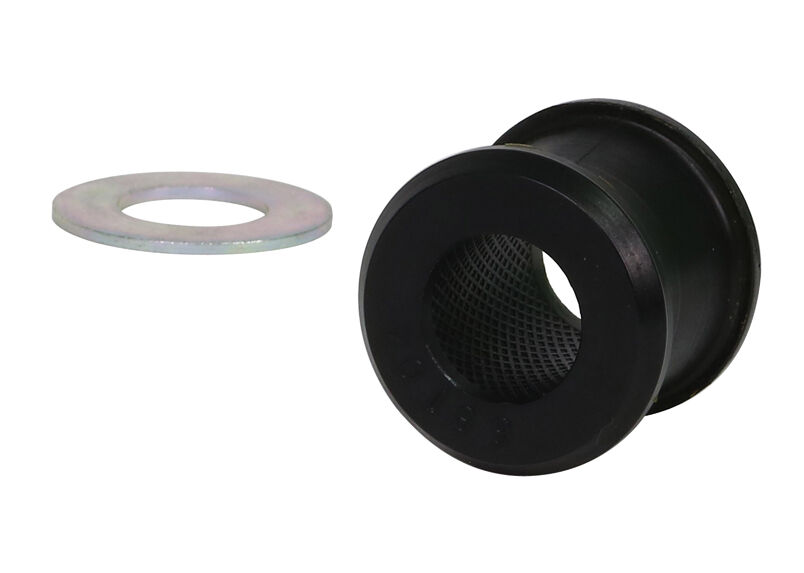

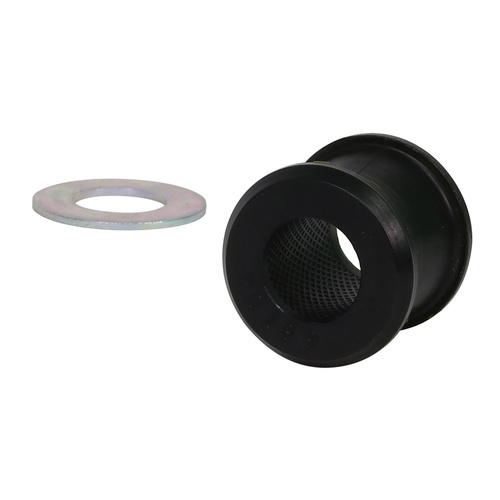

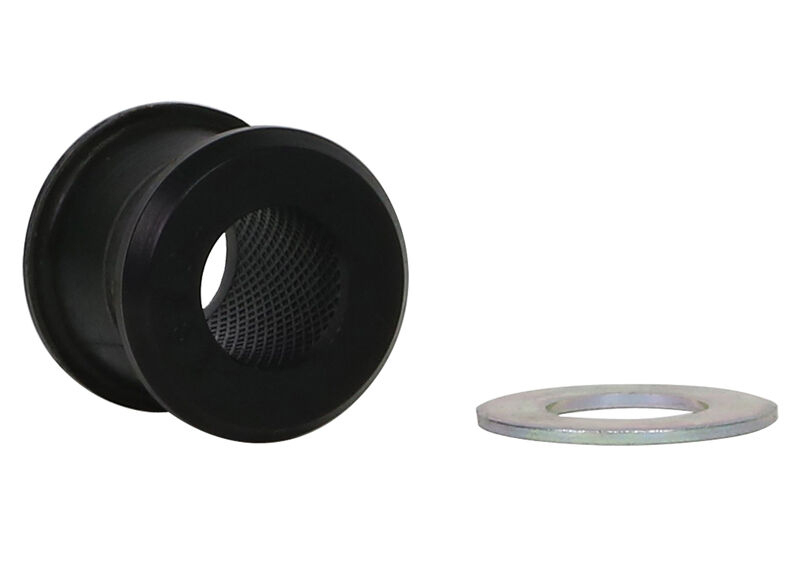

Components Per1 Bushing, 1 Washer
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 1 Bushing & 1 Washer
EAN9319924405114
  • Lifetime Warranty
Brand Whiteline
SKU W83403
Unit Of Measure Kit
