Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Kit Specifications

Bush Type	10 - Cotton Reel With & Without Tapper Bushing	15 - Tapered Cotton Real Bushing
Bush Quantity	1 mm	2 mm
OD (A)	38.6 mm	AI=42.2 AII=34.6 mm
ID (B)	24.5 mm	24.6 mm
Length (C)	43.5 mm	40 mm
Flange Thickness (D)	2.5 mm	2.5 mm
Flange OD (E)	42.5 mm
C/Tube Quantity	1 / 1	1 / 1
C/Tube ODxIDxL	25.4x16.5x45 / 25.4x20.5x42 mm	25.4x16.5x45 / 25.4x20.5x42 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

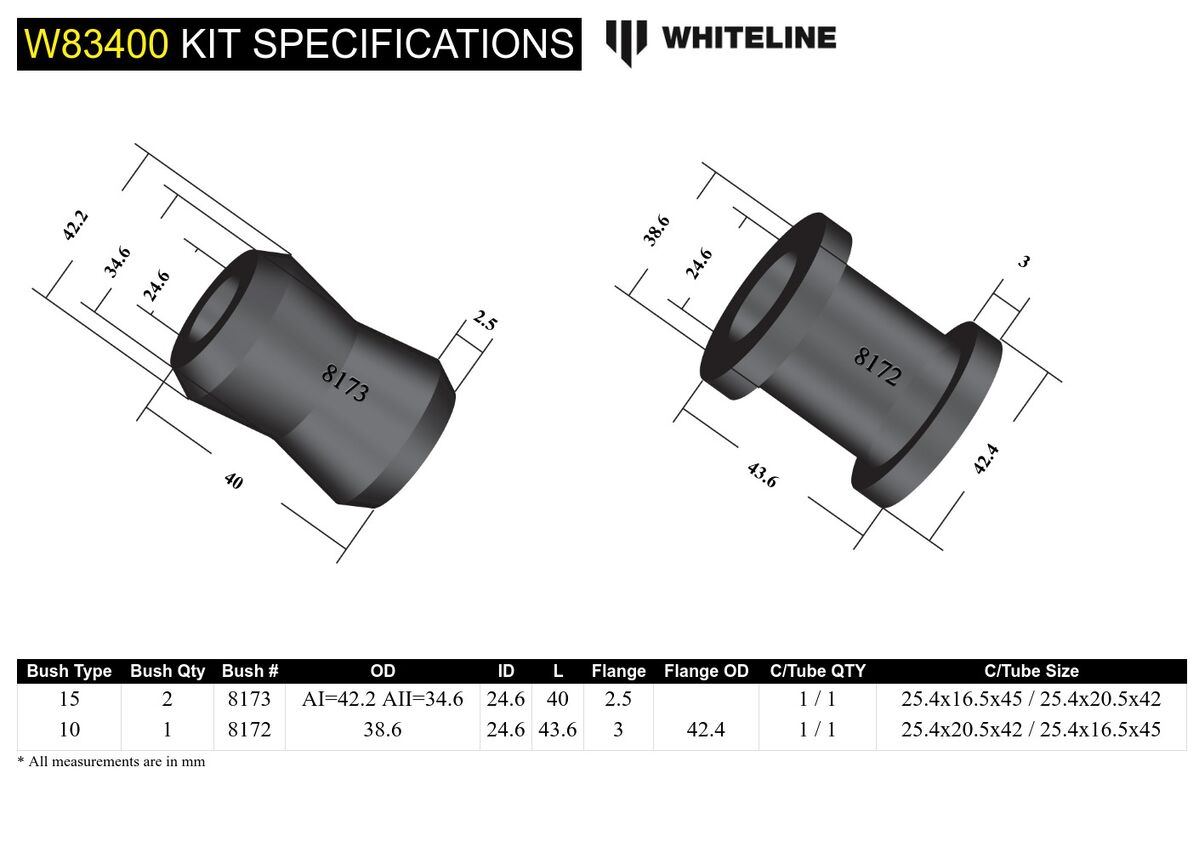

Bushing Design Dimensions (mm)

Bush Type	10	15
QTY	1	2
OD (A)	38.6	AI=42.2 AII=34.6
ID (B)	24.5	24.6
Length (C)	43.5	40.0
FL (D)	2.5	2.5
FLOD (E)	42.5
C/Tube Qty	1 / 1	1 / 1
C/Tube Size	25.4x16.5x45 / 25.4x20.5x42	25.4x16.5x45 / 25.4x20.5x42
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.32kg	0.71lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information

SKU	W83400

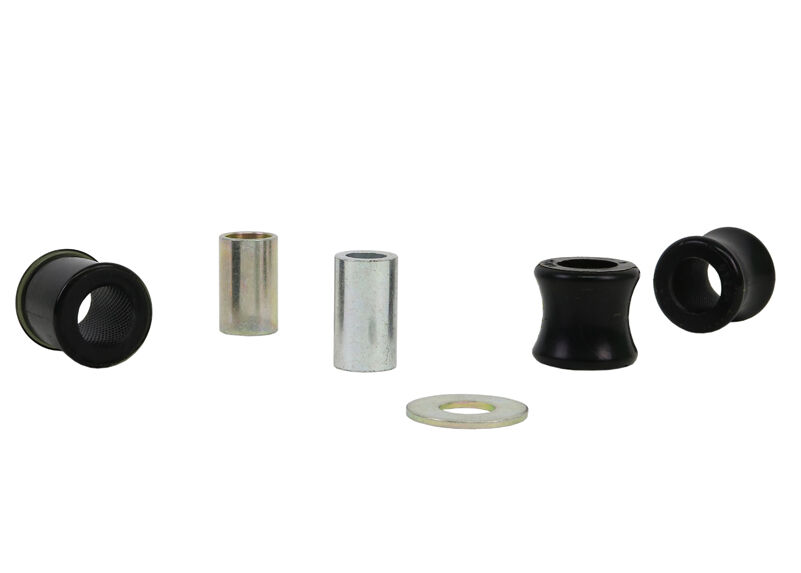

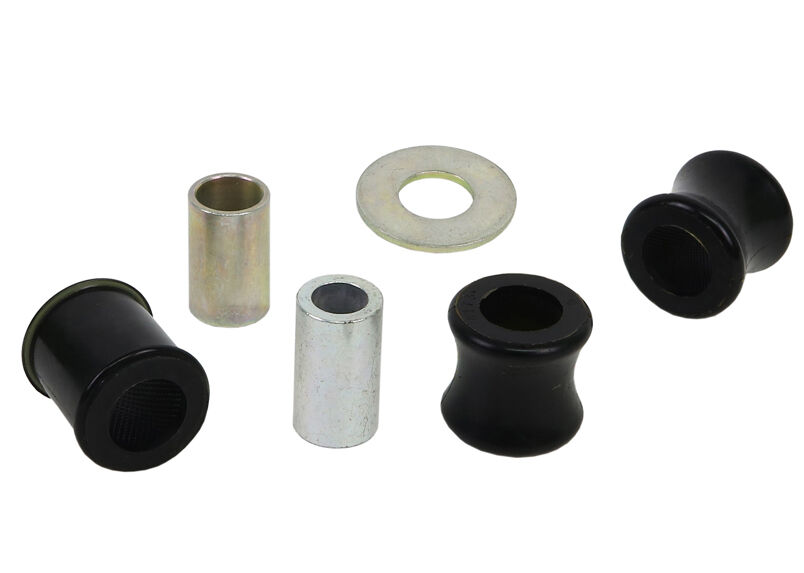

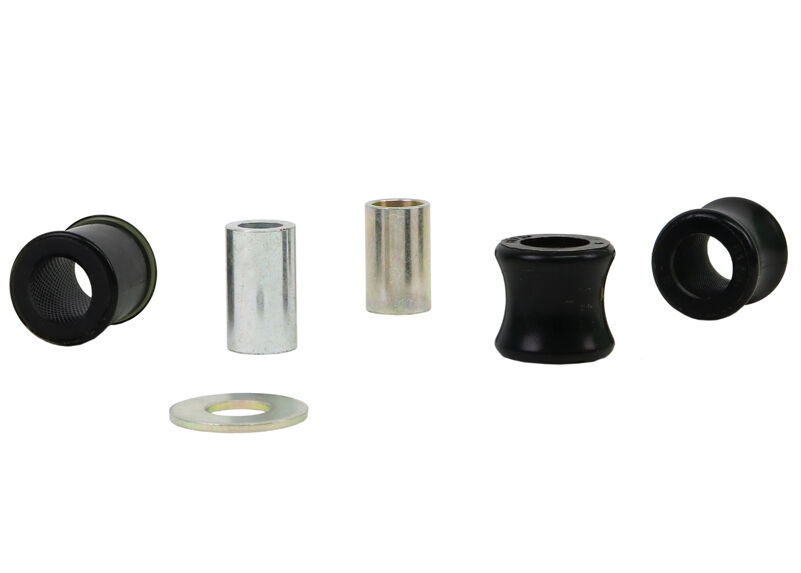

Components Per	3 Bushings, 2 Tubes, 1 Washer
Kits Required	1
Sub brand	Replacement
Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 3 Bushings, 2 Tubes & 1 Washer
EAN	9319924391394
