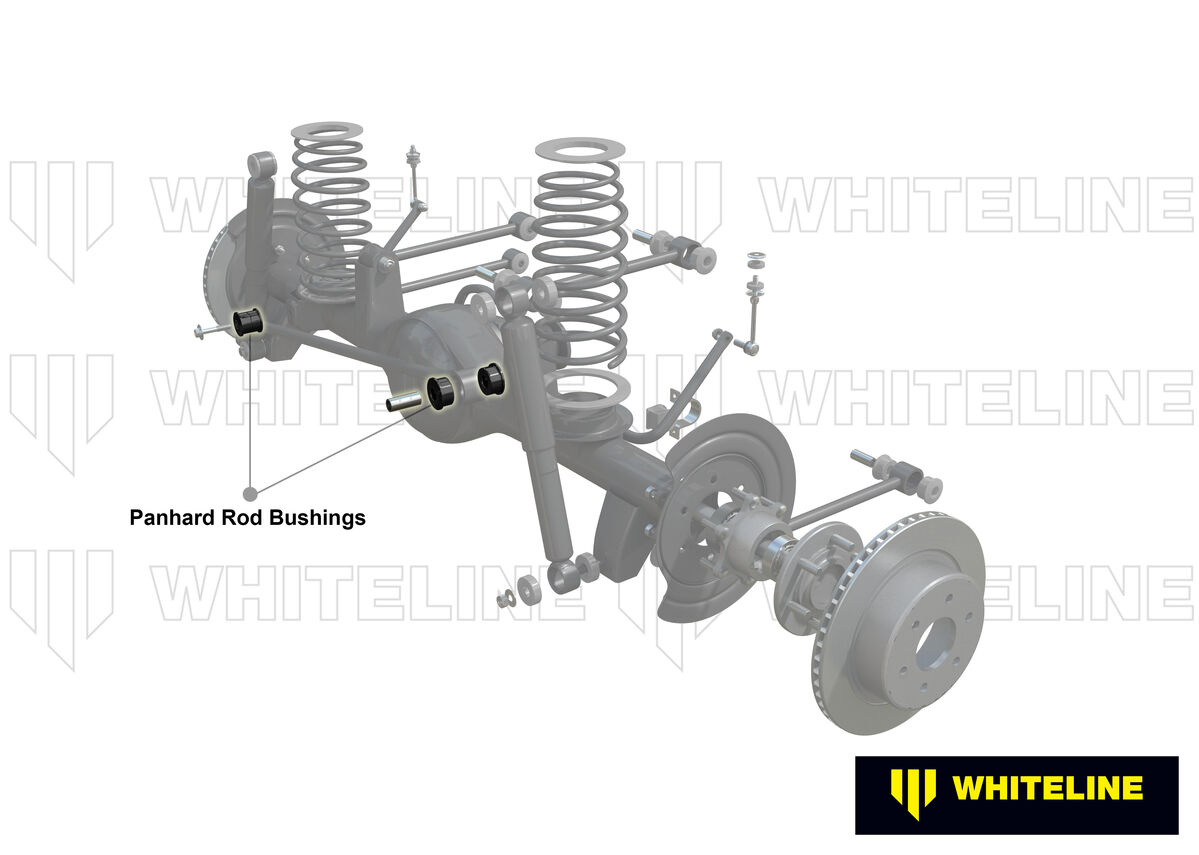

Whiteline Rear Panhard Rod - Bushing Kit to Suit Toyota Land Cruiser 100 and 105 Series

SKU: W83388

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 36.3 mm
ID (B) 22.3 mm
Length (C) 49.3 mm
Flange Thickness (D) 5.1 mm
Flange OD (E) 40.4 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x14.3x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 36.3
ID (B) 22.3
Length (C) 49.3
FL (D) 5.1
FLOD (E) 40.4
C/Tube Qty 2
C/Tube Size 22.2x14.3x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.282kg0.62lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW83388

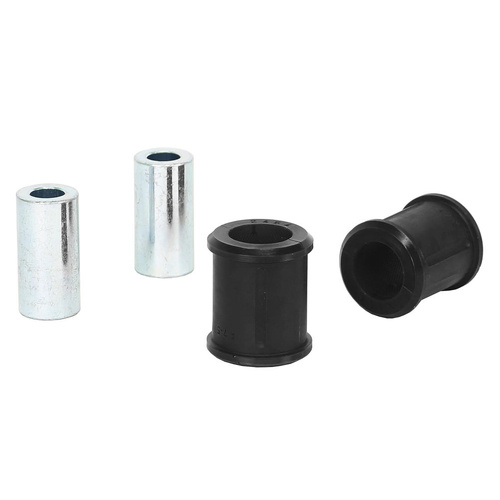

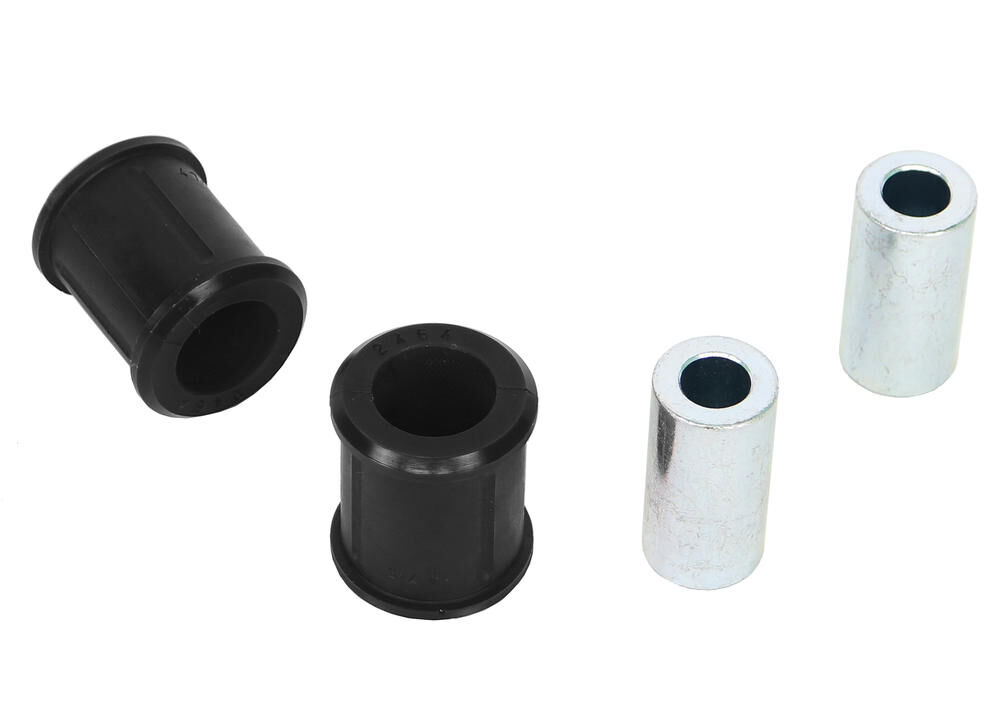

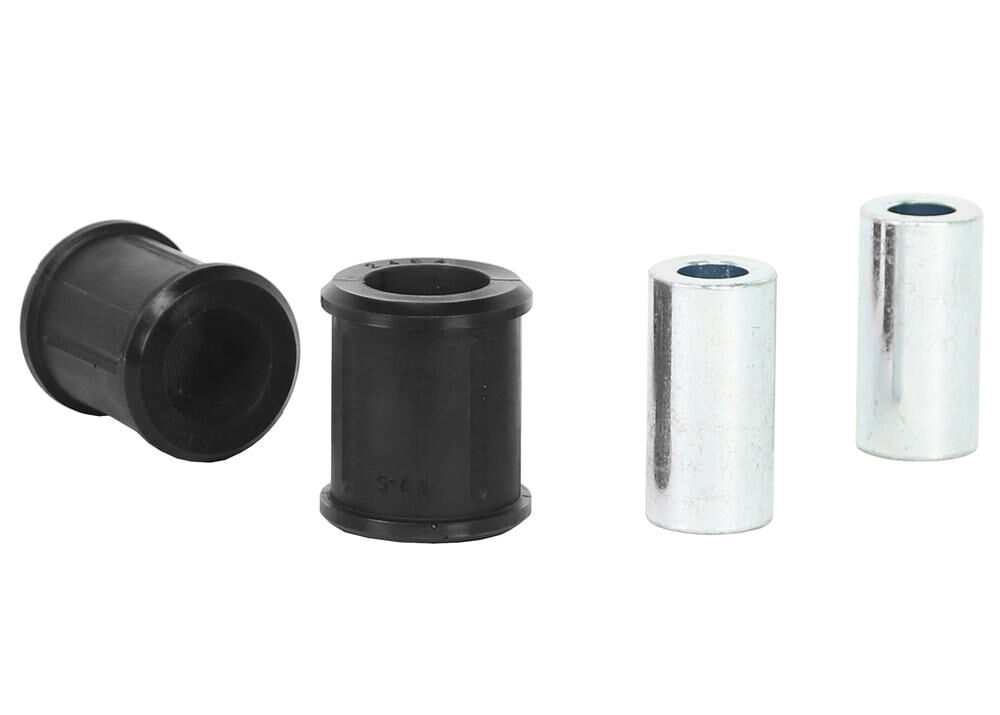

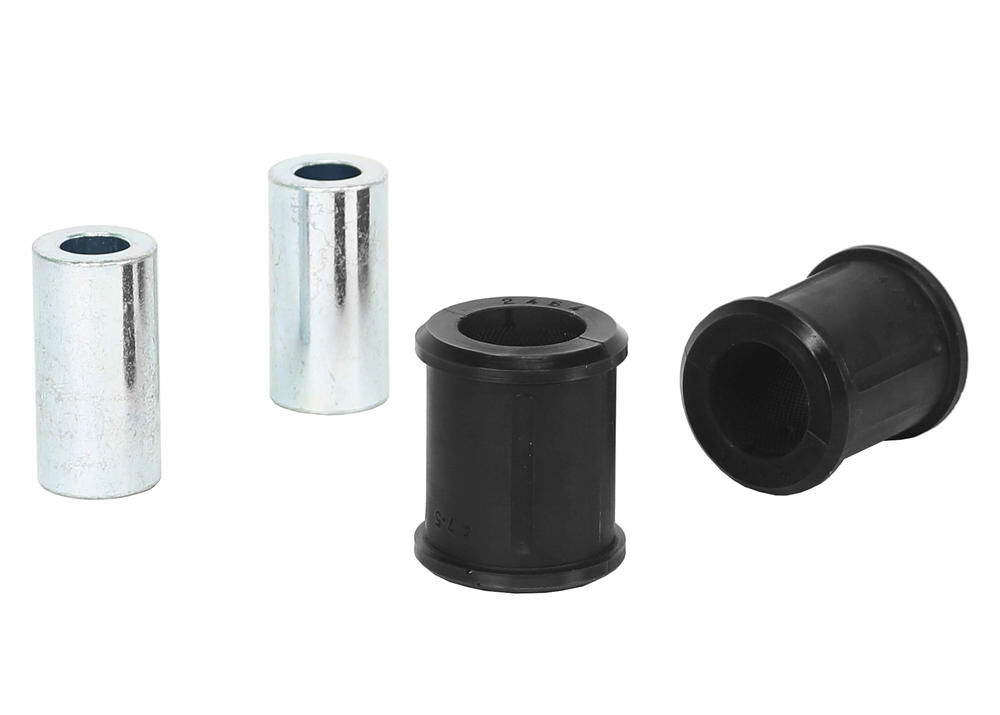

Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes
EAN9319924384822
  • Lifetime Warranty
Brand Whiteline
SKU W83388
Unit Of Measure Kit
