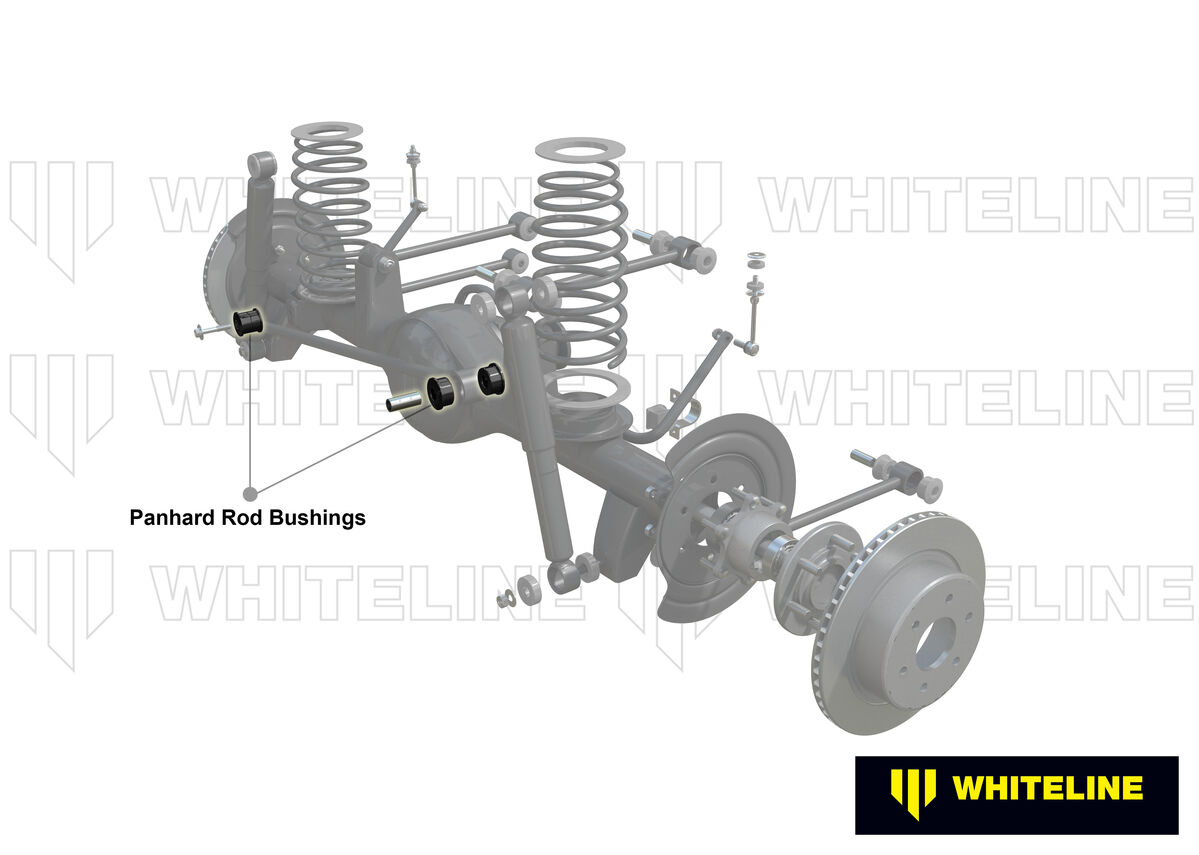

Whiteline Rear Panhard Rod - Bushing Kit to Suit Toyota HiLux Surf and 4Runner LN130

SKU: W83387

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 41.1 mm 35.1 mm
ID (B) 29.4 mm 25.2 mm
Length (C) 21 mm 21.4 mm
Flange Thickness (D) 5.5 mm 4.9 mm
Flange OD (E) 44.5 mm 44.7 mm
C/Tube Quantity 1 / 1 1 / 1
C/Tube ODxIDxL 25.4x16.2x44.5 / 30x24x42 mm 25.4x16.2x44.5 / 30x24x42 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 41.1 35.1
ID (B) 29.4 25.2
Length (C) 21.0 21.4
FL (D) 5.5 4.9
FLOD (E) 44.5 44.7
C/Tube Qty 1 / 1 1 / 1
C/Tube Size 25.4x16.2x44.5 / 30x24x42 25.4x16.2x44.5 / 30x24x42
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.326kg0.72lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW83387

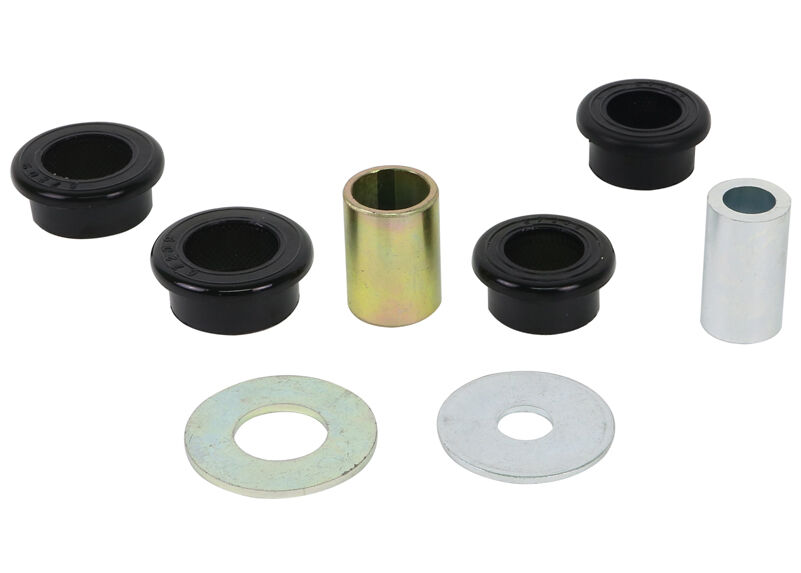

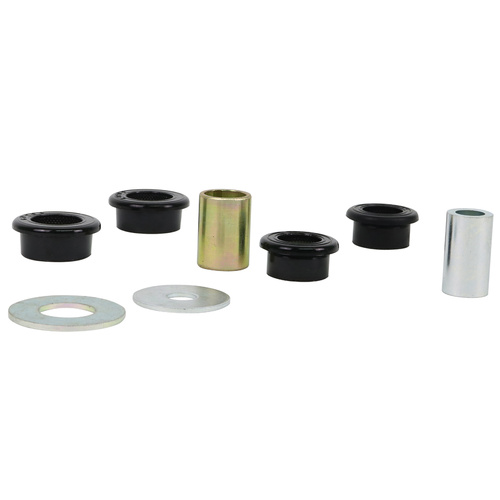

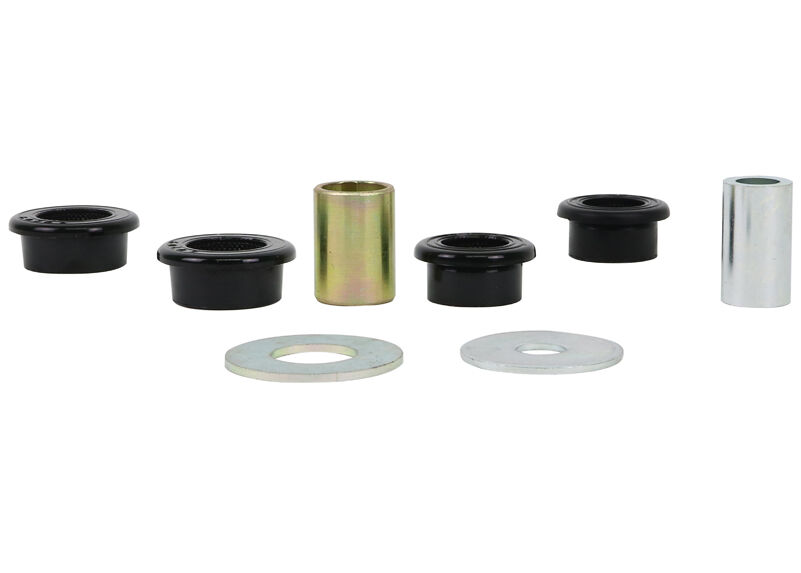

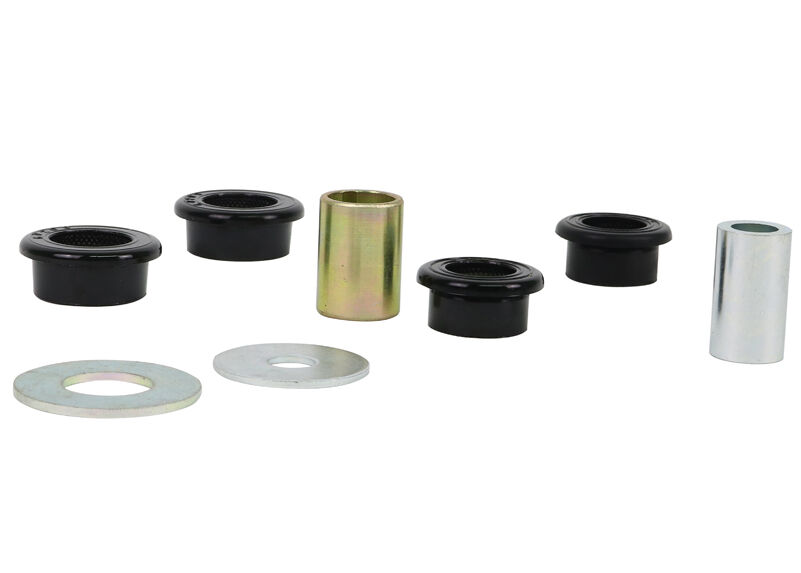

Components Per4 Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes & 2 Washers
EAN9319924384235
  • Lifetime Warranty
Brand Whiteline
SKU W83387
Unit Of Measure Kit
