Whiteline Rear Panhard Rod - Bushing Kit to Suit Toyota Land Cruiser 80 and 105 Series

SKU: W81701A

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

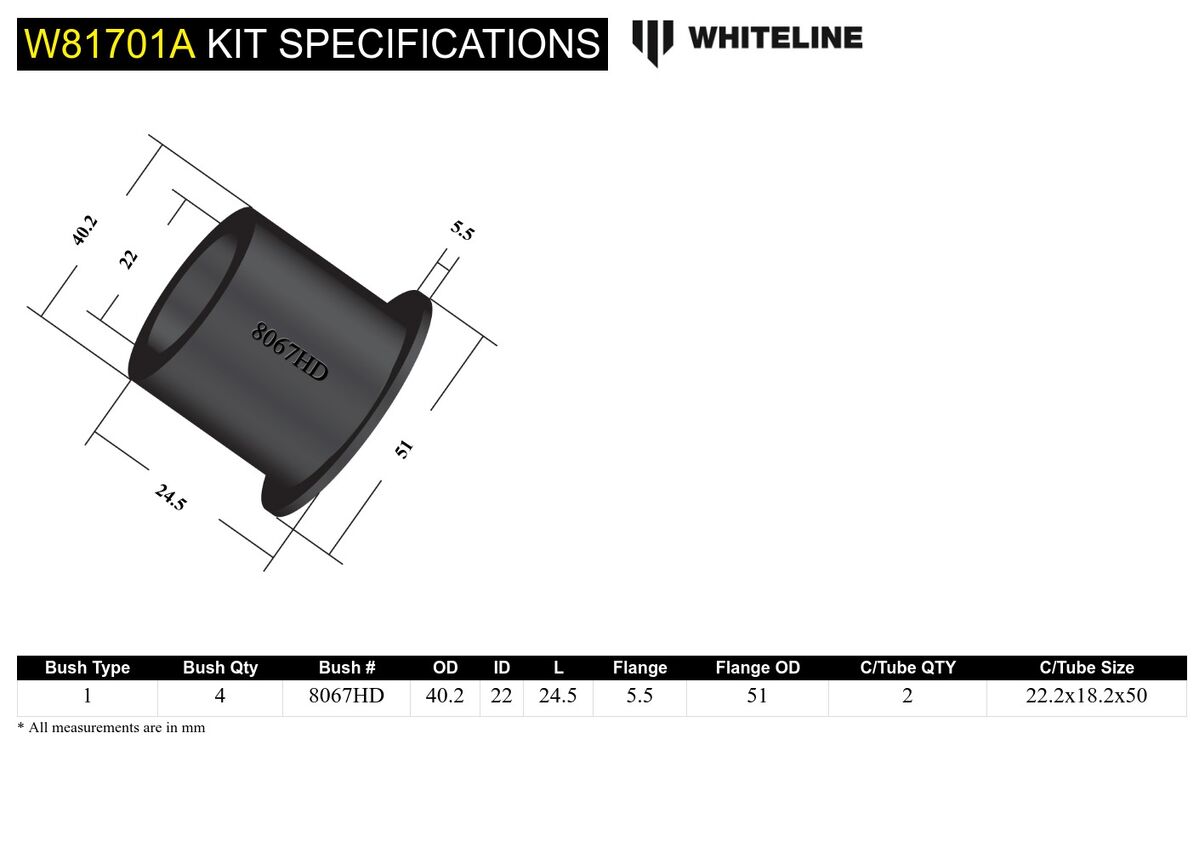

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 40.2 mm
ID (B) 22 mm
Length (C) 24.5 mm
Flange Thickness (D) 5.5 mm
Flange OD (E) 51 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x18.2x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 40.2
ID (B) 22
Length (C) 24.5
FL (D) 5.5
FLOD (E) 51
C/Tube Qty 2
C/Tube Size 22.2x18.2x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.244kg0.54lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81701A

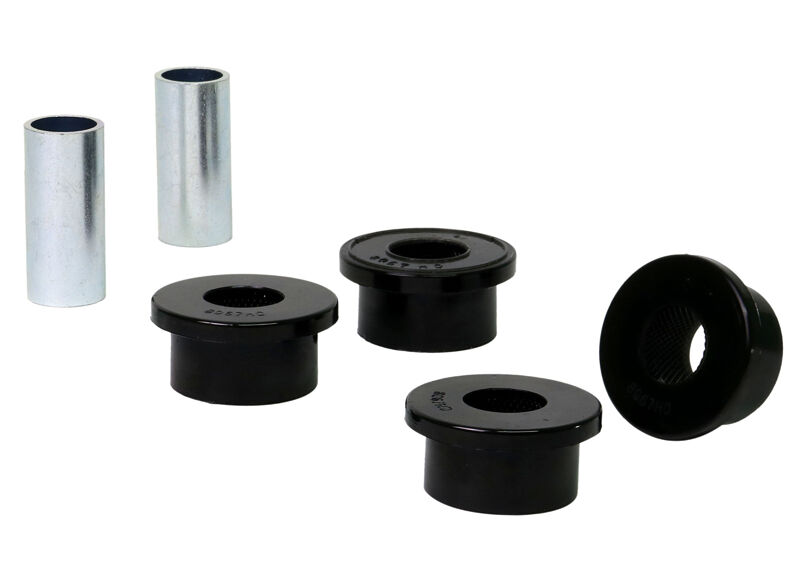

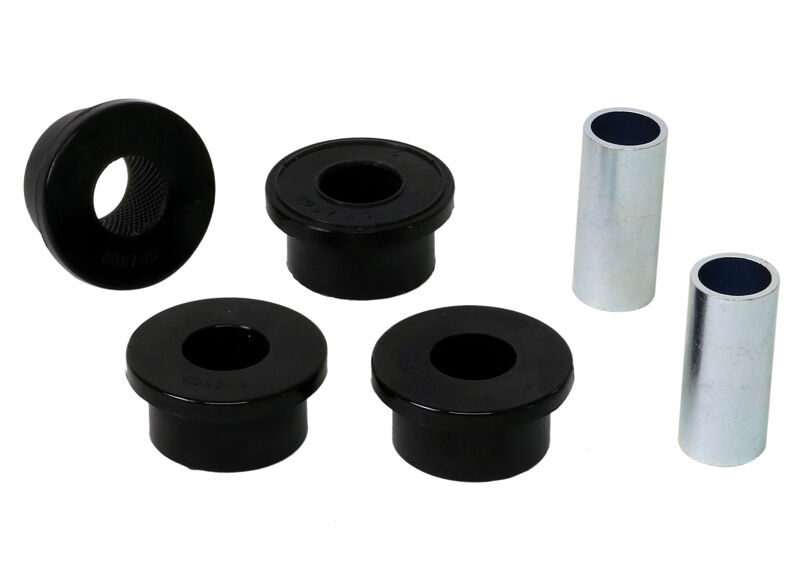

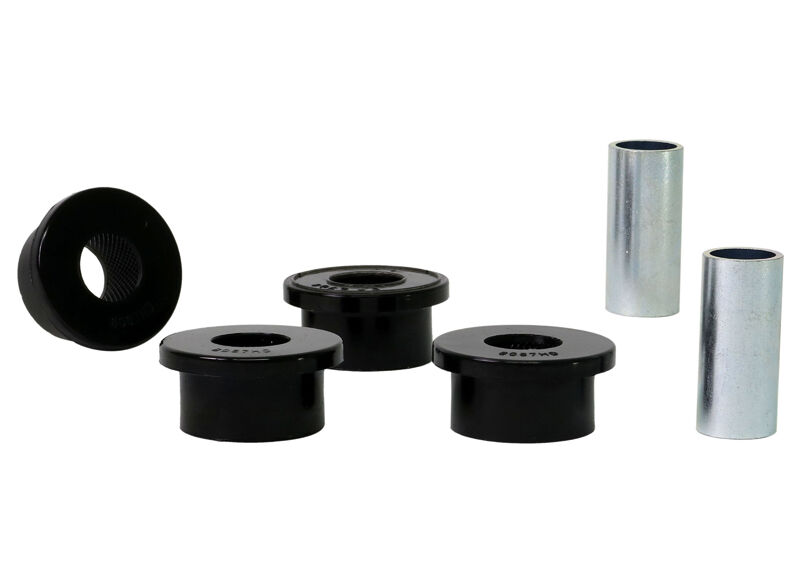

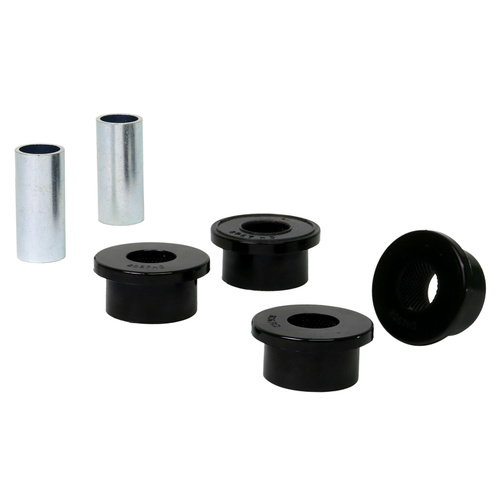

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924396627
  • Lifetime Warranty
Brand Whiteline
SKU W81701A
Unit Of Measure Kit
