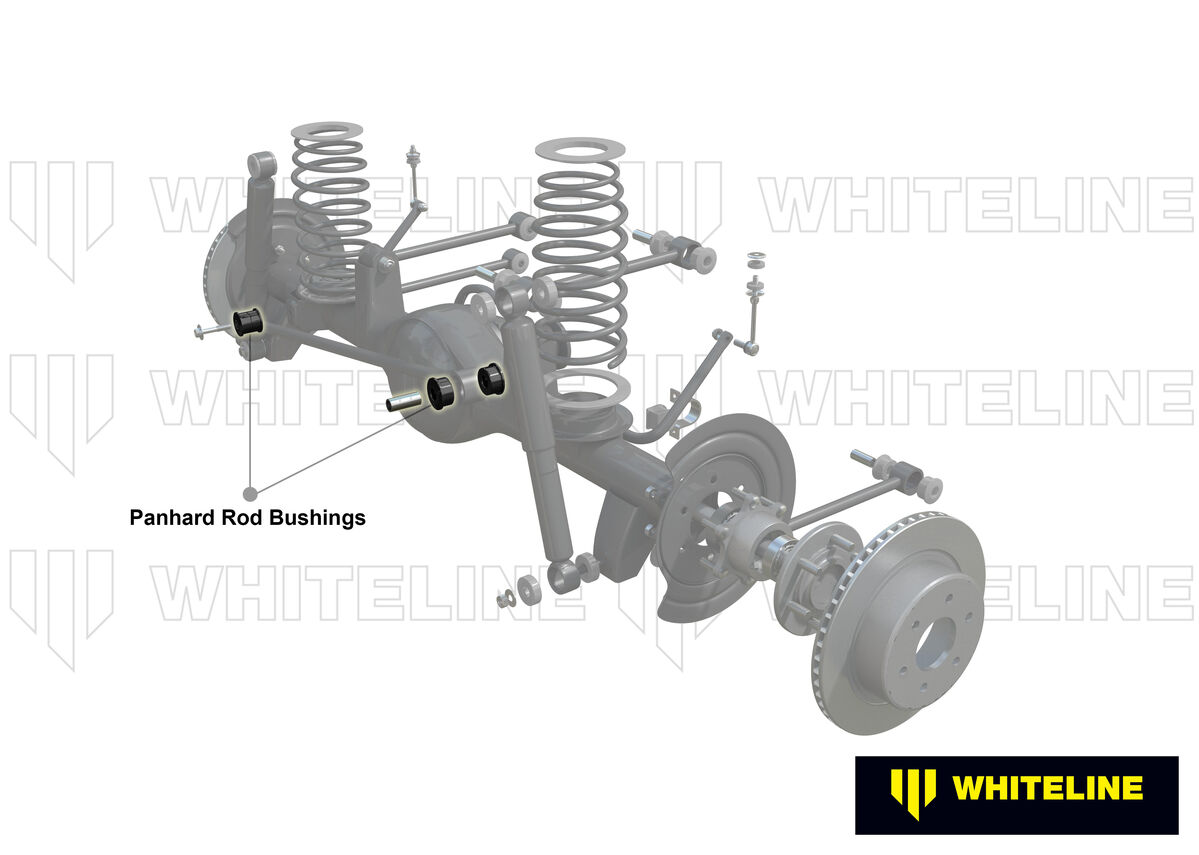

Whiteline Rear Panhard Rod - Bushing Kit to Suit Nissan Pathfinder R50 and QX4 JR50

SKU: W83395

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

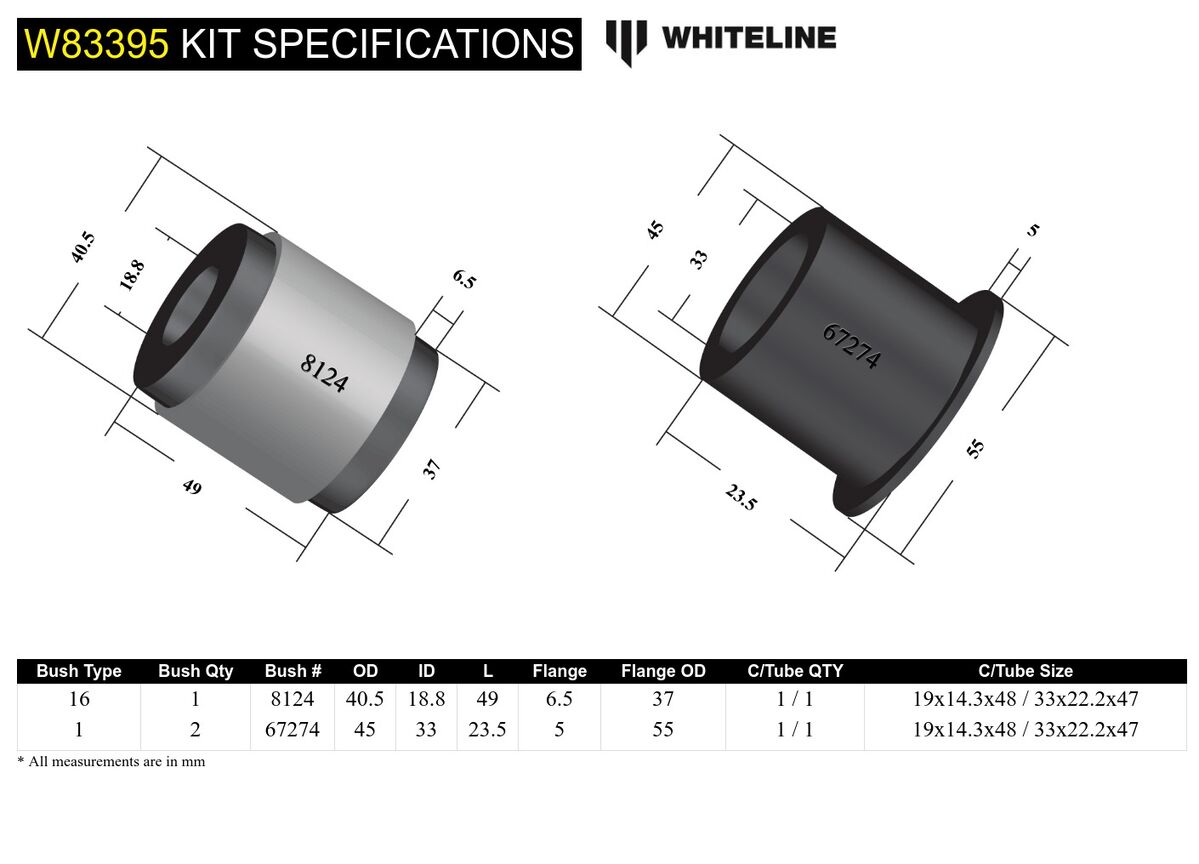

Kit Specifications

Bush Type 1 - Shackle Bushing 16 - Shell Without Flange Bushing
Bush Quantity 2 mm 1 mm
OD (A) 45 mm 40.5 mm
ID (B) 33 mm 18.8 mm
Length (C) 23.5 mm 49 mm
Flange Thickness (D) 5 mm 6.5 mm
Flange OD (E) 55 mm 37 mm
C/Tube Quantity 1 / 1 1 / 1
C/Tube ODxIDxL 19x14.3x48 / 33x22.2x47 mm 19x14.3x48 / 33x22.2x47 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 1 16
QTY 2 1
OD (A) 45 40.5
ID (B) 33 18.8
Length (C) 23.5 49.0
FL (D) 5 6.5
FLOD (E) 55 37
C/Tube Qty 1 / 1 1 / 1
C/Tube Size 19x14.3x48 / 33x22.2x47 19x14.3x48 / 33x22.2x47
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.398kg0.88lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW83395

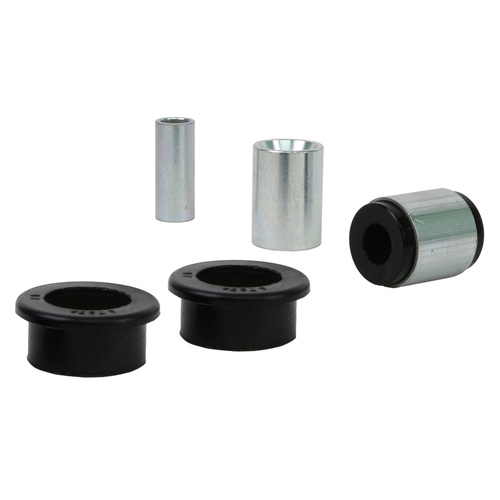

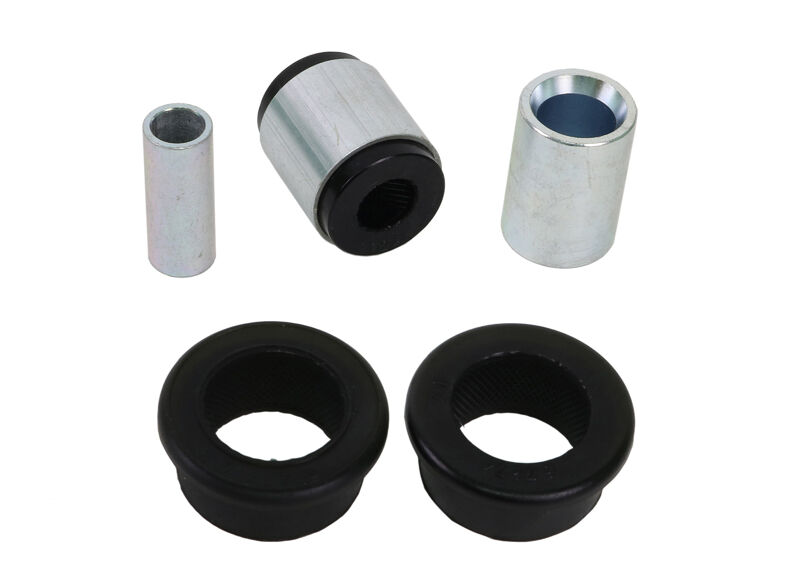

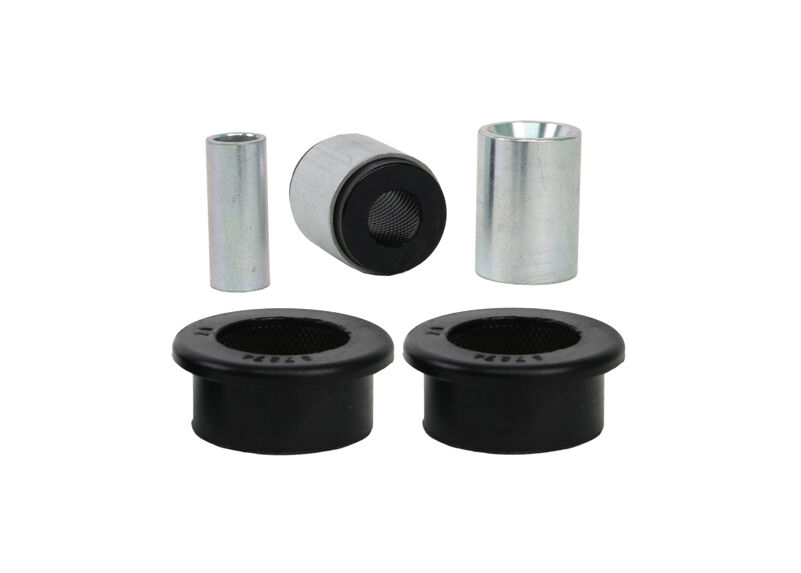

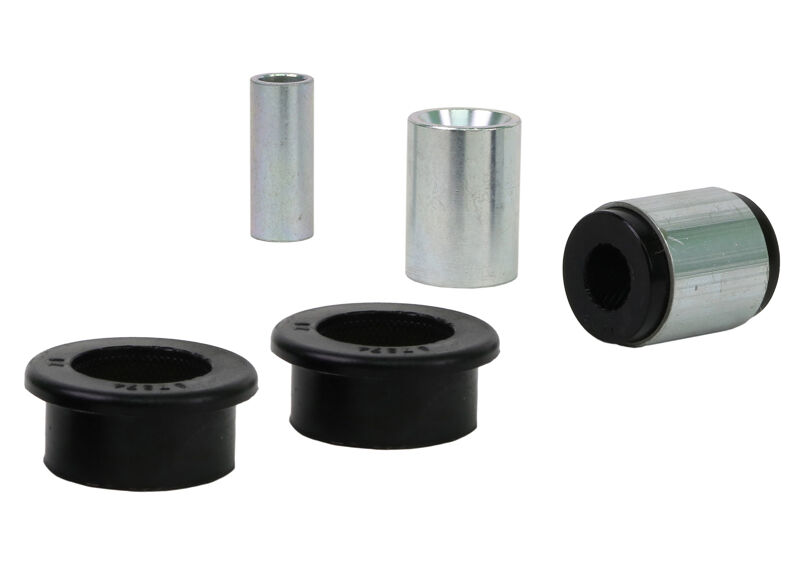

Components Per1 Shell Bushing, 2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 1 Shell Bushing, 2 Bushings & 2 Tubes
EAN9319924389728
  • Lifetime Warranty
Brand Whiteline
SKU W83395
Unit Of Measure Kit
