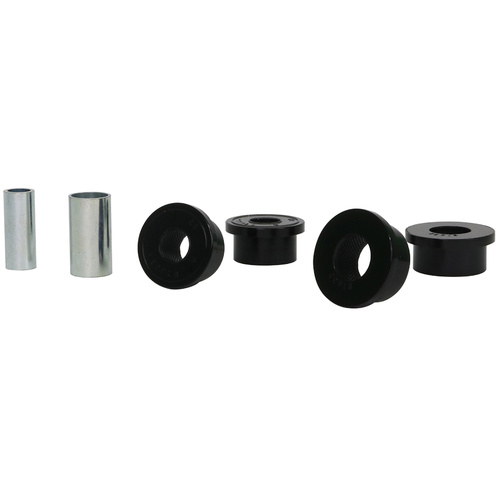

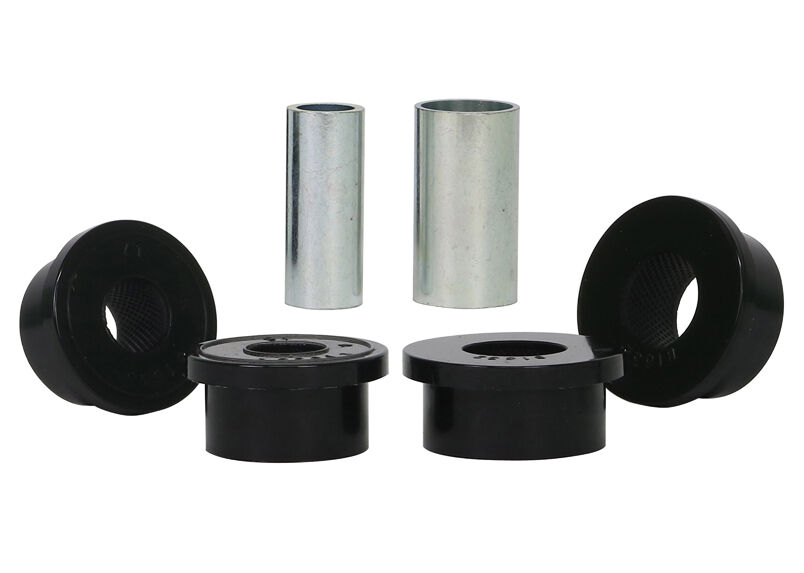

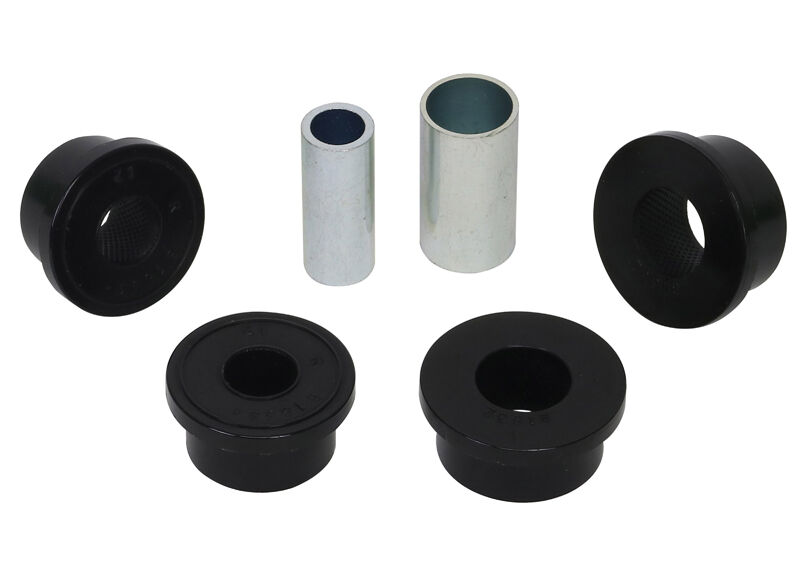

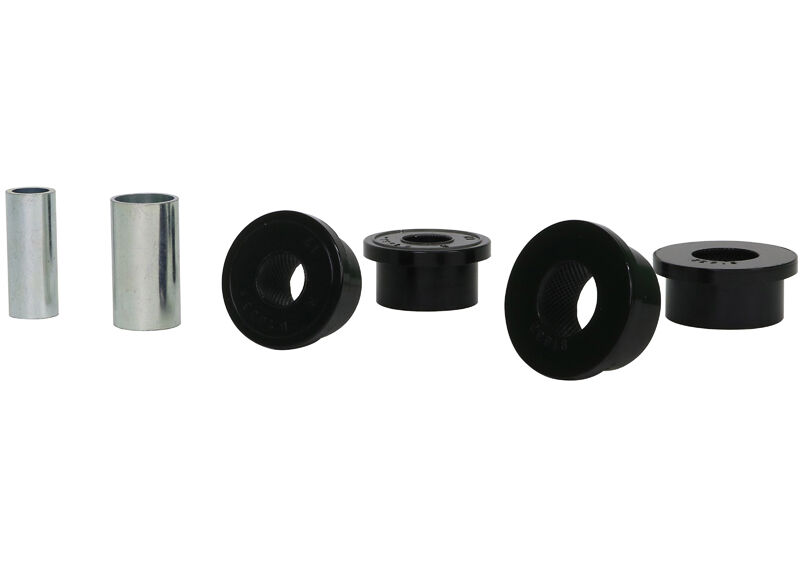

Whiteline Rear Panhard Rod - Bushing Kit to Suit Nissan Skyline and Pintara R31

SKU: W81632

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 44.8 mm 39.8 mm
ID (B) 25.4 mm 18.9 mm
Length (C) 25.6 mm 25.5 mm
Flange Thickness (D) 6.2 mm 6 mm
Flange OD (E) 54.6 mm 49.8 mm
C/Tube Quantity 1 / 1 1 / 1
C/Tube ODxIDxL 19x14.3x48 / 25.4x22.2x48 mm 19x14.3x48 / 25.4x22.2x48 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 44.8 39.8
ID (B) 25.4 18.9
Length (C) 25.6 25.5
FL (D) 6.2 6
FLOD (E) 54.6 49.8
C/Tube Qty 1 / 1 1 / 1
C/Tube Size 19x14.3x48 / 25.4x22.2x48 19x14.3x48 / 25.4x22.2x48
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.248kg0.55lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81632
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924357109
  • Lifetime Warranty
Brand Whiteline
SKU W81632
Unit Of Measure Kit
