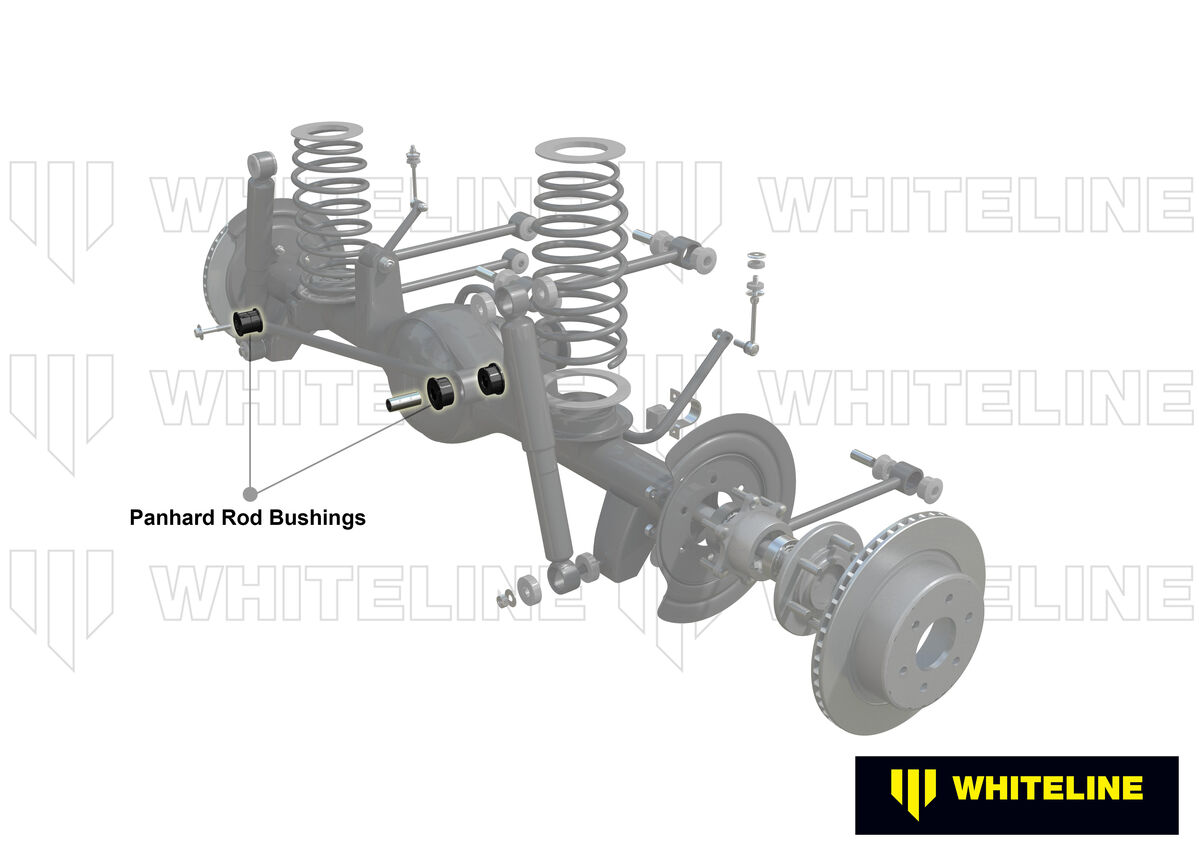

Whiteline Rear Panhard Rod - Bushing Kit to Suit Nissan Patrol GQ and Ford Maverick DA

SKU: W81438A

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

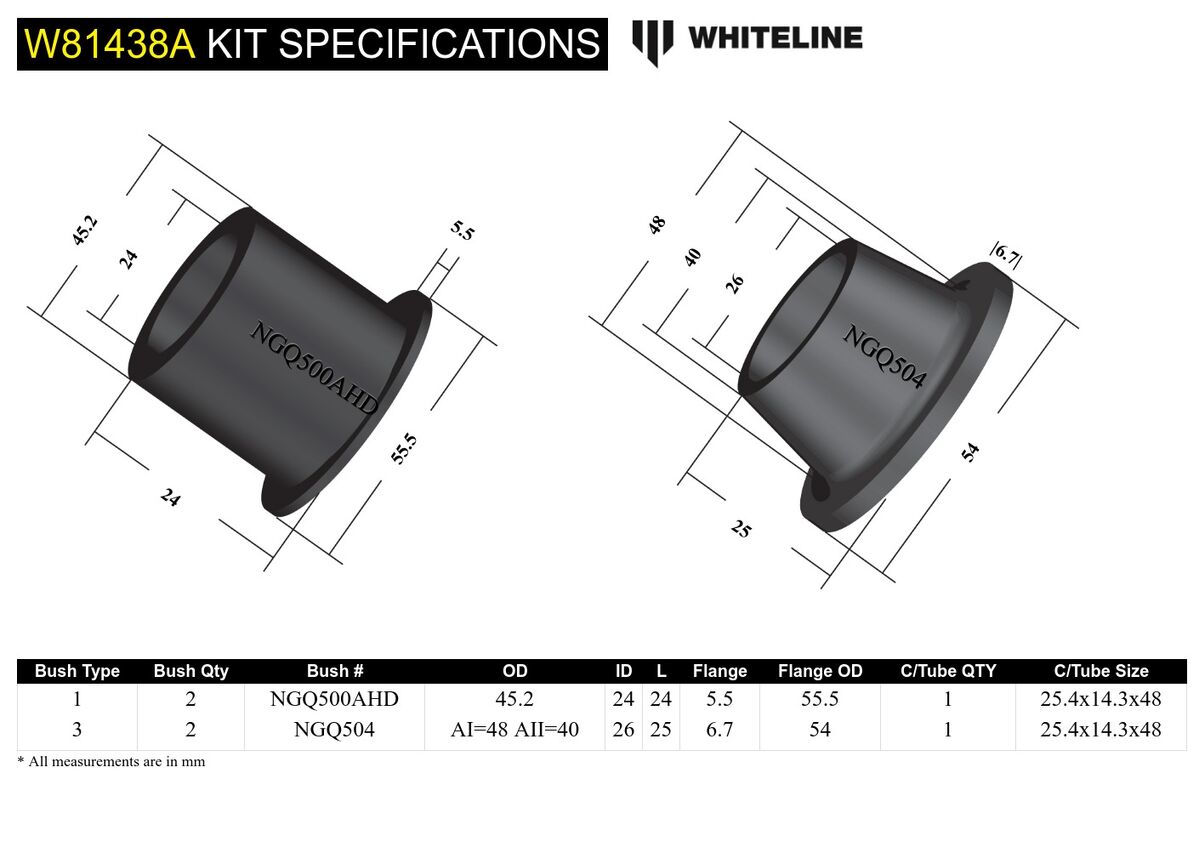

Kit Specifications

Bush Type 3 - Half Tapered Cotton Reel Bush 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) AI=48 AII=40 mm 45.2 mm
ID (B) 26 mm 24 mm
Length (C) 25 mm 24 mm
Flange Thickness (D) 6.7 mm 5.5 mm
Flange OD (E) 54 mm 55.5 mm
C/Tube Quantity 1 1
C/Tube ODxIDxL 25.4x14.3x48 mm 25.4x14.3x48 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 3 - Half Tapered Cotton Reel Bush
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 3 1
QTY 2 2
OD (A) AI=48 AII=40 45.2
ID (B) 26 24
Length (C) 25.0 24.0
FL (D) 6.7 5.5
FLOD (E) 54 55.5
C/Tube Qty 1 1
C/Tube Size 25.4x14.3x48 25.4x14.3x48
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 3

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.234kg0.52lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81438A
Components Per4 Bushings, 1 Tube
Kits Required1
Sub brandReplacement
Product NoteBalances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 1 Tube
EAN9319924396603
  • Lifetime Warranty
Brand Whiteline
SKU W81438A
Unit Of Measure Kit
