Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	4 mm	4 mm
OD (A)	30.2 mm	32 mm
ID (B)	22 mm	22 mm
Length (C)	66.1 mm	66.1 mm
Flange Thickness (D)	5.1 mm	5.1 mm
Flange OD (E)	40.1 mm	40.1 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	22.2x12.2x134.5 mm	22.2x12.2x134.5 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	1	1
QTY	4	4
OD (A)	30.2	32
ID (B)	22	22
Length (C)	66.1	66.1
FL (D)	5.1	5.1
FLOD (E)	40.1	40.1
C/Tube Qty	2	2
C/Tube Size	22.2x12.2x134.5	22.2x12.2x134.5
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.83kg	1.83lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information

SKU	W73449

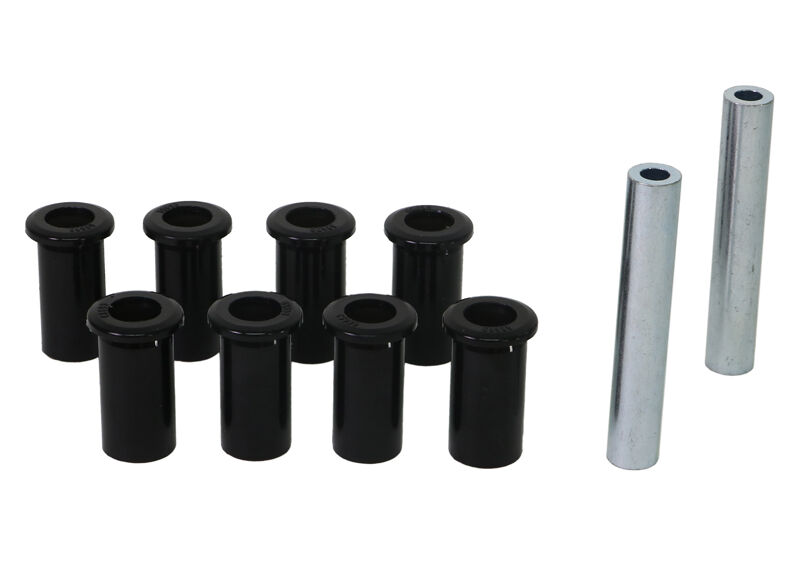

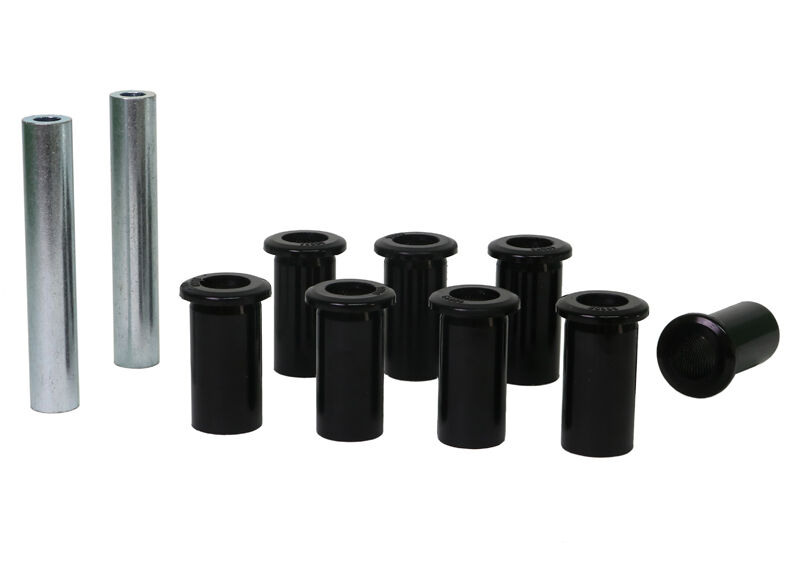

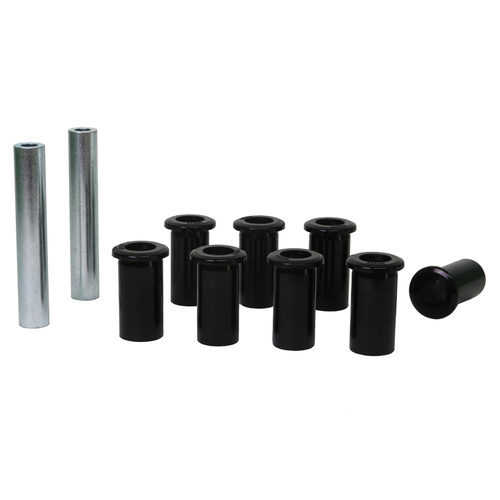

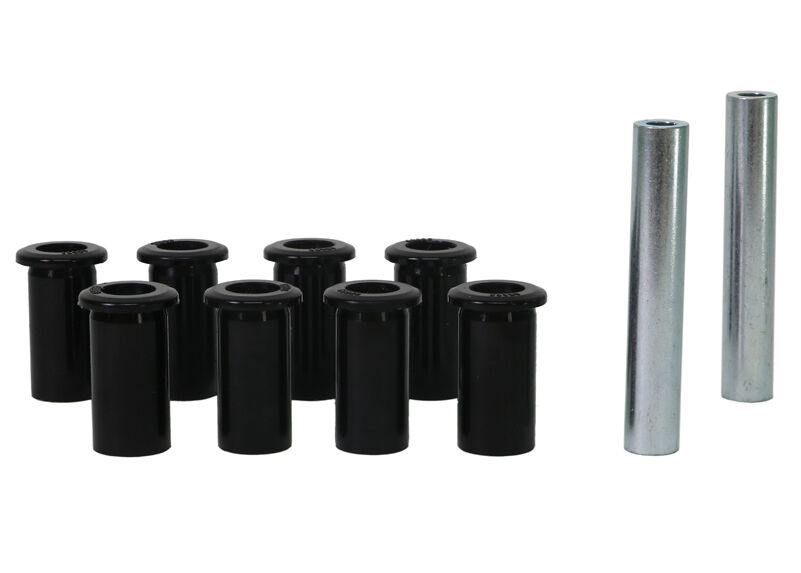

Components Per	8 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 8 Bushings & 2 Tubes
EAN	9319924452484
