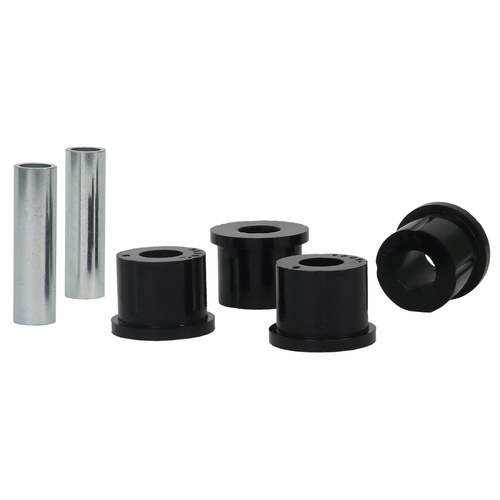

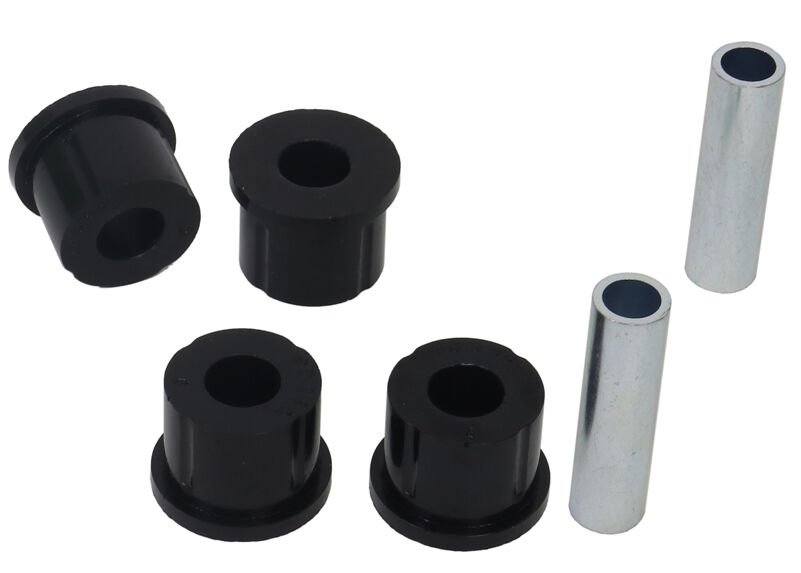

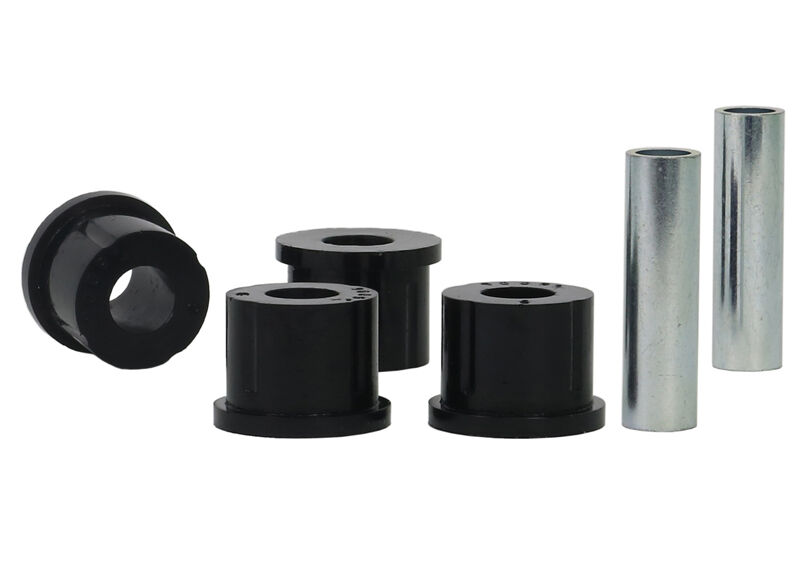

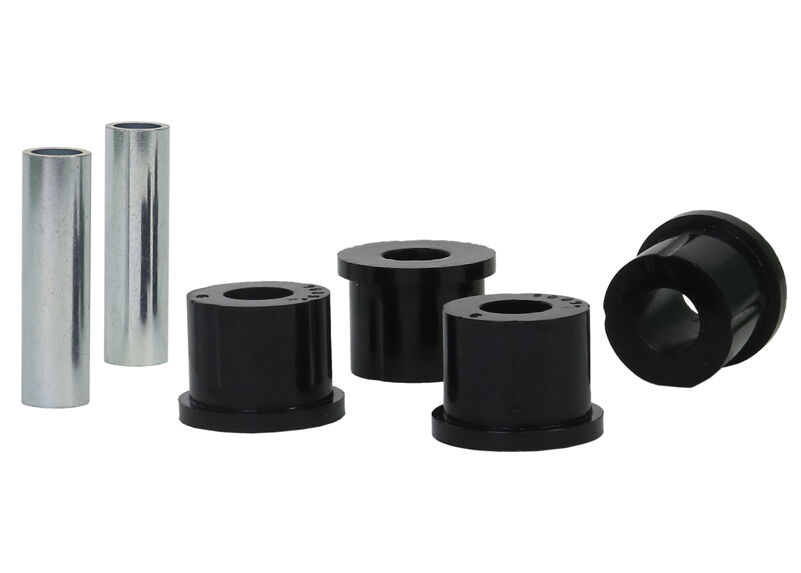

Whiteline Rear Leaf Spring - Shackle Bushing Kit to Suit Jeep Cherokee XJ

SKU: W73401

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

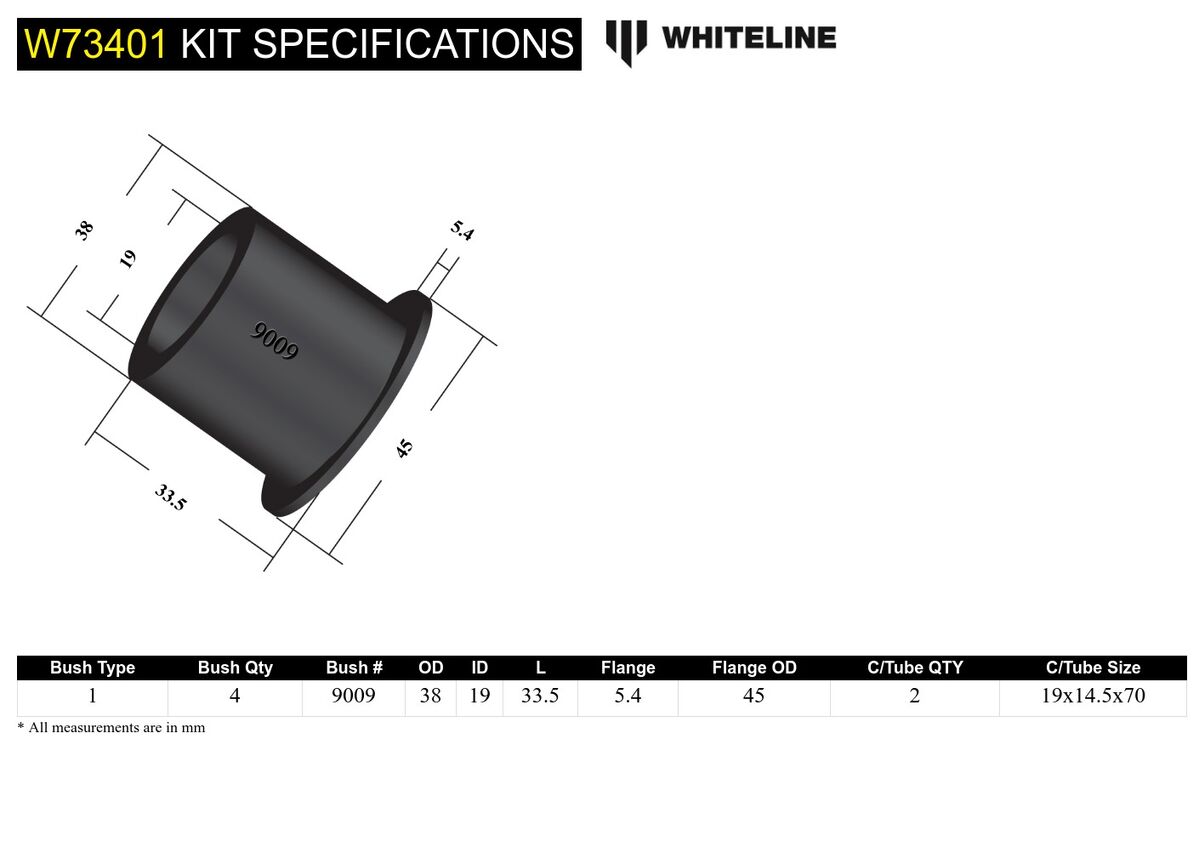

Kit Specifications

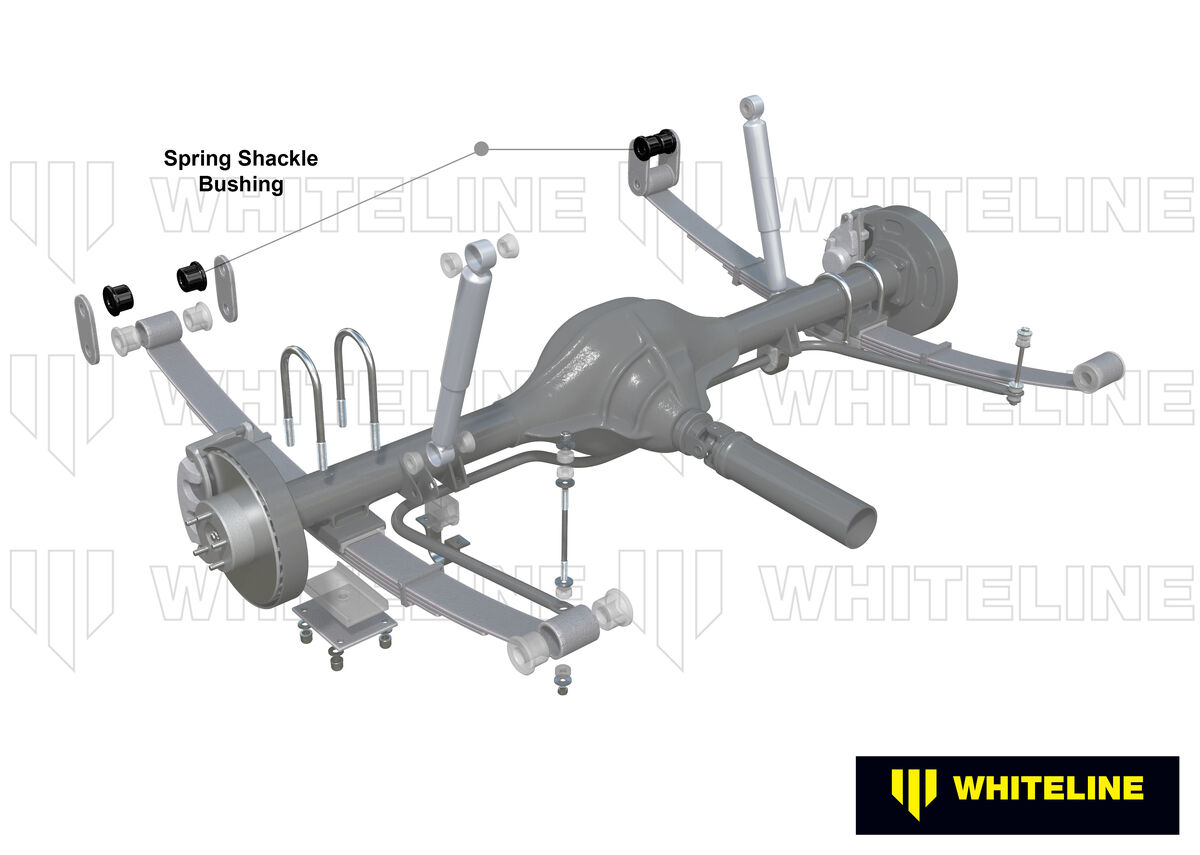

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 38 mm
ID (B) 19 mm
Length (C) 33.5 mm
Flange Thickness (D) 5.4 mm
Flange OD (E) 45 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x14.5x70 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 38
ID (B) 19
Length (C) 33.5
FL (D) 5.4
FLOD (E) 45
C/Tube Qty 2
C/Tube Size 19x14.5x70
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.302kg0.67lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW73401
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924389643
  • Lifetime Warranty
Brand Whiteline
SKU W73401
Unit Of Measure Kit
