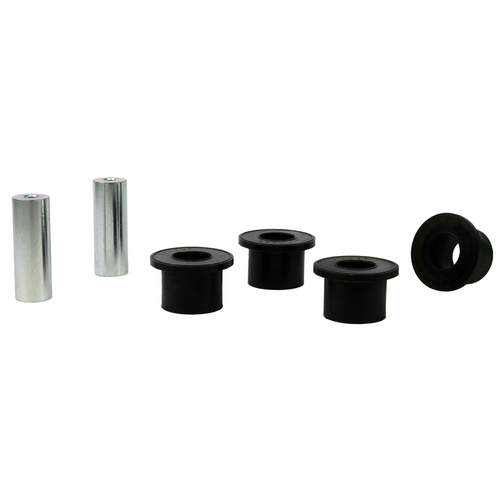

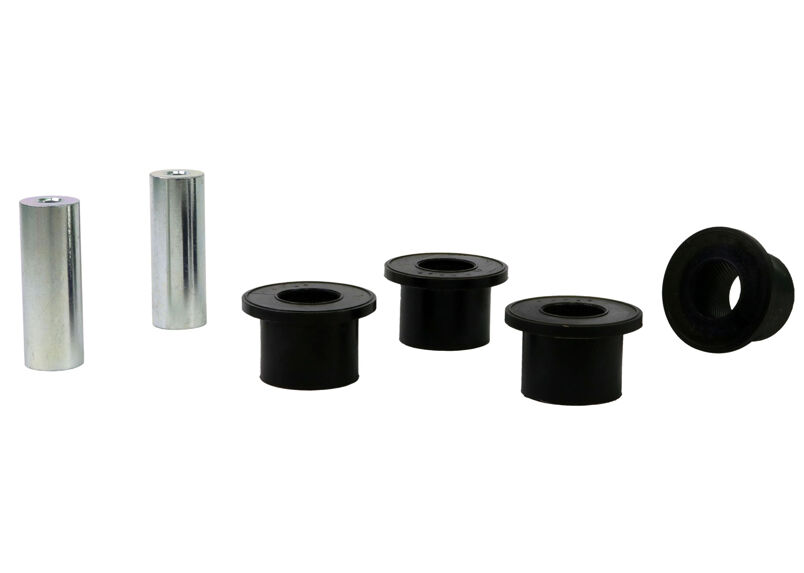

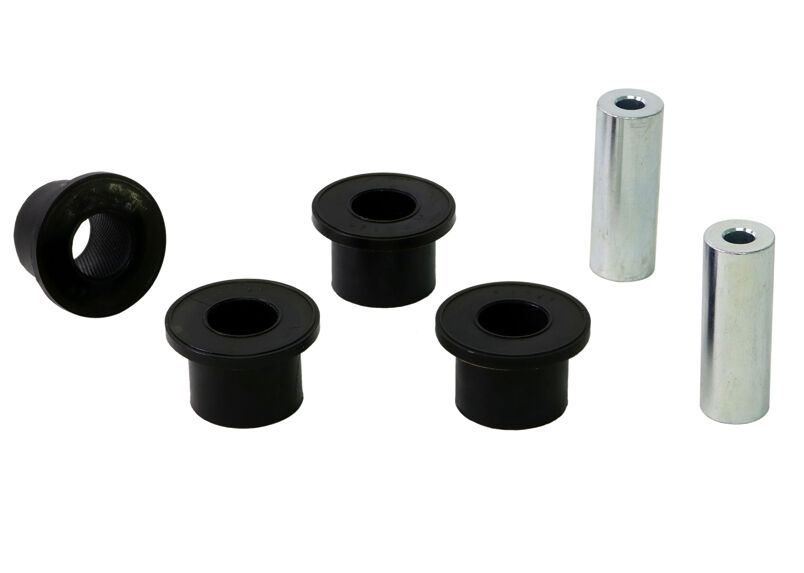

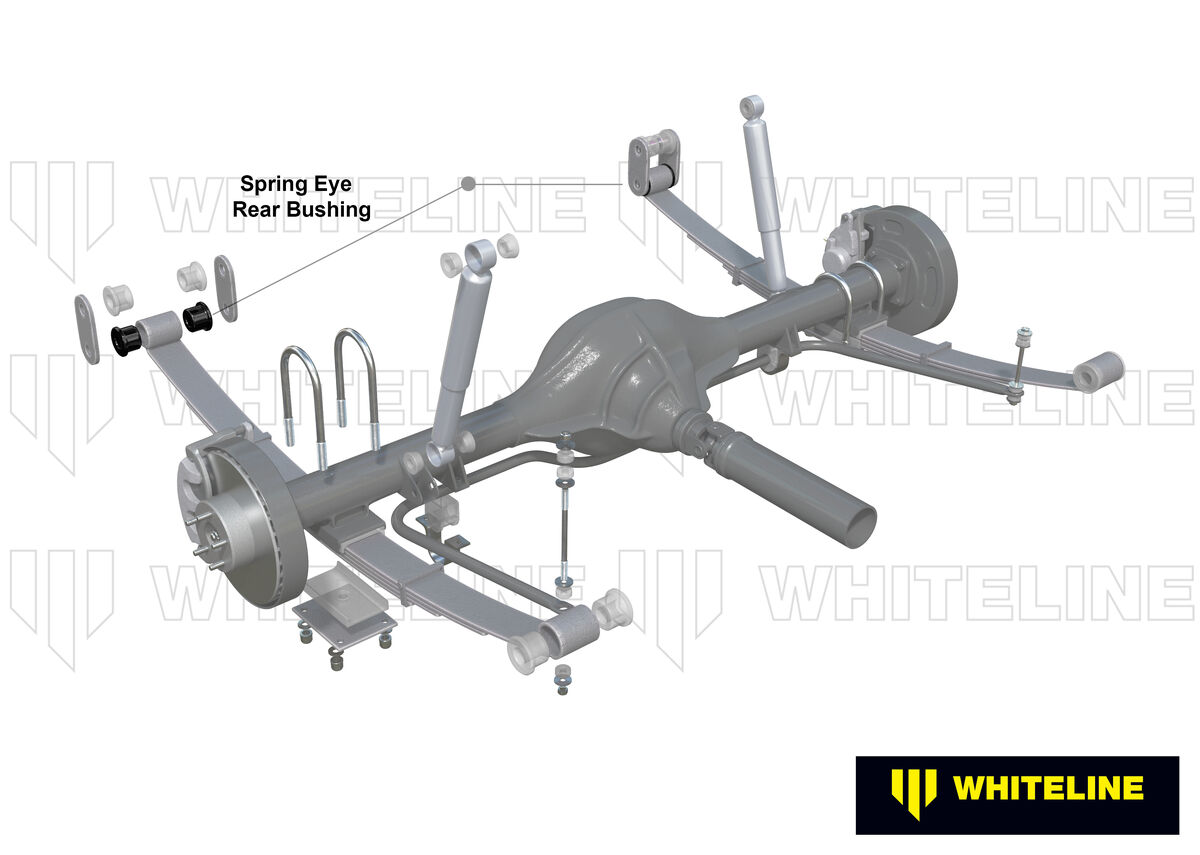

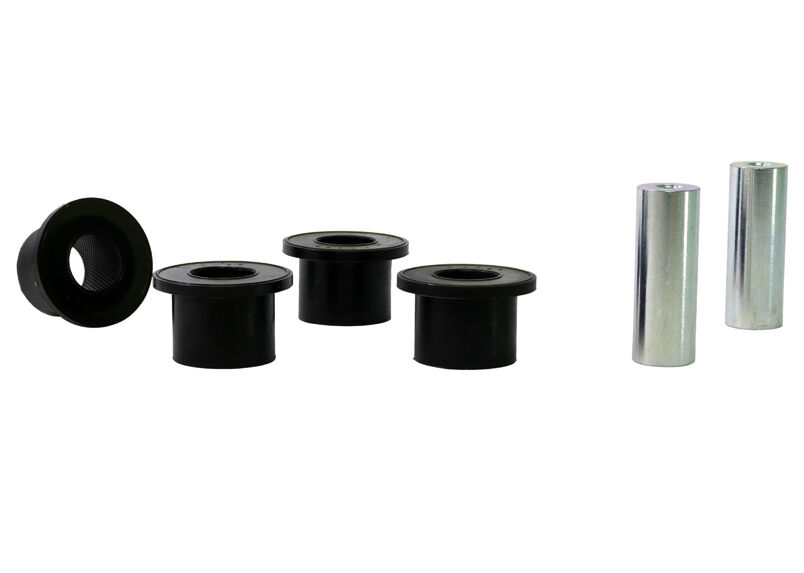

Whiteline Rear Leaf Spring - Rear Eye Bushing Kit to Suit Volkswagen Amarok 2H 2wd/4Motion

SKU: W73393

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 46.5 mm
ID (B) 28.8 mm
Length (C) 38.3 mm
Flange Thickness (D) 35.8 mm
Flange OD (E) 63 mm
C/Tube Quantity 2
C/Tube ODxIDxL 28.8x12x80 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 46.5
ID (B) 28.8
Length (C) 38.3
FL (D) 35.8
FLOD (E) 63
C/Tube Qty 2
C/Tube Size 28.8x12x80
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.911kg2.01lbs
Length10cm3.94"
Width16cm6.3"
Height26cm10.24"

Misc. Product Information

More Information
SKUW73393
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924388134
  • Lifetime Warranty
Brand Whiteline
SKU W73393
Unit Of Measure Kit
