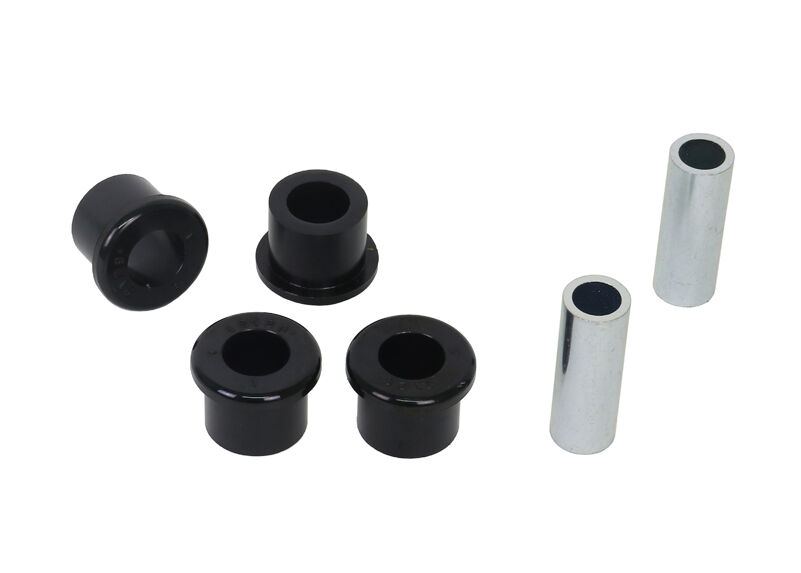

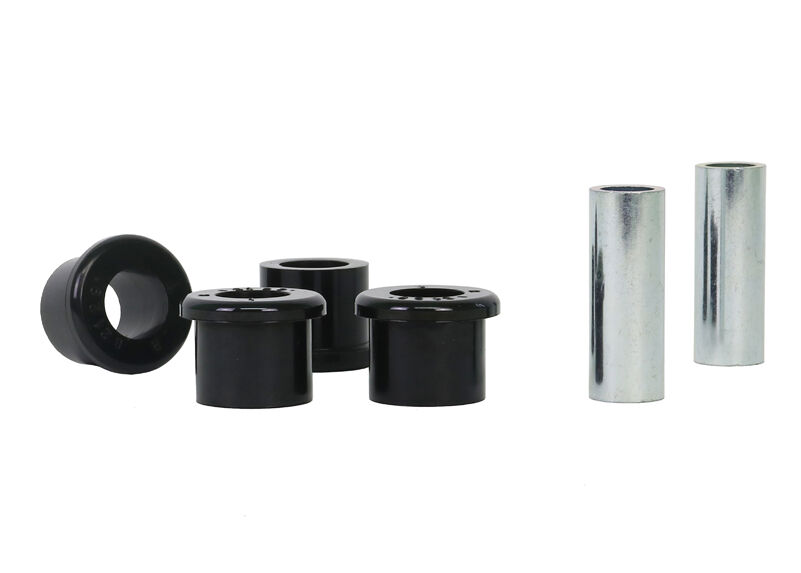

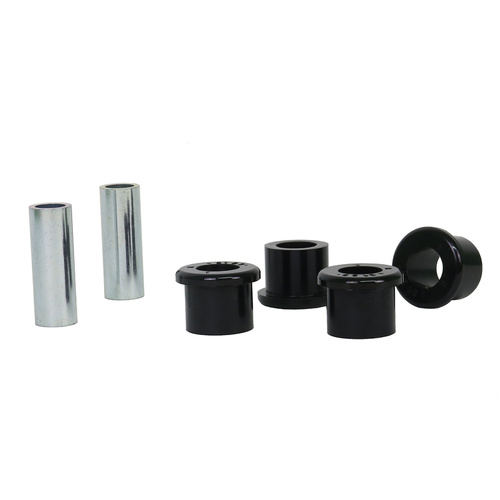

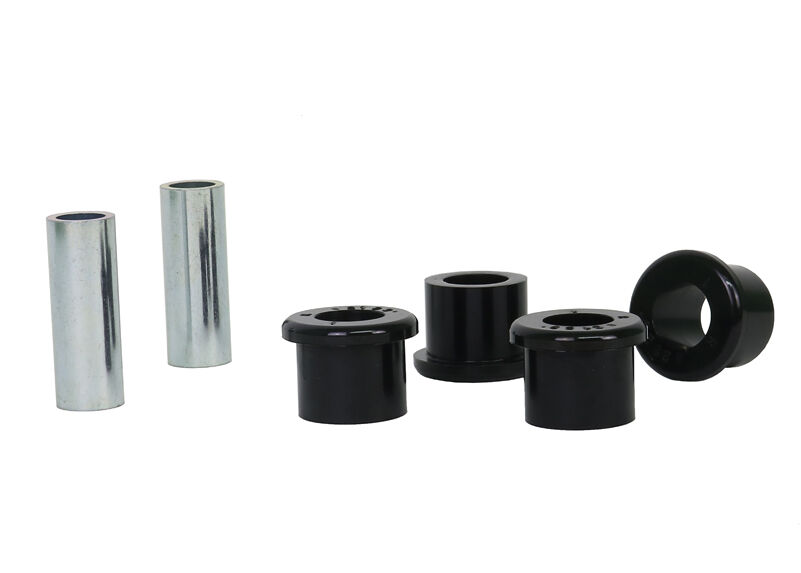

Whiteline Rear Leaf Spring - Rear Eye Bushing Kit to Suit Daihatsu Feroza, Rocky and Rugger

SKU: W72129

Benefit Note: A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

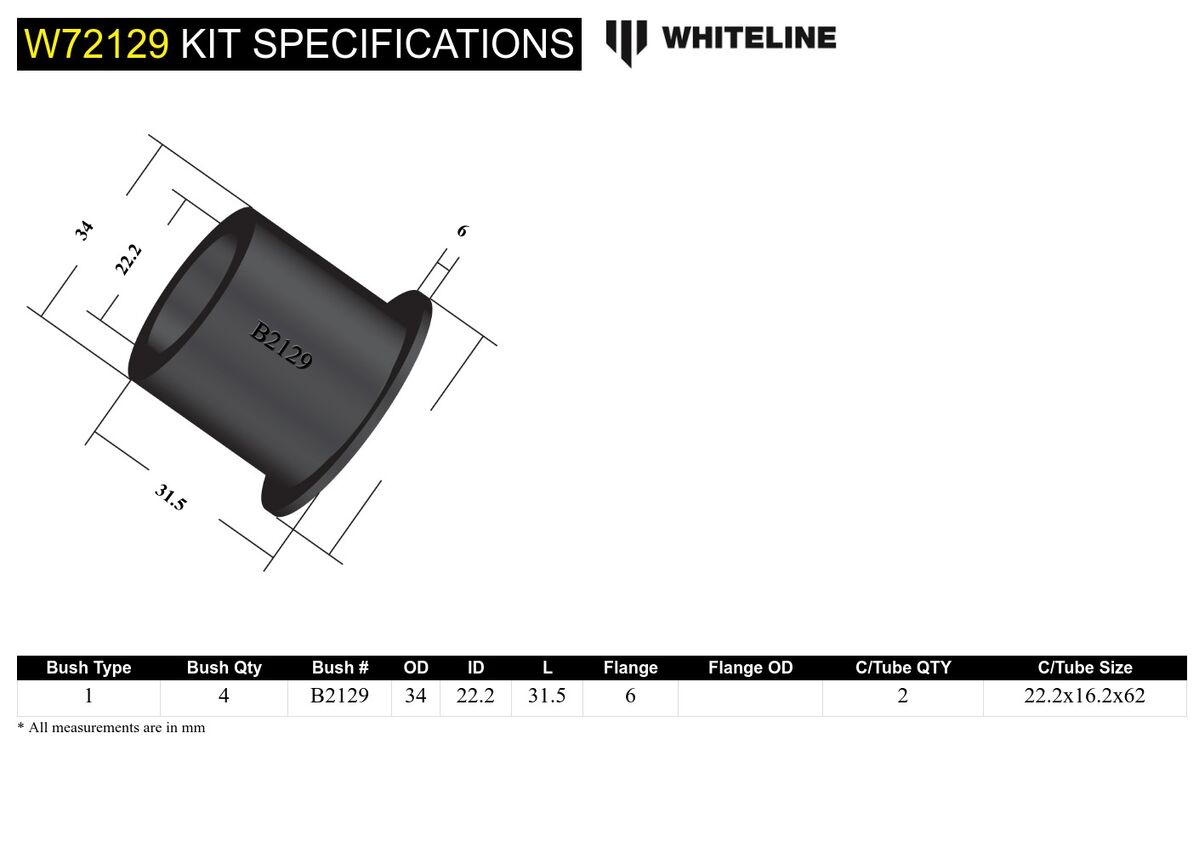

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 34 mm
ID (B) 22.2 mm
Length (C) 31.5 mm
Flange Thickness (D) 6 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x16.2x62 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 34
ID (B) 22.2
Length (C) 31.5
FL (D) 6
FLOD (E)
C/Tube Qty 2
C/Tube Size 22.2x16.2x62
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.232kg0.51lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW72129
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBoosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924356256
  • Lifetime Warranty
Brand Whiteline
SKU W72129
Unit Of Measure Kit
